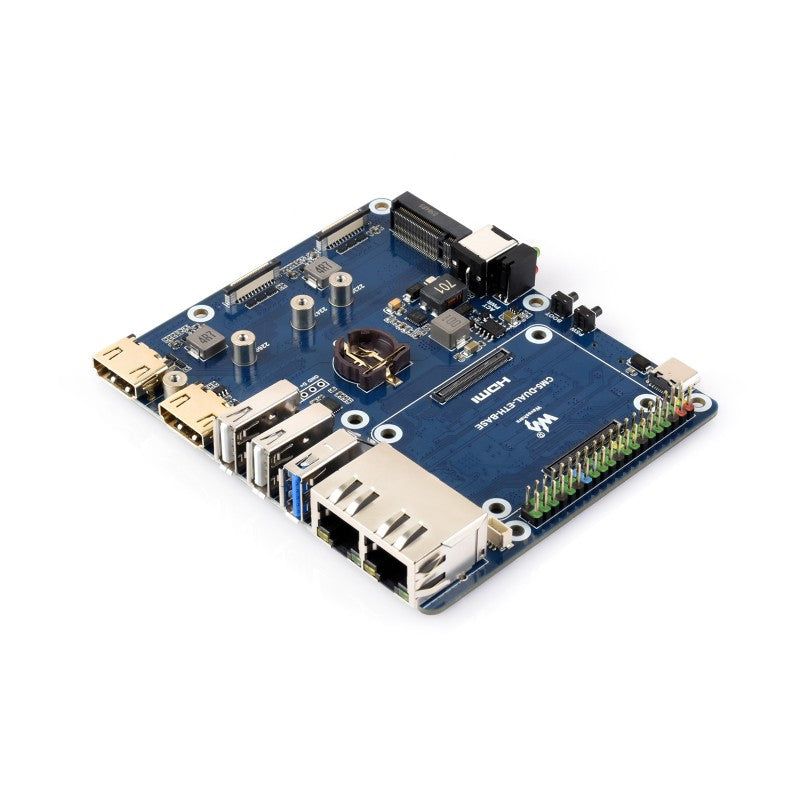

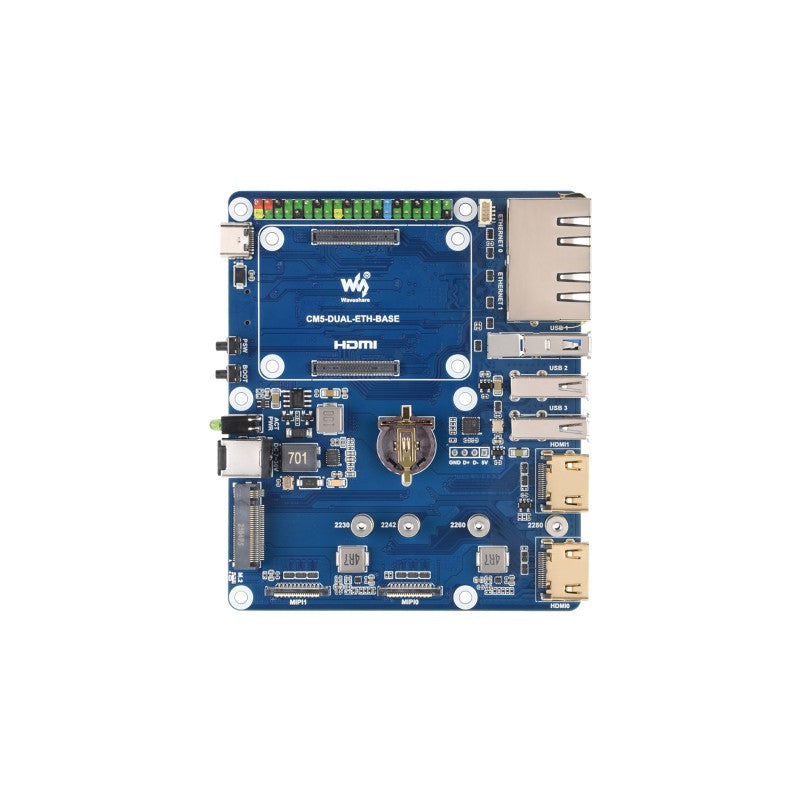

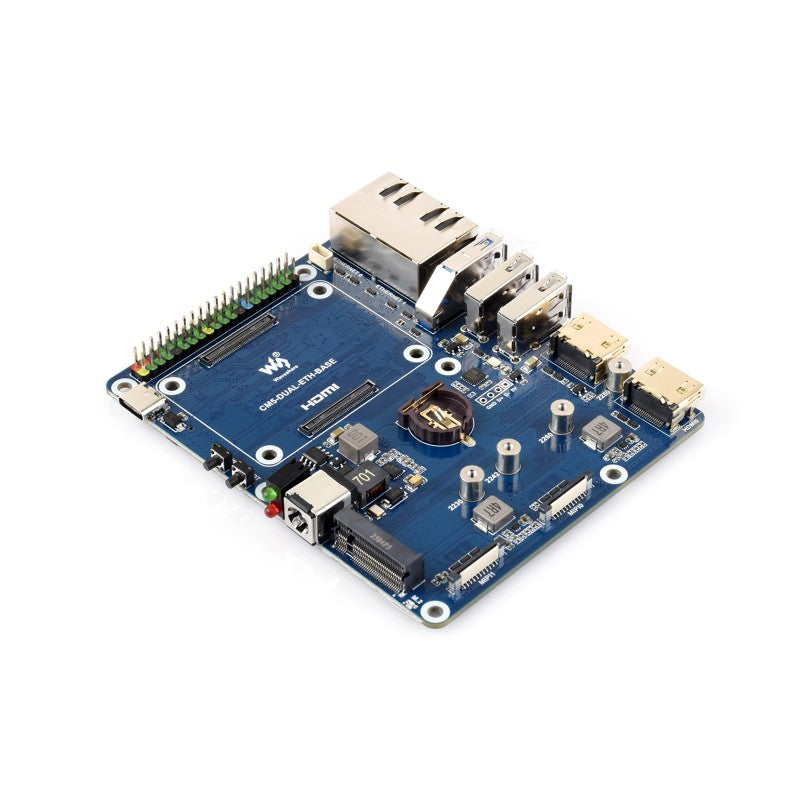

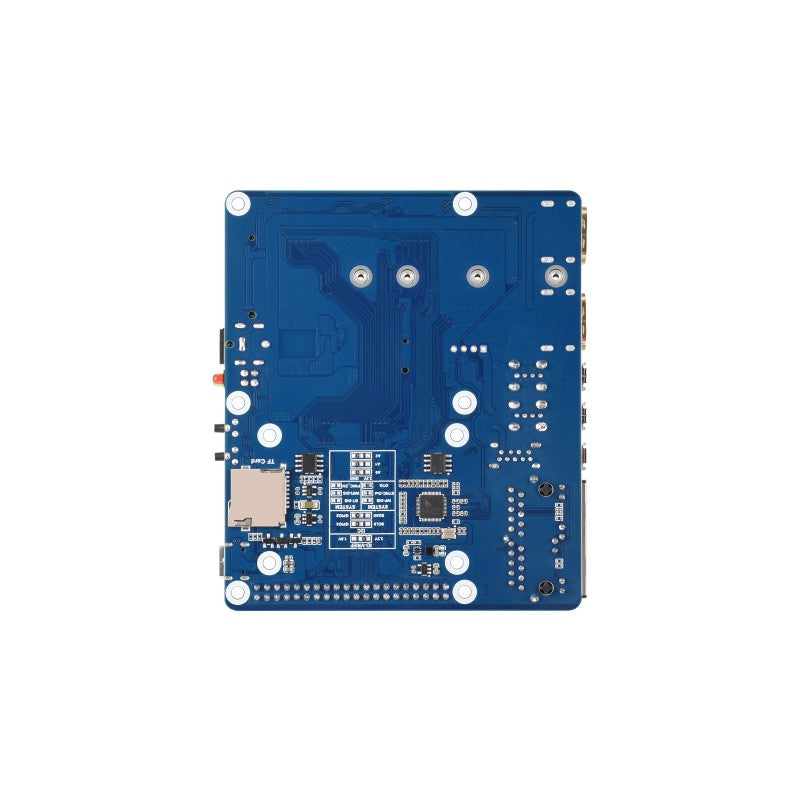

Designed for Raspberry Pi Compute Module 5
Ā
| CM5 SOCKET | Suitable for all variants of Compute Module 5 | |
| NETWORKING | Ethernet | 1000M Ethernet RJ45 port |
| Ethernet | 2500M Ethernet RJ45 port | |
| CONNECTOR | GPIO | Raspberry Pi 40PIN GPIO Header |
| USB | USB 3.2 | USB 3.2 Gen1 Ć1 |
| USB 2.0 | USB 2.0 Ć2 | |
| MIPI | Interface | 4-lane MIPI interface Ć2 (22PIN 0.5mm FFC connector) |
| VIDEO | HDMI | HDMI port Ć2, supports dual 4K display output |
| M.2 | Expansion | M.2 M KEY (PCIe Gen2 / Gen3 Ć1) |
| STORAGE | TF Card | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| FAN HEADER | Cooling | 5V 4PIN JST-SH PWM fan connector |
| OTHERS | Components | Onboard EEPROM and encryption chip |
| POWER INPUT | Voltage Range | 7V ~ 36V wide voltage range |
| DIMENSIONS | Base Board | 109.0 Ć 91.5 (mm) |
| Enclosure | 114.6 Ć 91.5 Ć 32.9 (mm) | |
Ā
Standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite / eMMC series module
* for reference only, please refer to the package content for detailed part list
Ā
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the package content for detailed part list
Ā
Ā
* Only supports the NVMe Protocol Solid State Drives.
Ā
Features multiple interfaces including ETH / MIPI / HDMI / Micro SD / USB / M.2 B KEY / M KEY , for easy to use
Ā
Ā
Suitable for Raspberry Pi applications in remote communications or other industrial situations
* for reference only, the display and camera module are not included, please purchase separately if needed
Ā
Ā
WIKI:Ā www.waveshare.com/wiki/CM5-DUAL-ETH-BASE
Ā
Weight: 0.08 kg
CM5-DUAL-ETH-BASE x1
Screws pack x1
