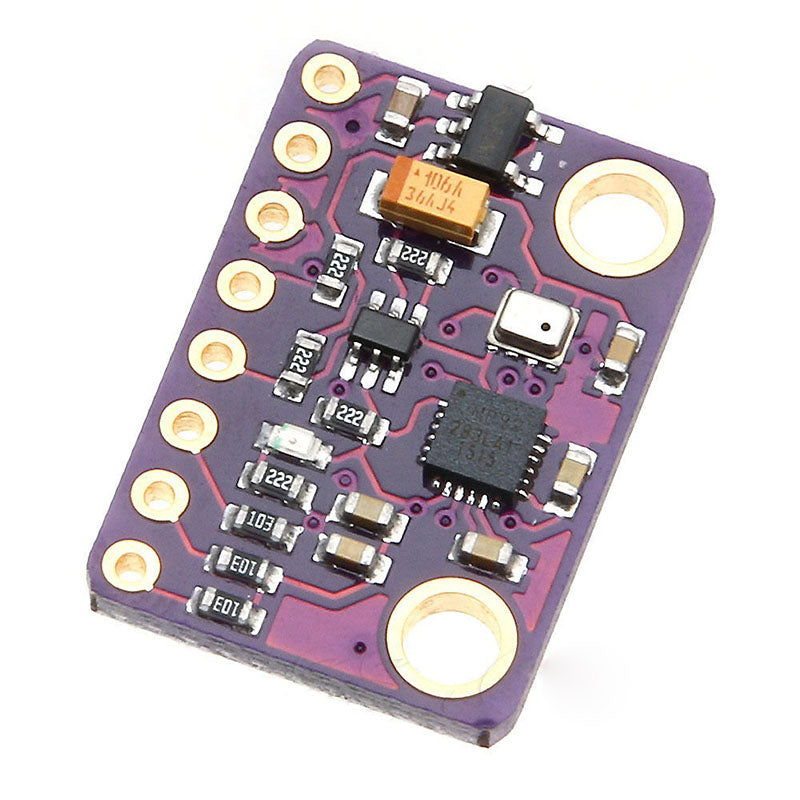

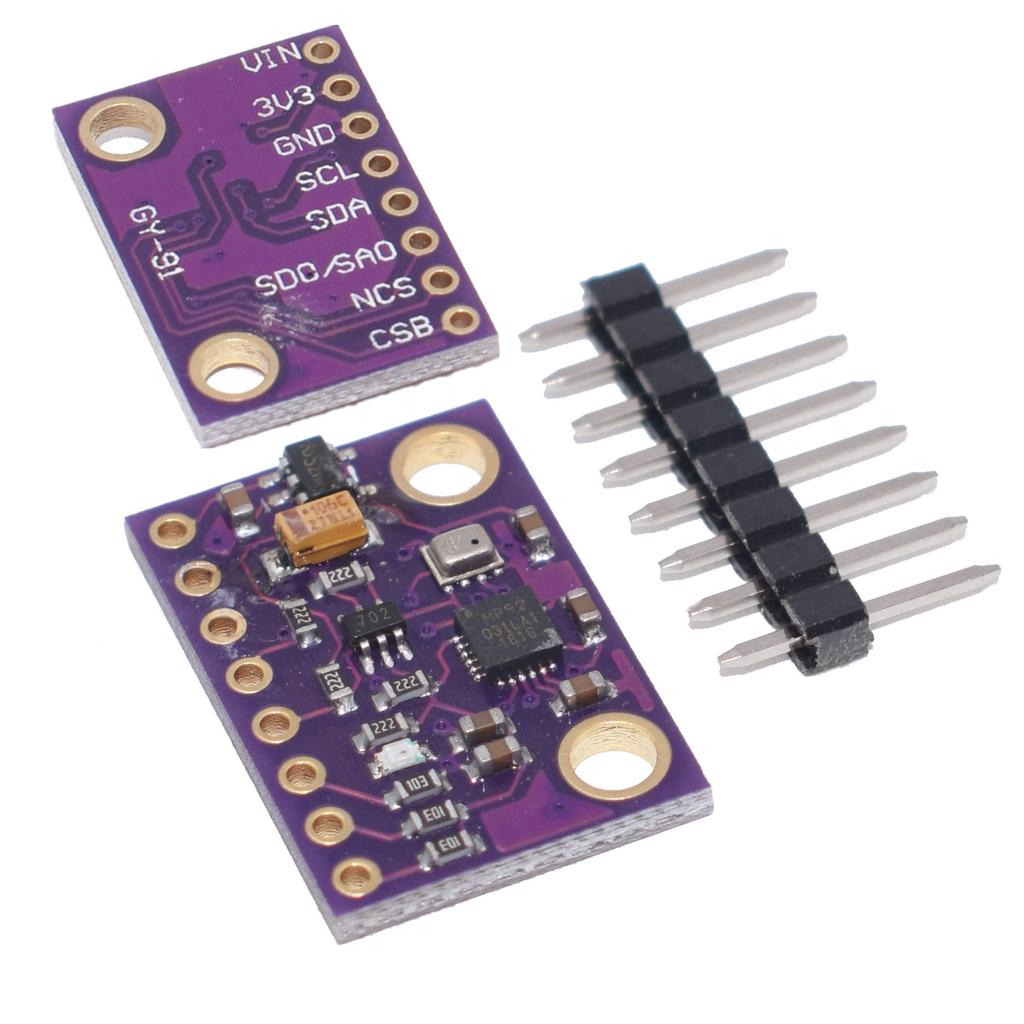

GY-91 10 DOF IMU MPU-9250 with BMP280

SKU: ELC1106

₹ 1,799.99

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

GY-91 10 DOF IMU MPU-9250 with BMP280₹ 1,799.99

Ask AI about this product

Open in ChatGPT Open in Claude

Description

This module uses a combination of Single-chip MPU-9250 with a built-in 3-axis Gyroscope, 3-axis Accelerometer, and Digital Compass combined with an improved barometric pressure sensor - BMP280.

The MPU-9250 is the company's second-generation 9-axis Motion Tracking device for smartphones, tablets, wearable sensors, and other consumer markets.

Specifications

Sensor Chips: MPU-9250 + BMP280
Interface: standard IIC / SPI communications protocol
Operating Voltage range: 3.0V – 5.0V (on-board low dropout regulator)
Module size 14.3mm * 20.5mm (More compact than GY-80)
Resolution: 16bit AD converter, 16-bit data output
Gyroscopes range: ± 250, 500, 1000, 2000 ° / s
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Field range: ± 4800uT
Pressure range: 300-1100hPa
2.54mm pitch

What interfaces does the module support for data transfer?

It supports standard IIC and SPI interfaces for data transfer.

What sensors are included on the board?

It integrates MPU-9250 with BMP280 providing a 9 axis motion sensor with a 3 axis gyroscope, 3 axis accelerometer, digital compass and barometric pressure sensor with 16 bit data output.

What are the measurement ranges for gyroscope, accelerometer, magnetic field and pressure?

Gyro ranges: 250, 500, 1000, 2000 deg per second. Accelerometer ranges: 2, 4, 8, 16 g. Magnetic field range: 4800 uT. Pressure range: 300 to 1100 hPa.

What are the physical dimensions and pin pitch of the module?

The module size is 14.3 mm by 20.5 mm and it uses a 2.54 mm pitch.

What are the power requirements and on board power features?

Operating voltage range is 3.0 to 5.0 V and the board includes an on-board low dropout regulator.
