High Precision Industrial Robot Arm with Planetary Stepper Motors

SKU: RBA1017-No

₹ 77,099.99 ₹ 89,995.00

Out of stock

Select variant

No End-Factor
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
High Precision Industrial Robot Arm with Planetary Stepper MotorsNo End-Factor₹ 77,099.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

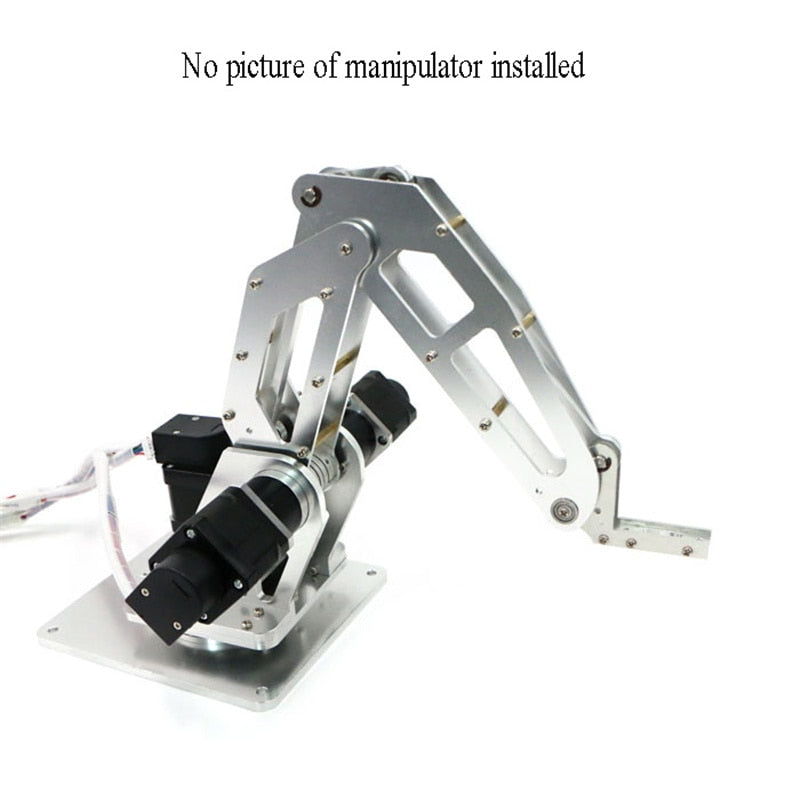

This is a high precision Industrial Robot Arm with 500g load capacity. This desktop robot arm only weighs 3.6 Kgs, and has planetary stepper motors with high precision optical encoders, that enable unprecedented accuracy of movement.

The on-board controller provides reverse voltage protection, overcurrent protection, short-circuit protection, and CAN operation. With 4-way LV8731V stepper motor driver, you can expand the robot arms capabilities as per your need.

Features:

Mechanical arm

  • All aluminum alloy manipulator body
  • MS36 planetary deceleration stepper motor
  • 500 line AB phase photoelectric encoder
  • Aluminum alloy coupling
  • Bearings

Electric control

  • STM32F405RG controller (integrated IMU, CAN, etc.)
  • Four-channel LV8731V drive module
  • power transfer
  • OLED display
  • 12V5A Power Supply
  • Data Cable

Manipulator

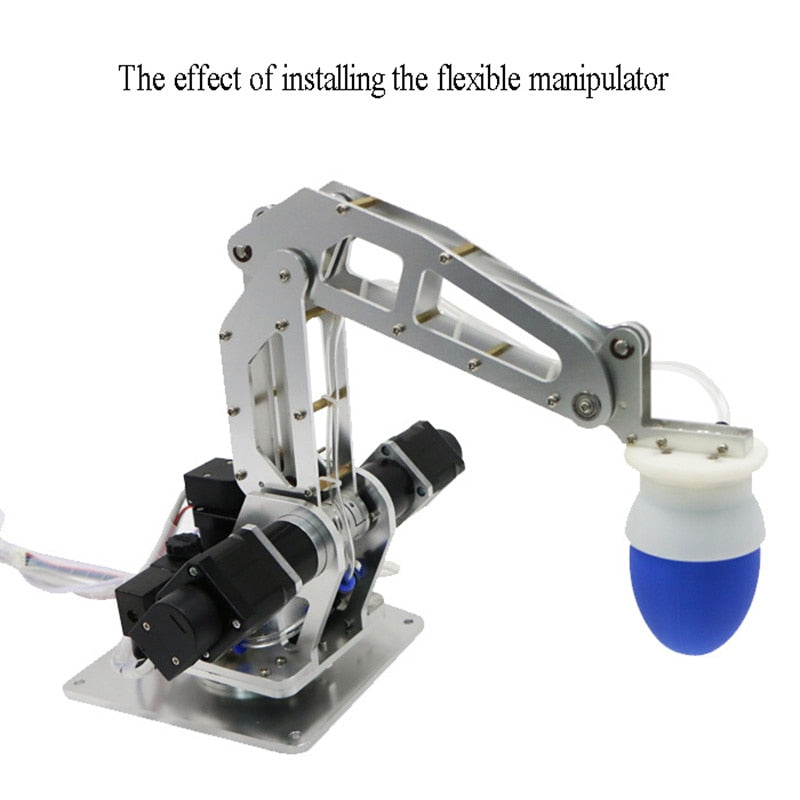

  • Flexible manipulator

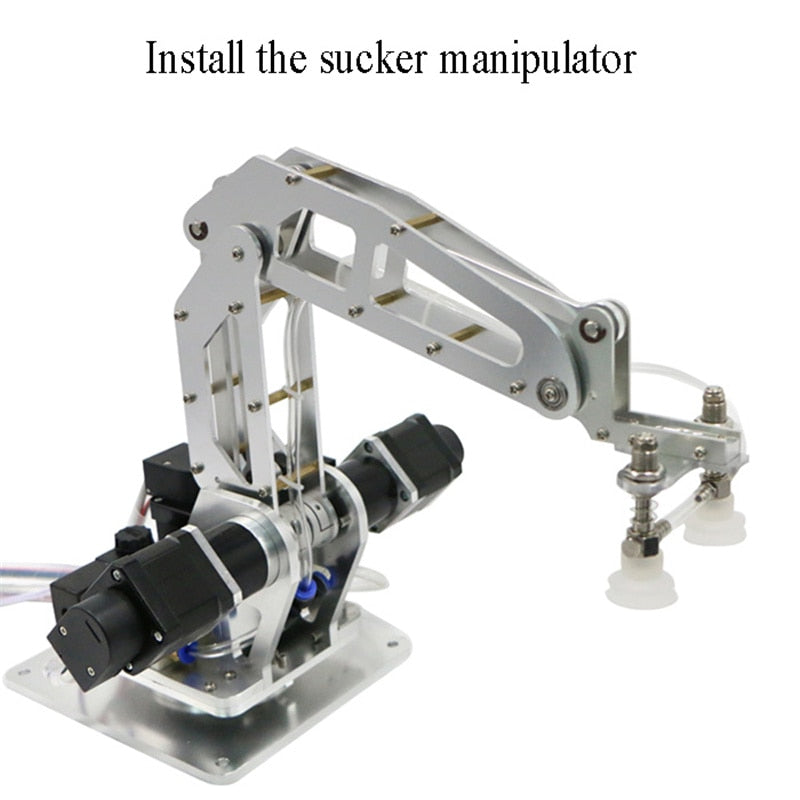

  • or double suction disc manipulator

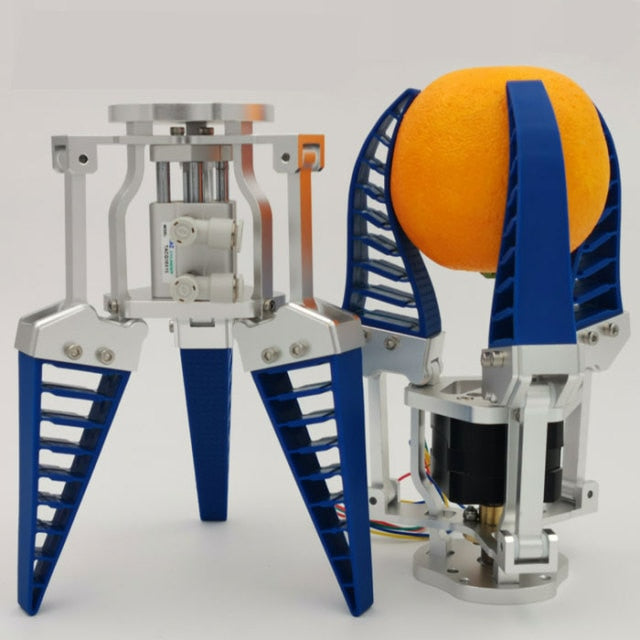

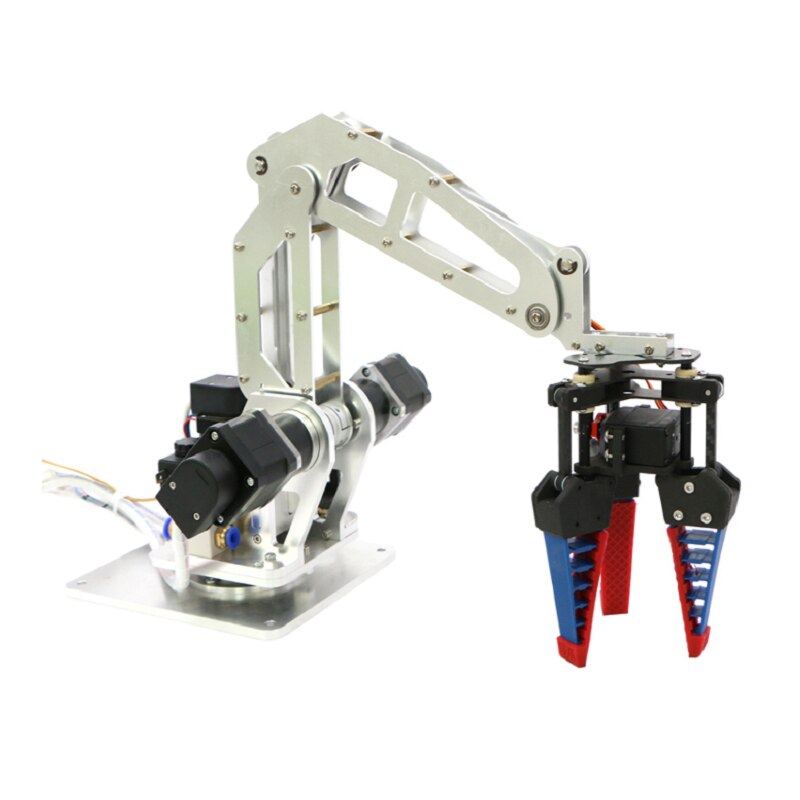

  • or three finger manipulator
  • air pump
  • Electromagnetic valve
  • Connectors
What is the load capacity and weight of this robot arm?
It supports a 500 g payload and weighs 3.6 kg, making it a compact desktop unit.
What protections does the on board controller provide?
The on board controller provides reverse voltage protection, overcurrent protection, short circuit protection, and CAN operation.
What motor and drive configuration does it use and can it be expanded?
It uses the MS36 planetary deceleration stepper motor with high precision optical encoders and a four channel LV8731V drive module. This architecture supports expanding the arms capabilities as needed.
What end effectors are available or compatible with this arm?
It can be fitted with flexible manipulator, a double suction disc manipulator, or three finger manipulator air pump.
What power and communication options are provided?
A 12 V 5 A power supply is included. The unit offers CAN communication, an OLED display, a data cable, and an on board STM32F405RG controller with an integrated IMU.
A
Admin
Welcome to the discussion thread for High Precision Industrial Robot Arm with Planetary Stepper Motors
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

DIY (Do-It-Yourself) → DIY Kits → Robot Arms →

Category: View similar items (High)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

This is a high precision Industrial Robot Arm with 500g load capacity. This desktop robot arm only weighs 3.6 Kgs, and has planetary stepper motors with high precision optical encoders, that enable unprecedented accuracy of movement.

The on-board controller provides reverse voltage protection, overcurrent protection, short-circuit protection, and CAN operation. With 4-way LV8731V stepper motor driver, you can expand the robot arms capabilities as per your need.

Features:

Mechanical arm

  • All aluminum alloy manipulator body
  • MS36 planetary deceleration stepper motor
  • 500 line AB phase photoelectric encoder
  • Aluminum alloy coupling
  • Bearings

Electric control

  • STM32F405RG controller (integrated IMU, CAN, etc.)
  • Four-channel LV8731V drive module
  • power transfer
  • OLED display
  • 12V5A Power Supply
  • Data Cable

Manipulator

  • Flexible manipulator
  • or double suction disc manipulator
  • or three finger manipulator
  • air pump
  • Electromagnetic valve
  • Connectors
FAQ
What is the load capacity and weight of this robot arm?
It supports a 500 g payload and weighs 3.6 kg, making it a compact desktop unit.
What protections does the on board controller provide?
The on board controller provides reverse voltage protection, overcurrent protection, short circuit protection, and CAN operation.
What motor and drive configuration does it use and can it be expanded?
It uses the MS36 planetary deceleration stepper motor with high precision optical encoders and a four channel LV8731V drive module. This architecture supports expanding the arms capabilities as needed.
What end effectors are available or compatible with this arm?
It can be fitted with flexible manipulator, a double suction disc manipulator, or three finger manipulator air pump.
What power and communication options are provided?
A 12 V 5 A power supply is included. The unit offers CAN communication, an OLED display, a data cable, and an on board STM32F405RG controller with an integrated IMU.
