Hiwonder Digital Servo Tester Controller with Voltage Display

Hiwonder Digital Servo Tester Controller with Voltage Display

Specifications - Size: 2*1.4inch / 50*35mm, Weight: 0.03 lb / 13.5g

Versatile Applications - It can be applied in grippers, AI robots, robot arms and more.

Controller Accuracy - Its accuracy can reach up to 0.09° (with a 1us PWM limit for minimal changes)

Voltage display - This controller operates on a voltage range of 5-8.4V and features a real-time voltage display.

Support PWM Servo Support - It supports a wide variety of PWM servos, allowing manual angle adjustments without the need for coding.

Manual Adjustment - The controller has 2-channel PWM digital servo port, adopts high-accuracy potentiometer for precise servo control and provides servo reset function.

Excellent After-sale Service - We value all customer's shopping experiences. If you come across any issues with our products, please don't hesitate to reach out to us, and we will try our best to help within 24 hours. Order today with peace of mind!

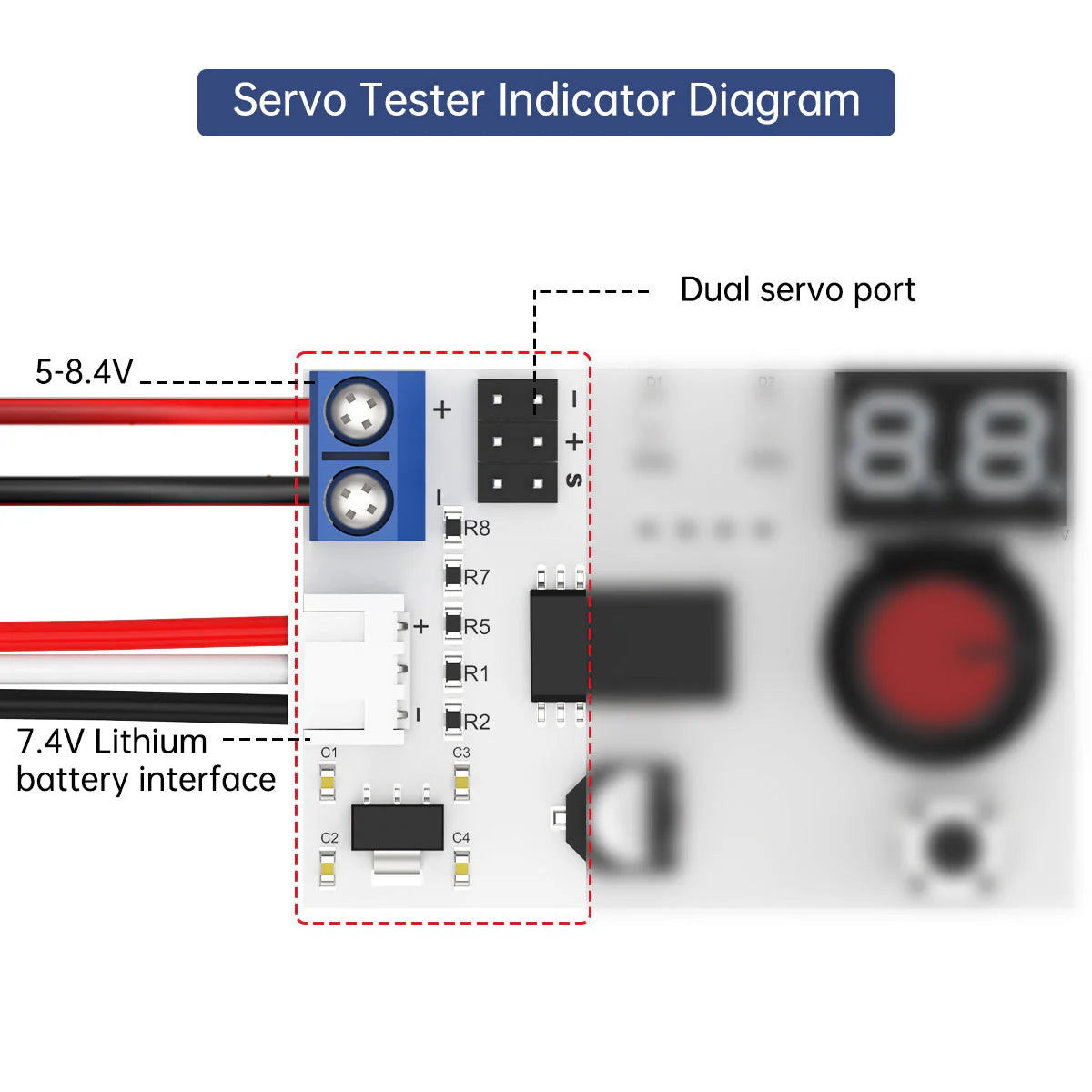

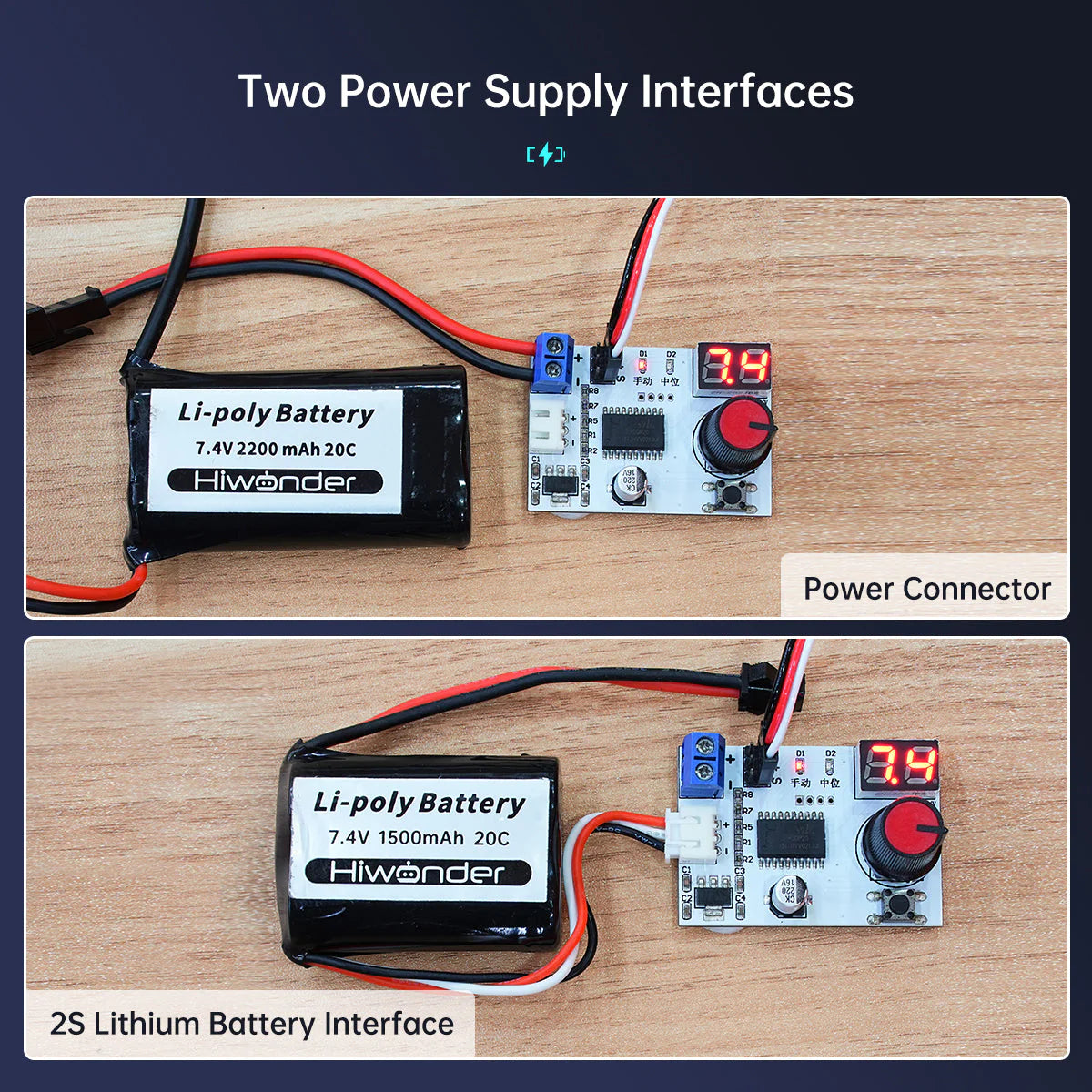

Two Power Supply Interfaces

Product Parameters

> High-precision potentiometer, which can control the servo in real-time.

> On-board voltage display module, which can monitor the voltage of power supply equipment in real-time.

> High-resolution PWM signal, on-board 8-bit MCU, can make the control accuracy higher.

> Support manual servo controller/servo reset back to center, switch by reset buttons under servo control knob.

> Servo controller accuracy: 0.09° (refers to the PWM limit small change value of 1us).

> Two power supply equipment link interfaces. (5-8.4V)

> On-board 2-channel PWM digital servo interface, which can be controlled by a high-precision potentiometer.

> Size: 2*1.4inch / 50*35mm, Weight: 0.03 lb / 13.5g

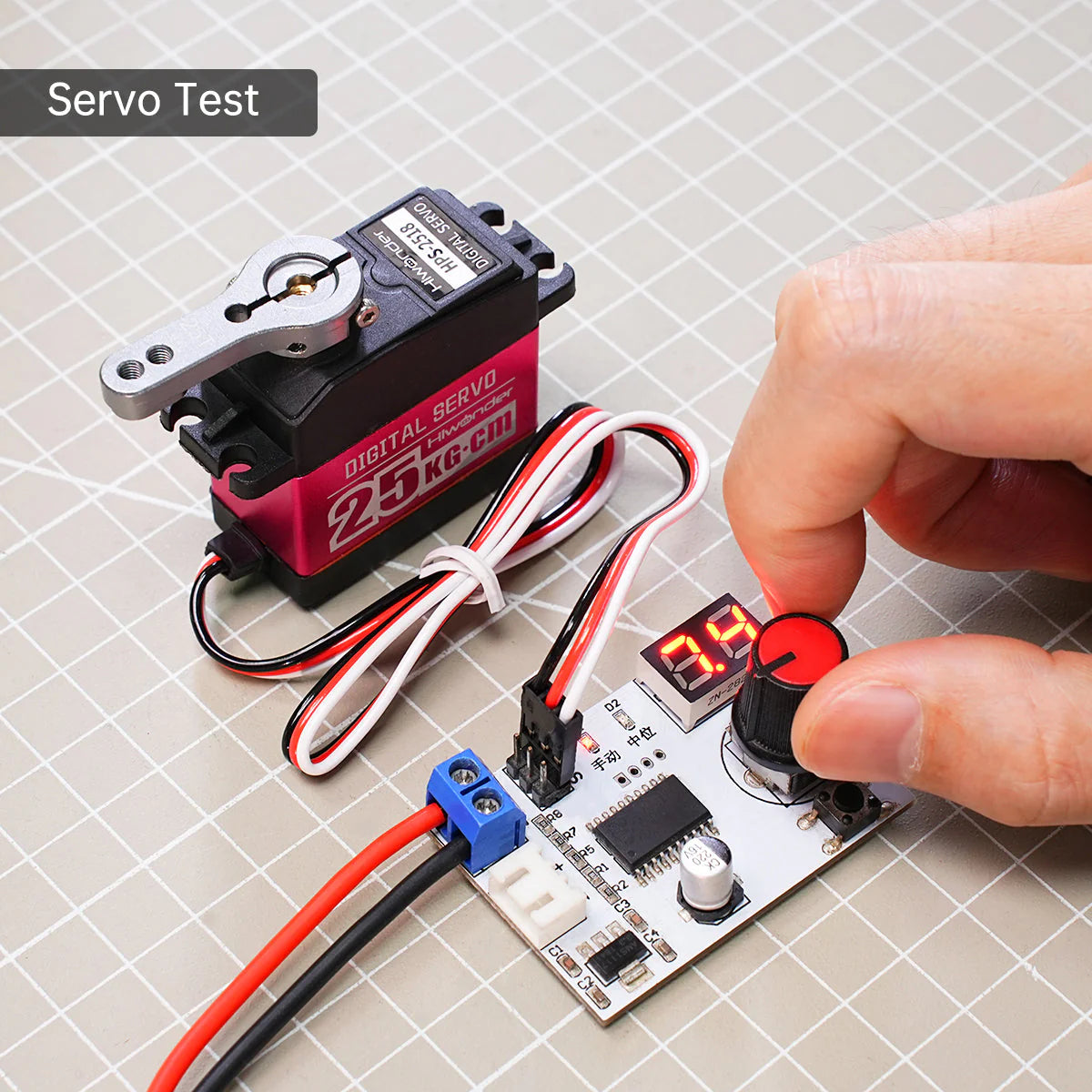

How to Use:

> Supply power to the controller, the voltage can be 5~8.4V, the specific voltage is subject to the actual use of the servo's rated voltage.

> The servo is plugged into the 3Pin servo port.

> The power-on default potentiometer control mode, the servo rotates synchronously when the knob is turned.

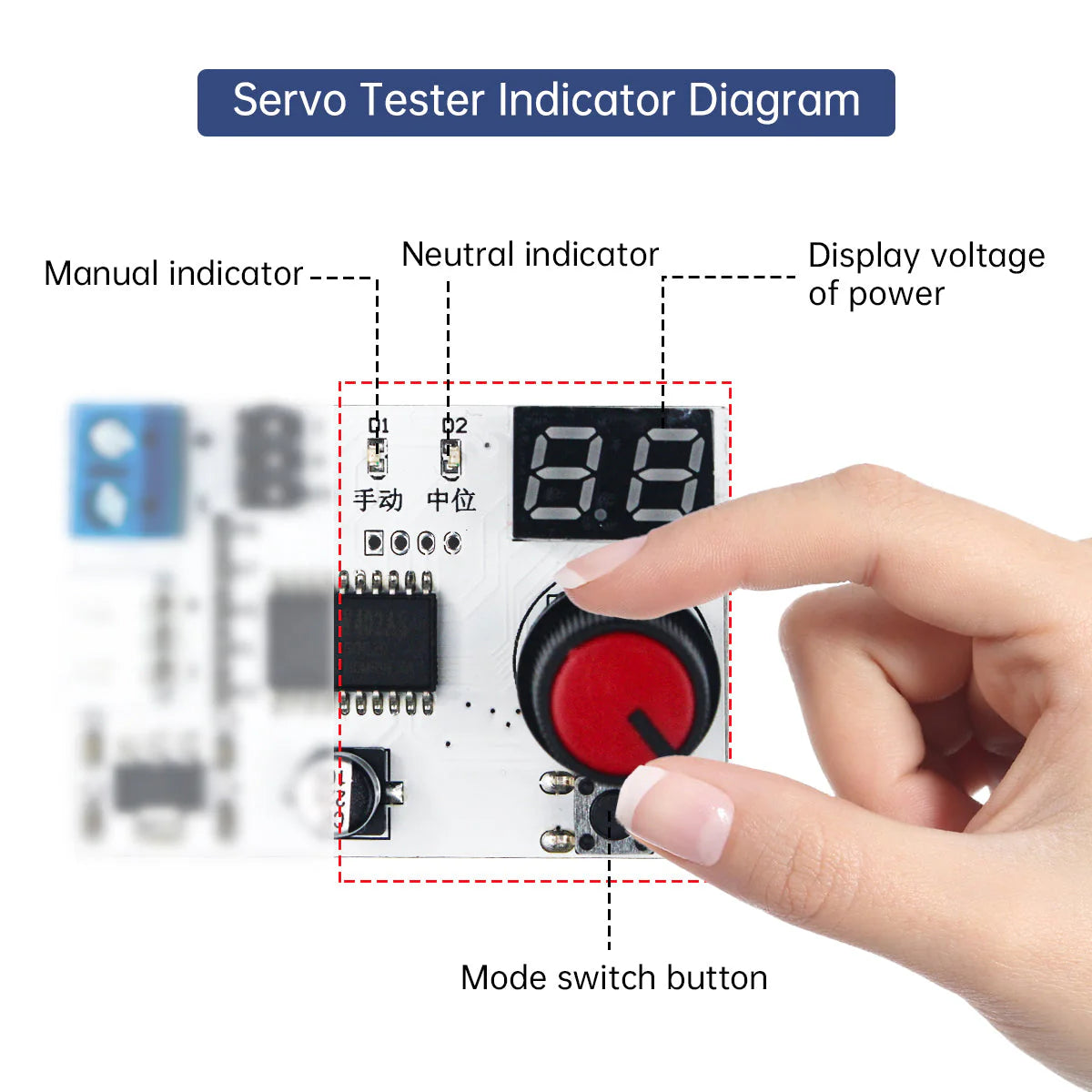

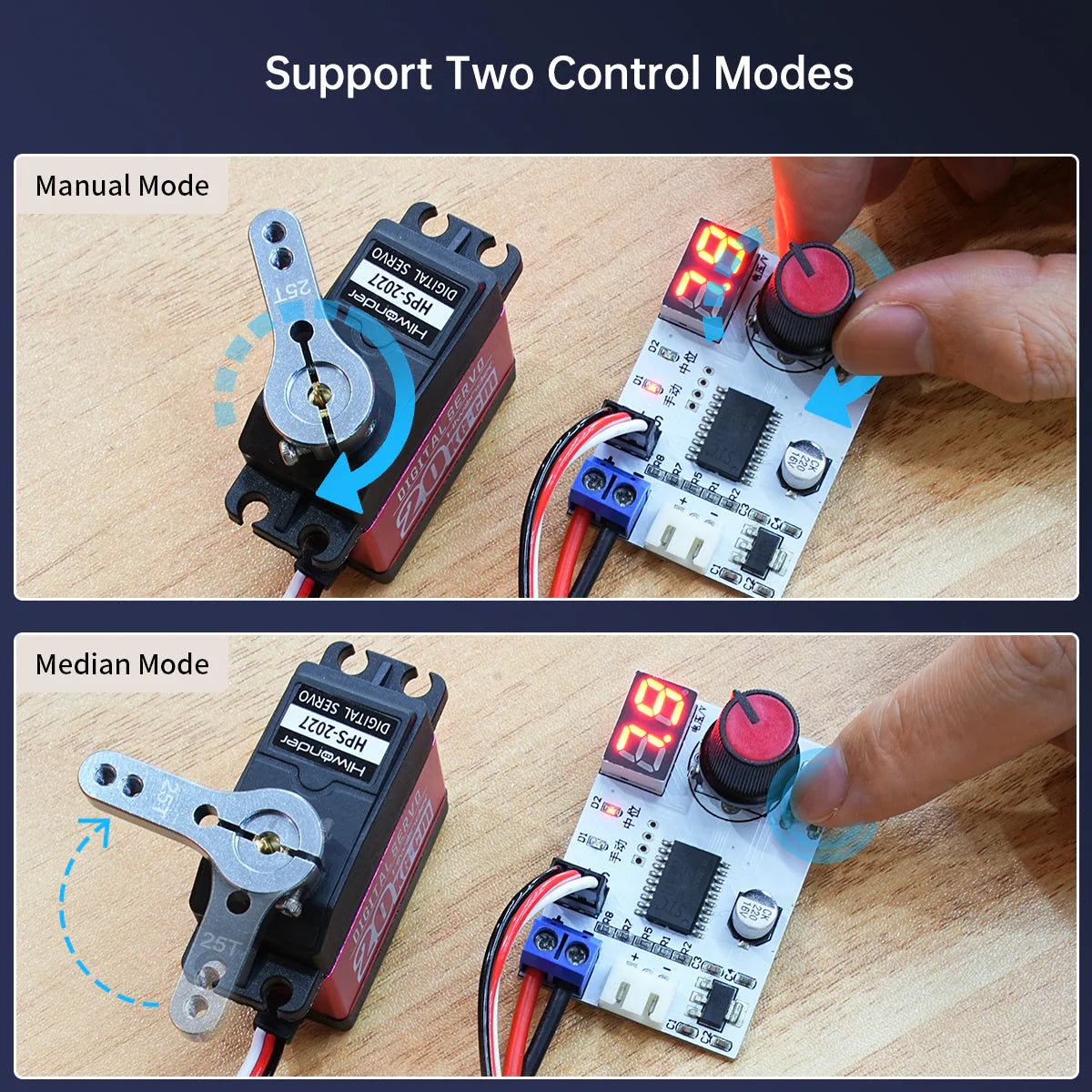

> The button below the knob can switch the mode, press respectively to
"Manual Mode": Knob control.
"Neutral Mode": Return to the center position.

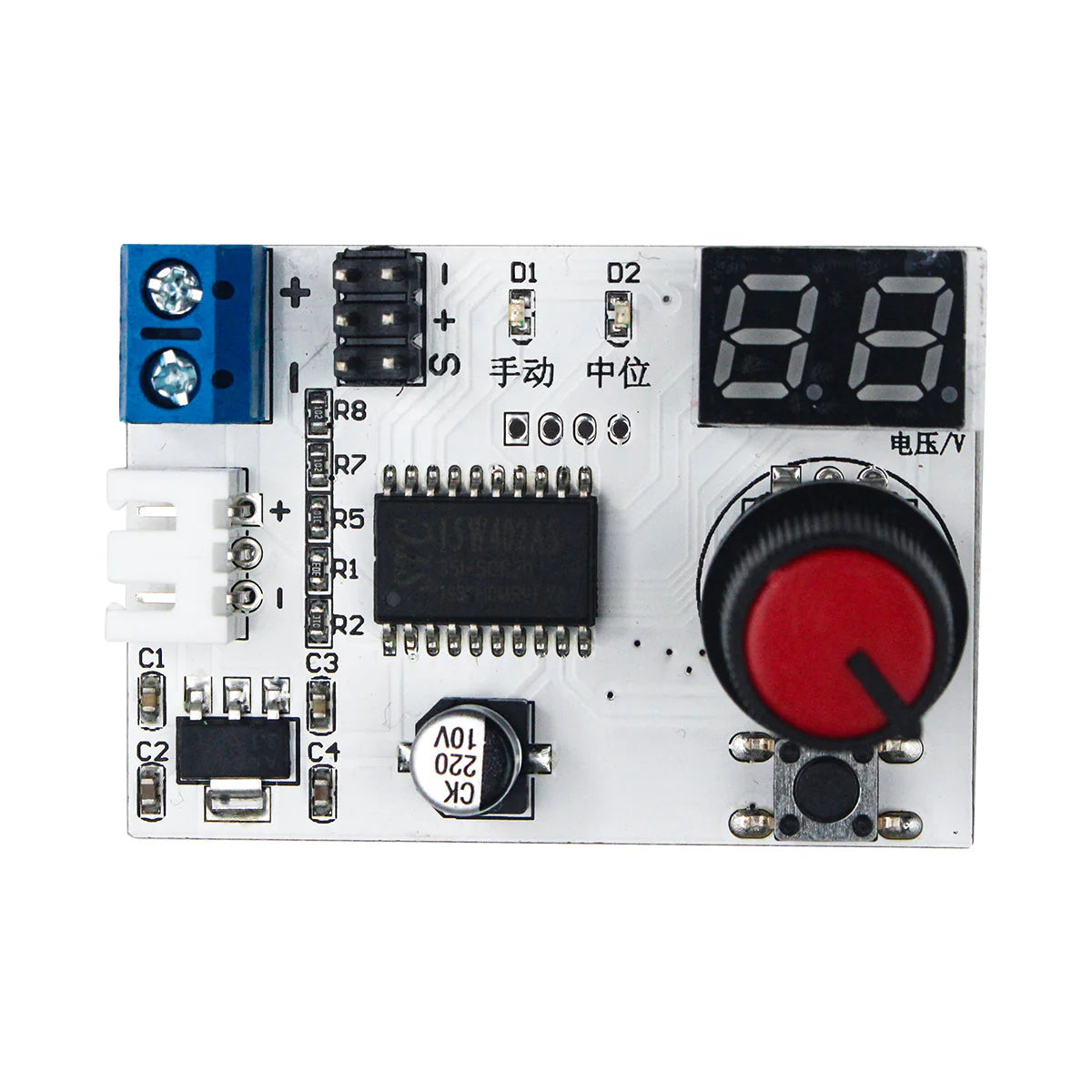

Information of Controller

"+" Positive Pole

"-" Negative Pole

"S" Signal Terminal

Manual Mode: Knob Control.

Neutral Mode: Return to Center Position.

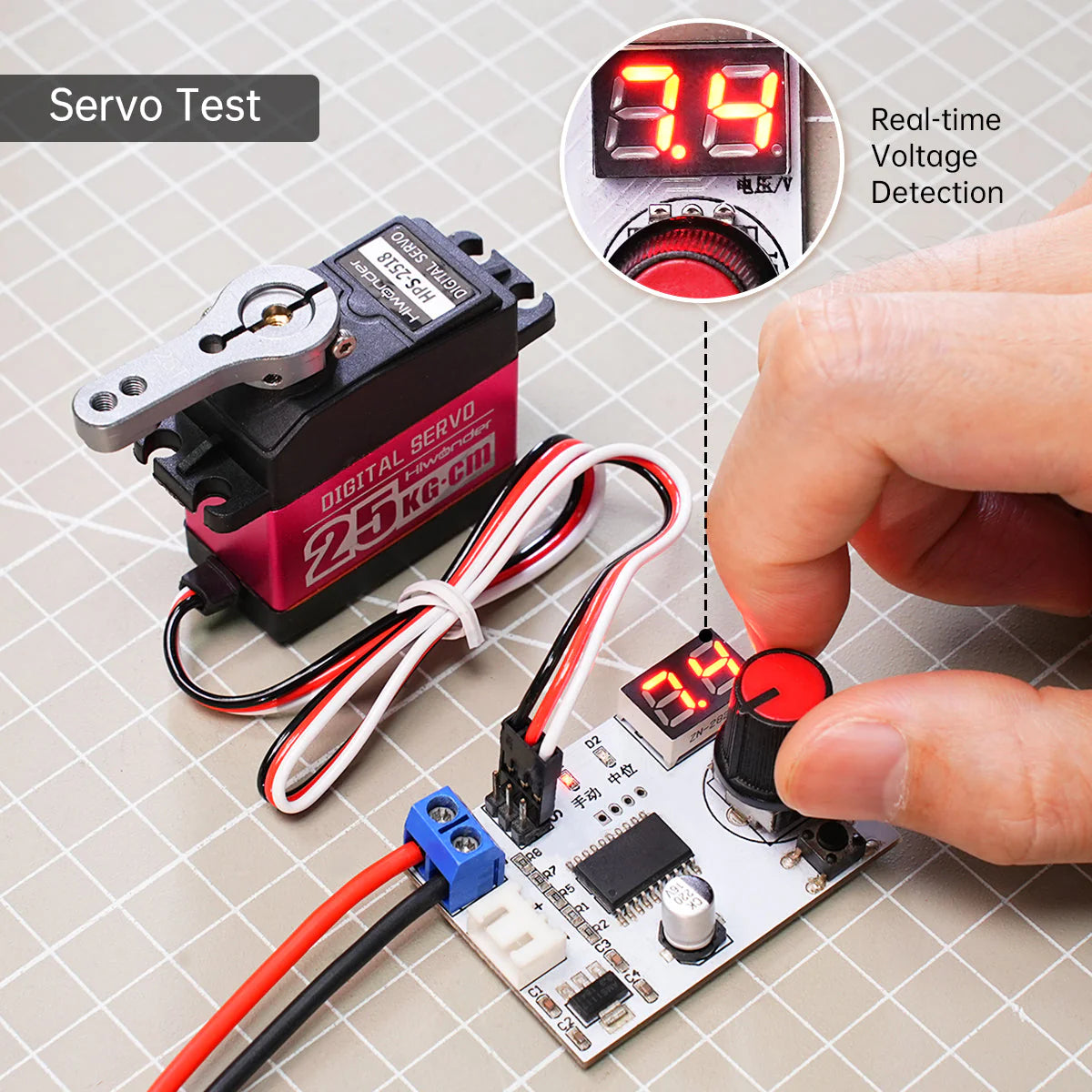

Voltage Real-time Monitoring Through the voltage display module, the voltage of the power supply equipment can be monitored in real time to prevent the voltage from being too low to continue to control and test the steering gear.	Manually Control the Servo Through the high-precision potentiometer, the angle synchronous rotation of the 2 steering gears can be controlled in real time.	Servo Return to Center Through the reset button, the angle of the 2-way servo can be reset to 90°.

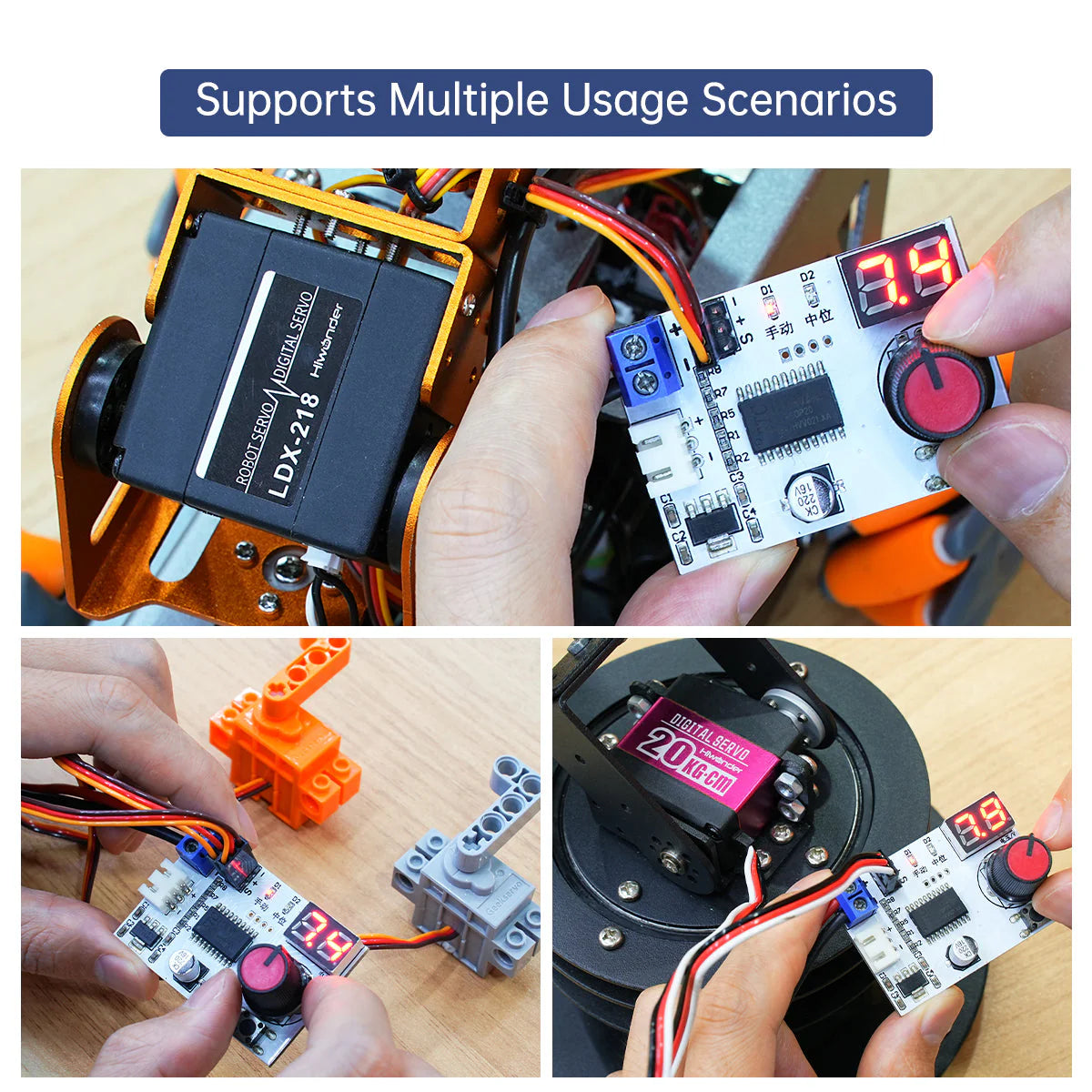

Robotic Arm Debugging	Claw Debugging	Servo Gimbal Debugging

Specifications
