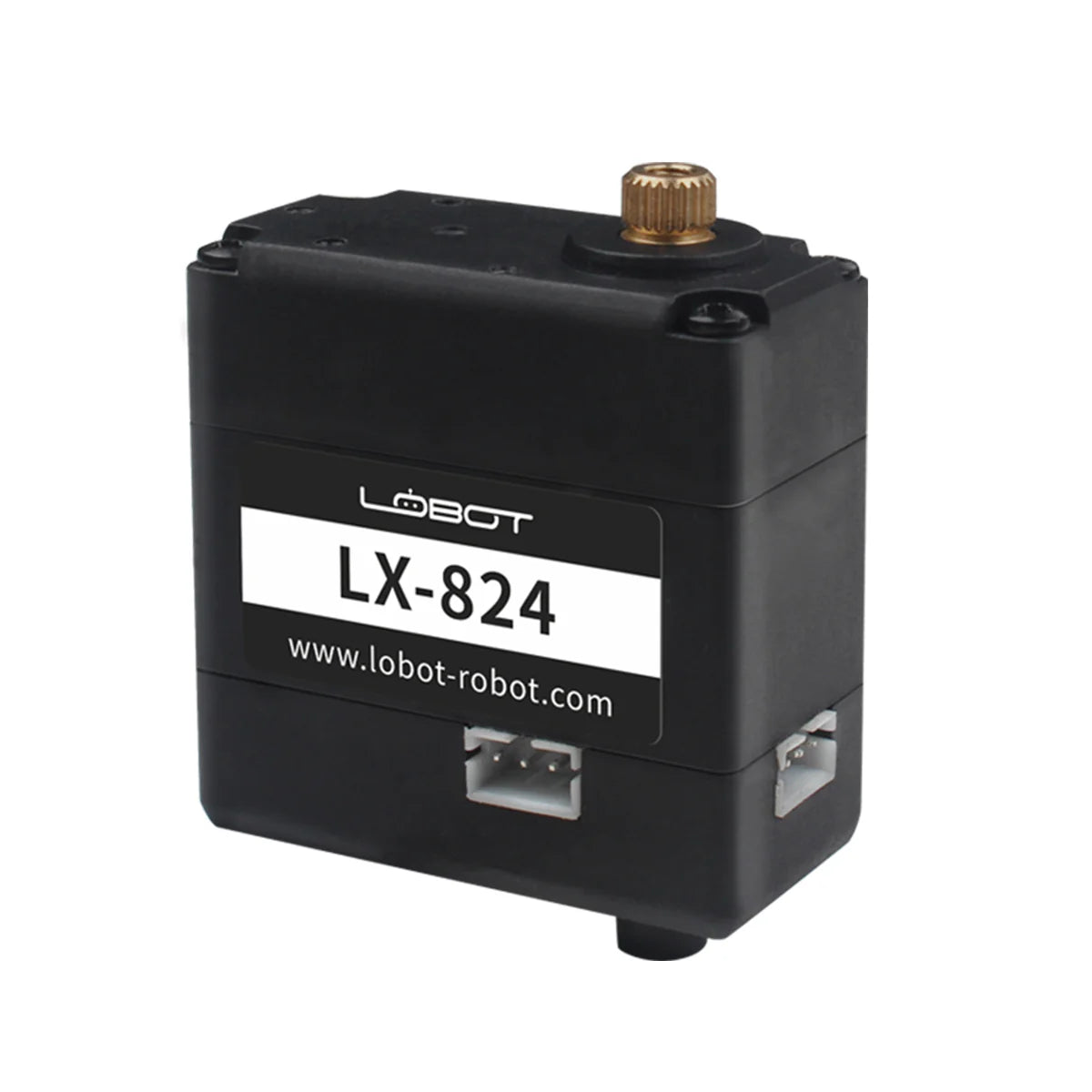

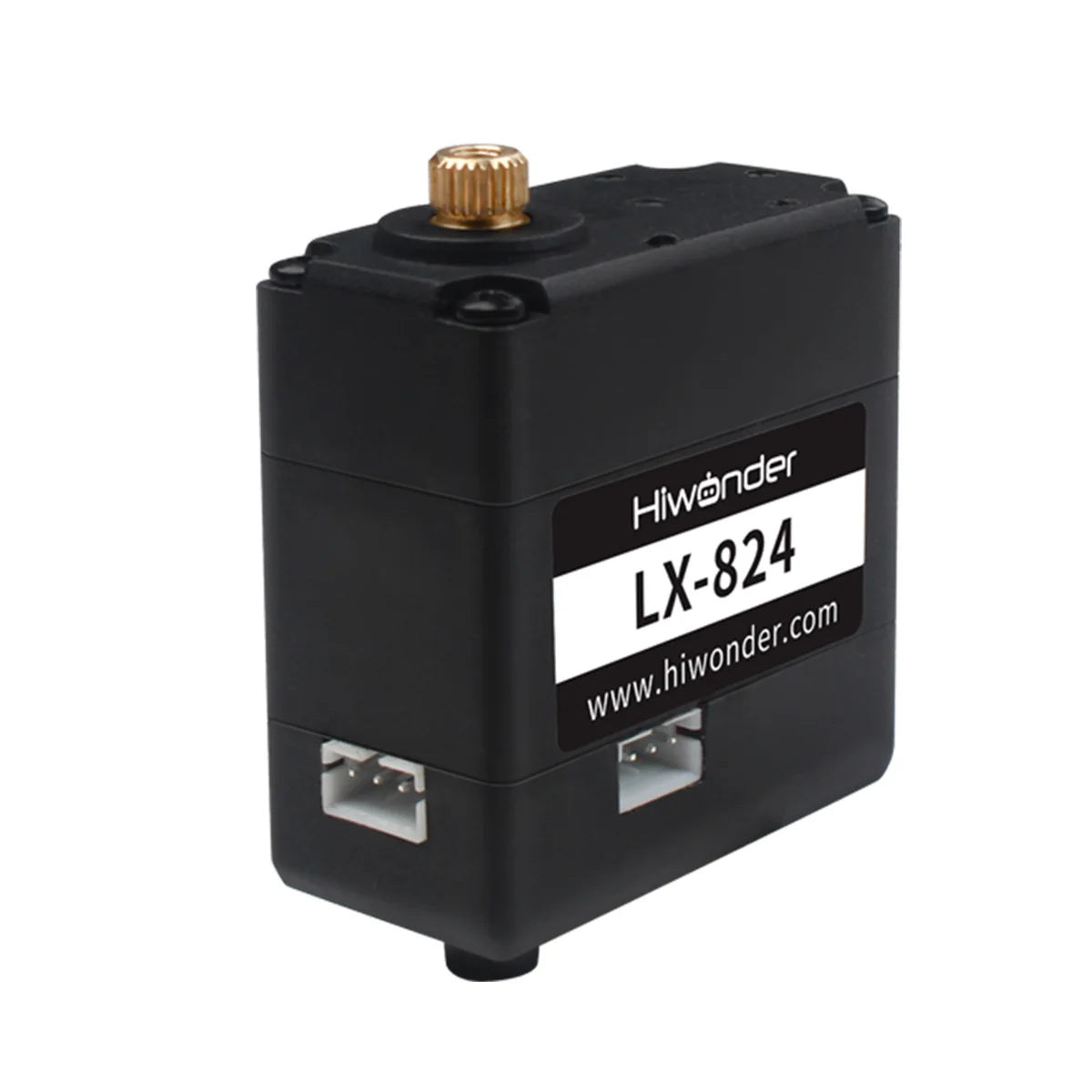

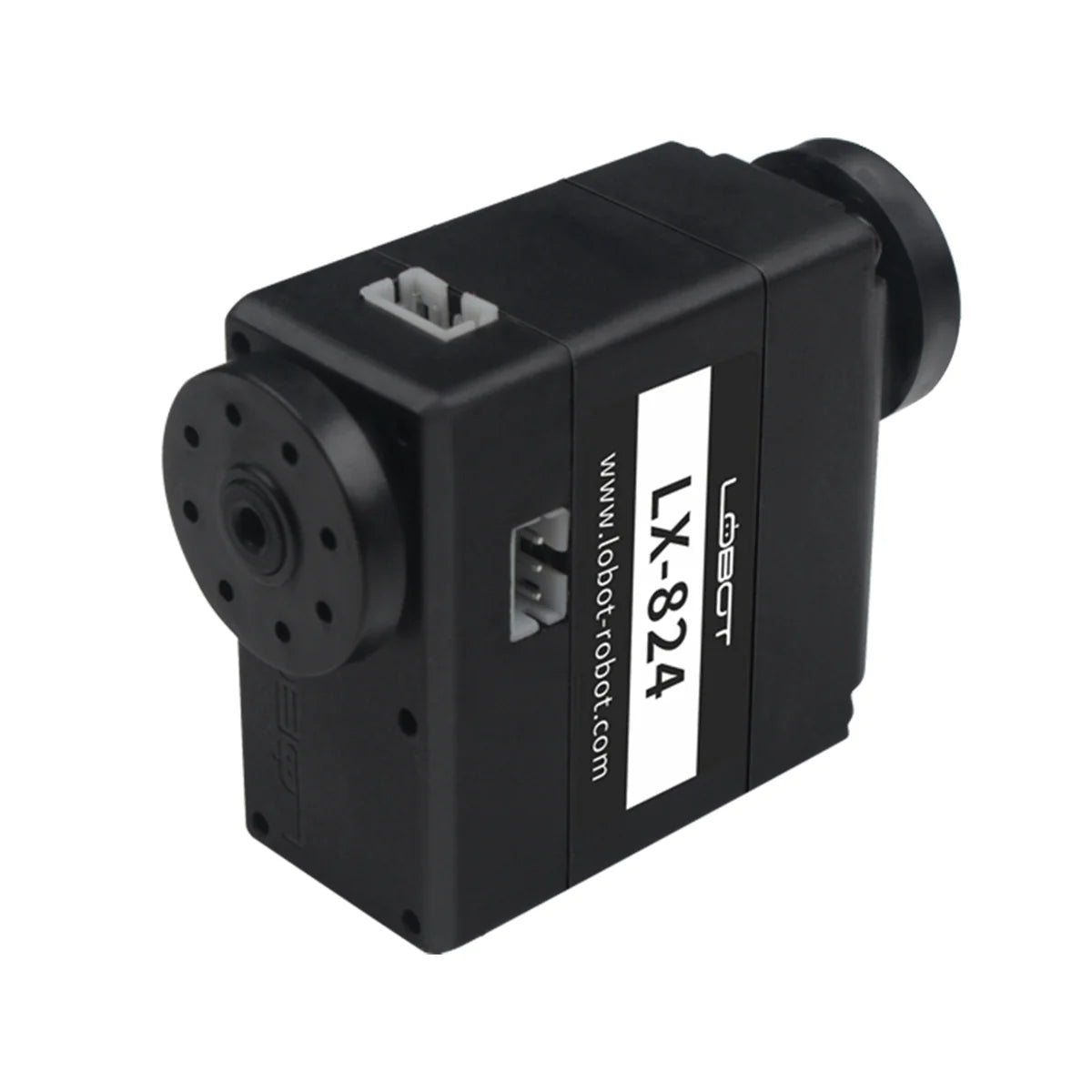

Hiwonder LX-824 servo/motor is a serial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection. LX-824 servo can be used in different bionic robot joints.
> Use serial bus servo connector to connect the servo one by one, beautify the looking and facilitate the wiring
> Support two working mode: Servo mode (rotation range: 0-240) and Gear motor mode (rotation range: 0-360)
> Equipped with position/temperature/voltage feedback, protect the servo from burning
> Use high-precision potentiometer to feedback the angle position
> Use metal gear to extend the service time
> 17KG large torque and dual ball bearing
Ā
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
Ā
 Serial Bus Servo Ā |
 High Accuracy Potentiometer Ā |
 Temperature/Voltage Feedback /RGB Indicator Ā |
 Two Operation Modes Ā |
 Metal Bearing Ā |
 Large Torque Ā |
 Fixed Double-shaft |
 Compatible with Various Frame |
 ID identification, Bus Communication |
Ā
|
|
 |
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.
Ā
|
|
|
 |
 |

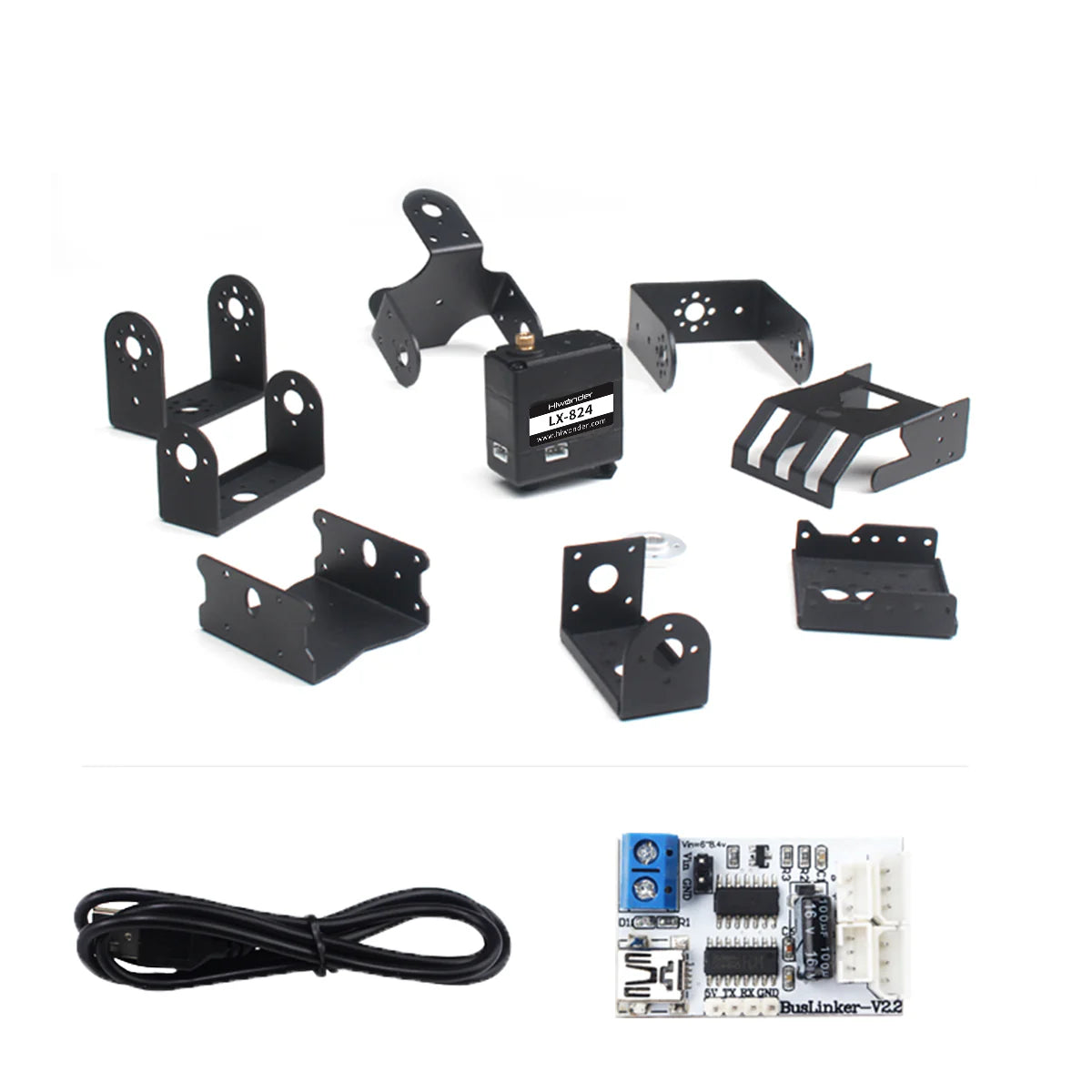

LX-824 servo combined with different types of frames can support your outstanding robot creativity!

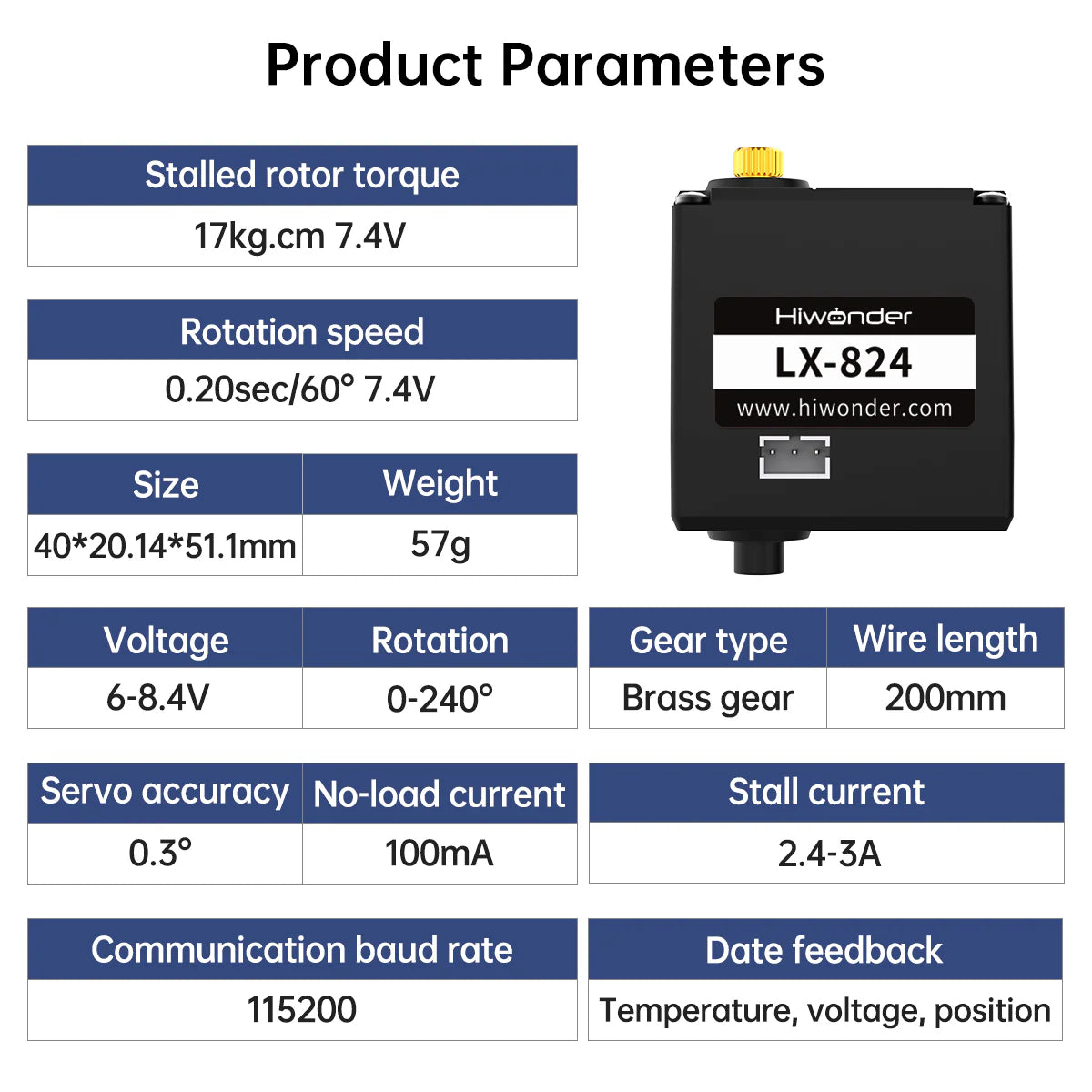

| Physical Specifications | |
|---|---|
| Weight | 57g (2.02oz) |

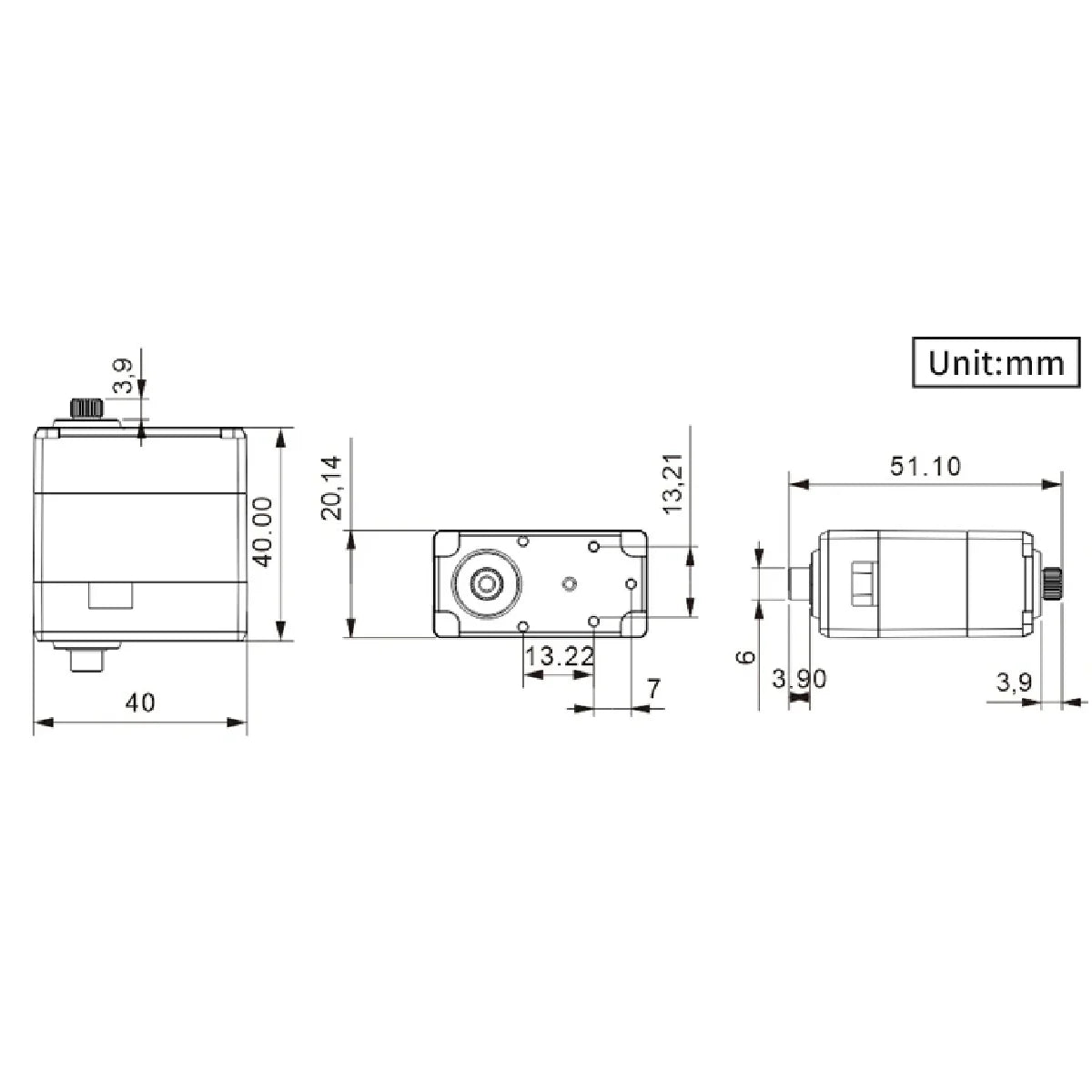

| Dimension | 40.00mm Ć 20.14mm Ć 51.10mm (1.57in Ć 0.8in Ć 2.02in) |
| Performance | |
| Speed | 0.20 sec/60Ā° (7.4V) |
| Accuracy | 0.3Ā° |
| Torque | 17 kgĀ·cm (236 ozĀ·in) @ 7.4V |
| Working Voltage | 6ā8.4V |
| Min Working Current | 1A |
| No-load Current | 100mA |
| Stall Current | 2.4~3A |
| Control & Communication | |
| Corner Range Control | 0~1000 (corresponds to 0Ā°~240Ā°) |
| Control Method | Serial Command |
| Baud Rate | 115200 |
| Servo ID | 0~253, user configurable (default: 1) |
| Features | |
| Data Feedback | Temperature, Voltage, Location |
| Settings | Data saved when powered off |
| Protections | Stall & Overheat Protection |
| Readback Support | Yes |
| Wiring & Accessories | |
| Wire | 20cm (7.9in) |

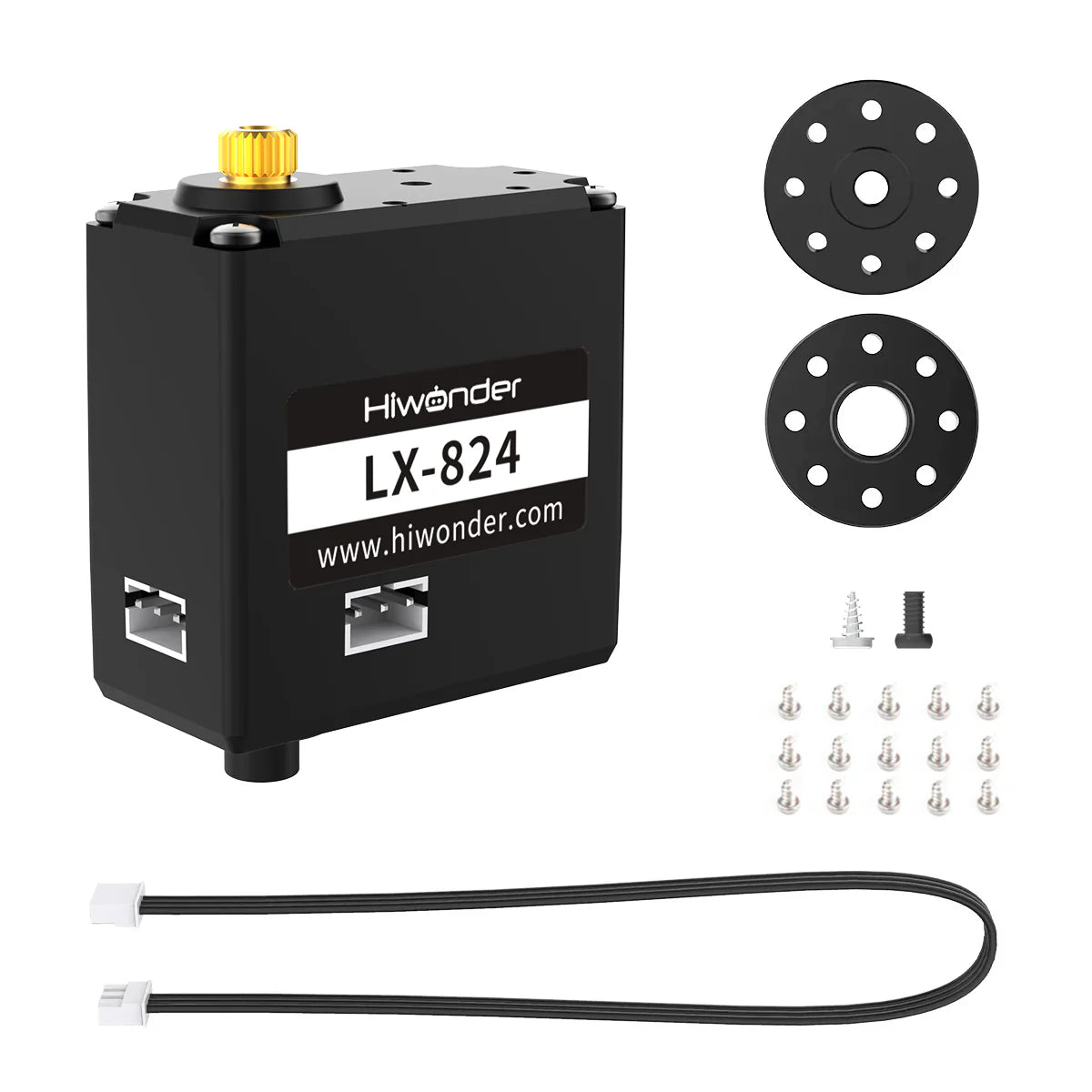

| Package Includes | 1Ć Bus Servo 1Ć 20cm Servo Wire 1Ć Primary Servo Horn (4mm / 0.157in) 1Ć Assistant Servo Horn (2mm / 0.078in) 15Ć M2Ć5 Self-Tapping Screws |
1* LX-824 serial bus servo
1* Main senvo horn
1* Assistant servo horn
1* Servo wire
2* Main assistant screw
15* Self tapping screw
Ā
Ā
Ā
