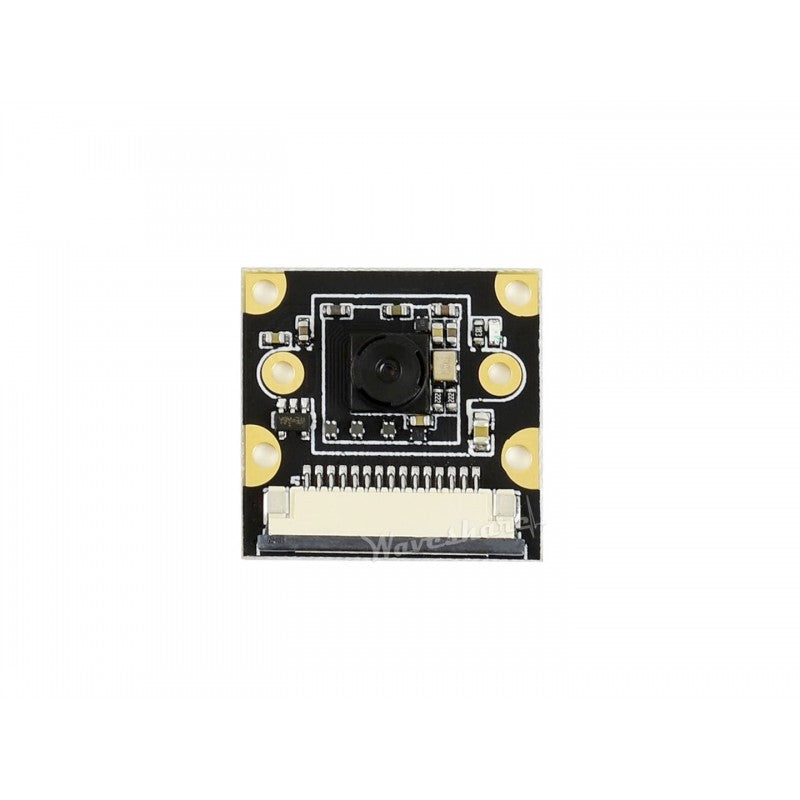

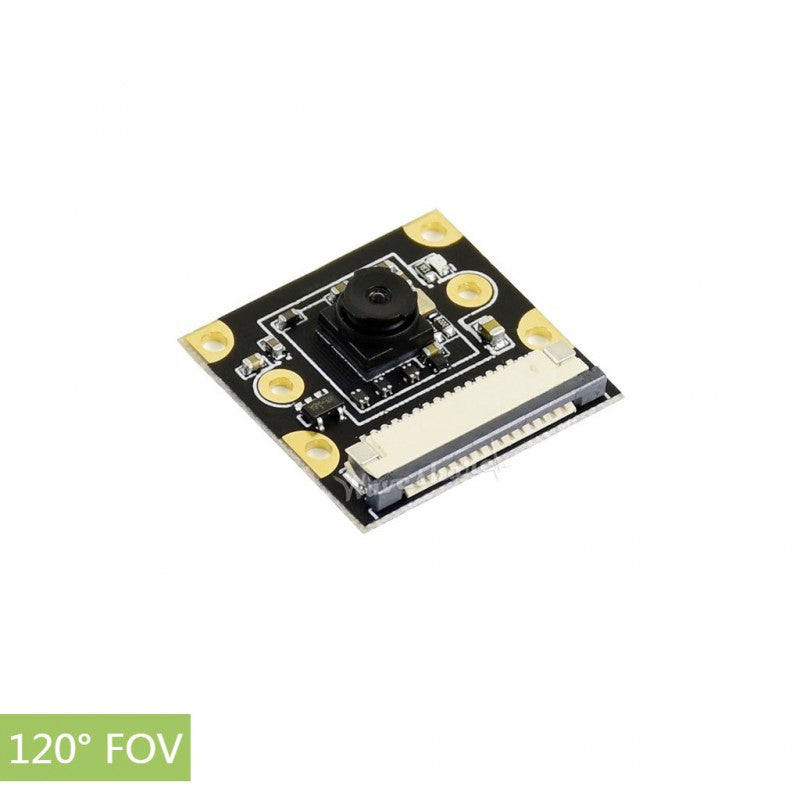

IMX219-120 Camera, For Jetson Nano, 8 Megapixels, 120° FOV
IMX219 Camera, 8 megapixels and 120 FOV. Compatible with Jetson nano. You can also use it with CM3/CM3+ expansion boards like the official Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board of Waveshare, and the StereoPi board.
Features
- Supports Compute Module CM3/3+/4, Jetson Nano, Jetson Xavier NX
- 8 Megapixels
- Sensor: IMX219
- Resolution: 3280 × 2464
- Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 1.79mm
- Angle of View (diagonal): 120 degree
- Distortion: <13.6%
- Lens dimensions: 6.5mm × 6.5mm

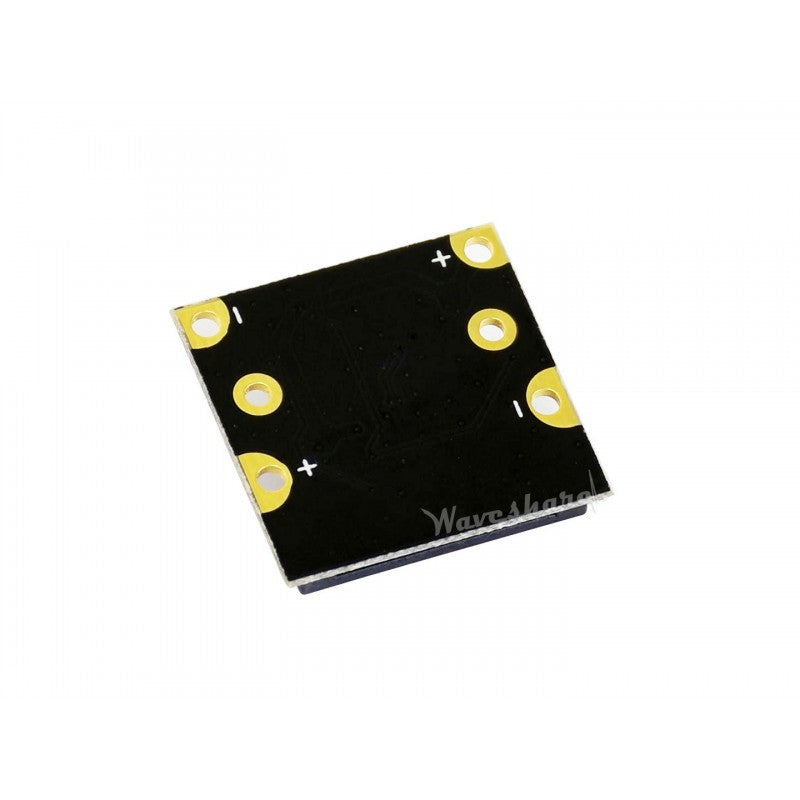

- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Dimension: 25mm × 24mm
- Operating Temperature: 0° - 60°
- Package Contains: IMX219-120 Camera x1

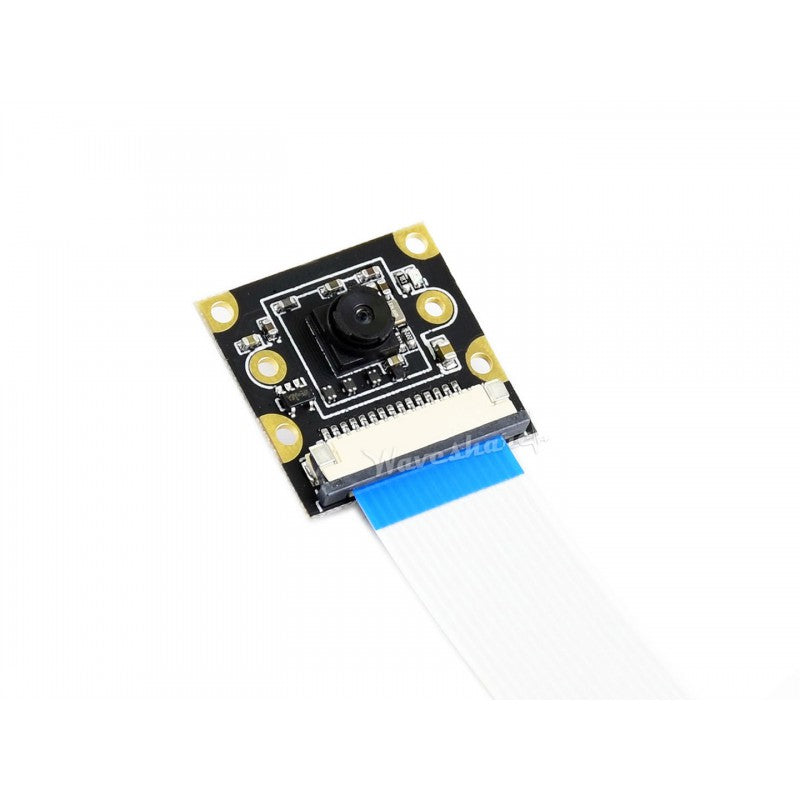

15-pin FFC (opposite sides contact) x1
Applications

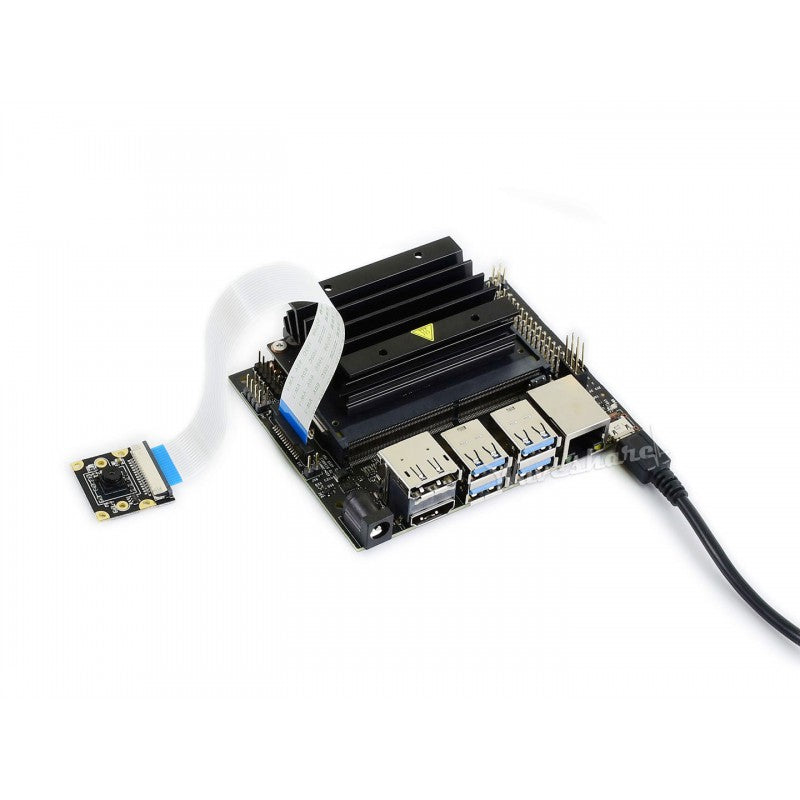

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:
- Face recognition
- Road mark detection
- License plate recognition
Development Resources
What devices is this camera compatible with?
It is compatible with Jetson Nano and CM3, CM3 plus, and CM4 modules, and can be used with Waveshare Compute Module IO boards and StereoPi.
What is the image resolution and field of view?
The camera uses an 8 megapixel sensor with 3280 by 2464 resolution and a 120 degree diagonal field of view.
How is the camera powered and mounted?
The module provides a 3.3V power output and has 4 screw holes for mounting, with a compact 25 by 24 mm footprint.
What are the lens specifications?
Lens size is 1/4 inch CMOS, aperture F2.0, focal length 1.79 mm, and distortion is less than 13.6 percent.
What practical applications is this camera suited for?
Suitable for AI projects such as face recognition, road mark detection, and license plate recognition when used with Jetson Nano or compatible compute modules.
