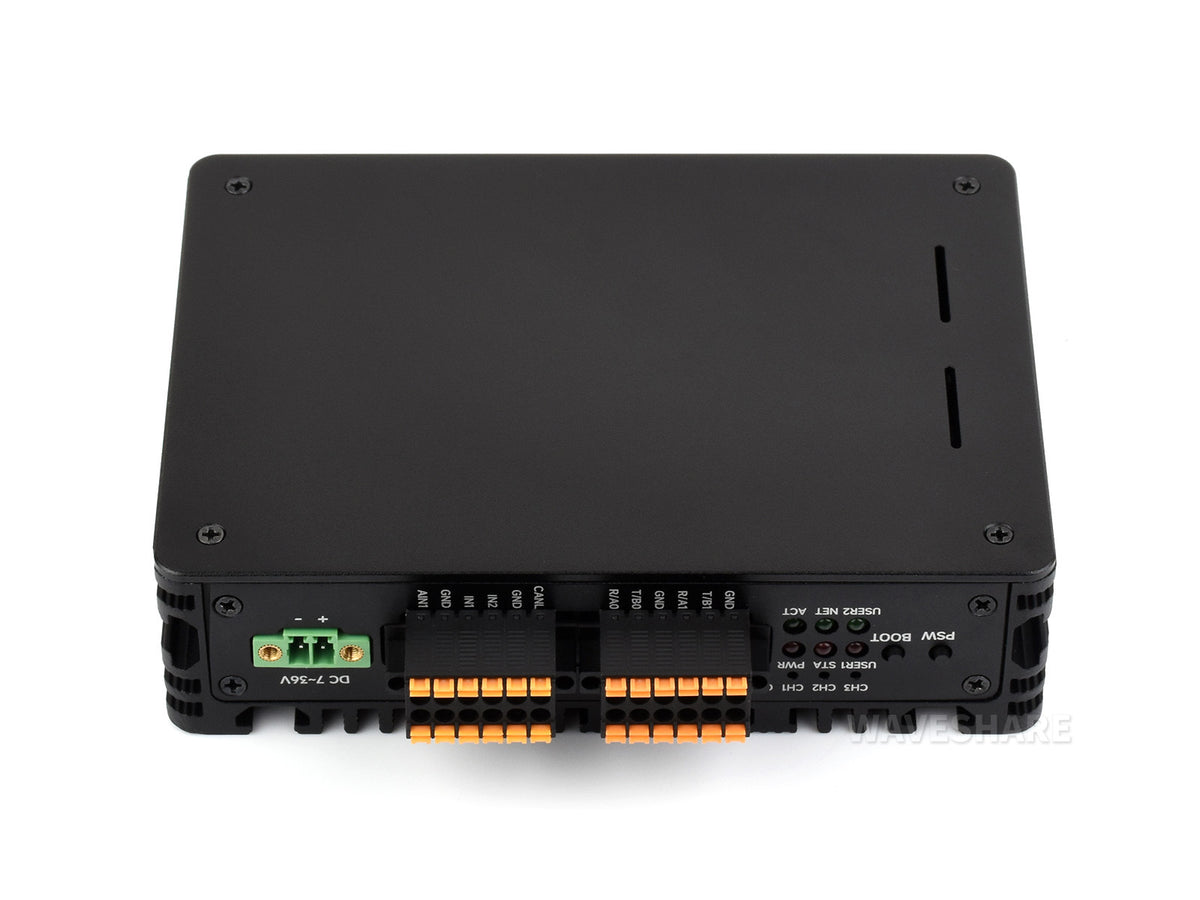

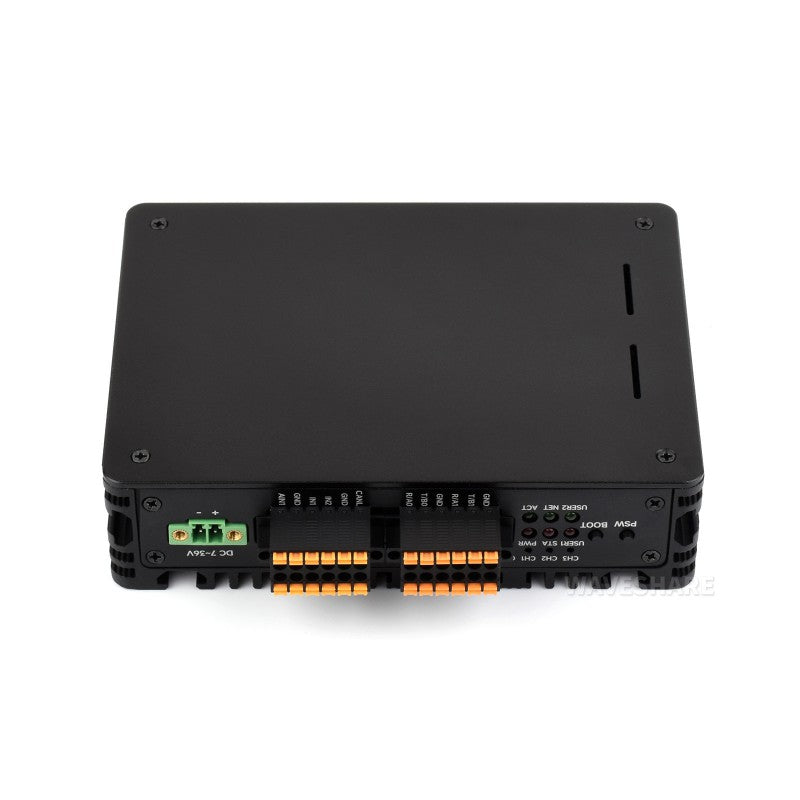

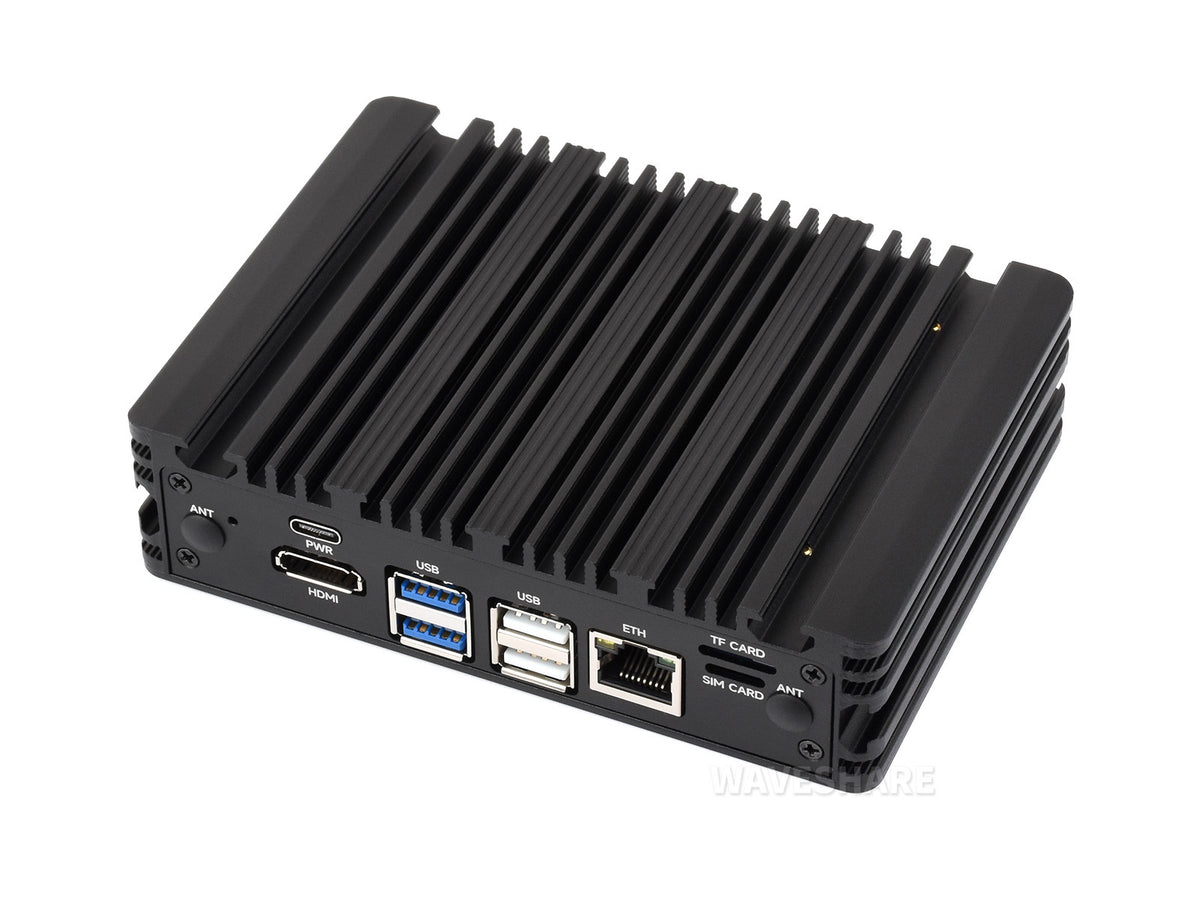

Industrial Computer based on Compute Module 5

Designed for Raspberry Pi Compute Module 5

* the Raspberry Pi CM5 is NOT included.

Version Options

CM5-HMI-BOX-A Onboard 4 × RS485 interfaces

CM5-HMI-BOX-B Onboard 2 × RS485 + 2 × RS232 interfaces

All versions come with an aluminum alloy case and power supply adapter, please refer to the package content for the detailed part list.

Specifications

What's the differences

CM5 Base Board	Interface count and specifications
	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	MIPI	HDMI	RTC	Fan Header②	Power Input	Features
NANO A			√		3.0×1	×2		SH1.0	√	5V	CM5 sized
NANO B		×1	√	16PIN PCIe	3.0×1	×2	√	SH1.0	√	5V	CM5 sized
mini Base A		×1	√	16PIN PCIe	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size
mini Base B		×1	√	M.2 M KEY	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size, onboard EEPROM and encryption chip
Mini Dual Gigabit		×2	√		3.0×1			SH1.0	√	5V	dual ETH
Dual ETH A		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×1 2.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH, onboard EEPROM and Encryption chip
Dual ETH B		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×1 2.0×1	×2	×1	SH1.0	√	5V	dual ETH ports
Dual ETH 4G/5G		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH and 4G/5G support
PoE Base	√	×1	√	M.2 M KEY	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	USB×4
Raspberry Pi official	③	×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	5V	Official IO base board
IPCBOX-CM5		1G ×1 2.5G ×1		M.2 M KEY	3.0×1 2.0×3		×1	SH1.0	√	7V~36V	dual ETH, 4G/5G support, RS485/RS232, Encryption chip, EEPROM, CAN, digital inputs, digital outputs, audio, an buzzer
CM5 Dual ETH Multi-function		1G ×1 2.5G ×1		M.2 M KEY	3.0×1 2.0×2	×2	×1	SH1.0	√	7V~36V	dual ETH, 4G/5G support, RS485, Encryption chip, digital input, relay, and buzzer
CM5 Wireless Extension		1G ×1		M.2 M KEY, M.2 B KEY/Mini-PCIe	3.0×1 2.0×2	×2	×1	ML/CR1220	√	5V or 7V~36V	5G/4G, Lora, RS485, CAN, and rail-mount support
CM5-HMI-BOX		1G ×1		M.2 M KEY	3.0×2 2.0×2	×2	×1	SH1.0	√	7V~36V	4G/5G support, RS485/RS232, Encryption chip, EEPROM, CAN, digital inputs, digital outputs, an buzzer, power-Loss protection
Note	① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 5

standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module

* for reference only, please refer to the package content for detailed part list

4G / 5G module compatibility

compatible with communication modules with M.2 B KEY interface

* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8260G-M2, and SIM8262E-M2.

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list.

Applicable M.2 drive sizes

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

Precise cut-out with clear label

each cut-out is completely aligned with the connector

Supports Rail mounting and VASE mounting

Reserved Rail-mount buckle and VASE mounting holes for more convenient installations

for reference only, comes with rail-mount buckle and is compatible with VESA mounting.

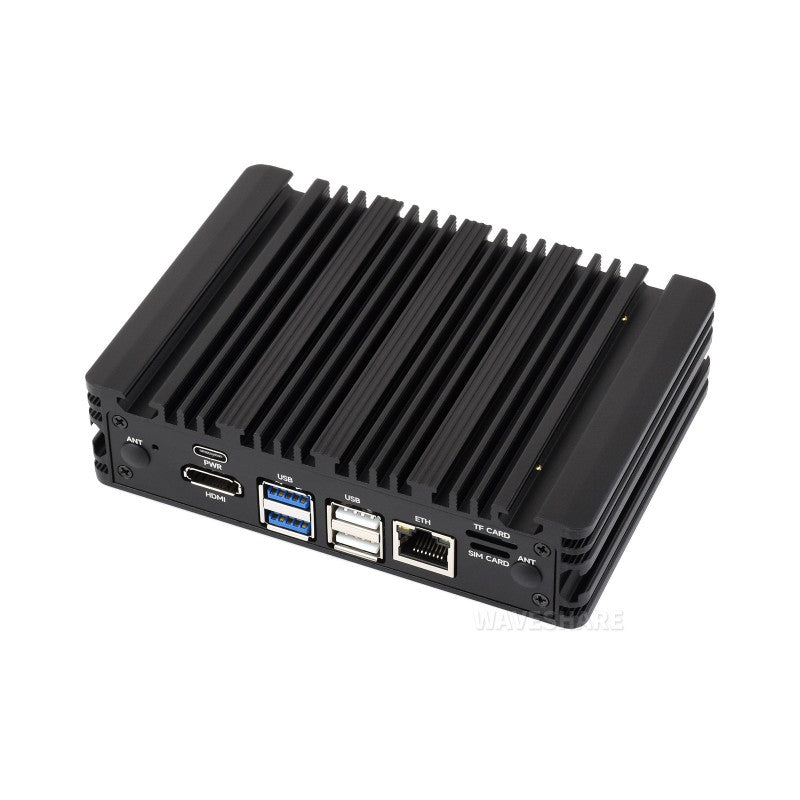

Heat Dissipation Design

Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation

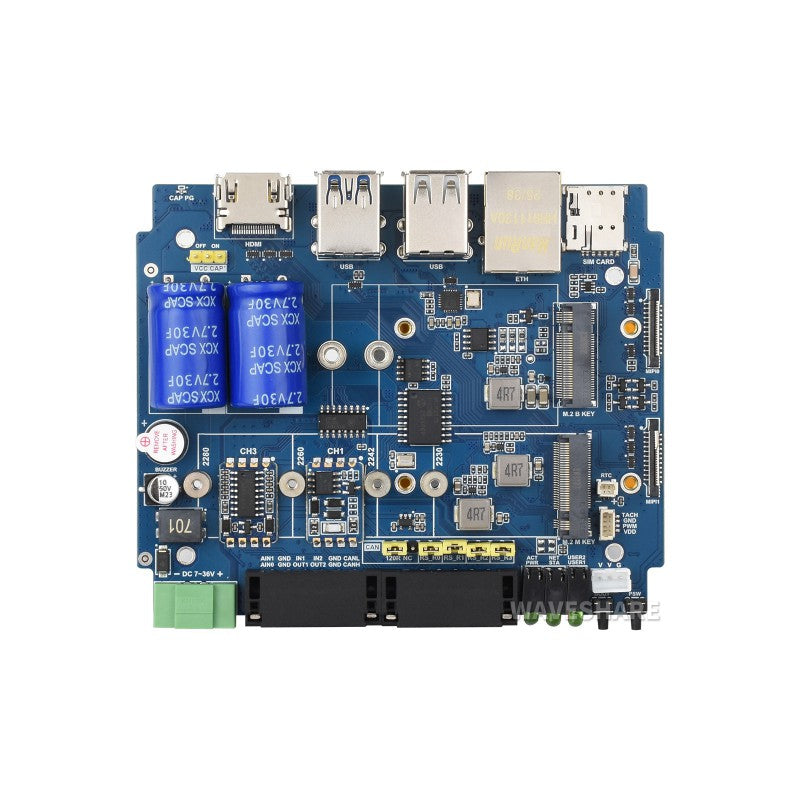

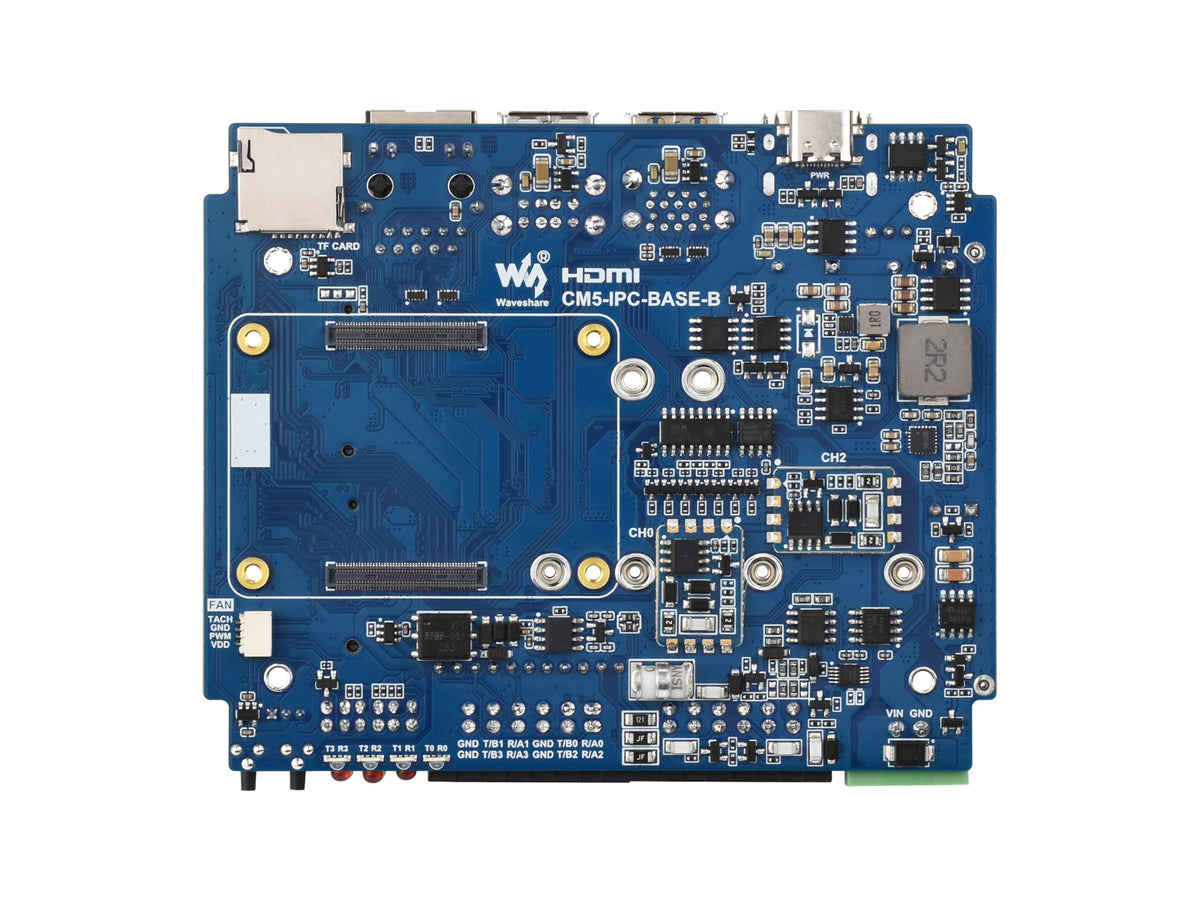

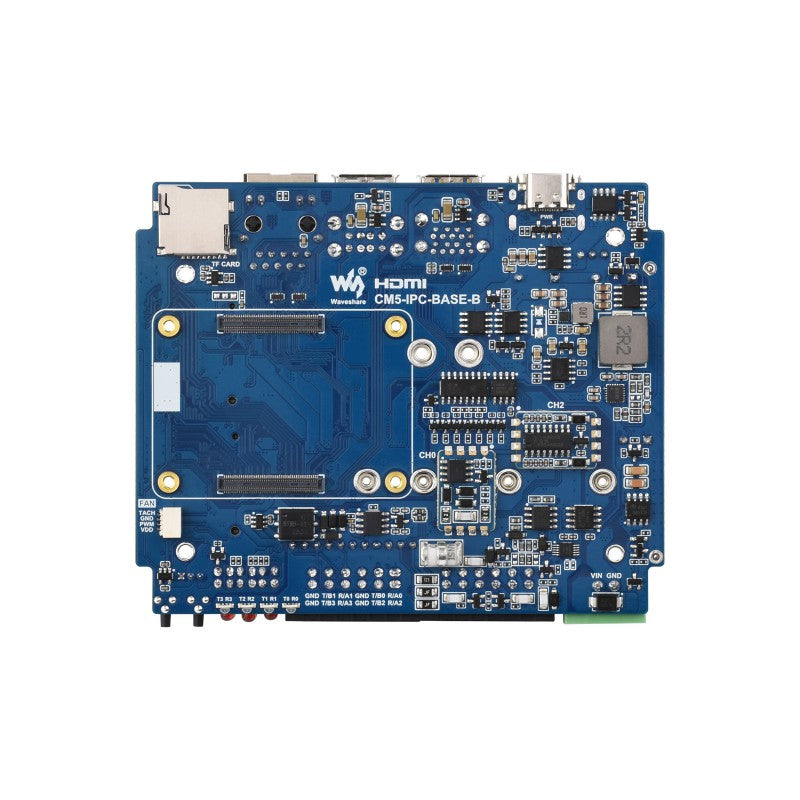

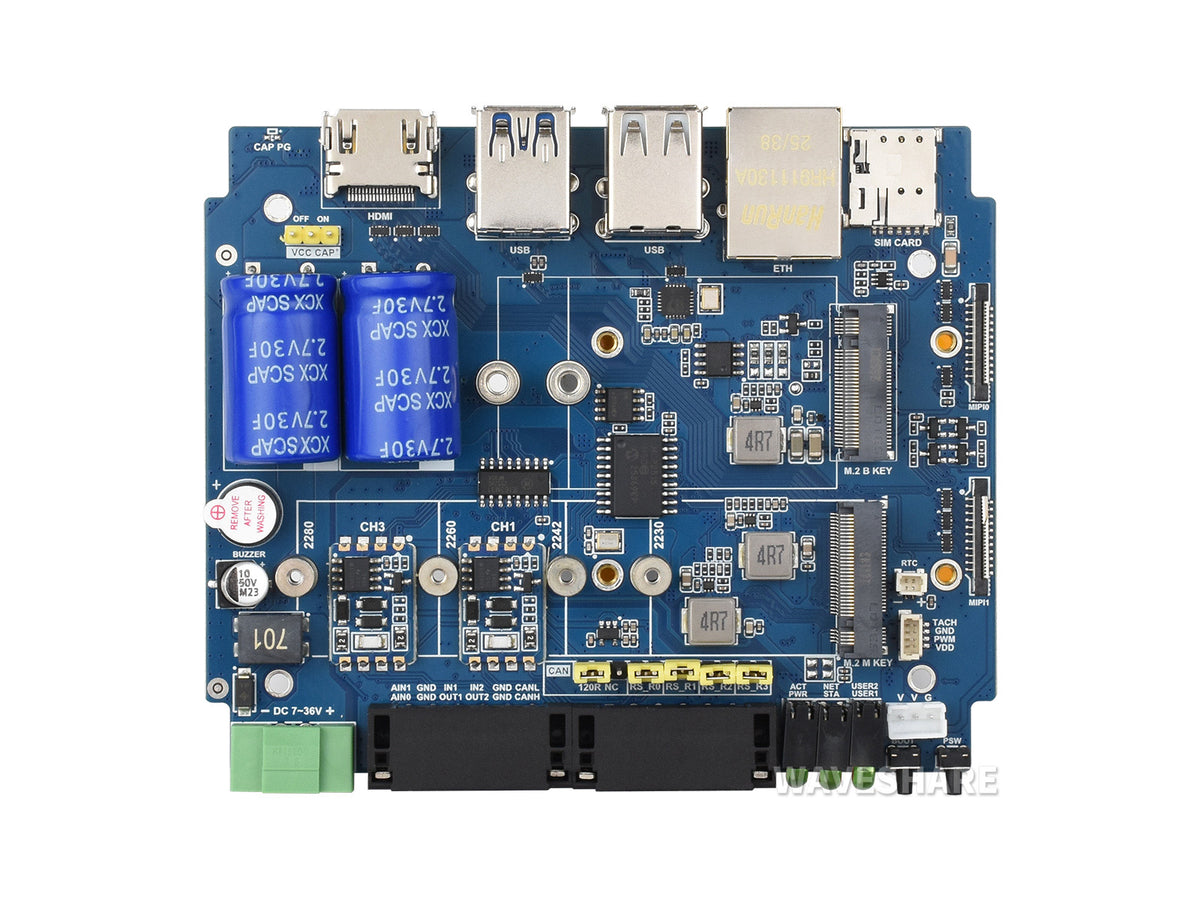

What's On Board

How to install

Step 1 Install the standoffs ① at the positions shown.	Step 2 Install the CM5 module on the back of baseboard, and attach the pink thermal tapes.	Step 3 Install the baseboard with the CM5 installed onto the top cover and secure it with the silver screws ②.
Step 4 Install the front and rear covers and secure them with the black screws ③, then install the antenna rubber plugs ④, and remove the sticker from the buzzer.	Step 5 Install the bottom cover and secure it with the black screws ③, then install the double-layer terminal blocks ⑧.	Step 6 Secure the rail-mount buckle ⑦ to the host with the T-nuts ⑥ and black screws ⑤, then connect the power adapter cable ⑨.

* for reference only, please refer to the package content for detailed part list.

Application Example

Suitable for Raspberry Pi applications in remote communication or other industrial situations

* for reference only, the display, keyboard, and mouse are NOT included, please purchase separately.

Outline dimensions

About Compute Module 5

Newly upgraded, more powerful

• Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
• More options for RAM (2GB / 4GB / 8GB / 16GB)
• More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
• Faster eMMC Flash storage, up to 200 Mbps data rate
• Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, most compatible with Compute Module 4
• Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules

Resources & Services

WIKI: docs.waveshare.com/CM5-HMI-BOX-A

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.555 kg

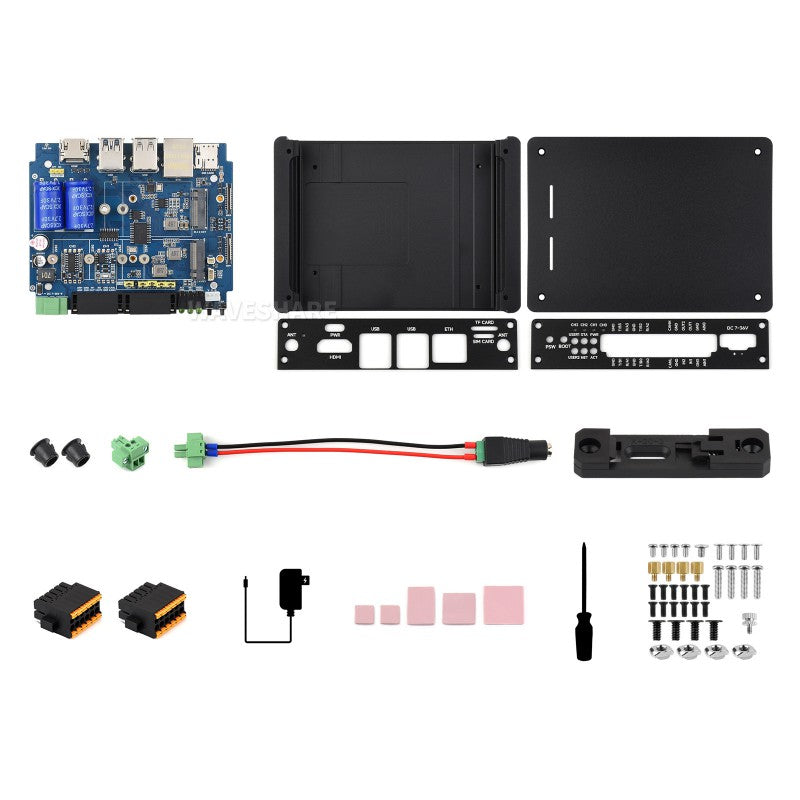

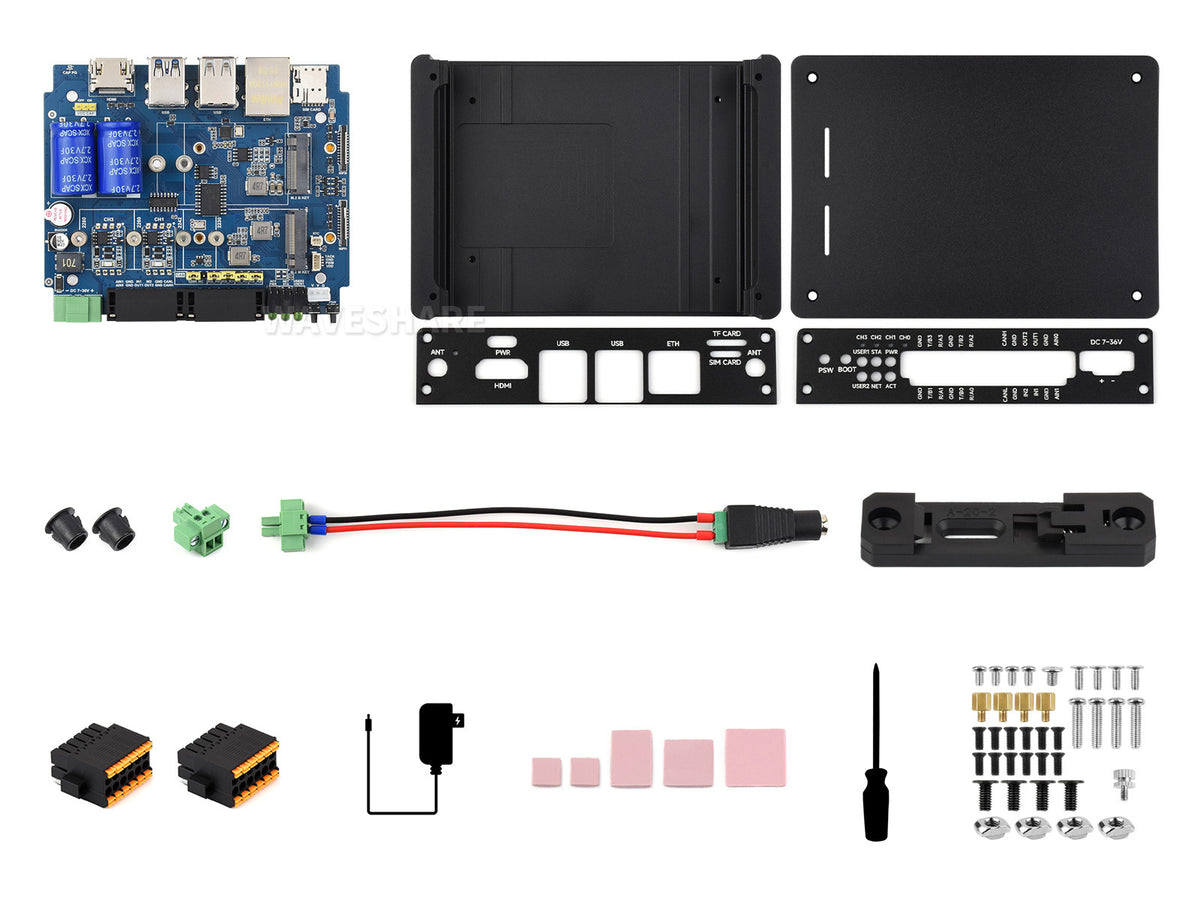

Package Content

CM5-HMI-BOX-A

1. CM5-IPC-BASE-B-4RS485 baseboard x1
2. CM5-HMI-BOX-B metal case x1
3. Antenna rubber plug 6mm x2
4. 2PIN 3.5mm pitch screw terminal x1
5. Power adapter cable 15cm x1
6. Rail-mount buckle x1
7. 6PIN 3.5mm pitch double-layer terminal block (2PCS) x1
8. OPTIONS 12V 4A power x1
9. Pink thermal tapes x1
10. Screwdriver x1
11. Screws pack x1

CM5-HMI-BOX-B

1. CM5-IPC-BASE-B-2RS485 baseboard x1
2. CM5-HMI-BOX-B metal case x1
3. Antenna rubber plug 6mm x2
4. 2PIN 3.5mm pitch screw terminal x1
5. Power adapter cable 15cm x1
6. Rail-mount buckle x1
7. 6PIN 3.5mm pitch double-layer terminal block (2PCS) x1
8. OPTIONS 12V 4A power x1
9. Pink thermal tapes x1
10. Screwdriver x1
11. Screws pack x1
