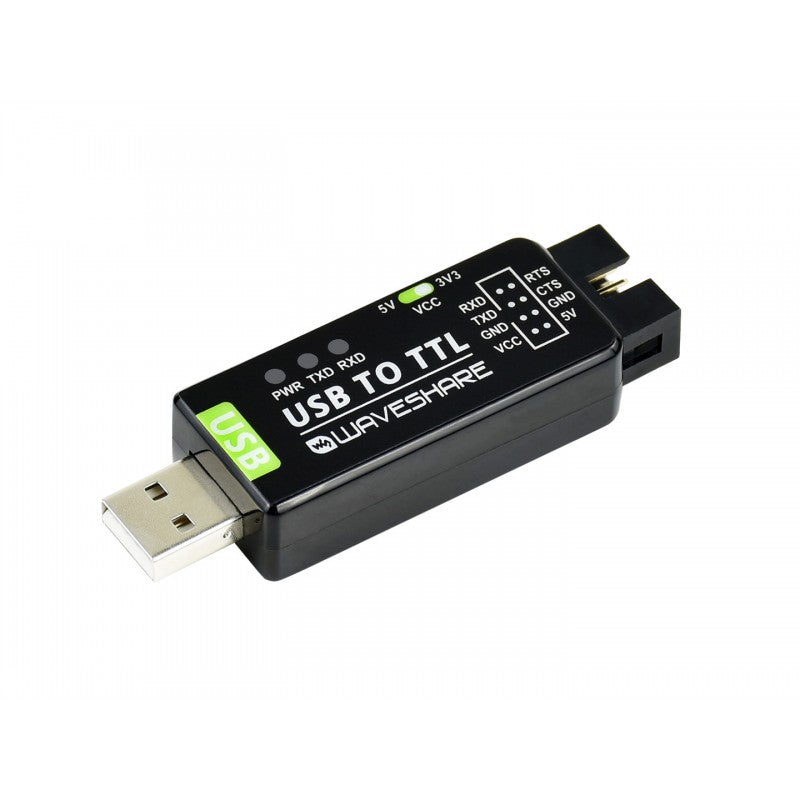

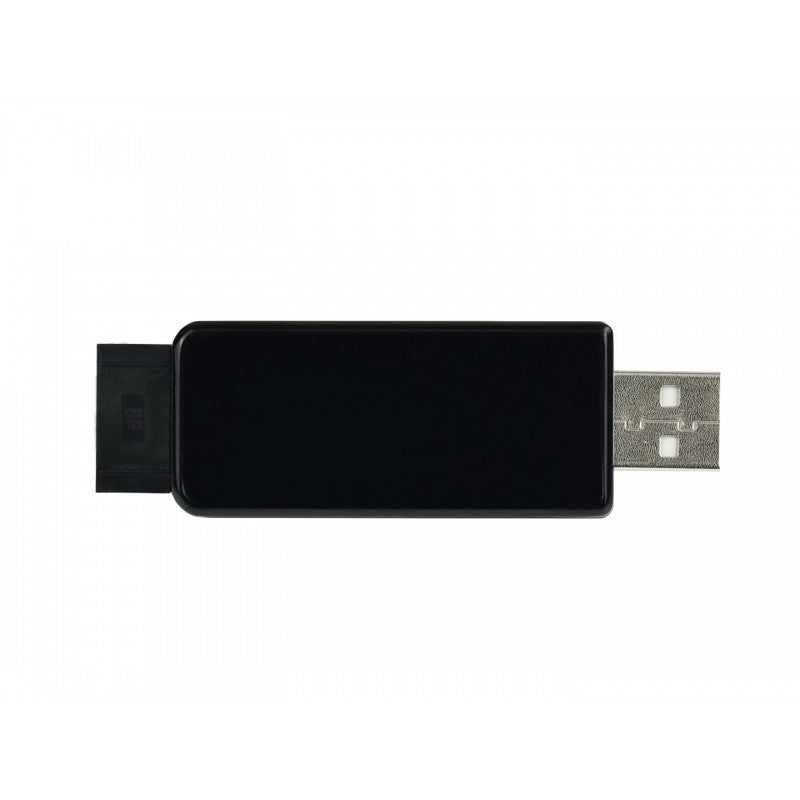

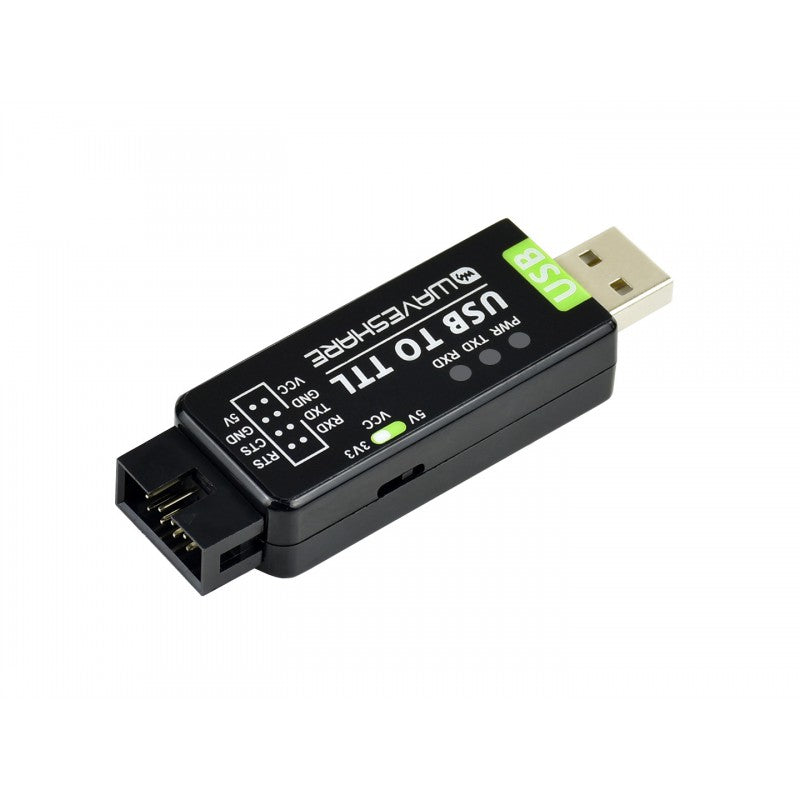

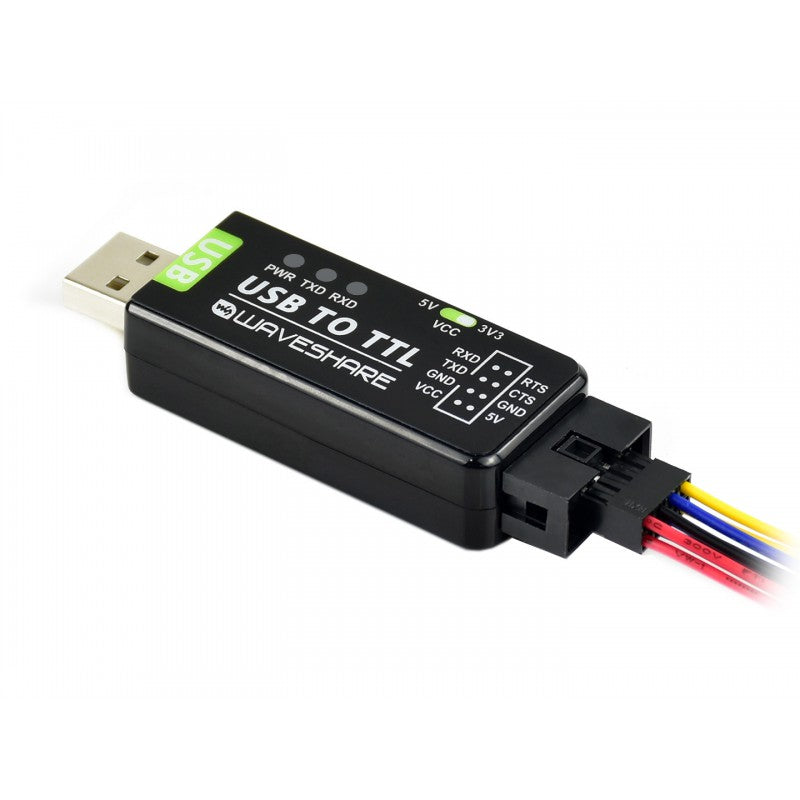

Industrial USB TO TTL Converter - Original FT232RNL

SKU: WVSH0151

₹ 799.99 ₹ 899.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
Industrial USB TO TTL Converter - Original FT232RNL₹ 799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

USB TO TTL CONVERTER

Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems



Specifications

Product category Industrial USB TO TTL converter Host port USB
Data rate 300bps ~ 3Mbps Device Port UART
USB port Connector: USB-A
Protection: resettable fuse, ESD protection
UART port Connector: 8PIN fool-proof header
Protection: IO protection diode
Indicator PWR: power indicator, turns red when USB voltage is detected
TXD: TX indicator, turns red while the USB port is sending data
RXD: RX indicator, turns red while the device port is receiving data



Original Chip Onboard

Adopts original FT232RNL converter, providing better stability and compatibility, enabling industrial grade high performance communication between computer and TTL devices



Multiple systems support

Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android, WinCE...



Three LED Indicators

Easily checking the operating status, convenient for programming / debugging

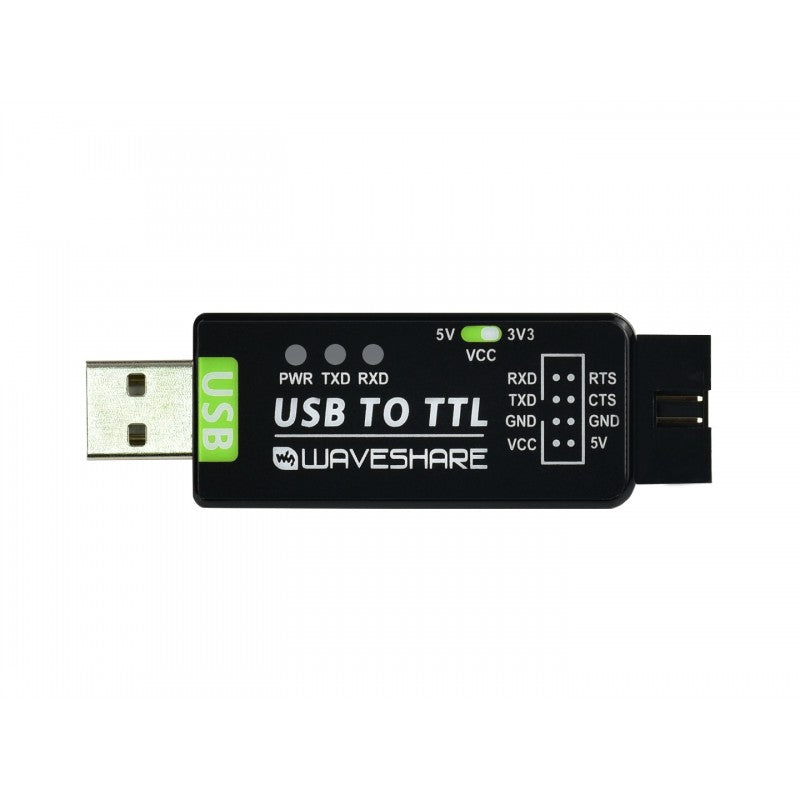

USB signal & Pinouts Definition

5V 5V output
VCC 3.3V or 5V output, configured by switch
GND Ground
TXD Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
RXD Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
CTS Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)
  • USB cable is not included
  • This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage



Outline dimensions

*measured manually, for reference only



Resources

Wiki: USB_TO_TTL

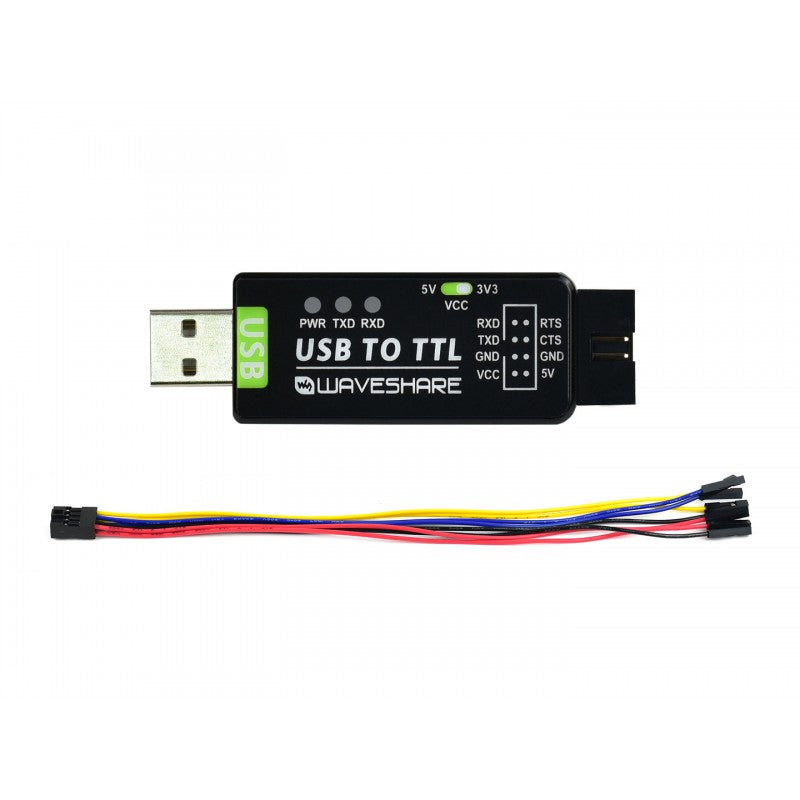

Package Contains:

Weight: 0.023 kg

  1. USB TO TTL x1
  2. 8PIN fool-proof wire x1
12
Which operating systems are compatible with this USB to TTL converter?
It supports Windows 7/8/8.1/10/11, Mac, Linux, Android, and WinCE.
How do I configure the output voltage and connect to my microcontroller?
The VCC output can be set to 3.3V or 5V with a switch. Connect TXD to MCU RX, RXD to MCU TX, RTS to MCU CTS, and CTS to MCU RTS as per the pinouts.
What do the LEDs indicate on the device?
PWR turns red when USB voltage is detected; TXD turns red while the USB port is sending data; RXD turns red while the device port is receiving data.
Are there any safety or usage cautions I should know?
Do not connect this unit to RS232 level circuitry to avoid damage. The USB cable is not included and the device operates at TTL levels.
What is included in the package?
The package contains a USB TO TTL converter and an 8PIN fool-proof wire.
