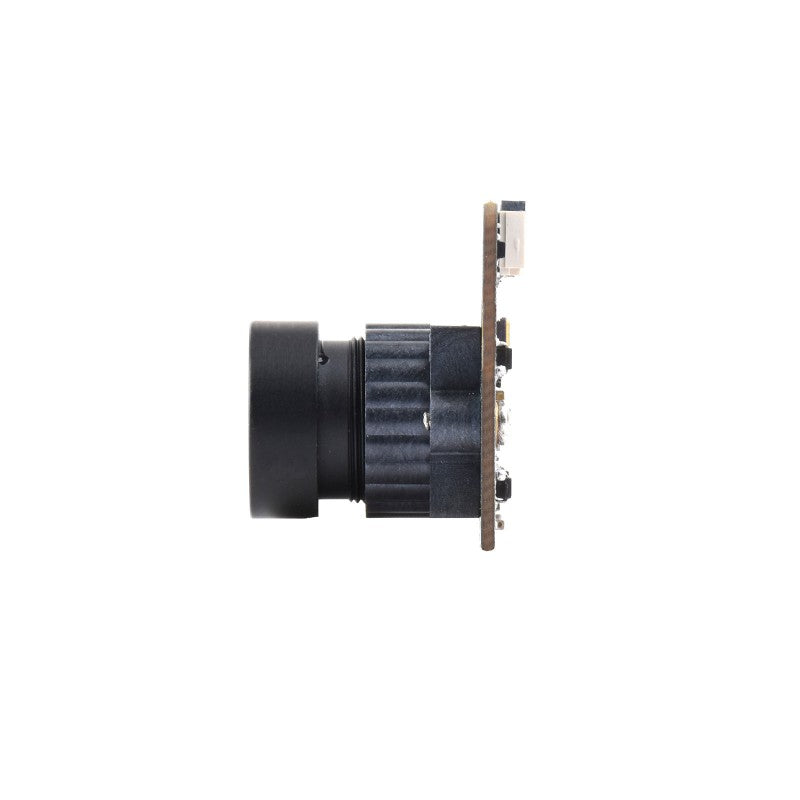

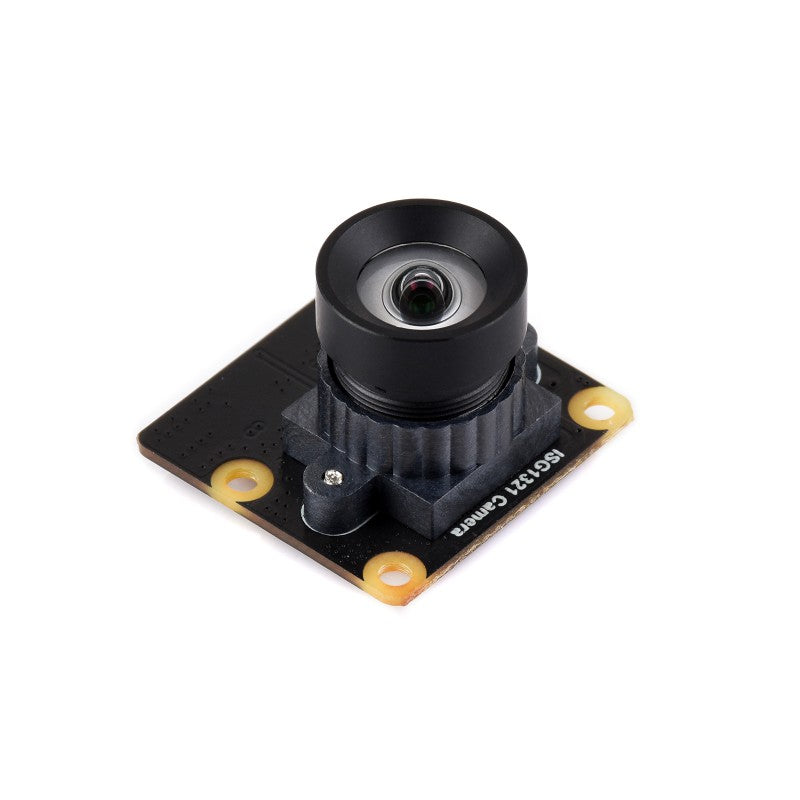

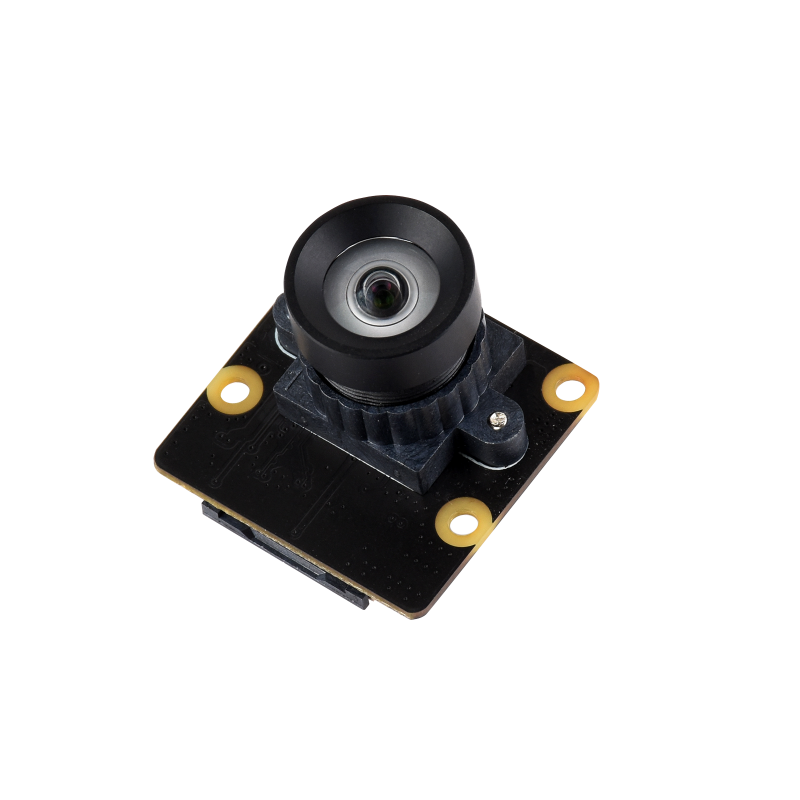

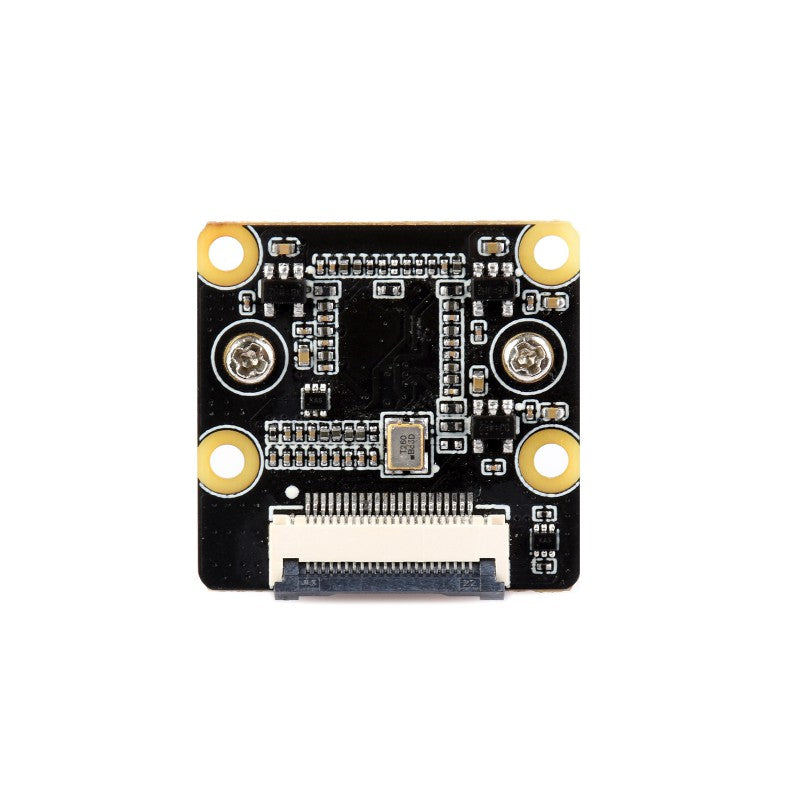

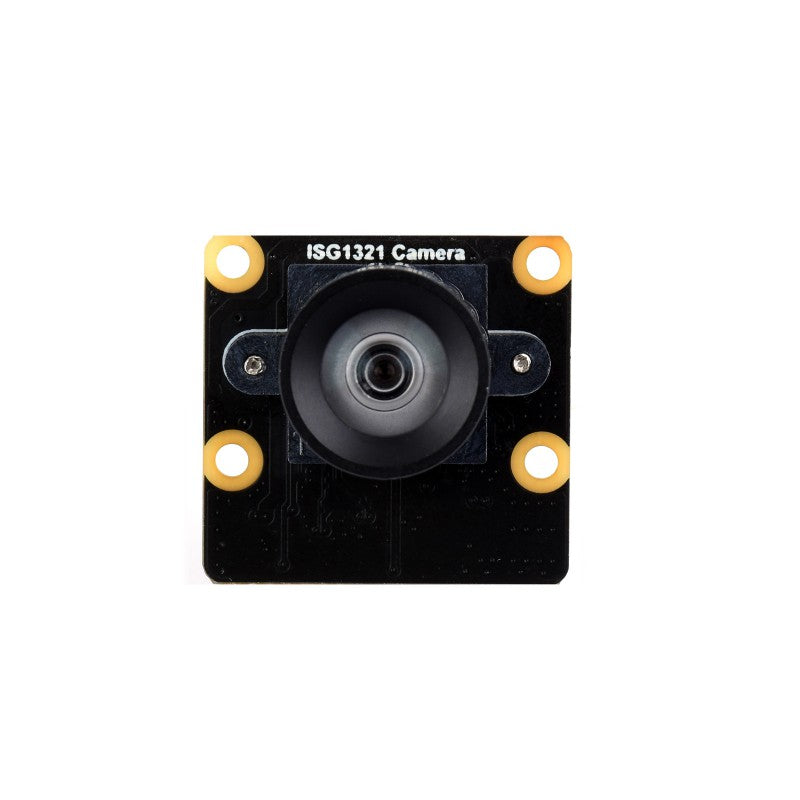

ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens

SKU: WVSH0562

₹ 2,749.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens₹ 2,749.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

ISG1321 1.38MP Mono Global Shutter Camera Module

Equipped with a 95.5° FOV Wide Angle Distortion-Free Lens



Specifications

Sensor ISG1321 CMOS Size 1/4 inch
Camera Type Mono Pixels 1.38 MP (1280 × 1080)
Shutter Global Shutter Output 120 FPS (Max)
Interface MIPI-CSI (2-lane) Aperture F2.4
Distortion < 1% Field of View (FOV) 95.5°
Focal Length 2.88 mm Focusing Manual Focus



Wide Field of View

Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle



Global Shutter

All pixels are exposed simultaneously, capturing images without distortion



High Frame Rate

Supports up to 1280×1080@120fps, enabling precise capture of fast-moving objects



Connects to Luckfox Pico Zero

* for reference only, the Luckfox Pico Zero is NOT included.



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/ISG1321_Camera



Package Content

Weight: 0.006 kg

ISG1321 Camera x1
22PIN FFC cable ~200mm x1

What interface does the camera module use?
It uses a MIPI-CSI 2 lane interface for image data transfer.
What is the resolution and maximum frame rate?
It supports 1.38 MP resolution with 1280 x 1080 pixels at up to 120 frames per second.
Is the focus adjustable and what lens is used?
Focusing is manual. The module uses a 2.88 mm wide angle lens with 95.5 deg FOV and distortion less than 1 percent.
What is included in the package?
Package contents include the ISG1321 camera and a 122 pin FFC cable about 200 mm long.
Is there a warranty and how do I get support?
Warranty information is not provided in the description. Please contact the seller for warranty and support details.
A
Admin
Welcome to the discussion thread for ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Browse All Products → Camera Modules → Cameras & LIDARs →

Category: View all camera

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

ISG1321 1.38MP Mono Global Shutter Camera Module

Equipped with a 95.5° FOV Wide Angle Distortion-Free Lens



Specifications

Sensor ISG1321 CMOS Size 1/4 inch
Camera Type Mono Pixels 1.38 MP (1280 × 1080)
Shutter Global Shutter Output 120 FPS (Max)
Interface MIPI-CSI (2-lane) Aperture F2.4
Distortion < 1% Field of View (FOV) 95.5°
Focal Length 2.88 mm Focusing Manual Focus



Wide Field of View

Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle



Global Shutter

All pixels are exposed simultaneously, capturing images without distortion



High Frame Rate

Supports up to 1280×1080@120fps, enabling precise capture of fast-moving objects



Connects to Luckfox Pico Zero

* for reference only, the Luckfox Pico Zero is NOT included.



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/ISG1321_Camera



Package Content

Weight: 0.006 kg

ISG1321 Camera x1
22PIN FFC cable ~200mm x1

FAQ
What interface does the camera module use?
It uses a MIPI-CSI 2 lane interface for image data transfer.
What is the resolution and maximum frame rate?
It supports 1.38 MP resolution with 1280 x 1080 pixels at up to 120 frames per second.
Is the focus adjustable and what lens is used?
Focusing is manual. The module uses a 2.88 mm wide angle lens with 95.5 deg FOV and distortion less than 1 percent.
What is included in the package?
Package contents include the ISG1321 camera and a 122 pin FFC cable about 200 mm long.
Is there a warranty and how do I get support?
Warranty information is not provided in the description. Please contact the seller for warranty and support details.
