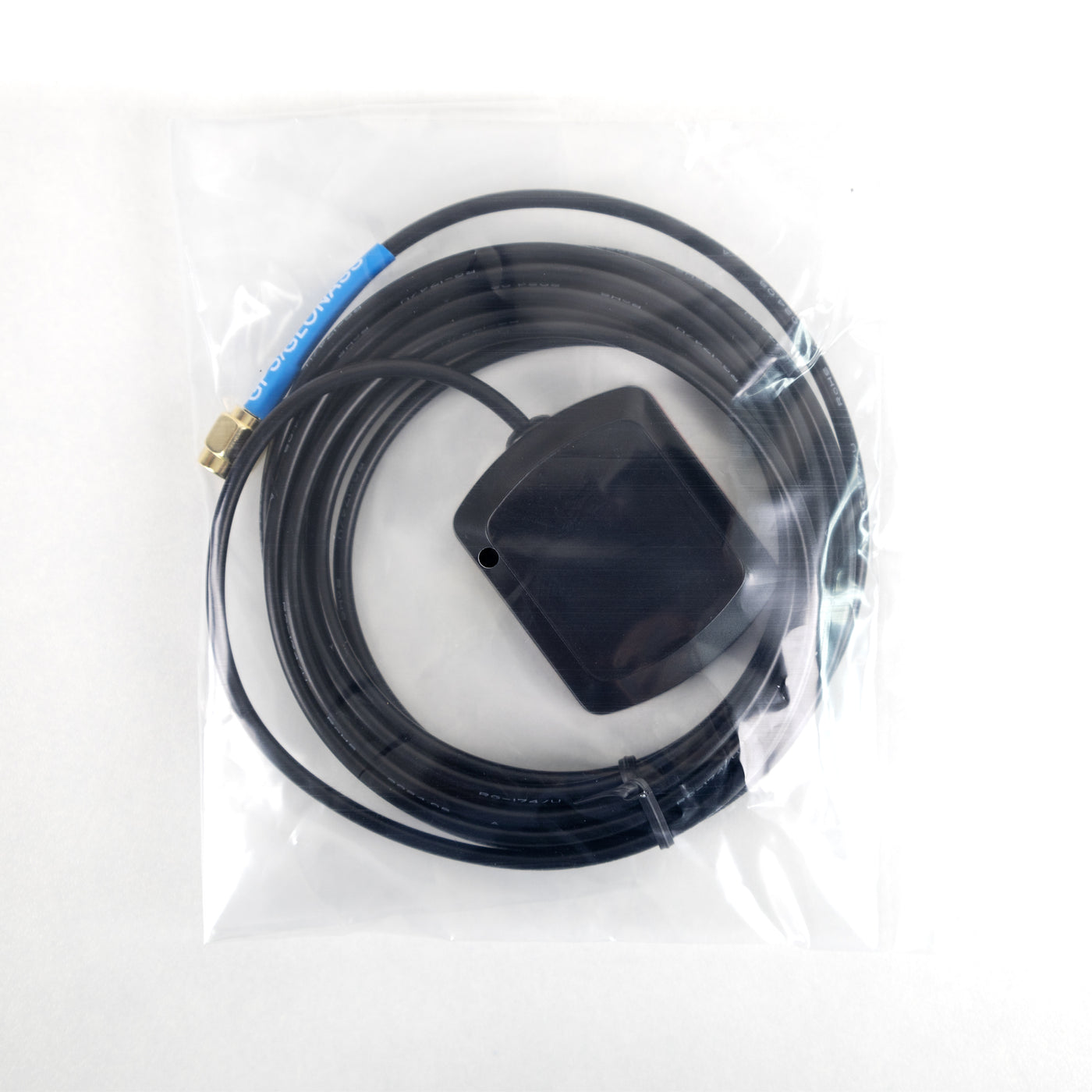

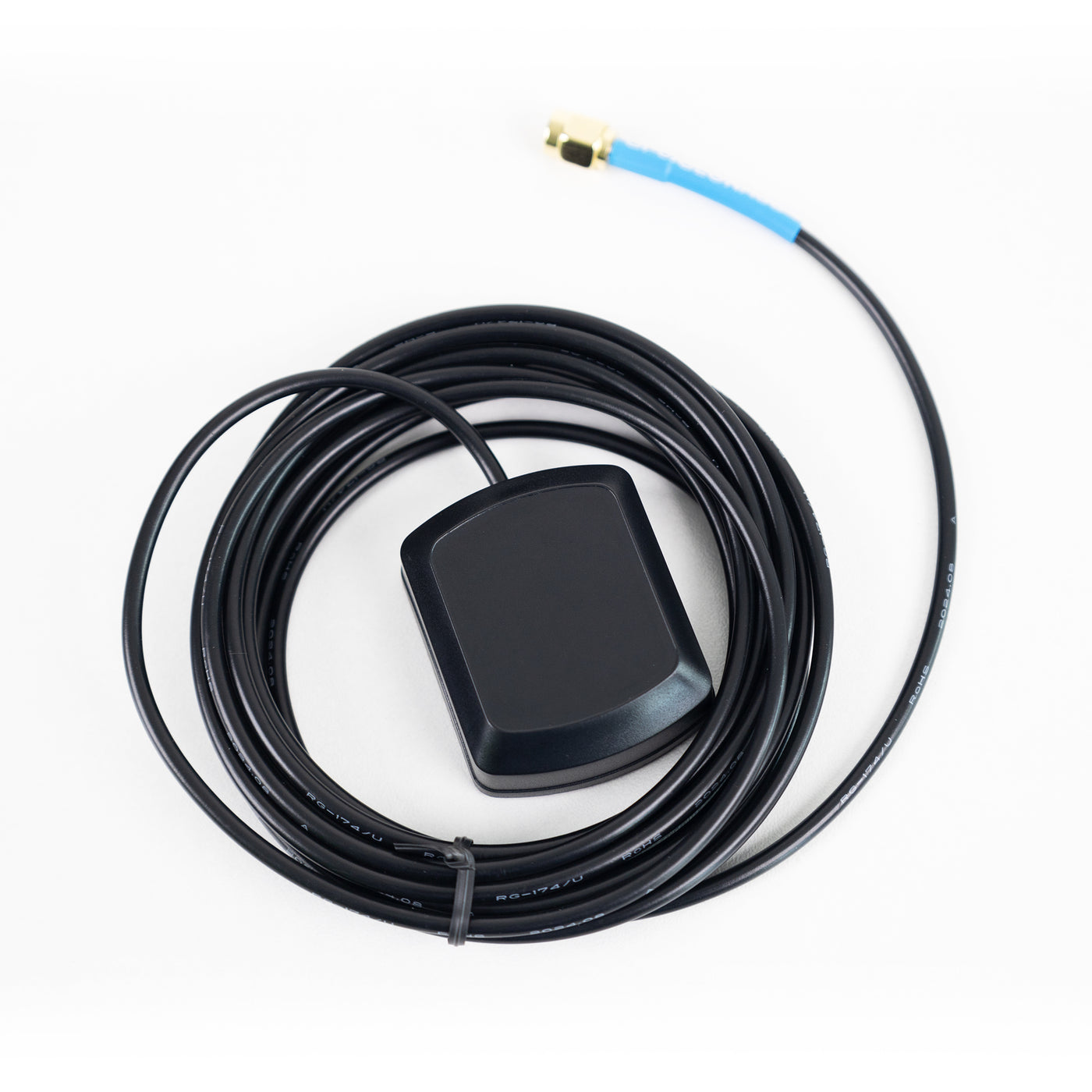

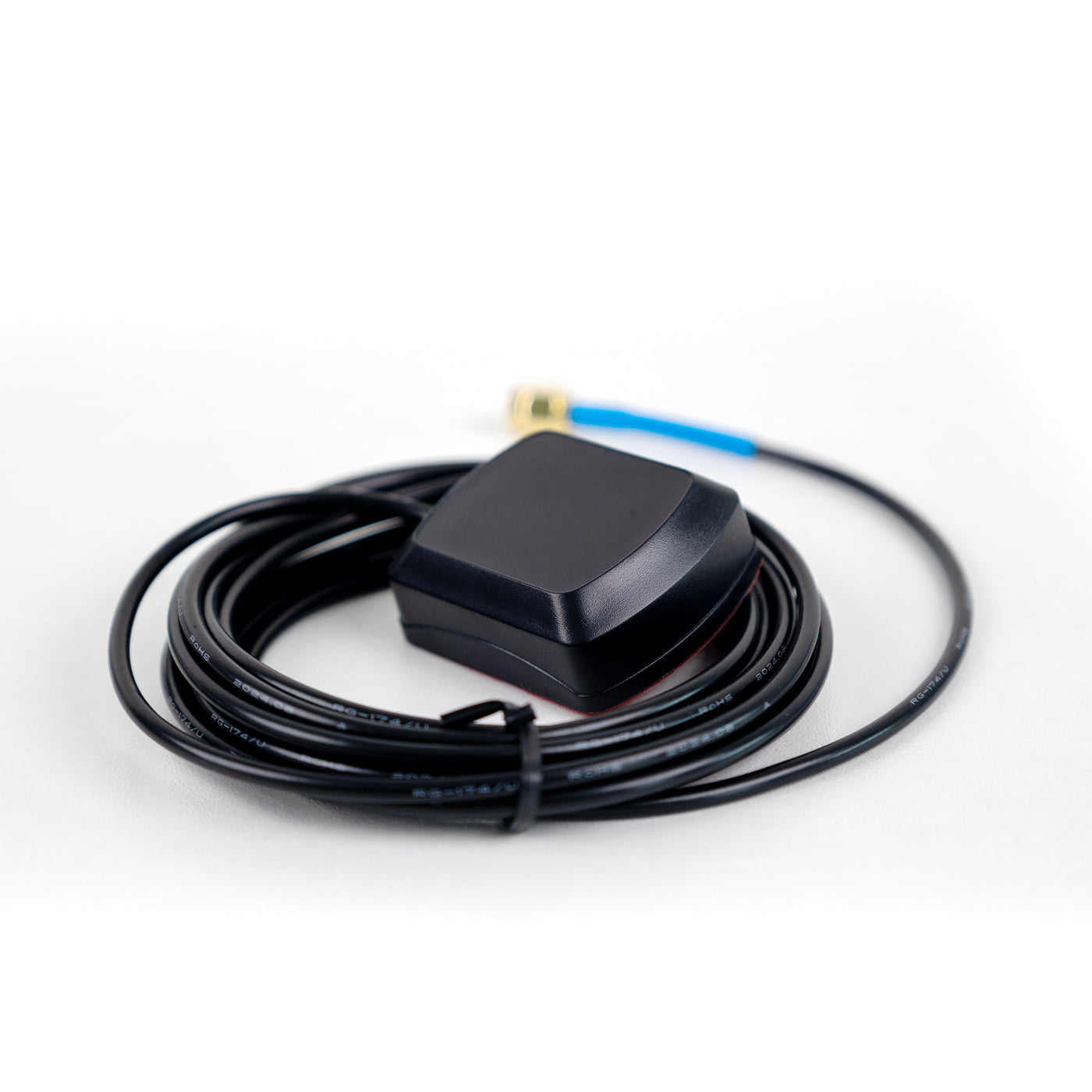

JCA002 GPS/GLONASS Active Antenna

SKU: ELC8901

₹ 299.99 ~~₹ 499.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCA002 GPS/GLONASS Active Antenna₹ 299.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

DIMENSIONS

SPECIFICATIONS

Item		Specifications
Antenna	Center Frequency	1575.42±3MHz
	Band Width	CF±5MHz
	Polarization	RHCP
	Gain	2dBic（Zenith）
	V.S.W.R	＜1.5
	Impedance	50Ω
	Axial Ratio	3dB（max）
	Dimension	25254mm
LNA	Gain	28±2dB
	Noise Figure	＜1.5dB
	Supply Voltage	2.2~5V DC
	Current Consumption	＜15mA
	V.S.W.R	＜2.0
Mechanical	Cable	RG174
	Connector	SMA/MCX/FAKRA or others
	Radome Material	ABS
	Mounting Method	Magnet/Adhesive
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP65~IP67
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What signals does this antenna support and what is the center frequency?

It is designed for GPS and GLONASS reception with a center frequency of 1575.42 MHz plus minus 3 MHz and a band width of CF plus minus 5 MHz. The antenna has RHCP polarization and a 50 ohm impedance.

What connectors and mounting options are available for this antenna?

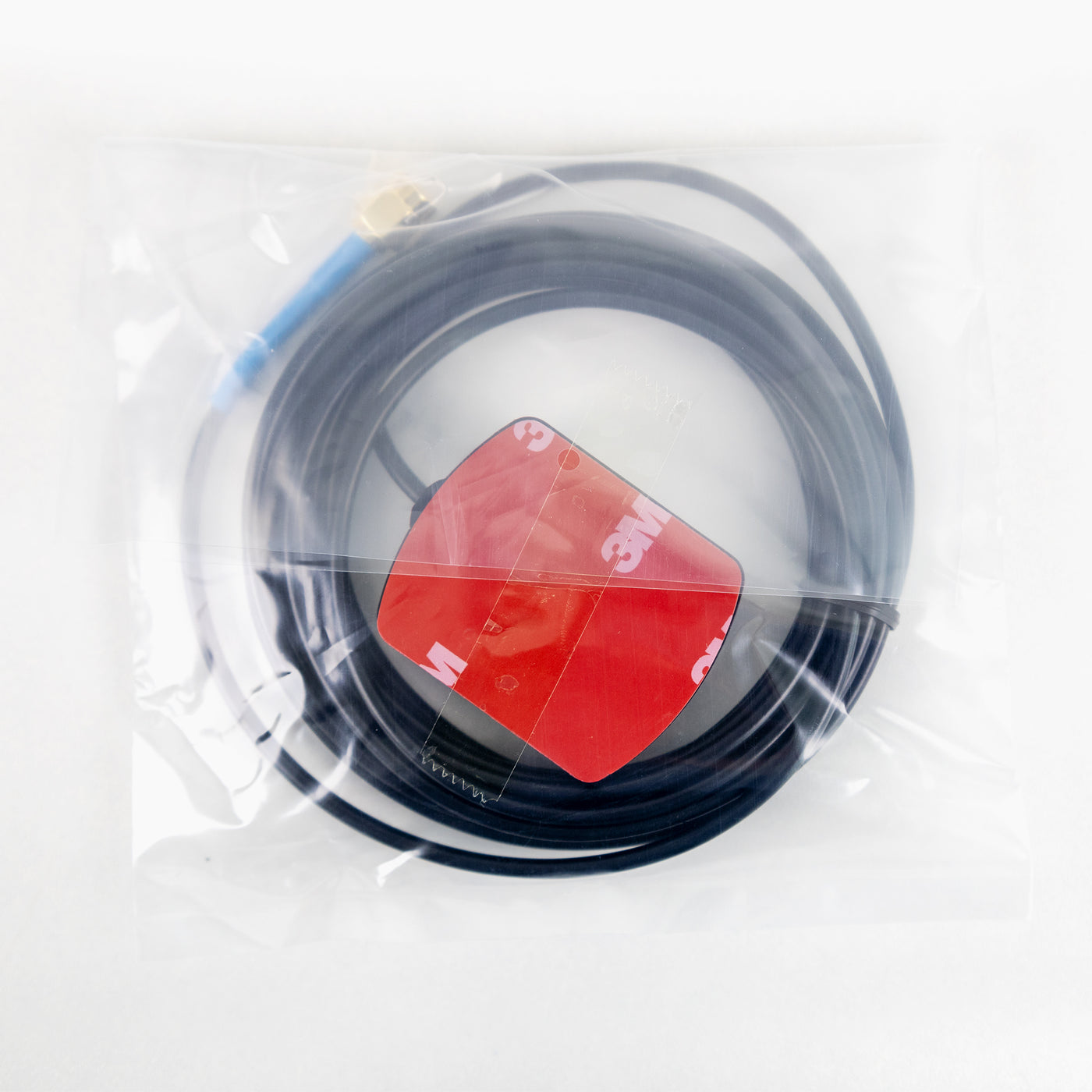

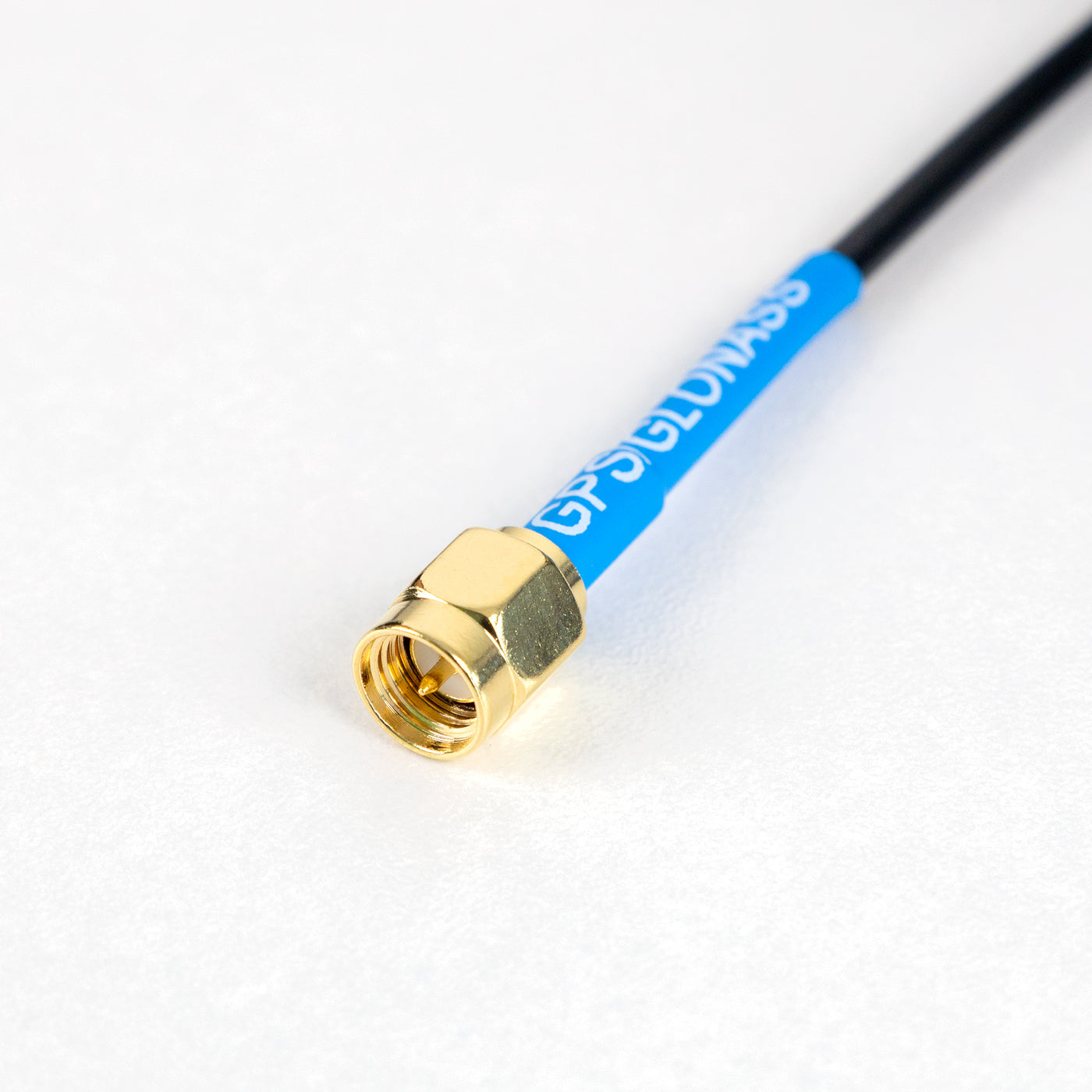

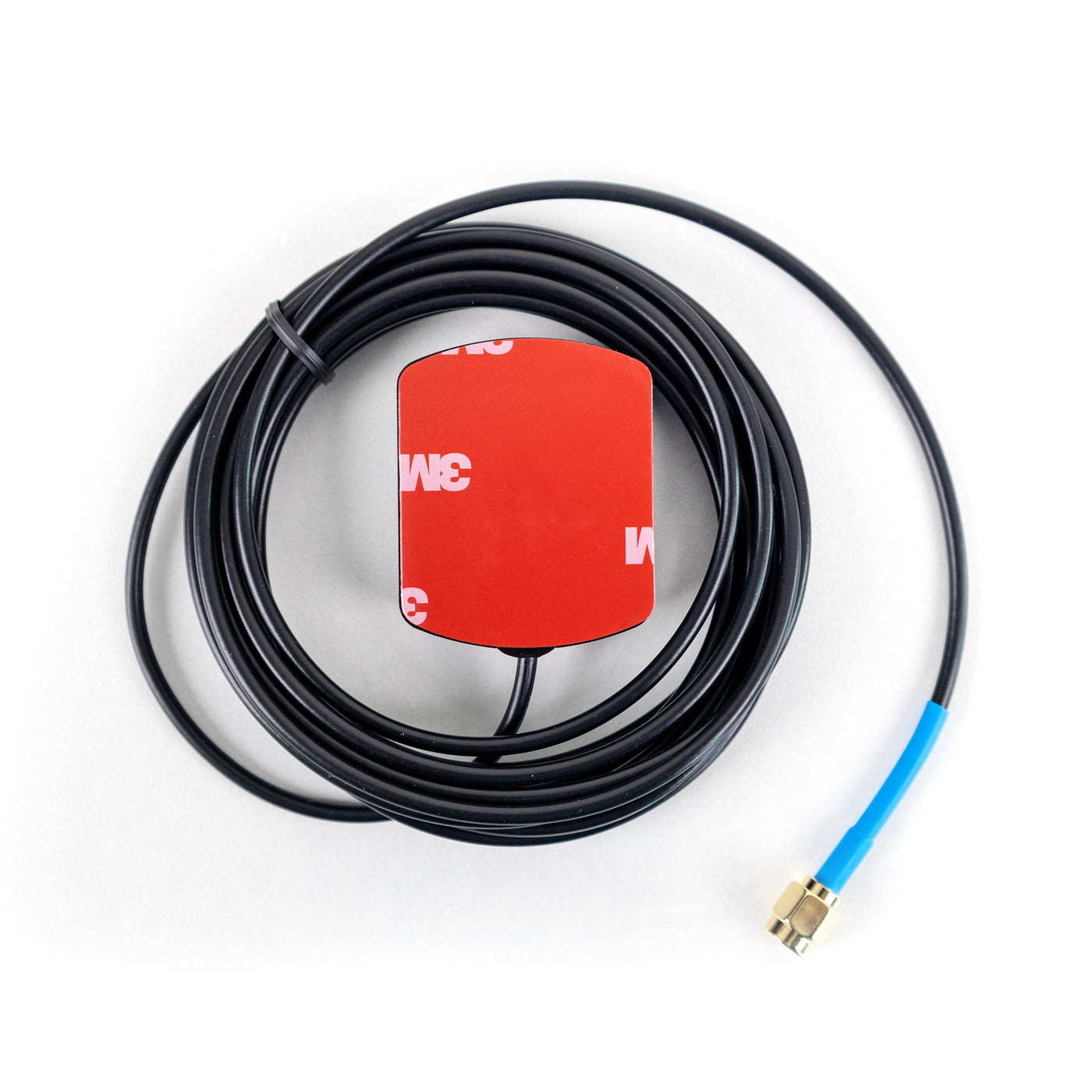

The assembly uses a RG174 based cable with options for SMA, MCX, FAKRA or other connectors. Mounting options include magnet mounting or adhesive mounting.

What are the power requirements and current consumption?

The active LNA is powered from 2.2 to 5 V DC and draws less than 15 mA. LNA gain is 28 plus or minus 2 dB and the noise figure is below 1.5 dB.

What are the environmental and durability specifications?

Operates from minus 40 to plus 85 Celsius, with relative humidity up to 95 percent. It has IP65 to IP67 ratings and is made with ABS material suitable for outdoor use.

What are the physical dimensions and common use considerations?

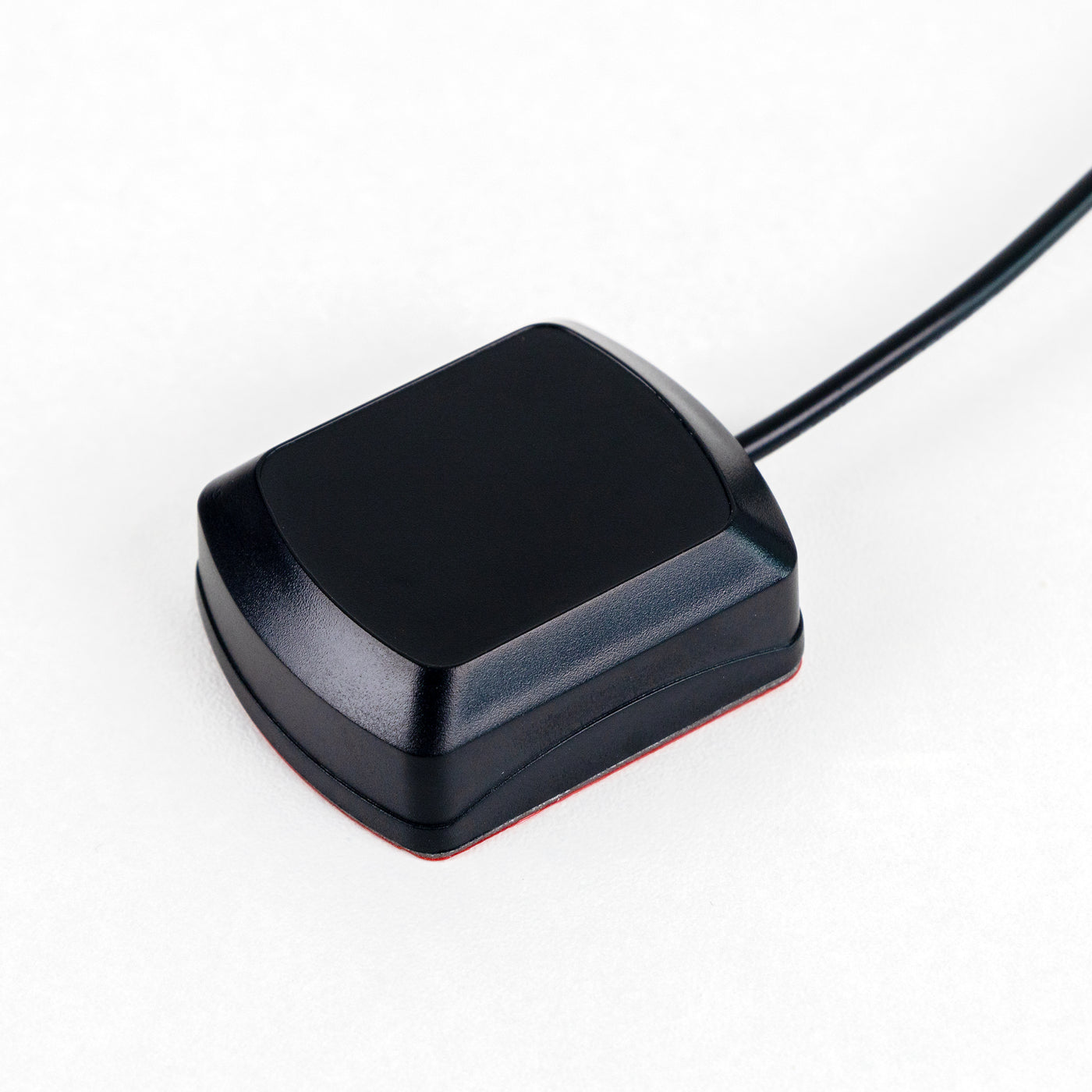

The antenna measures 25 by 25 by 4 mm. It supports magnet or adhesive mounting for easy installation and is designed for GPS and GLONASS satellite reception.
