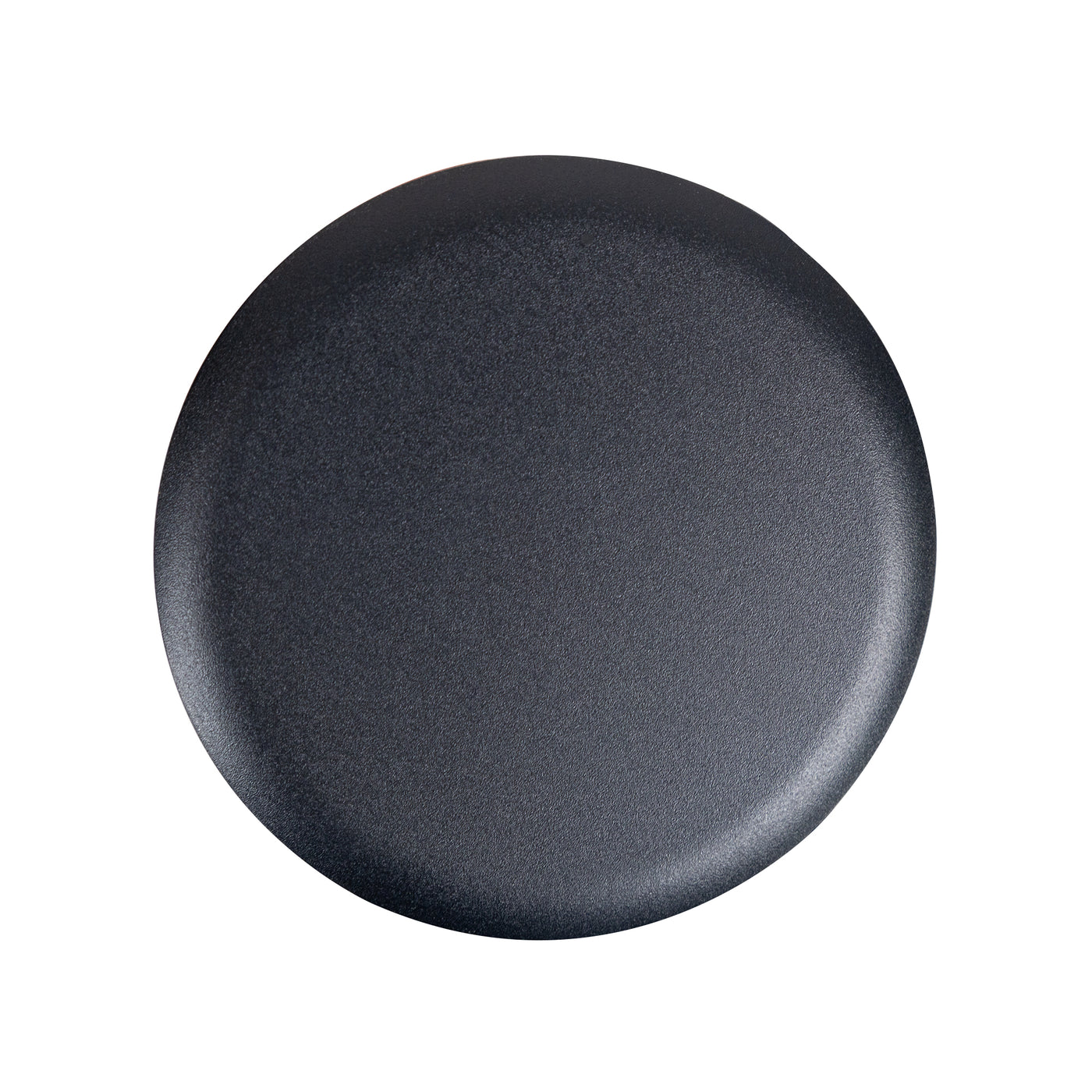

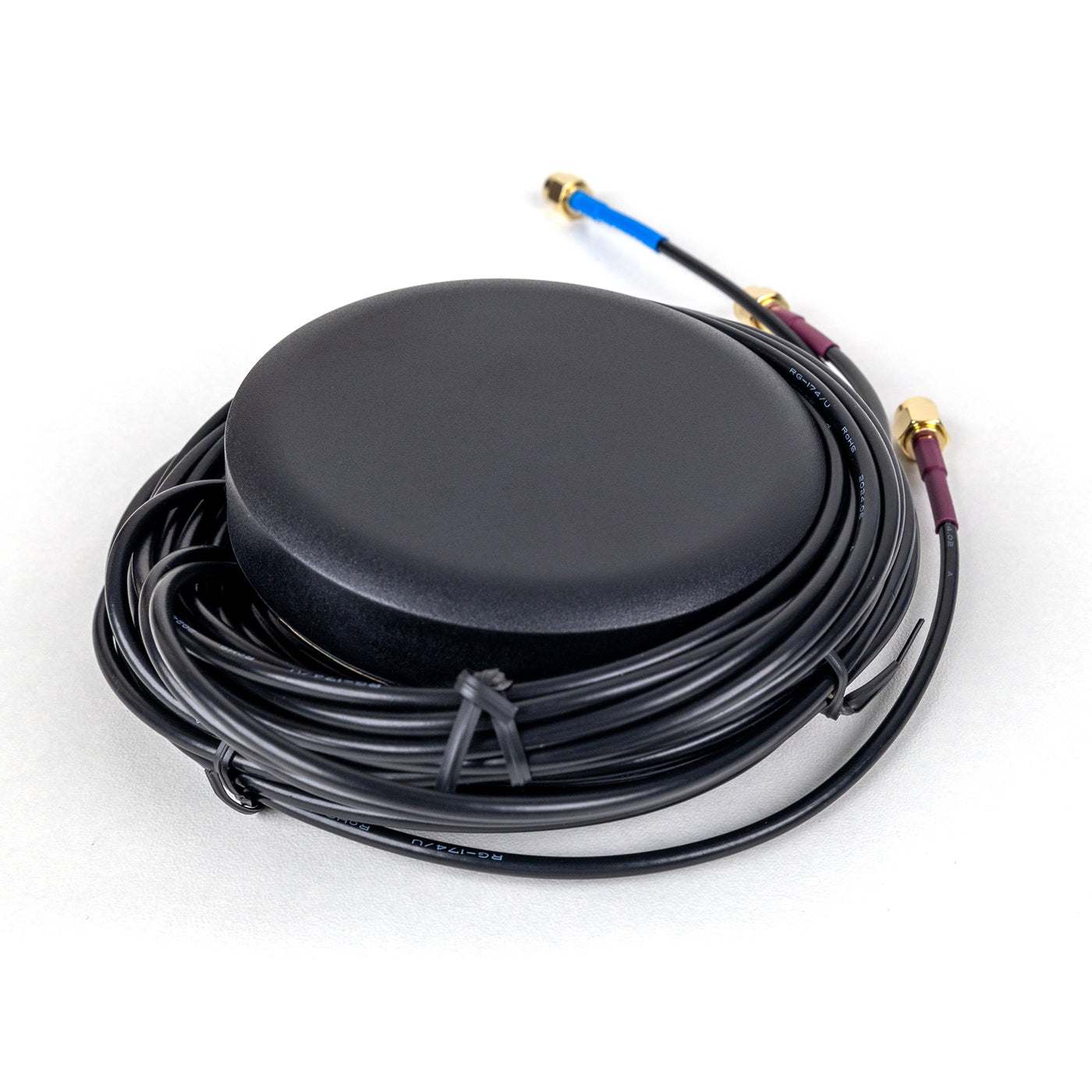

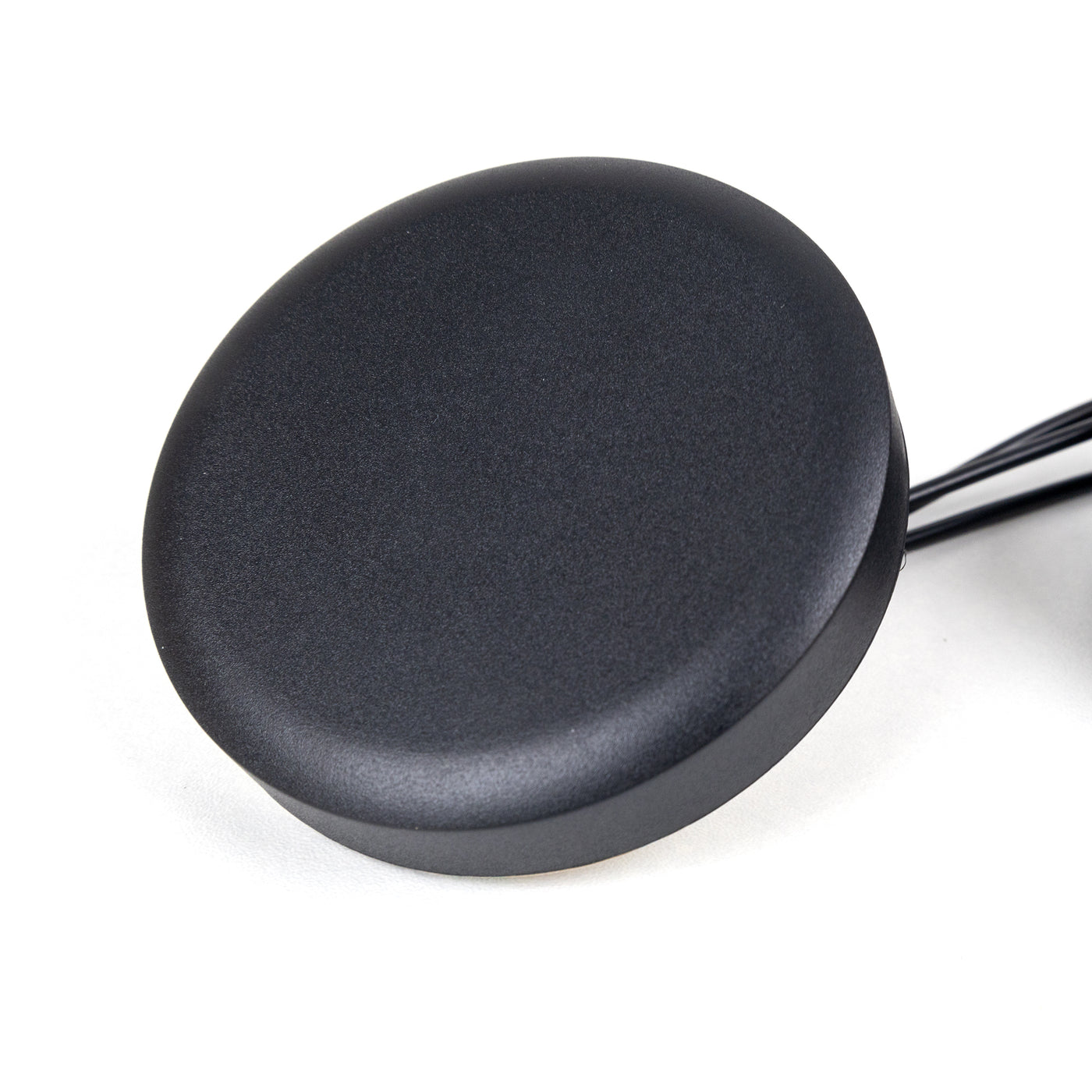

JCB046LM Active GPS + LTE MIMO Combination Antenna

SKU: ELC8928

₹ 1,149.99 ~~₹ 1,249.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCB046LM Active GPS + LTE MIMO Combination Antenna₹ 1,149.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

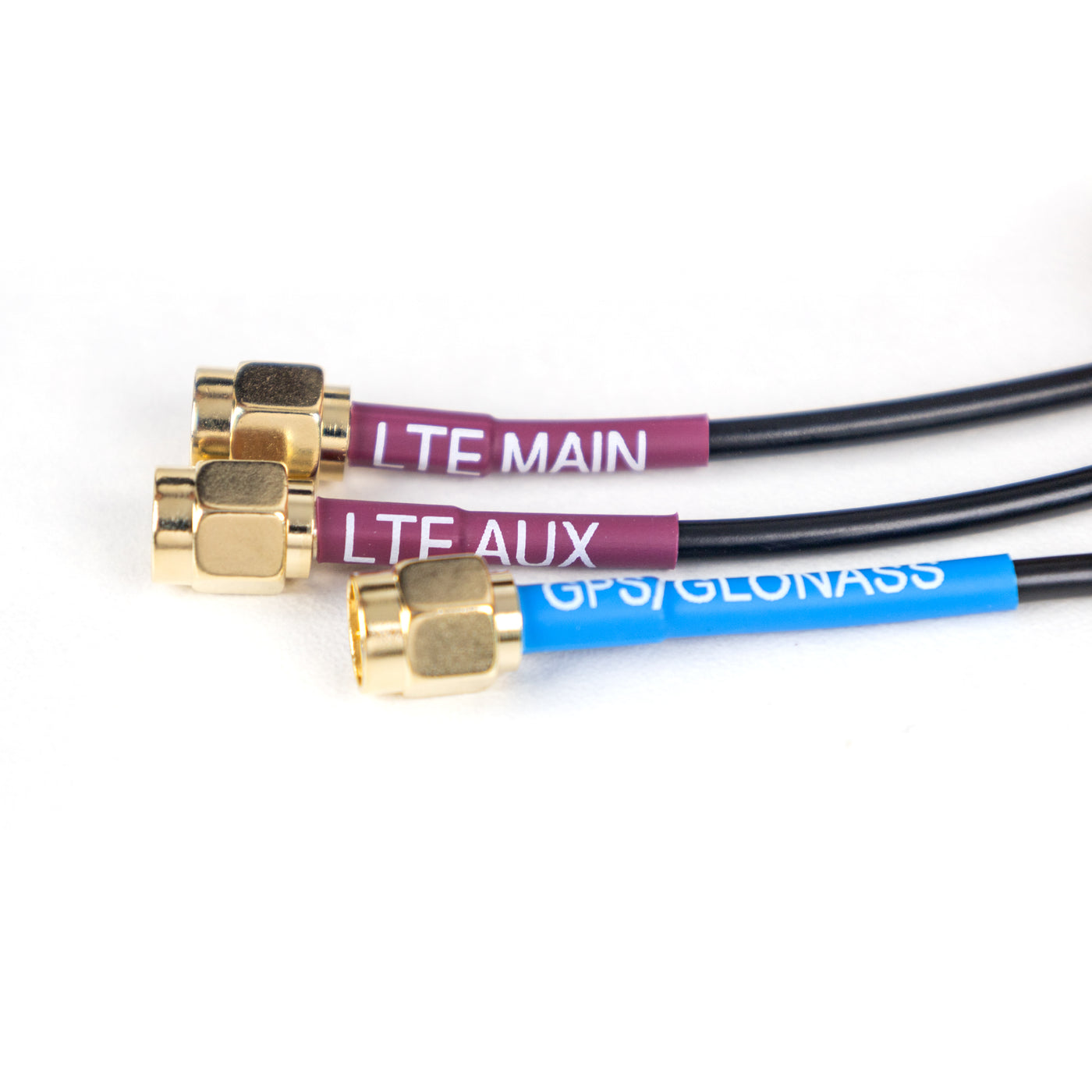

JCB046LM is a multi-band antenna covering the LTE MIMO and GPS frequency bands. Different connector types and cable lengths for LTE MIMO and GPS are available. Please select the option custom specification and email us your requirements or specification.

Specifications:

GPS Dielectric Antenna

Center Frequency 1575.42±3MHz
V.S.W.R < 1.5
Band Width CF±5MHz
Impendence 50ohm
Polarization RHCP
Gain 2dBic (Zenith)
Axial Ratio 3dB (max)

GPS Antenna LNA

LNA Gain(Without cable) 28±2dB
Noise Figure < 1.5 dB
Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R < 2.0
Supply DC Voltage 2.2~5V
DC Current 5~15 mA

LTE Antenna Main

Frequency Range 698-960 MHz/1710-2690MHz
V.S.W.R < 3.0
Impendence 50 ohm
Polarization Linear
Typical Gain 2.5dBi

LTE Antenna AUX

Frequency Range 698-960 MHz/1710-2690MHz
V.S.W.R < 3.0
Impendence 50 ohm
Polarization Linear
Typical Gain 2.0dBi

Mechanical

Cable: RG174 3m, 5m long or other
Connector: SMA/SMB/SMC/BNC/FME/TNC/MCX/FAKRA or others
Material ABS

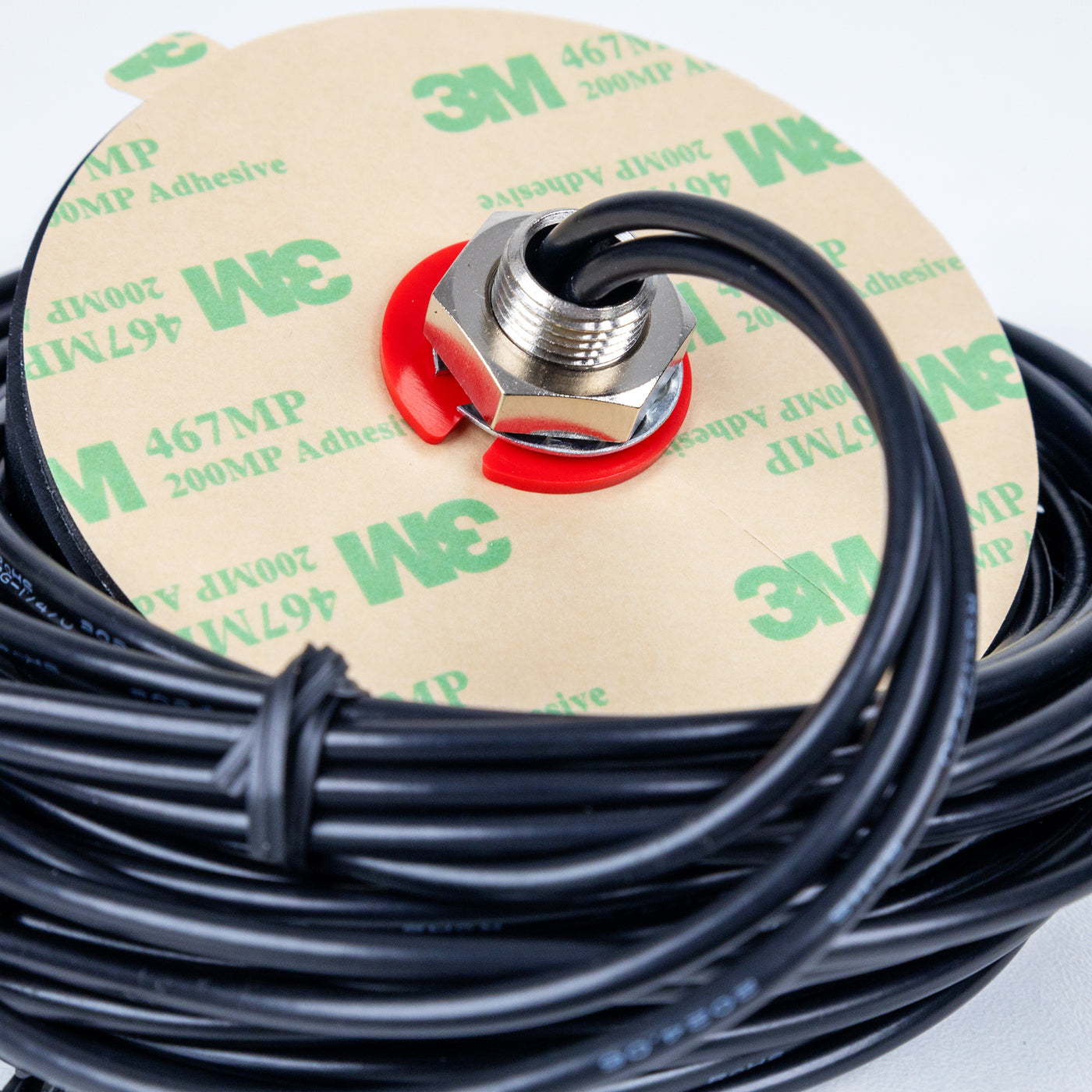

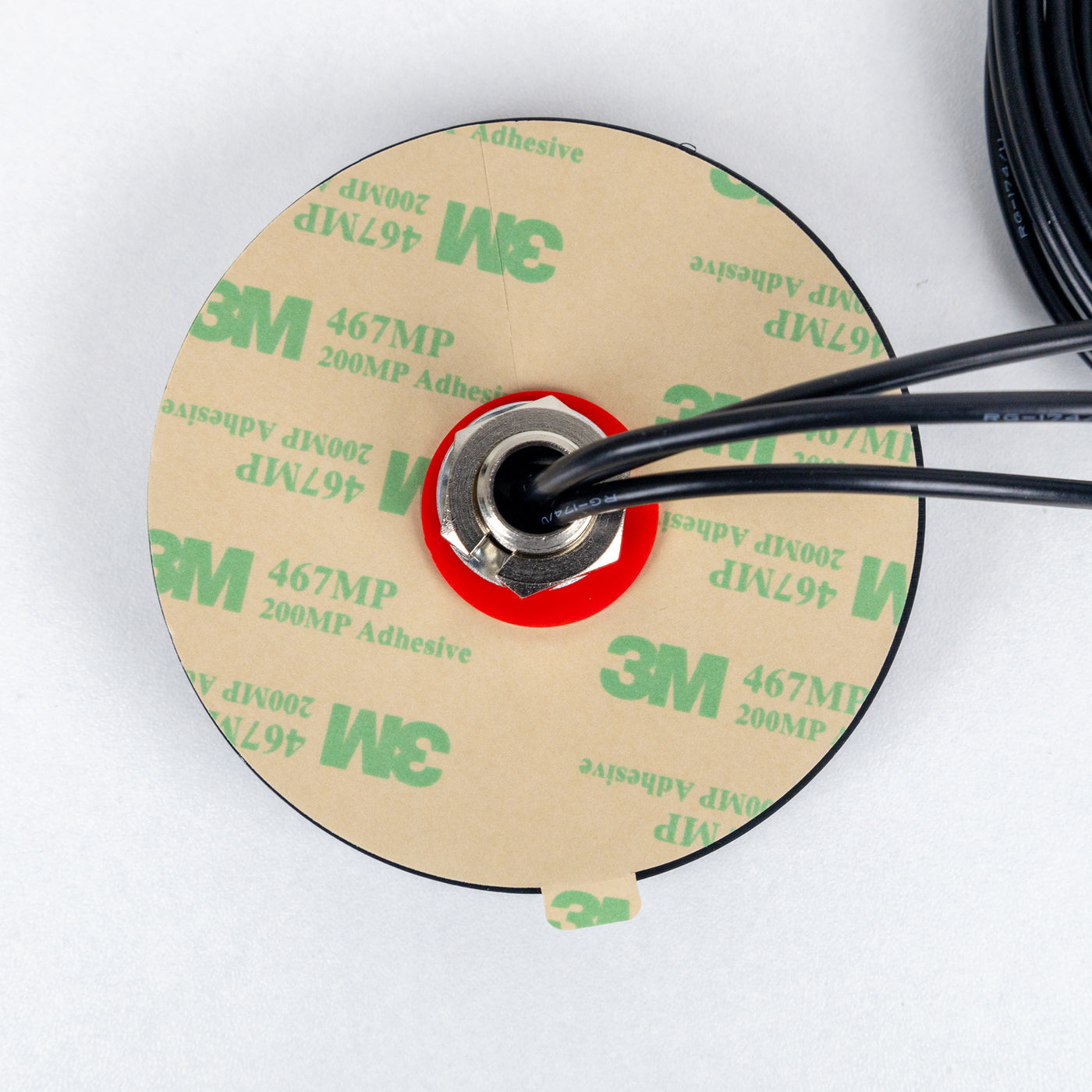

Mounting: Screw Mounting
Housing: Black

Environmental

Operating Temp. -40^oC~+85^oC
Storage Temp. -45^oC~+100^oC
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Relative Humidity up to 95%
Ingress Protection IP67(exclude cable outlet)
Environmentally Friendly ROHS Compliant

What frequencies does the antenna support for GPS and LTE?

The GPS unit has center frequency 1575.42 +/- 3 MHz with VSWR under 1.5 and band width CF +/- 5 MHz. The LTE antenna covers 698-960 MHz and 1710-2690 MHz with 50 ohm impedance and VSWR under 3.0.

Can I customize the connector types and cable lengths for this product?

Yes, different connector types and cable lengths for LTE MIMO and GPS are available. You can select the custom specification option and email your requirements.

What are the GPS performance specifications including LNA and filtering?

GPS LNA gain is 28 +/- 2 dB with a noise figure under 1.5 dB. The GPS antenna provides a zenith gain of 2 dBi and axial ratio up to 3 dB, with ex band attenuation 12 dB at CF plus 50 MHz and 16 dB at CF minus 50 MHz.

What are the LTE performance specs and polarization?

LTE main and AUX bands cover 698-960 MHz and 1710-2690 MHz with 50 ohm impedance and VSWR under 3.0. Polarization is Linear, with typical gains of 2.5 dBi for the main LTE antenna and 2.0 dBi for the AUX antenna.

What are the durability and environmental conditions for this antenna?

The housing is ABS with screw mounting and IP67 rating excluding the cable outlet. Operating temperature range is -40 C to 85 C, storage -45 C to 100 C, and humidity up to 95 percent, with vibration testing of 10 to 55 Hz at 1.5 mm for 2 hours.
