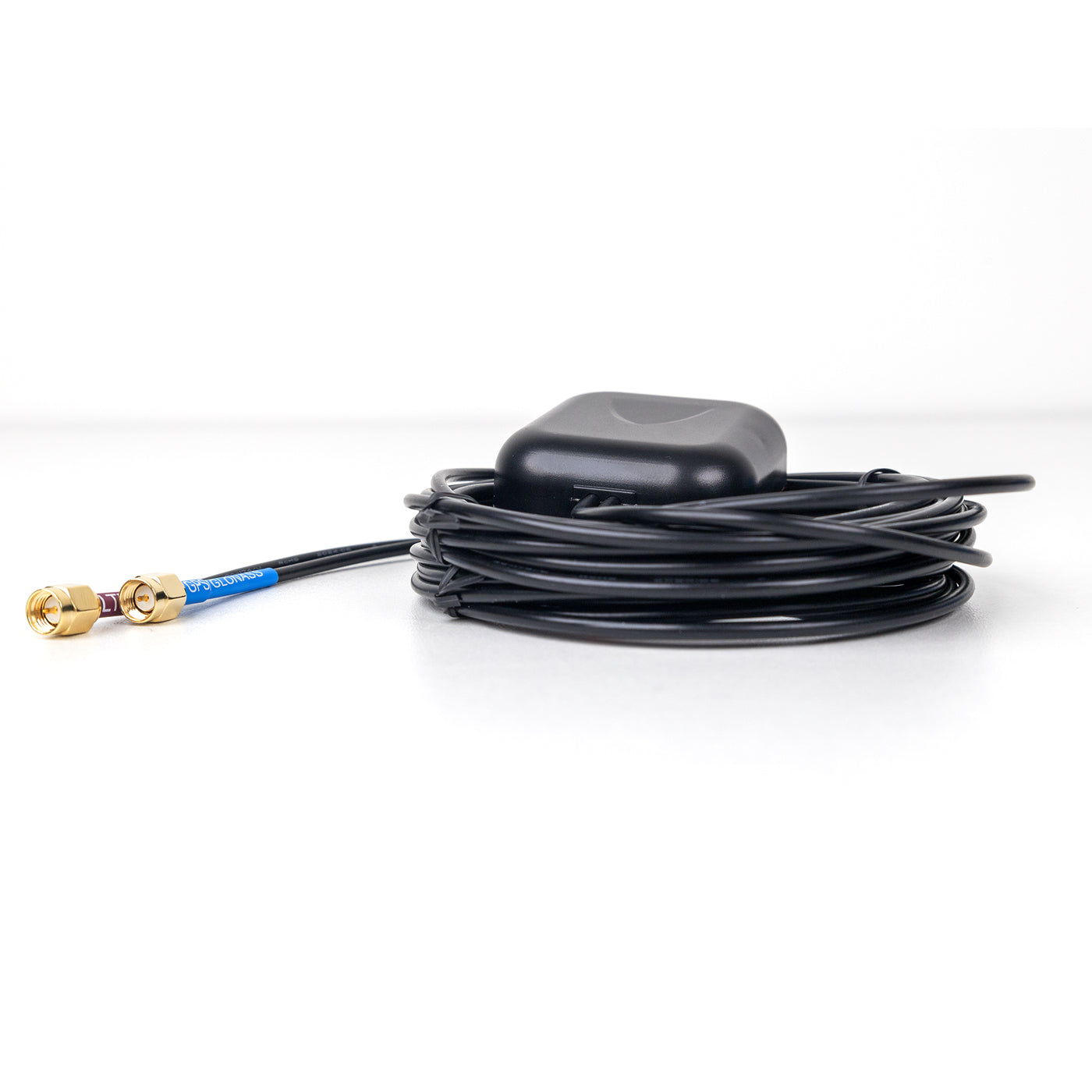

JCB317L GPS&BDS+LTE Combination Antenna

SKU: ELC8926

₹ 849.99 ~~₹ 1,249.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCB317L GPS&BDS+LTE Combination Antenna₹ 849.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

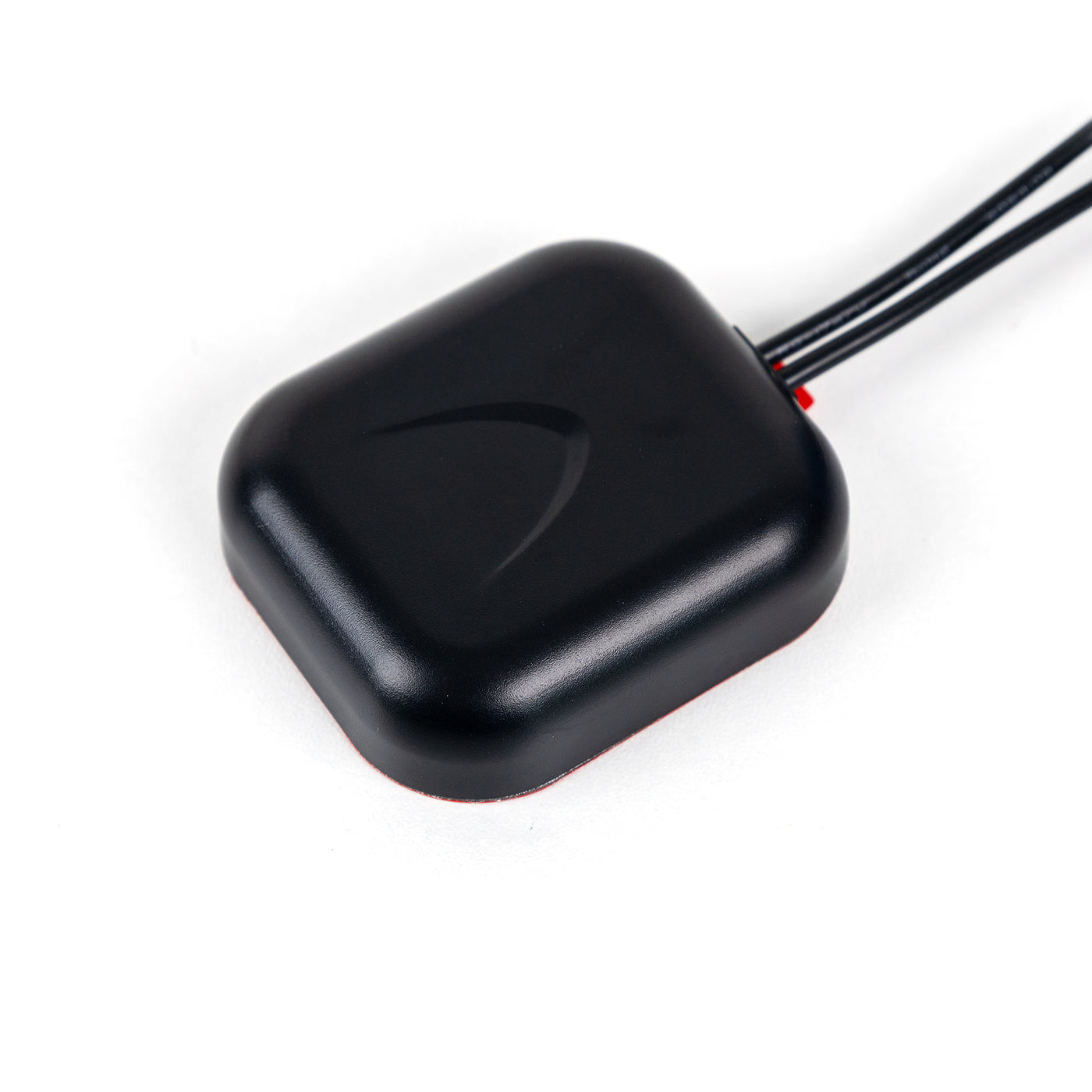

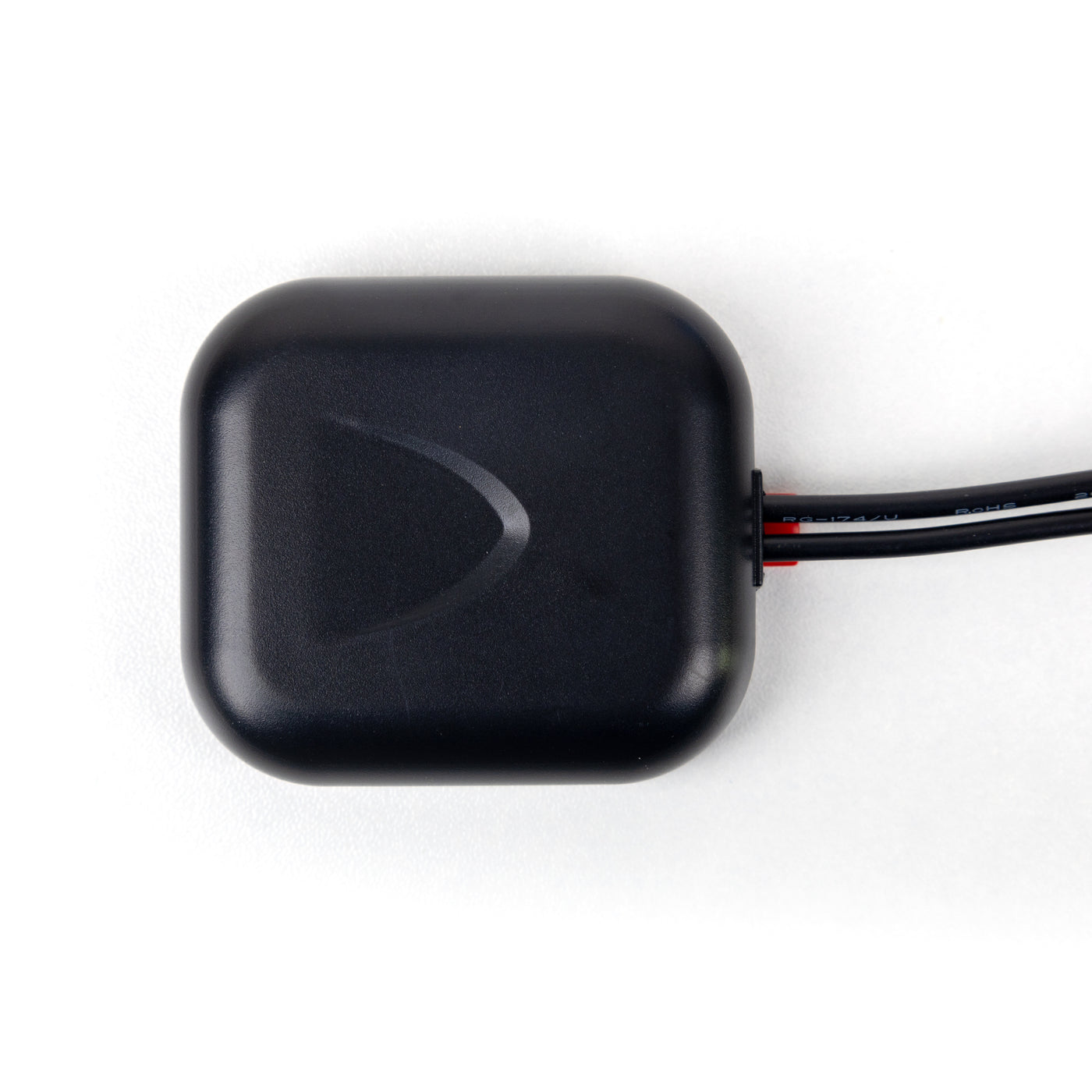

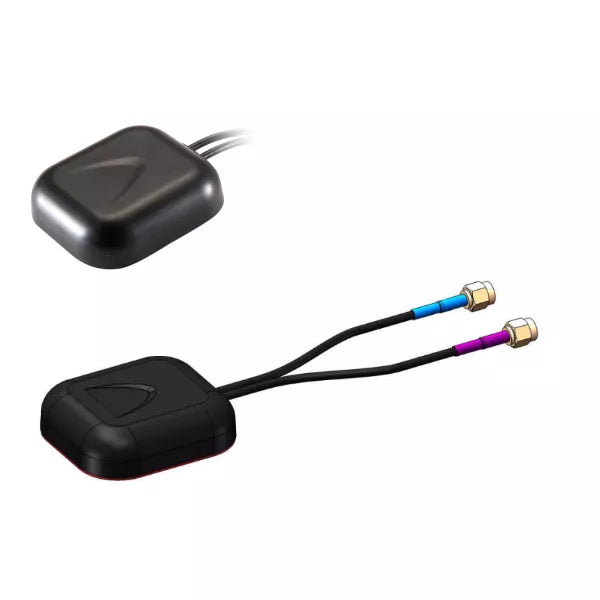

JCB317L is a type of GPS antenna designed for car navigation and localization applications. It is a combination antenna, meaning it integrates both GPS and LTE/4G functionality into one unit. This antenna model is known for its small size, high gain, and suitability for car use.

Specifications:

Item			Specifications
GPS Antenna	Dielectric Antenna	Frequency Range	1561.098~1575.42MHz
		Polarization	RHCP
		Gain	2dBic（Zenith）
		V.S.W.R	＜1.5
		Impedance	50Ω
	LNA	Gain	28±2dB
		Noise Figure	＜1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	2.2~5V DC
		Current Consumption	＜25mA
LTE Antenna		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	＜3.0
		Polarization	Linear
		Gain	2dBi
		Impedance	50Ω
		DC resistance	10KΩ
Mechanical		Cable	RG174/3m
		Connector	SMA straight male
		Radome Material	ABS
		Mounting Method	Magnet/Adhesive
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP66
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant

What is this GPS and LTE combination antenna used for?

It is a compact antenna designed to provide both GPS positioning and LTE connectivity for car navigation and localization.

What are the GPS specifications for this antenna?

The GPS part covers 1561.098 to 1575.42 MHz with RHCP polarization and 50 ohm impedance. It has a gain of 2 dBi and an LNA gain of 28 plus or minus 2 dB with a noise figure under 1.5 dB. It is powered by 2.2 to 5 V DC and draws under 25 mA.

What are the LTE specifications for this antenna?

The LTE portion covers 698-960 MHz and 1710-2690 MHz with linear polarization and 50 ohm impedance. It provides a gain of 2 dBi and VSWR under 3.0.

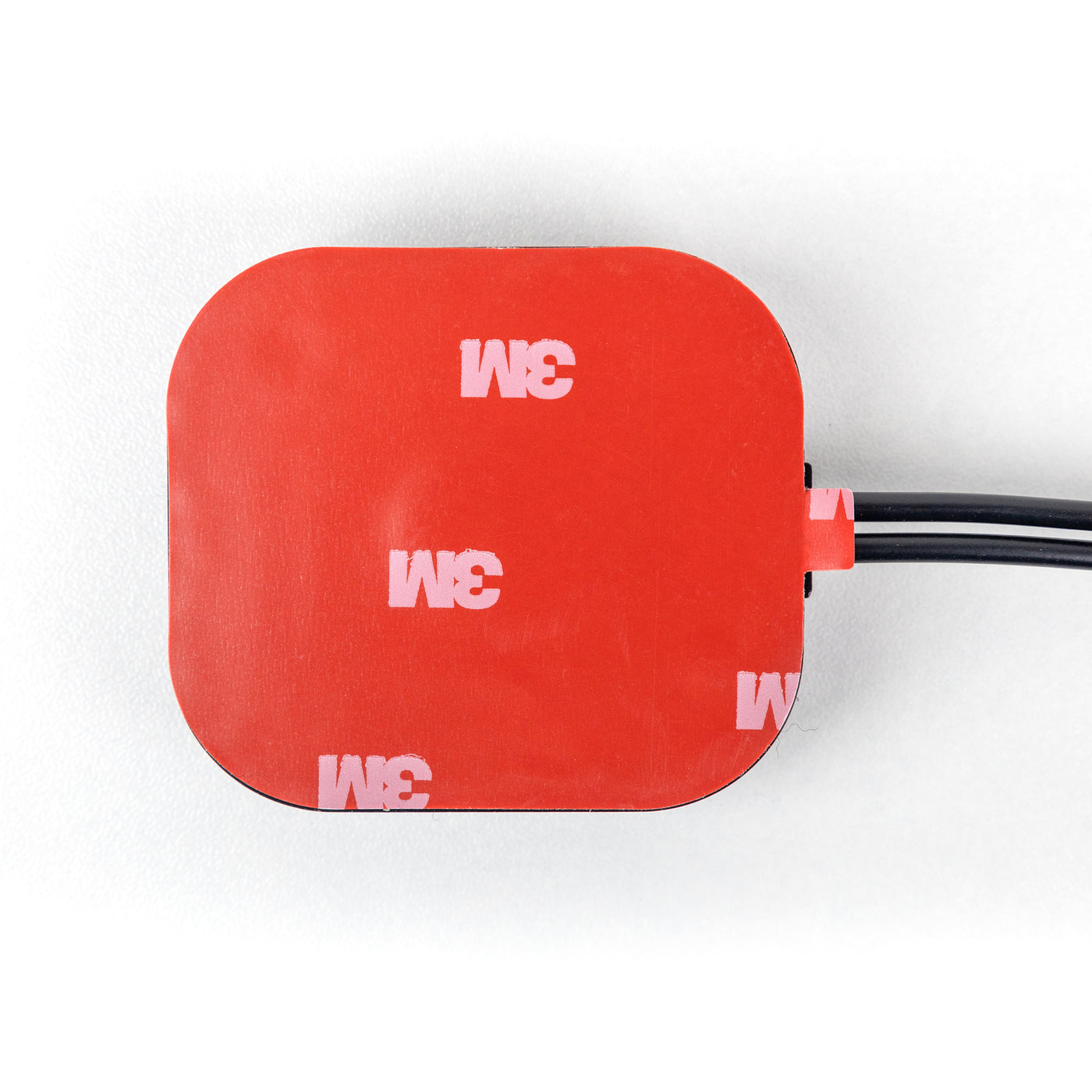

How can the antenna be mounted and what are its environmental ratings?

Mounting is via magnet or adhesive. It has IP66 ingress protection and operates from -40 C to 85 C with up to 95 percent humidity.

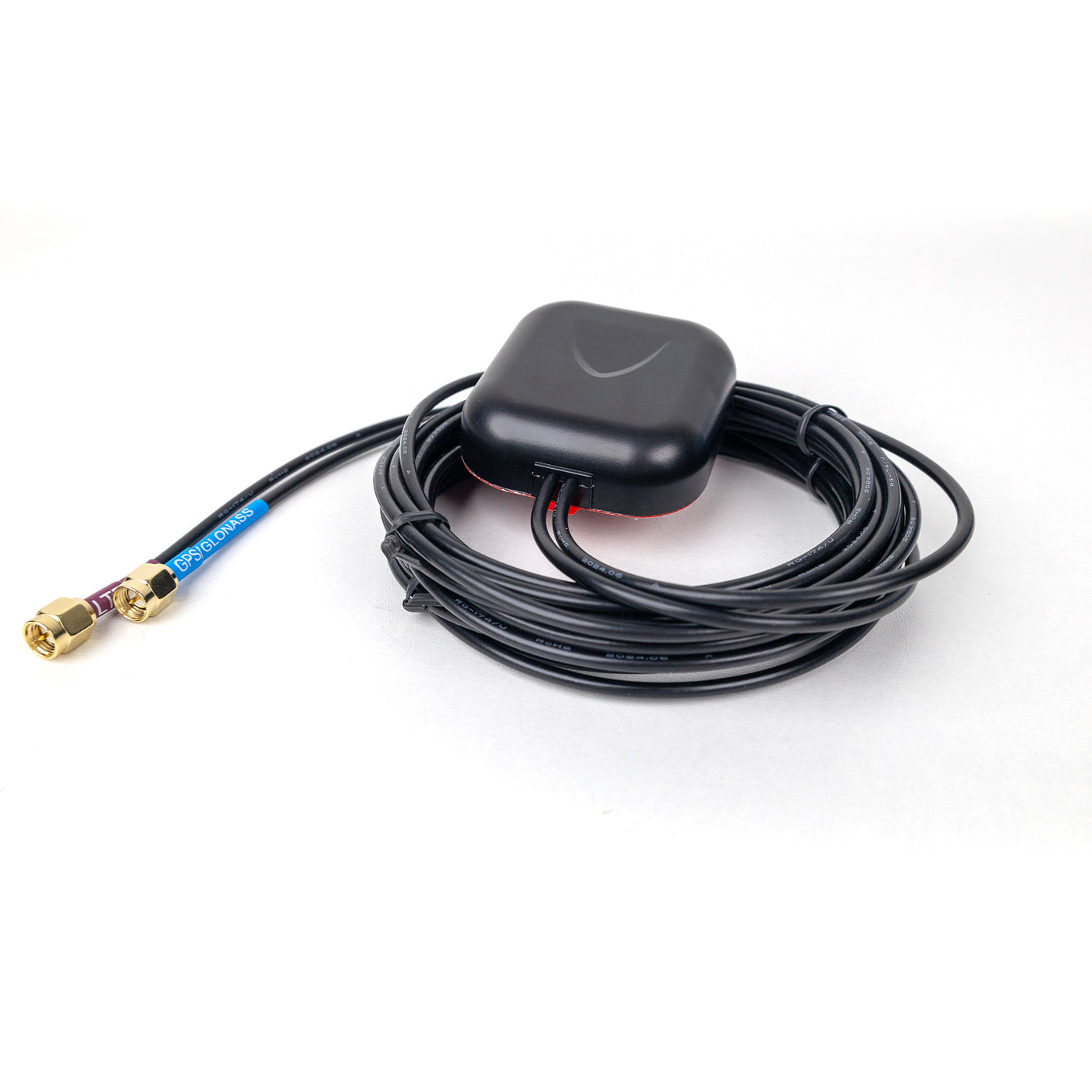

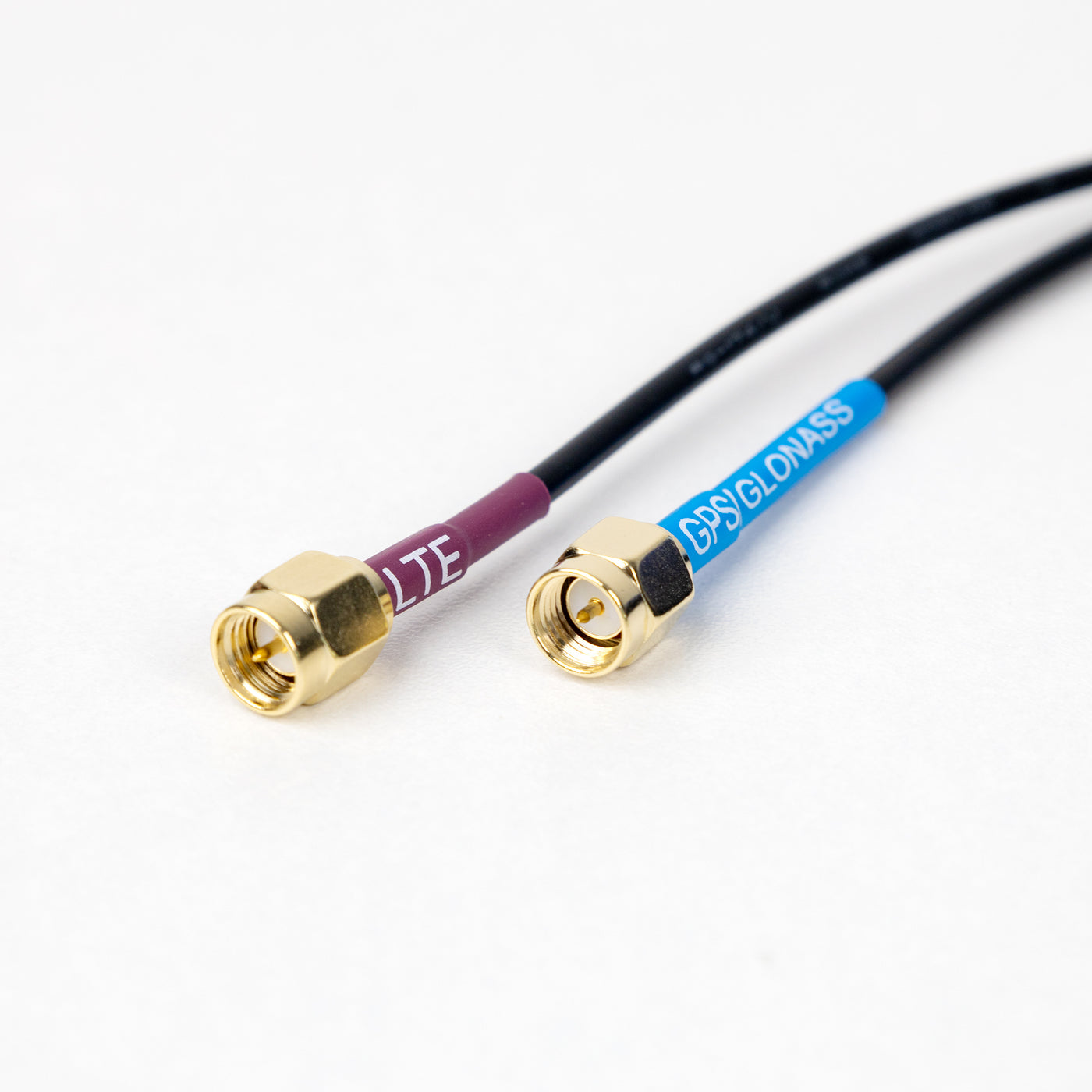

What connector and cable are supplied with the unit?

The unit uses an SMA straight male connector and RG174 coax with a 3 meter length.
