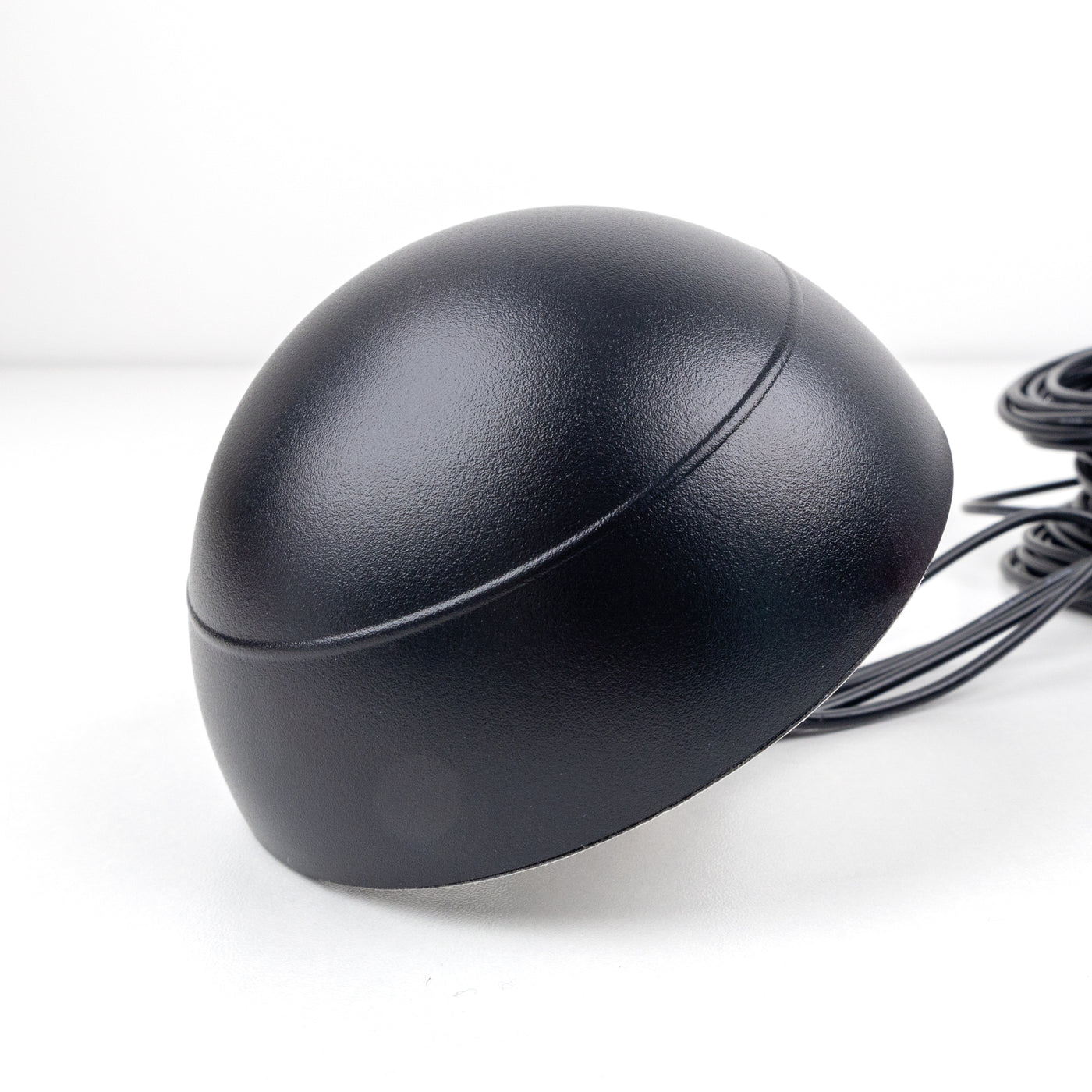

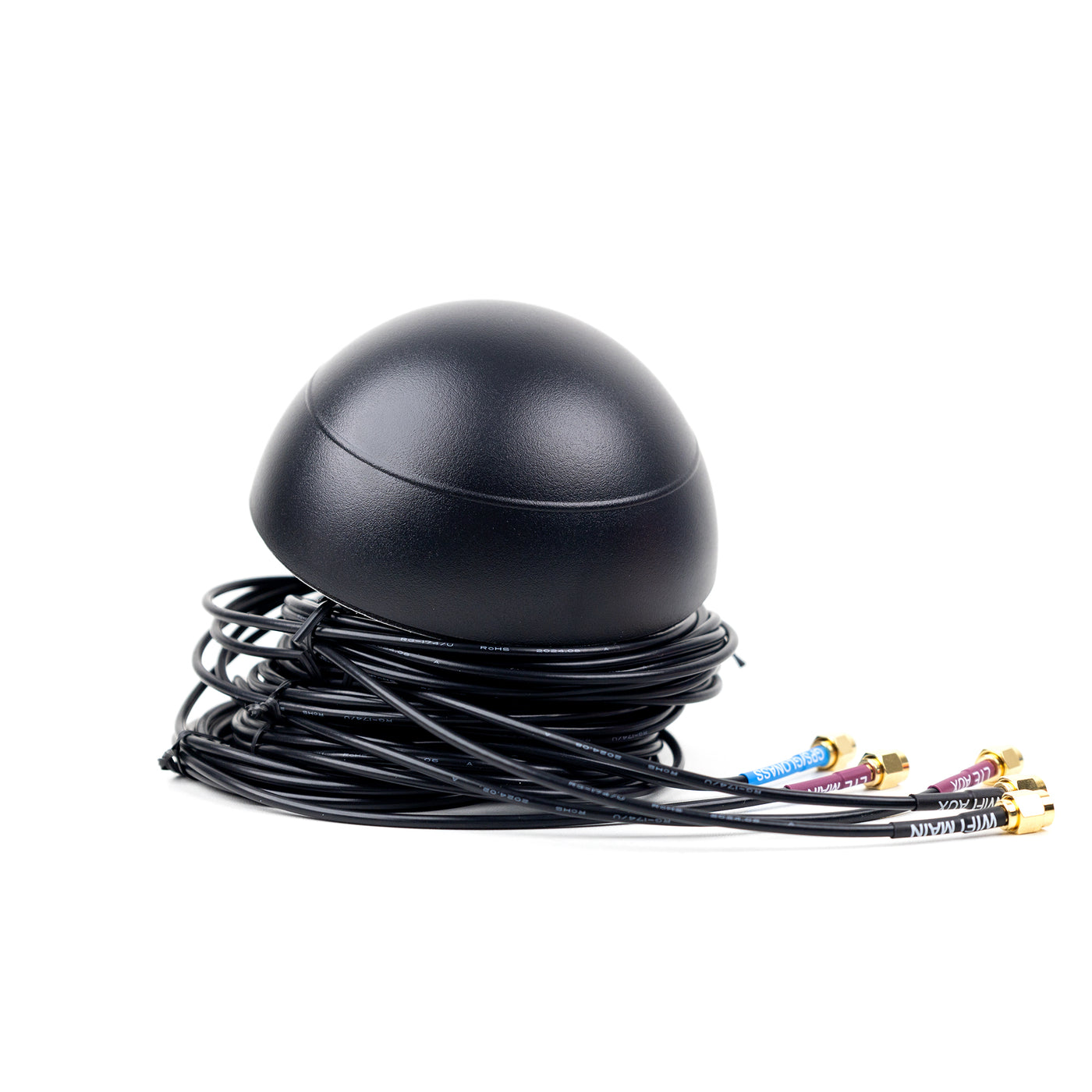

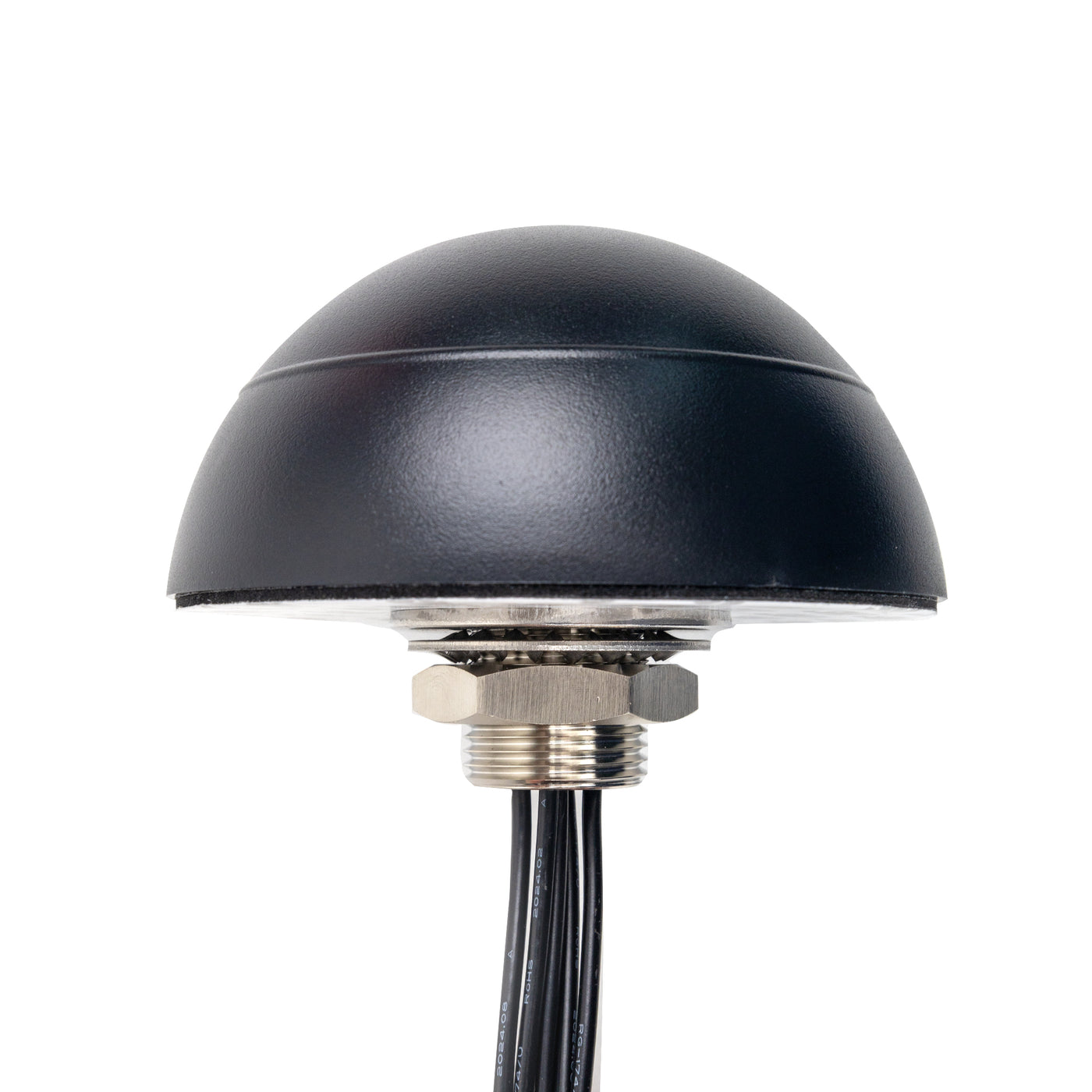

The JCE604LMWM4 is a high-performance 5-in-1 combination antenna integrating GNSS (GPS/GLONASS/BeiDou), dual LTE MIMO, and dual-band WiFi MIMO (2.4GHz + 5GHz) in a compact, low-profile design. Engineered for high-speed data, precise navigation, and robust wireless connectivity, it is ideal for vehicle tracking, fleet management, public safety, smart city, and industrial IoT deployments.

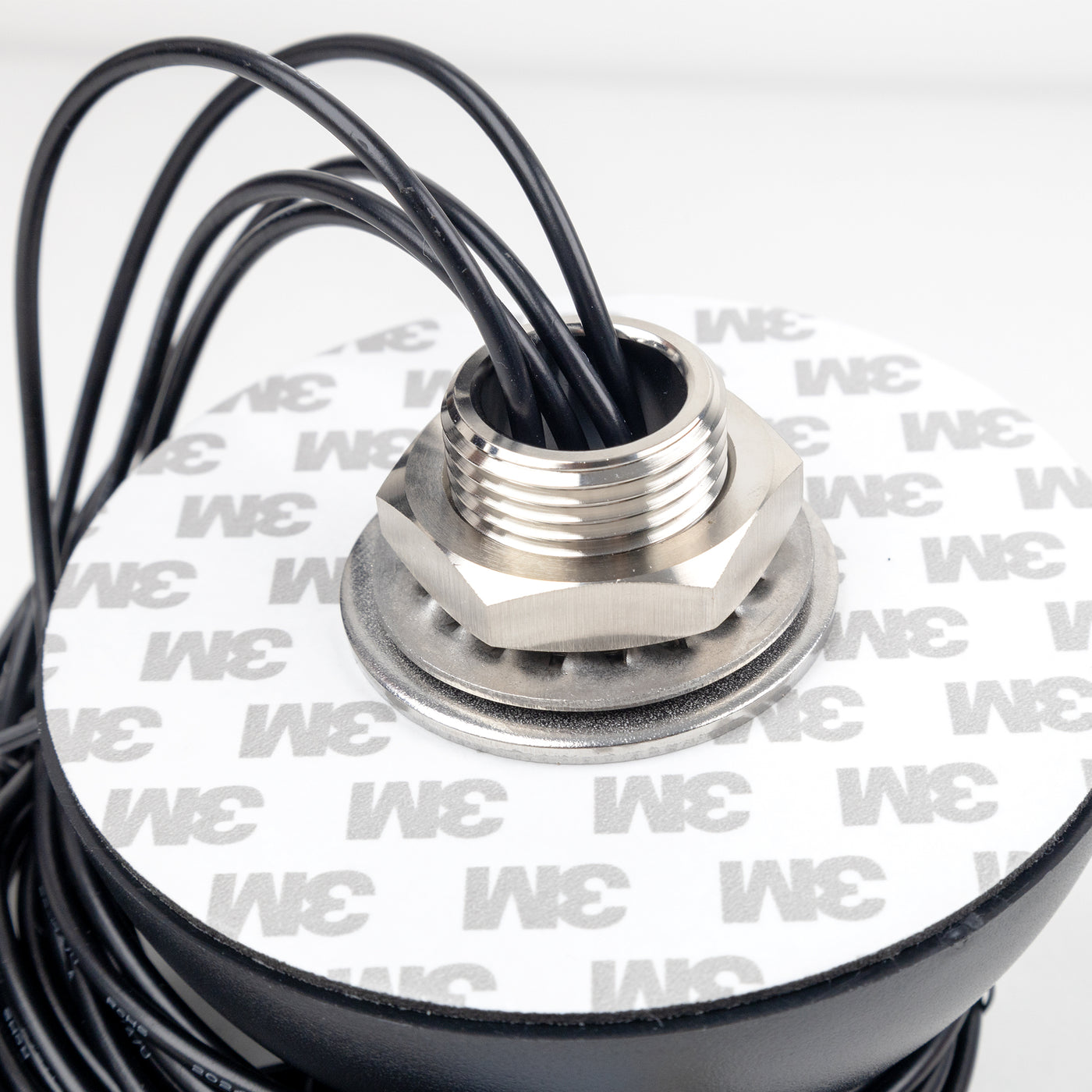

Designed with a durable, weather-resistant IP67-rated housing, this antenna ensures reliable operation in harsh outdoor conditions. The magnetic or adhesive mounting options, customizable cable lengths, and multiple connector types make it a versatile solution for embedded and mobile installations.
5-in-1 antenna: GNSS + 2x LTE + 2x WiFi
LTE coverage: 698–960MHz & 1710–2700MHz (4G)
GNSS: Supports GPS, GLONASS, BeiDou
WiFi MIMO: 2.4GHz and 5GHz dual-band
IP67 rugged housing for outdoor use
Ideal for 4G/5G routers, MDTs, CPEs, fleet telematics, and M2M systems
Boost your connectivity and simplify installation with the JCE604LMWM4—built for precision, speed, and reliability in today's connected environments.
|
Item |
Specifications |
|
|
GPS&GLONASS Antenna |
Frequency Range |
1575.42~1610MHz |
|
Polarization |
RHCP |
|
|
Impedance |
50Ω |
|
|
Dimension |
25*25*6mm |
|
|
Gain |
28±2dB |
|
|
Noise Figure |
≤1.5dB |
|
|
Supply Voltage |
3~5V DC |
|
|
Current Consumption |
＜15mA |
|
|
V.S.W.R |
＜2.0 |
|
|
LTE Antenna MIMO |
Frequency Range |
698~960MHz/1710~2690MHz |
|
V.S.W.R |
＜3.0 |
|
|
Polarization |
Linear |
|
|
Gain |
3dBi |
|
|
Impedance |
50Ω |
|
|
WIFI Antenna MIMO |
Frequency Range |
2400~2483.5MHz/4900~5825MHz |
|
V.S.W.R |
＜2.5 |
|
|
Polarization |
Linear |
|
|
Gain |
2dBi |
|
|
Impedance |
50Ω |
|
|
Mechanical |
Cable |
RG174 |
|

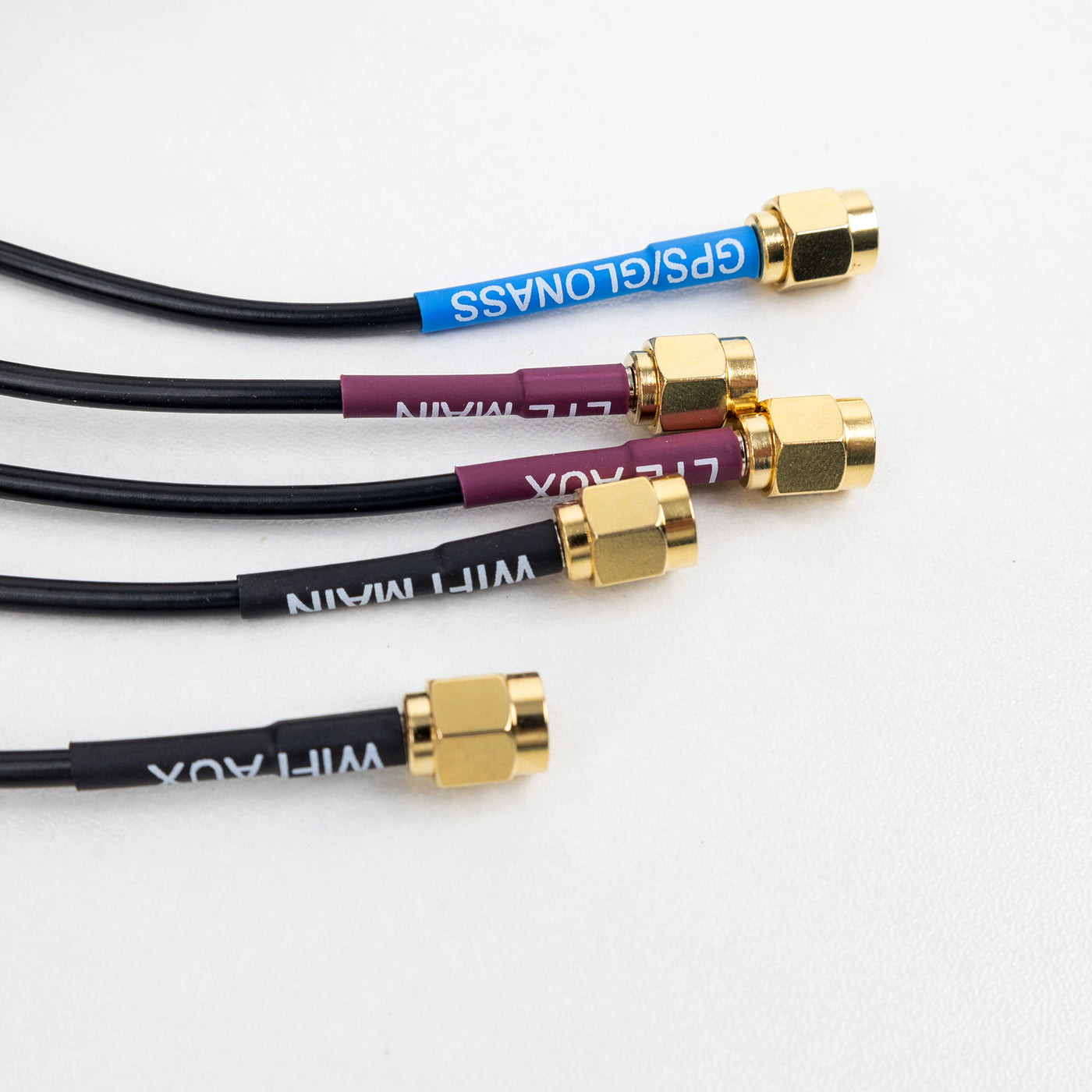

Connector |
SMA or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 (exclude cable outlet) |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
