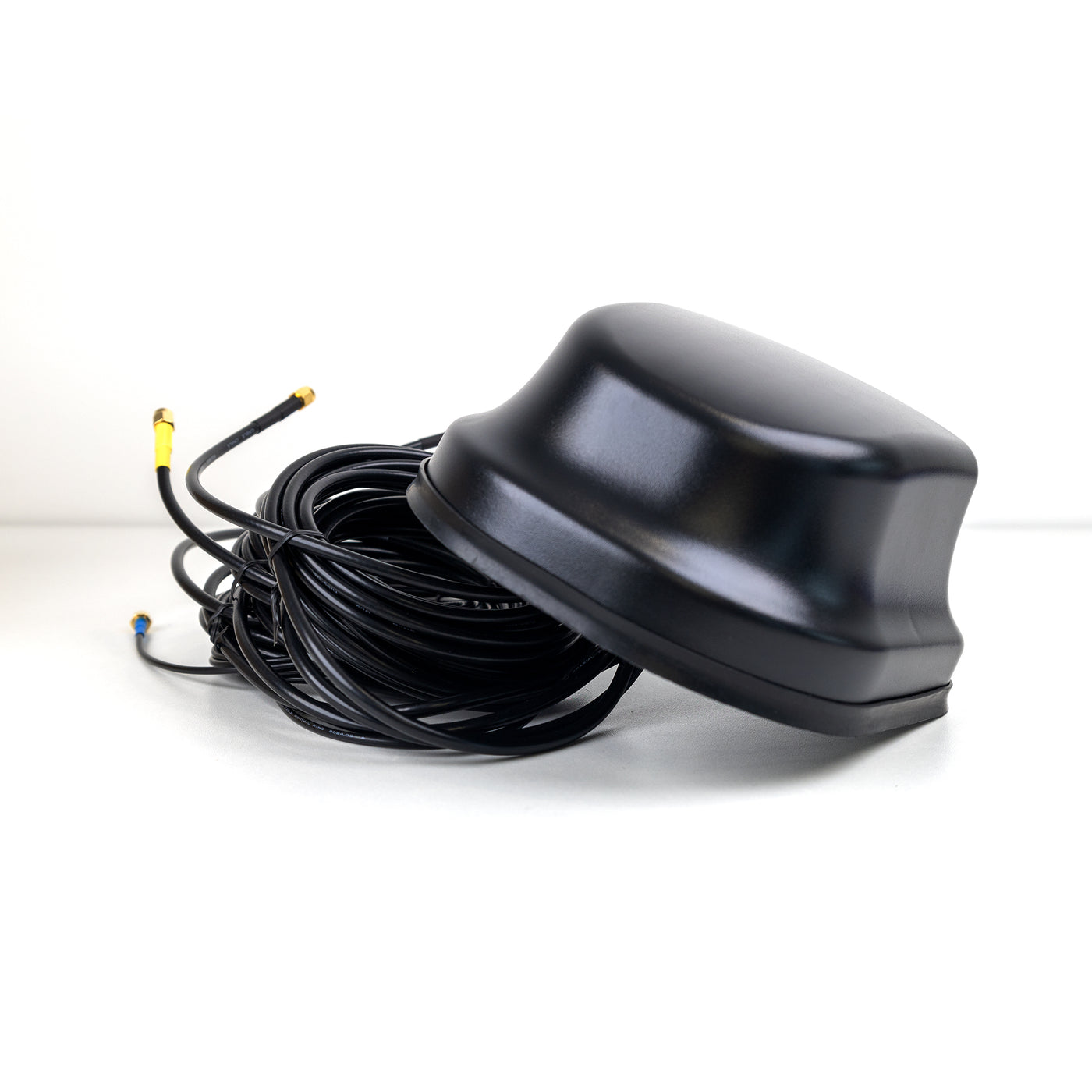

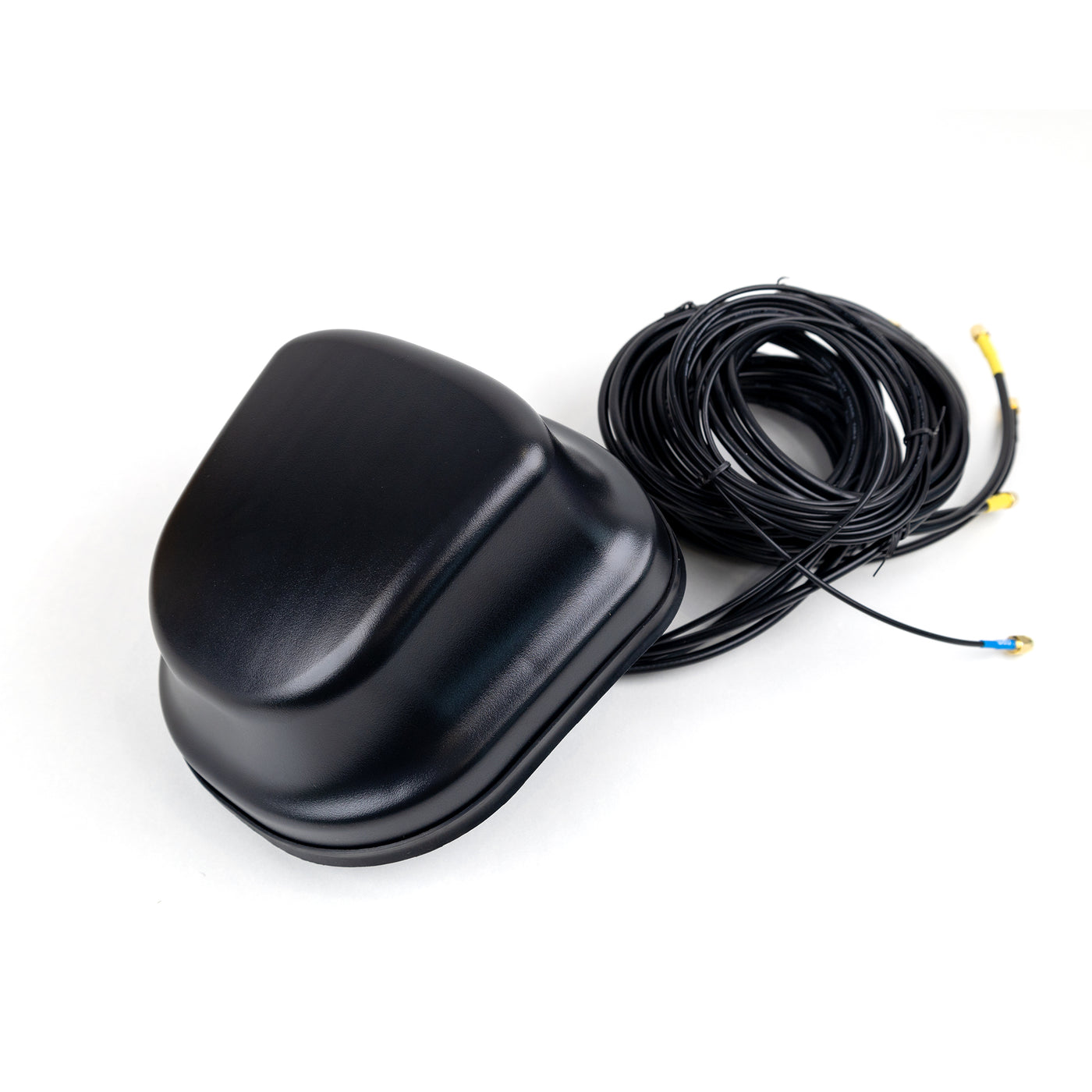

The JCE605LMWM4 is a next-generation 5-in-1 combination antenna integrating GNSS (GPS/GLONASS/BeiDou), dual 4G LTE MIMO, and dual-band WiFi MIMO (2.4GHz/5GHz) for seamless global connectivity. Designed for applications demanding high throughput, location accuracy, and reliable wireless access, it is perfect for connected vehicles, smart transportation systems, mobile command units, and industrial IoT platforms.

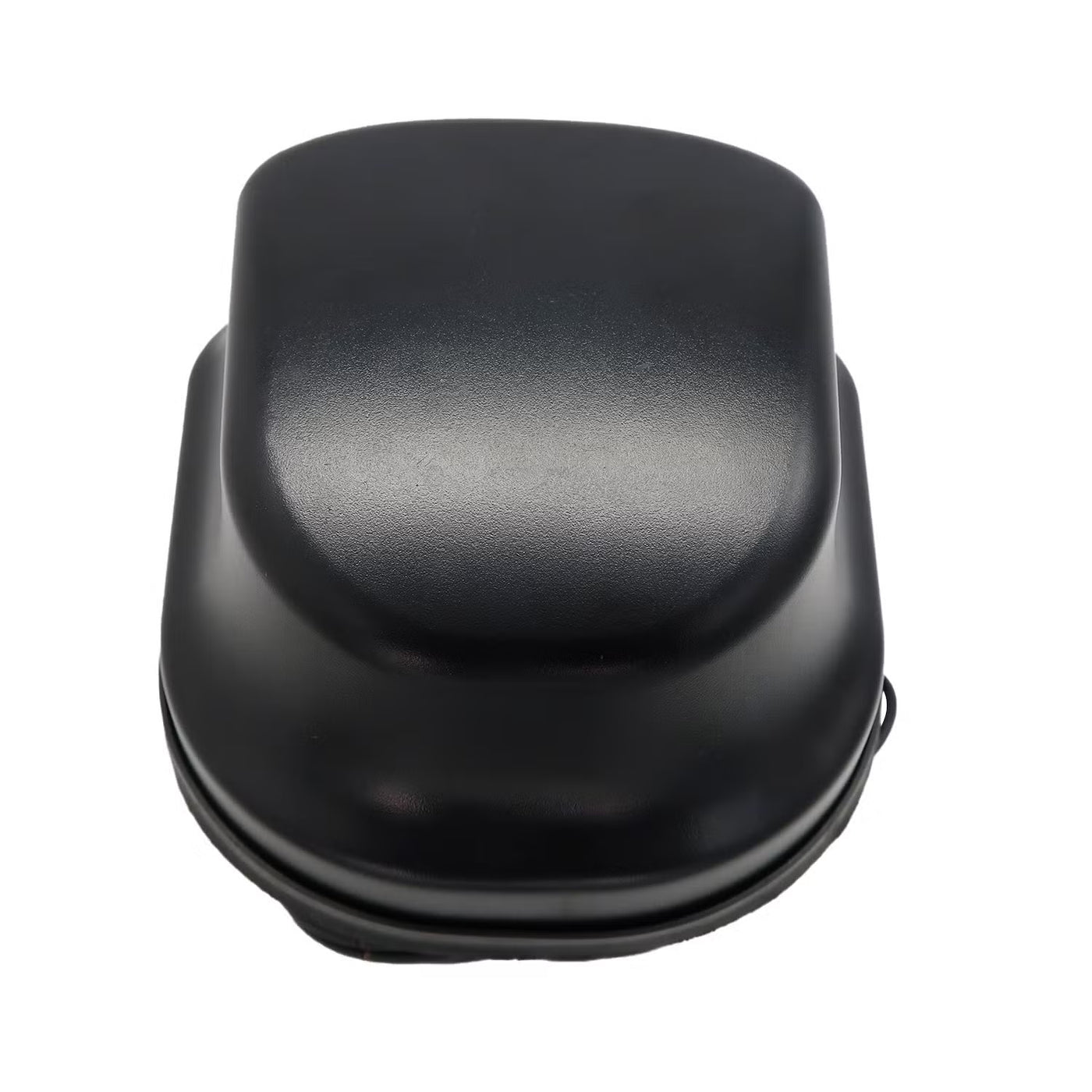

Its compact form factor, IP67-rated waterproof enclosure, and rugged construction allow for outdoor installations in harsh environments. Equipped with magnetic or adhesive mounting options, customizable cable lengths, and standard SMA connectors, the JCE605LMWM4 is both flexible and easy to deploy.

Key Features:

Integrated GNSS (GPS/GLONASS/BeiDou) for accurate location tracking
Dual LTE MIMO antennas supporting 698–960MHz & 1710–2700MHz bands\
Dual-band WiFi MIMO antennas for 2.4GHz and 5.8GHz networks
Optimized for LTE routers, FWA, fleet telematics, and M2M systems
Durable IP67 housing for reliable outdoor performance
Multi-mount design: magnet, adhesive, or screw mount options

Deliver fast, reliable connectivity across multiple networks with the JCE605LMWM4—built for the future of mobility and machine communication.

Specifications:

Item		Specifications
GNSS Antenna	Frequency Range	1561.098~1606MHz
	Polarization	RHCP
	Impedance	50Ω
	Dimension	25254mm
	Gain	28±2dB
	Noise Figure	≤1.5dB
	Supply Voltage	3~5V DC
	Current Consumption	＜15mA
	V.S.W.R	＜2.0
LTE/5G Antenna MIMO	Frequency Range	698~960MHz/1710~2690MHz/2900~3800MHz
	V.S.W.R	＜3.0
	Polarization	Linear
	Gain	4dBi（Typ.）
	Impedance	50Ω
WIFI Antenna MIMO	Frequency Range	2400~2483.5MHz/4900~5925MHz
	V.S.W.R	＜2.5
	Polarization	Linear
	Gain	4dBi（Typ.）
	Impedance	50Ω
Mechanical	Cable	RG174

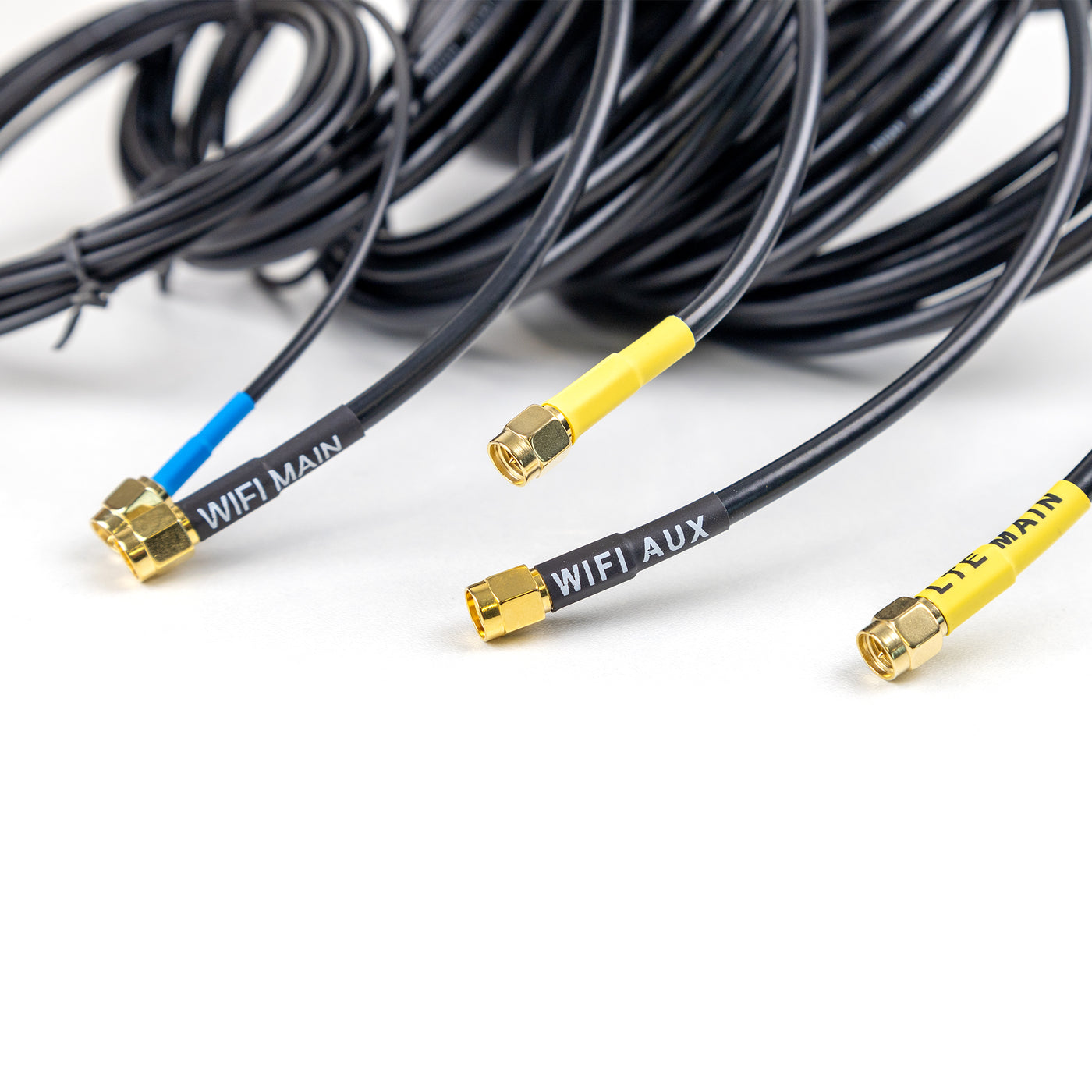

	Connector	SMA or others
	Material	PC/ABS

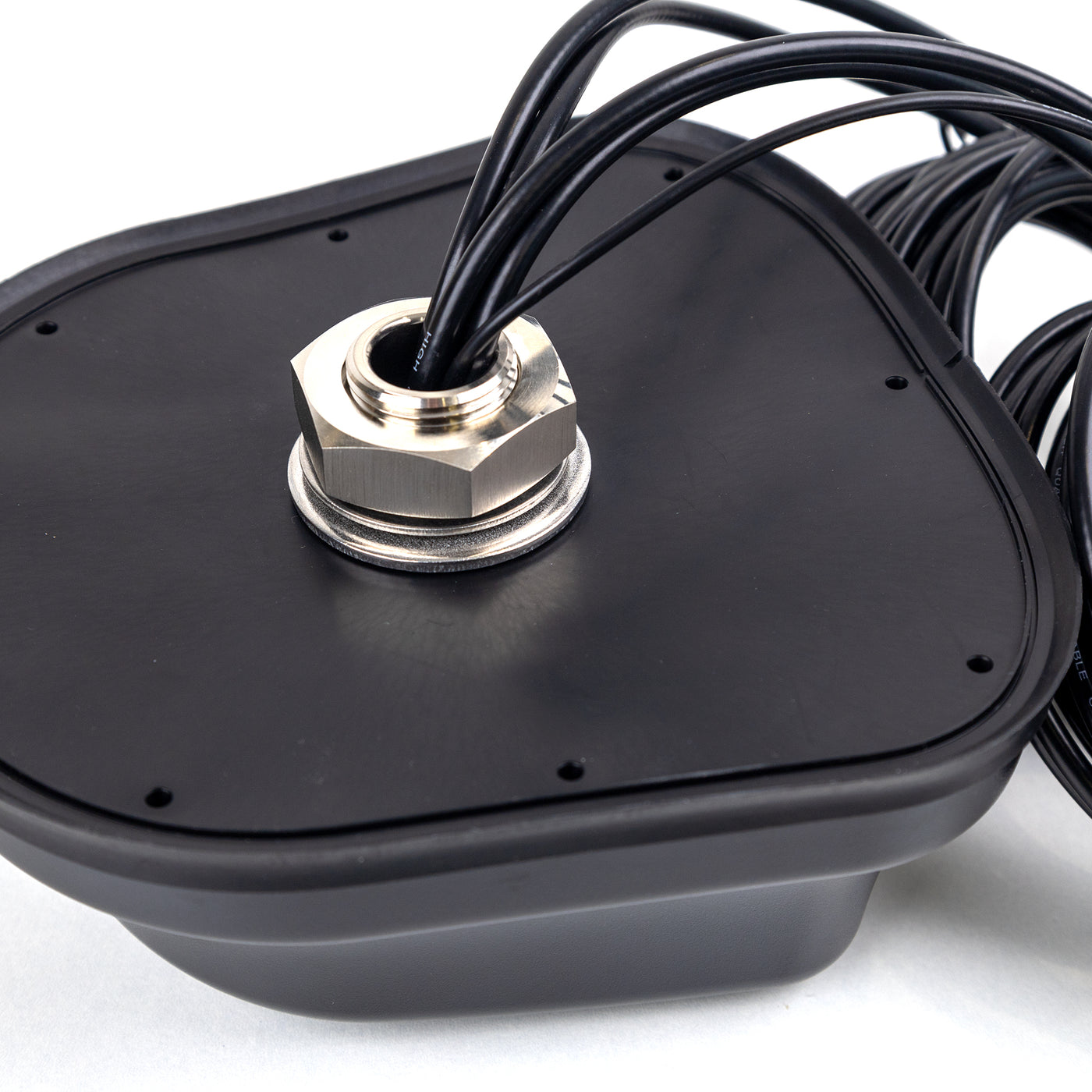

	Mounting Method	Screw
Environmental	Operating Temperature	-40℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What networks are supported by the 5 in 1 antenna?

It combines GNSS (GPS, GLONASS, BeiDou), dual LTE MIMO across 698 960 MHz, 1710 2700 MHz, and 2900 3800 MHz, and dual band WiFi MIMO for 2.4 and 5 GHz networks.

How can I mount and connect this antenna?

It offers magnet, adhesive, or screw mount options and supports customizable cable lengths, with standard SMA connectors for easy integration.

Is this antenna suitable for outdoor deployments and how rugged is it?

Yes, it is housed in an IP67 rated enclosure for outdoor use in harsh environments and supports operation in conditions with high humidity and wide temperature ranges.

What are the main electrical characteristics of the antenna components?

The GNSS element is 50 ohm with RHCP and about 28 dBi typical gain, the LTE 5G element covers 698 960, 1710 2690, 2900 3800 MHz with about 4 dBi gain, and the WiFi element covers 2.4 and 5 GHz with about 4 dBi gain; impedance is 50 ohm and VSWR values are specified in the data sheet.

What power and connector options are available for this antenna?

The GNSS section operates from 3 to 5 V DC and draws less than 15 mA, and the antenna uses SMA connectors with options for customizable cable lengths.
