JC Antenna

JCW063 Wifi Antenna

SKU: ELC8918

₹ 1,349.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCW063 Wifi Antenna₹ 1,349.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

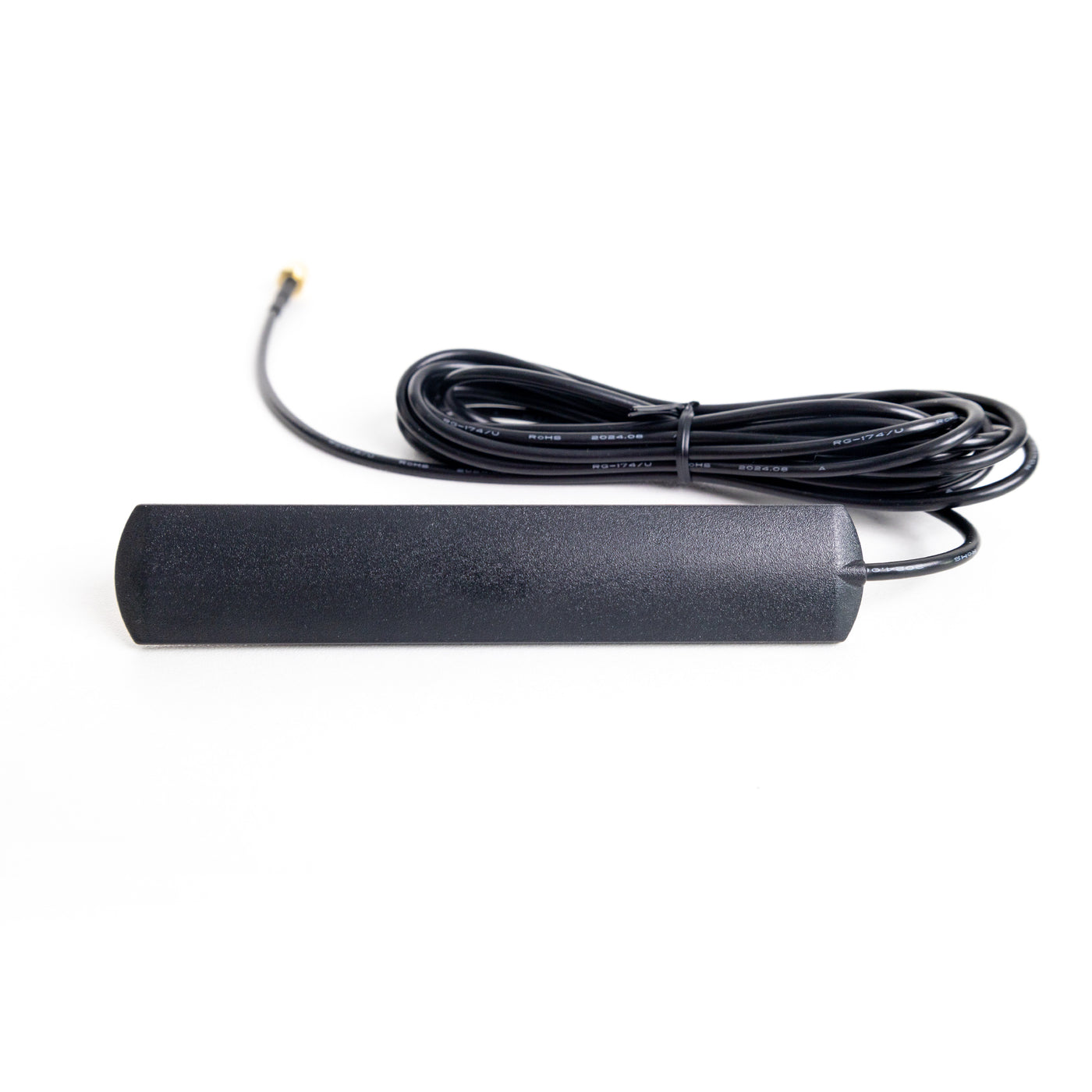

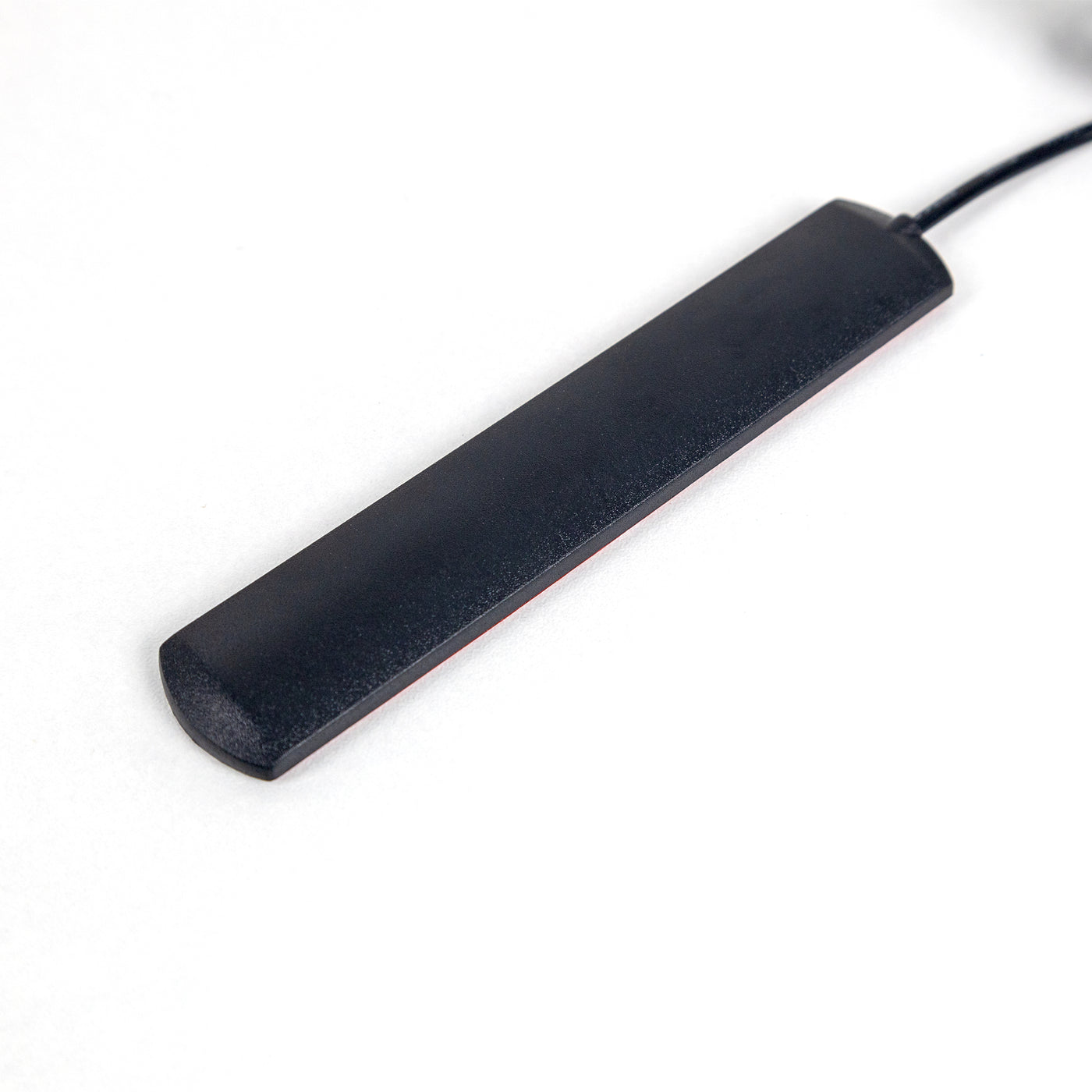

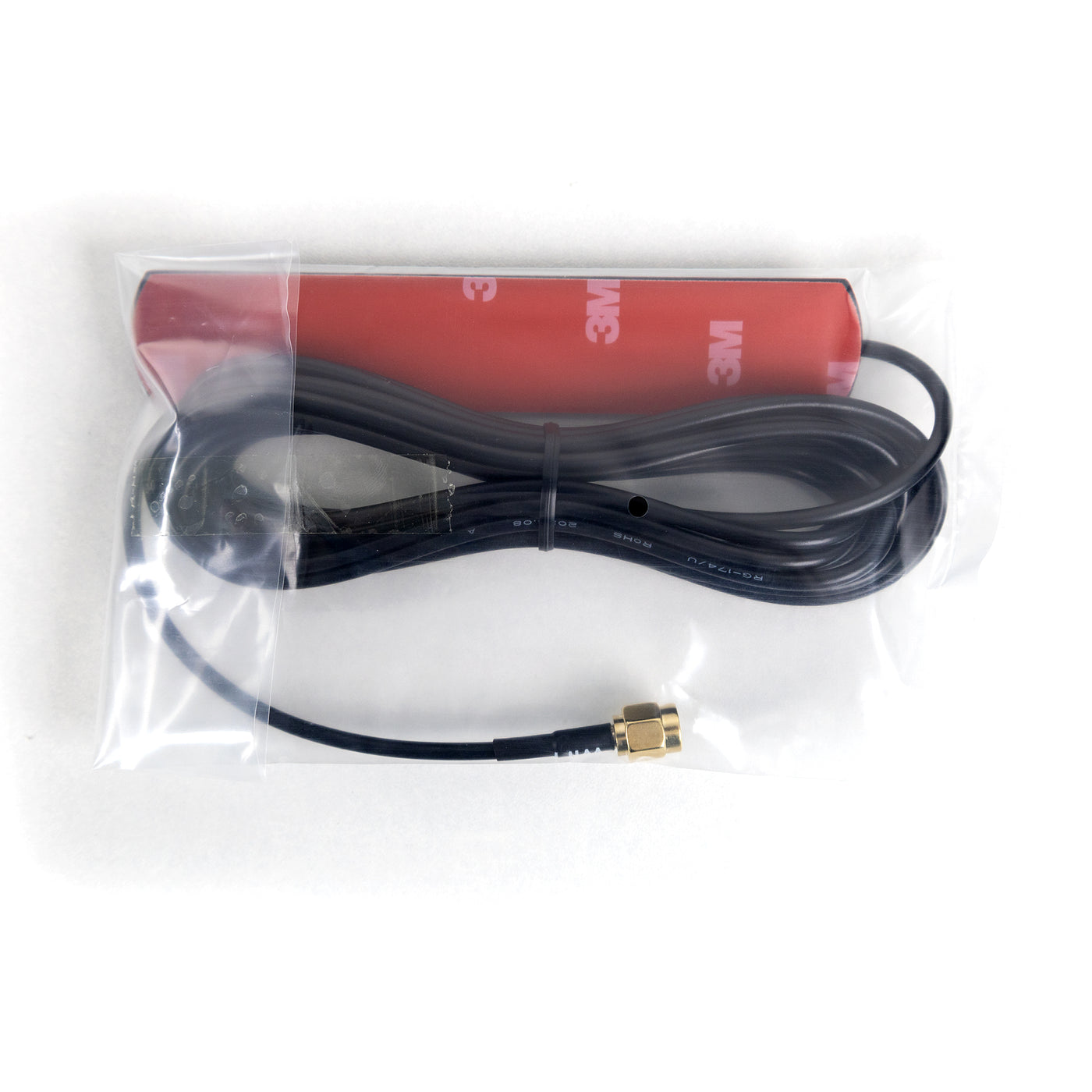

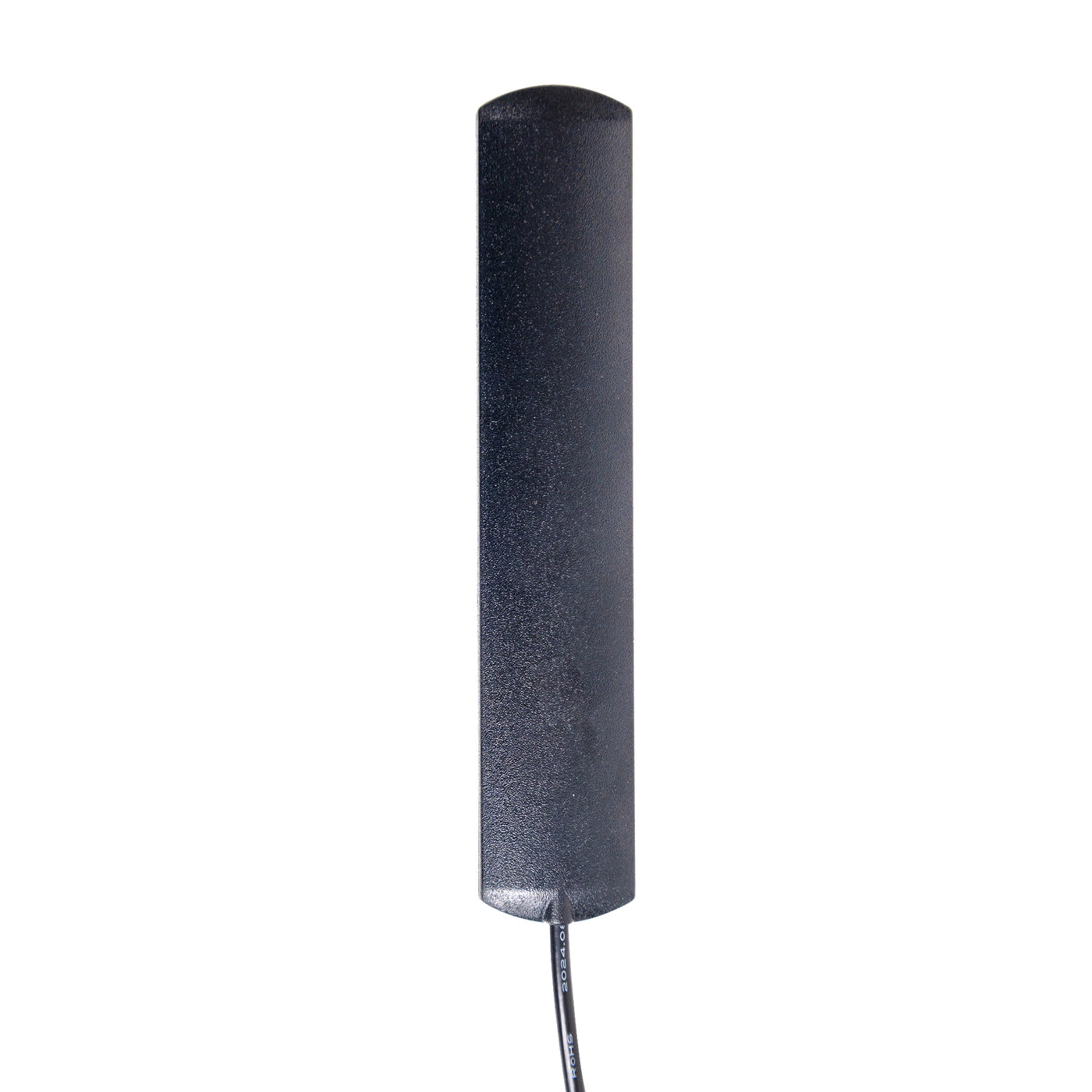

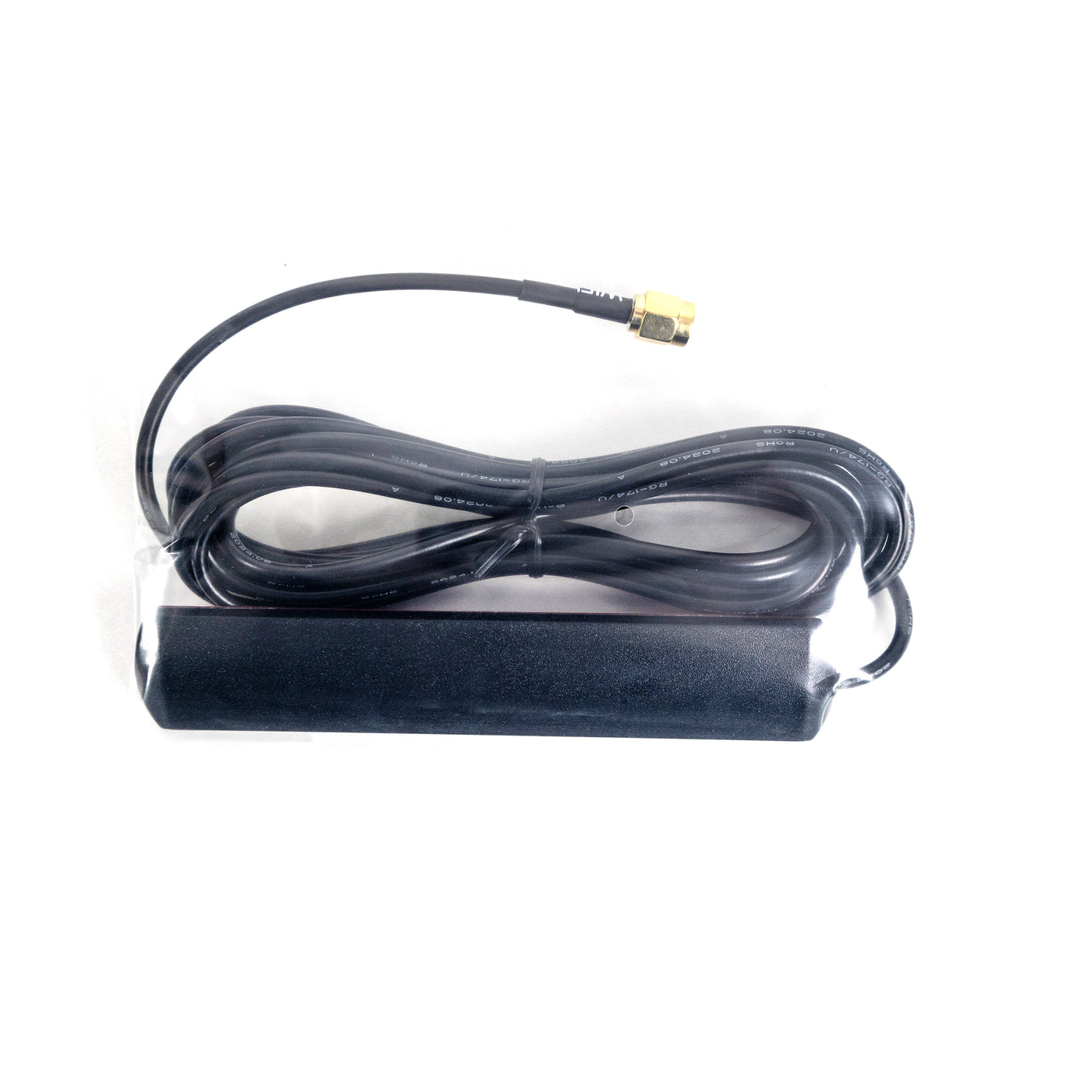

JCW063 High Quality Android 2400-2500MHz External 2dBi WiFi Car Antenna Male SMA.

Specifications:

Item		Specifications
Antenna	Frequency Range	2400~2483.5MHz
	Polarization	Linear
	Gain(Zenith)	3.0dBi
	V.S.W.R(min)	<2.0
	Impendance	50Ω
	PCB Dimension	104.6151mm
Mechanical	Cable	RG174

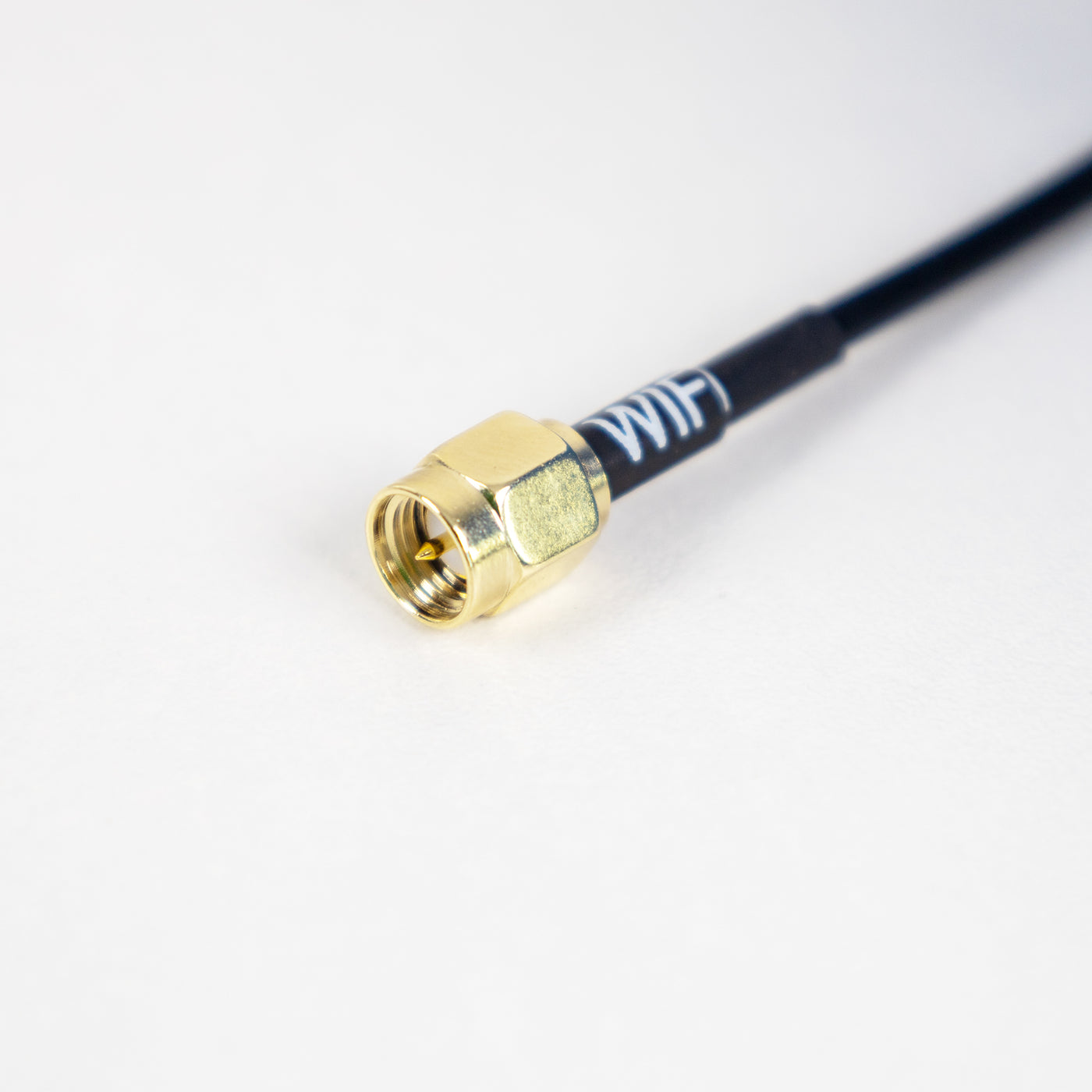

	Connector	FAKRA/SMA or others
	Radome Material	ABS

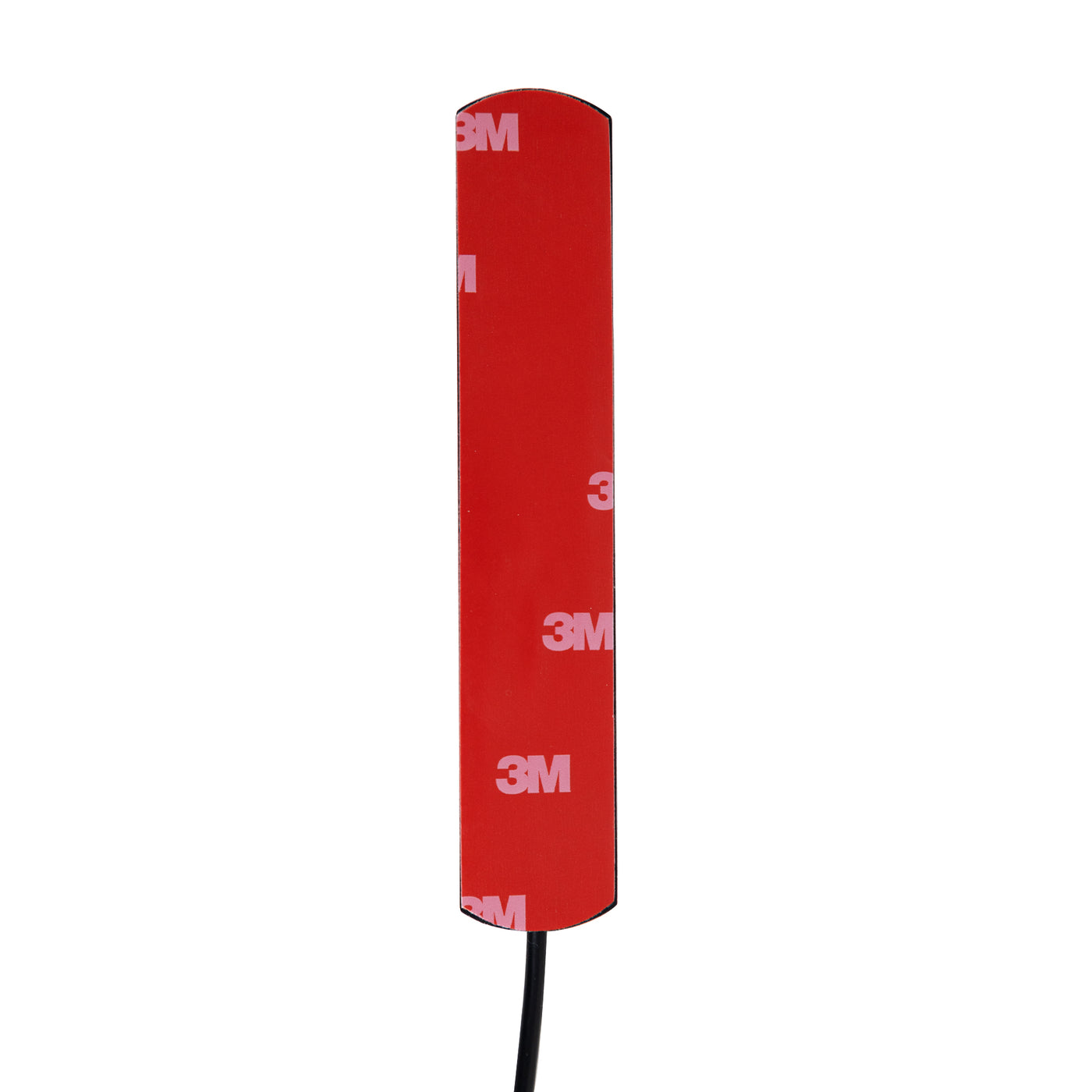

	Mounting Method	Adhesive
Environmental	Operating Temperature	-40ºC~+85ºC
	Relative Humidity	Up to 95%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What is the frequency range and gain of the antenna?

The antenna operates from 2400 to 2483.5 MHz with linear polarization and a gain of 3.0 dBi. It has 50 Ohm impedance and a VSWR under 2.0.

What connector options are available and how is it mounted?

Connector options include SMA or Fakra with RG174 cable. Mounting is by adhesive.

What are the environmental and durability specifications?

Operating temperature is -40C to +85C and relative humidity up to 95 percent. The unit is RoHS compliant and can withstand vibration from 10 to 55 Hz with 1.5 mm amplitude for 2 hours.

What is the intended use or typical application?

It is designed as an external wifi antenna for vehicles and is suitable for car wifi applications requiring 2 dBi gain and 50 Ohm impedance.

Is warranty or returns information available for this product?

Warranty and returns terms are not specified in the product data; please check with the retailer for policy.
