4inch IPS Capacitive Touch Display, 480×480 Pixels for Luckfox Pico Ultra

SKU: WVSH0102

₹ 2,799.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
4inch IPS Capacitive Touch Display, 480×480 Pixels for Luckfox Pico Ultra₹ 2,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

4inch IPS Capacitive Touch Display

480x480 Pixels, RGB Communication Interface,
Compatible With Luckfox Pico Ultra Development Board

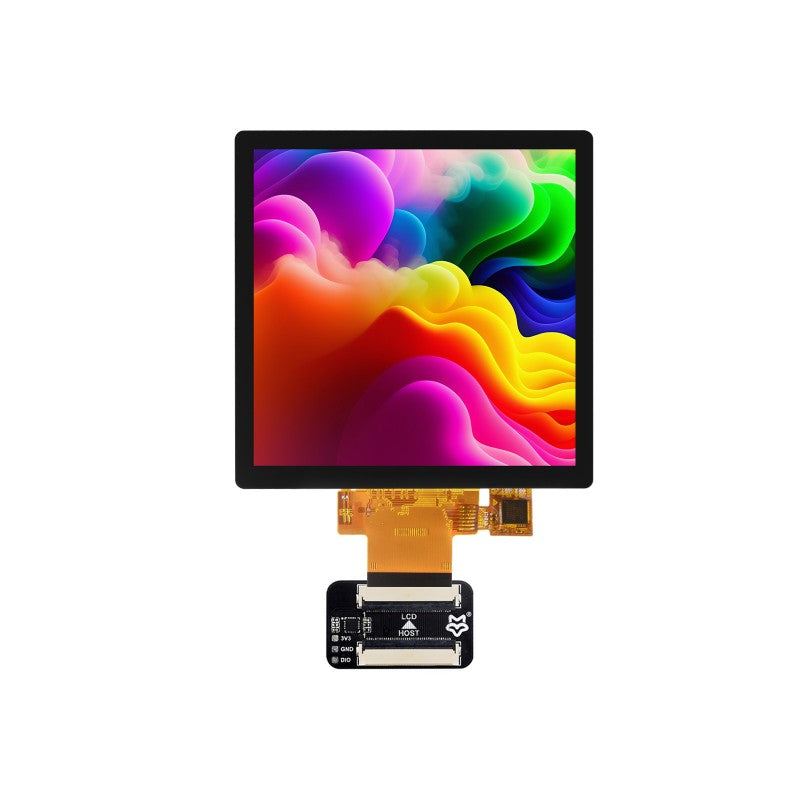

LF40 480480 ARK, front view LF40 480480 ARK, features



Product Specifications

Size 4" Resolution 480×480
Display Panel IPS Viewing Angle 160°
Touch Type Capacitive Touch Chip GT911
Brightness 400cd/m² Contrast ratio 380:1
Outline Dimension 84.2×84.2mm (H×V) Display area 71.86×70.18mm (H×V)
Pixel pitch 0.1497×0.1462mm (H×V) Operation temperature -20~70°C
Communication Interface RGB666 - -



Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LF40 480480 ARK, capacitive touch



Usage example

* for reference only, the Luckfox Pico Ultra W is NOT included

LF40 480480 ARK, usage example


Outline dimensions

LF40 480480 ARK, dimensions



Selection Guide

PRODUCT SIZE RESOLUTION DISPLAY PANEL DISPLAY COLOR GAMUT BRIGHTNESS CONTRAST RATIO OUTLINE DIMENSION (mm) DISPLAY AREA (mm) COMMUNICATION INTERFACE
LF40-480480-ARK
LF40-480480-ARK		 4" 480×480 IPS - 400cd/m² 380:1 84.2×84.2 71.86×70.18 RGB666
LF40-720720-ARK
LF40-720720-ARK		 4" 720×720 IPS 68% NTSC 400cd/m² 1000:1 84.0×84.0 71.93×71.93 RGB666



Resources

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-Ultra-RGB-Screen/



Package Contains:

Weight: 0.041 kg

LF40-480480-ARK ×1

LF40 480480 ARK



Is this display compatible with the Luckfox Pico Ultra development board?
Yes, the display is compatible with the Luckfox Pico Ultra development board. It uses the RGB666 communication interface and the Pico Ultra board is not included.
What are the main specifications of the display?
The panel is 4 inches with a 480 by 480 pixel IPS display, capacitive touch, brightness 400 cd/m2, contrast 380:1, and a 160 degree viewing angle.
What is the communication interface and touch type used?
The display uses a RGB666 communication interface and features capacitive touch.
What is included in the package and where can I find documentation?
The package includes one LF40-480480-ARK 4 inch display. Documentation and more information can be found at the Luckfox wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-Ultra-RGB-Screen/
What are the physical dimensions and operating temperature range?
Outline dimensions are 84.2 x 84.2 mm, display area 71.86 x 70.18 mm, and the operating temperature range is -20 to 70 C.
