Low-Profile CPU Cooling Fan for Raspberry Pi 4B/3B+/3B, with Aluminum Alloy Bracket

SKU: WVSH0513

ā‚¹ 899.99

Out of stock Ā· Available in 2 weeks

Select variant

NOT Included
šŸ“¦ Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
Low-Profile CPU Cooling Fan for Raspberry Pi 4B/3B+/3B, with Aluminum Alloy BracketNOT Includedā‚¹ 899.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

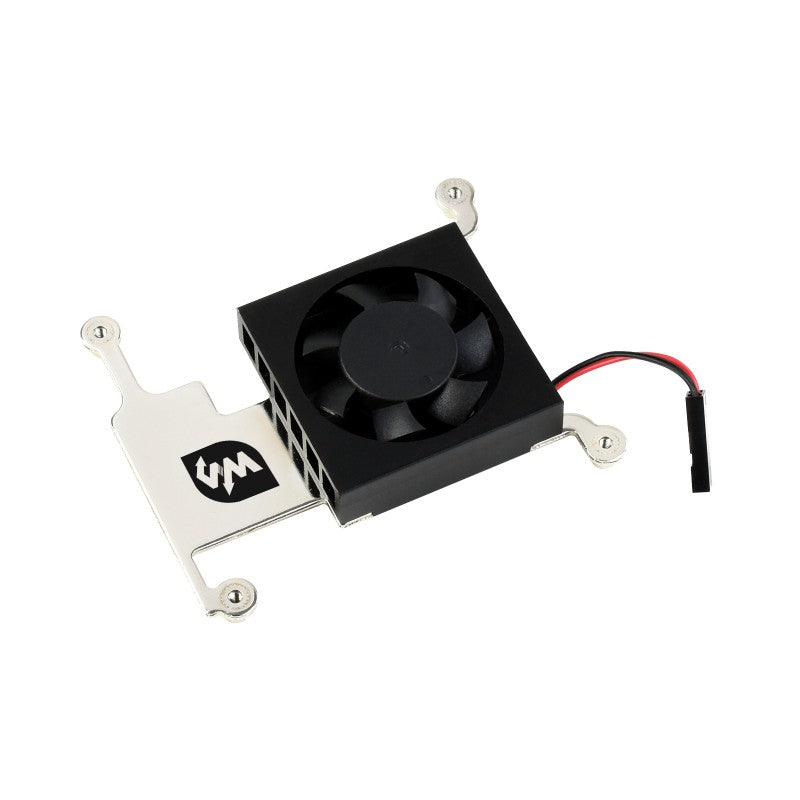

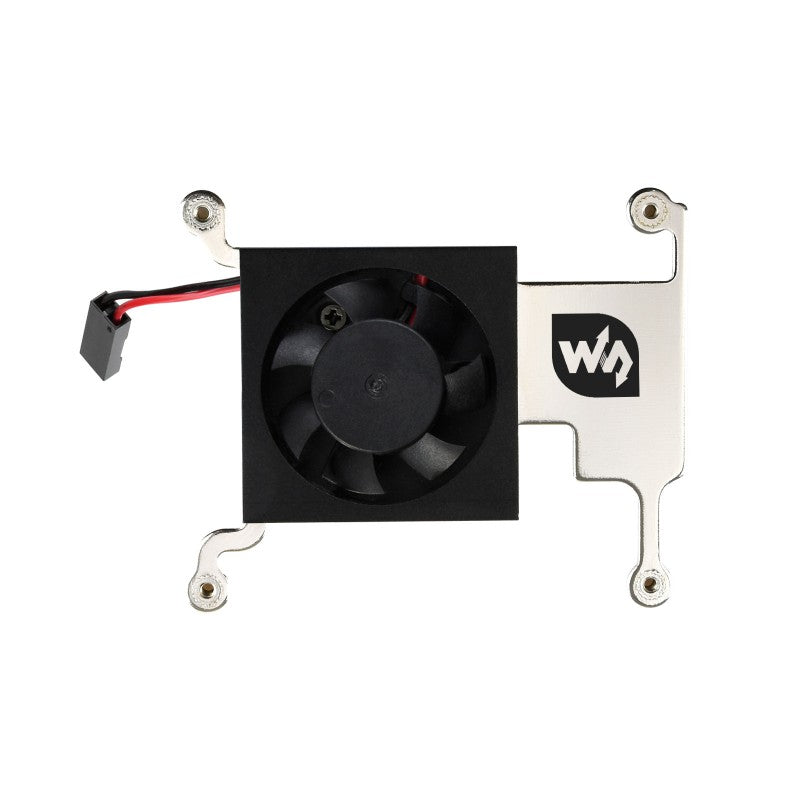

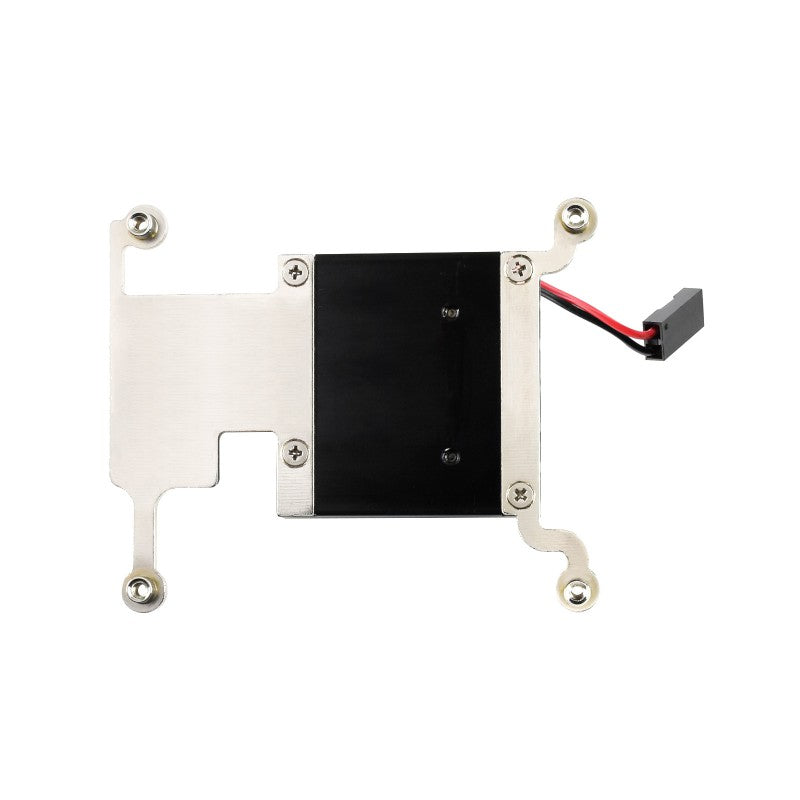

CPU Cooling Fan for Raspberry Pi

Low noise, better cooling

Ā

Specifications

Parameter Details
Supported Pi Raspberry Pi 4B / 3B+ / 3B
Power Supply DC 5V input (can be powered from Raspberry Pi)
Structure Low-profile, aluminum alloy heat-sinking bracket, optional GPIO adapter
Rated Power 1W (5V, 0.2Ā±0.02A)
Cable Length 45 Ā± 10mm
Fan 3007 fan, 8000 Ā±10% RPM

Ā

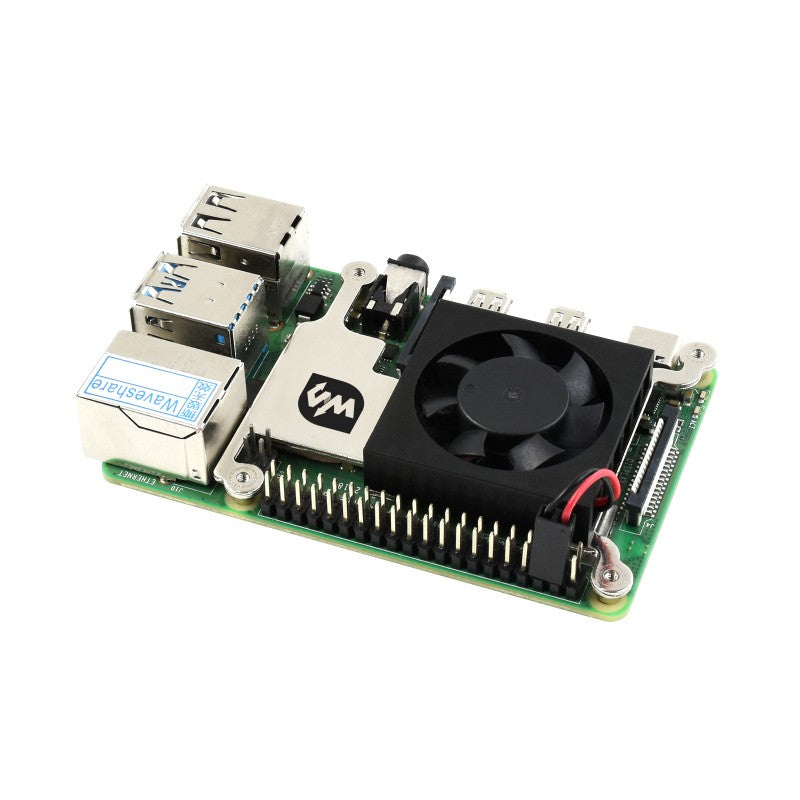

Setup example

Cooling the Raspberry Pi 4B (Left) and Raspberry Pi 3B+/3B with GPIO adapter (Right).Ā

Ā

Attaching Other Raspberry Pi HATs Via the GPIO Adapter

The GPIO adapter is optional.
Raspberry Pi and other HATs are NOT included.

Ā

Raspberry Pi 4B Cooling Solution Comparing

Ā

Outline Dimensions

Ā

Resources & Services

Wiki: PI-FAN-3007

Ā

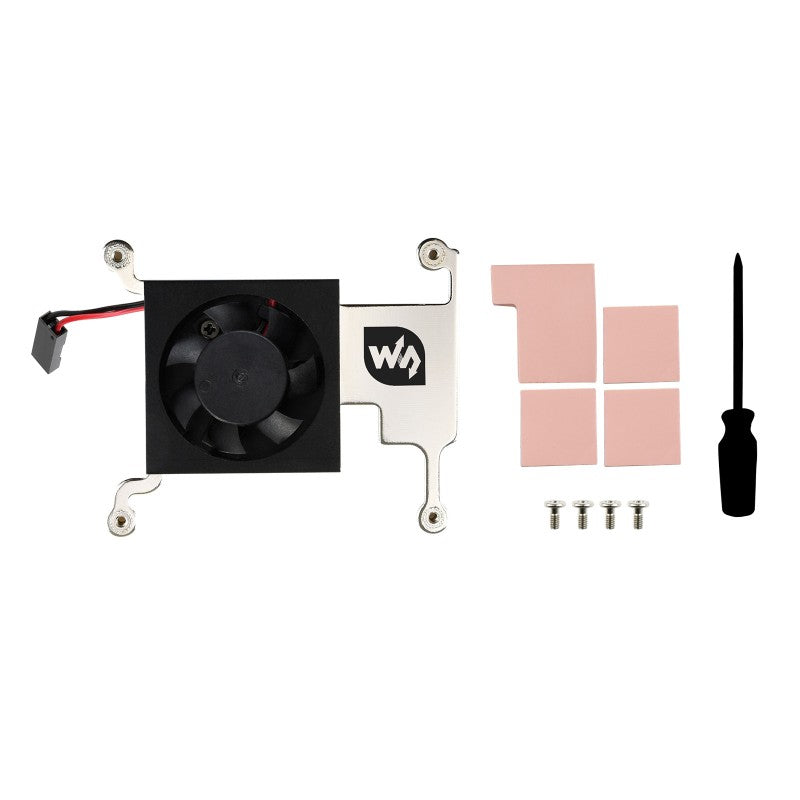

Package Content

PI-FAN-3007-B x1
OPTIONS GPIO FAN Adapter x1
Silicone thermal tape x4
Screw x4
Screwdriver x1

Which Raspberry Pi models is this cooling fan compatible with?
It is compatible with Raspberry Pi 4B, 3B, and 3B Plus.
How is the fan powered?
The fan uses a DC 5V input and can be powered from the Raspberry Pi, drawing about 0.2 A. It is rated at 1 W.
What is included in the package and are there optional parts?
Included items are PI-FAN-3007-B, silicone thermal tape, screws, and a screwdriver. The GPIO Adapter is optional and currently not available; Raspberry Pi and other HATs are not included.
What are the physical specifications like cable length and speed?
The unit has a low profile aluminum bracket. The cable length is 45 to 55 mm. The 3007 fan runs at about 8000 RPM.
How do I install or attach the fan to the Raspberry Pi?
The setup example shows cooling both Raspberry Pi 4B and 3B Plus with a GPIO adapter. The GPIO adapter is optional.
