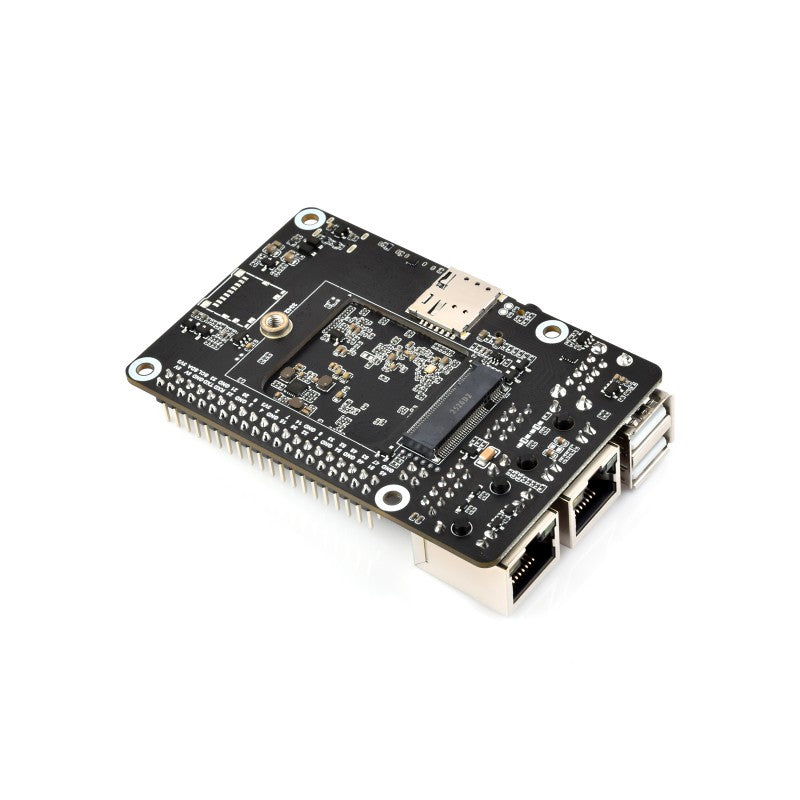

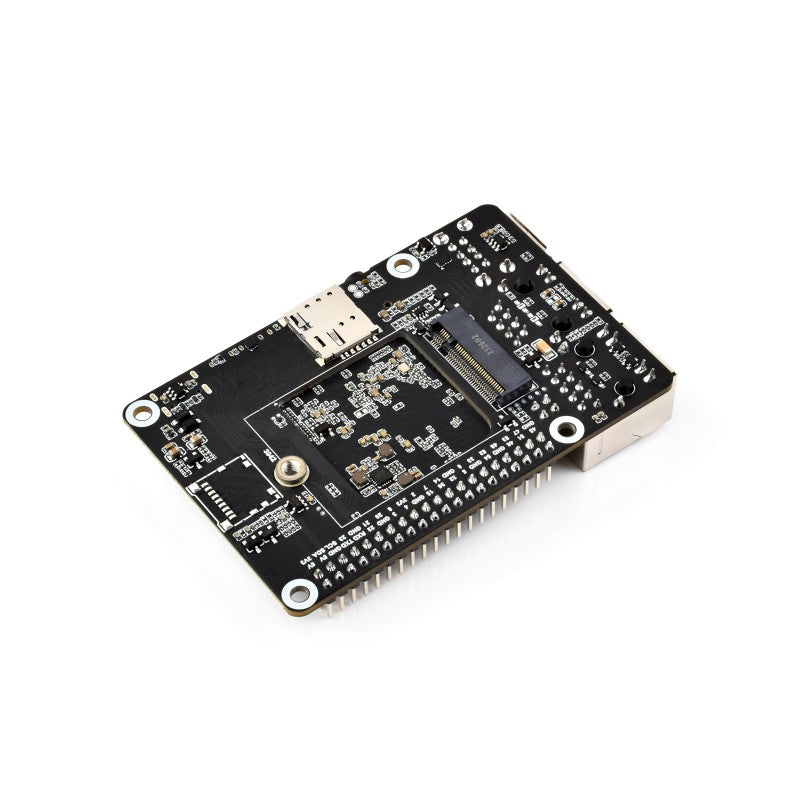

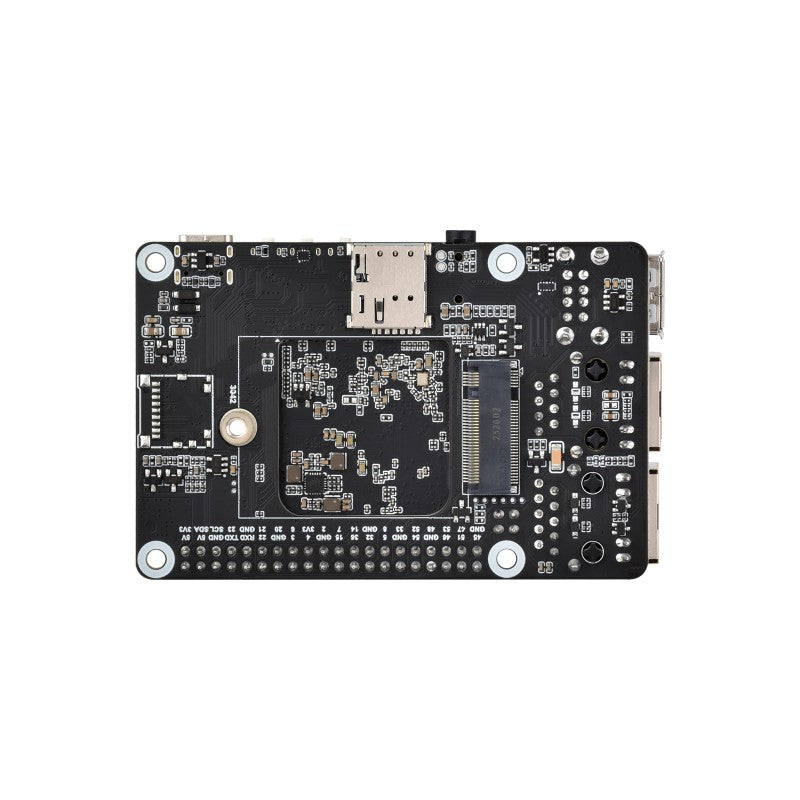

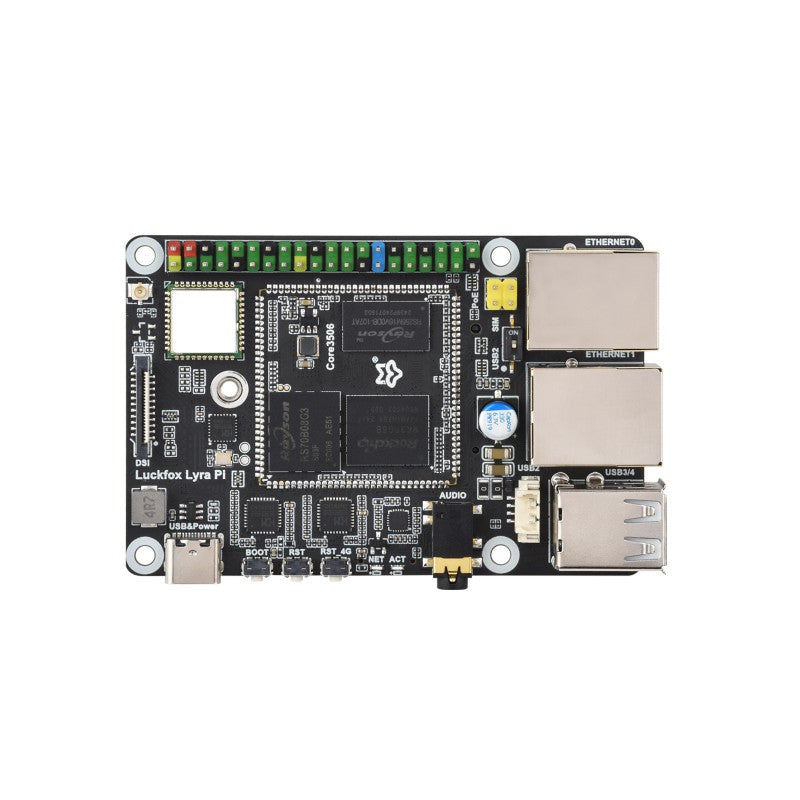

The Luckfox Lyra Pi is a cost-effective Linux micro development board, based on the Luckfox Core3506 chip to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, RMII, SDIO, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allowing for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging.
Ā
Ā
| Ā VariantsĀ | Ā eMMC | Ā Wireless | Ā SIM7600G-H-M.2 4G module |
| Ā Luckfox Lyra Pi A | 8GB eMMCĀ | Ā No | Not IncludedĀ |
| Ā Luckfox Lyra Pi A W | 8GB eMMCĀ | Yes | Not Included |
| Ā Luckfox Lyra Pi B | Without eMMCĀ | No | Not Included |
| Luckfox Lyra Pi A W 4G Kit | 8GB eMMCĀ Ā | Yes | Included |
Ā
| Model | PI A | PI B | PI A W | PI B W |
|---|---|---|---|---|
| Processor | Triple-core Arm Cortex-A7 (1.2GHz) + Arm Cortex-M0 | |||
| Memory | 512MB DDR3L | |||
| USB | Original USB OTG 2.0 Ć 1, Extended USB HOST 2.0 Ć 3 via HUB |
|||
| Display | MIPI DSI 2-lane | |||
| GPIO | 23 Ć Rockchip Matrix IO pins + 5 Ć GPIO pins | |||
| Default Storage | 8GB eMMC | TF card (NOT included) | 8GB eMMC | TF card (NOT included) |
| Wireless | ā | Onboard 2.4GHz WiFi 6 / Bluetooth 5.2 / BLE | ||
Ā
The SIM7600G-H-M.2 is a LTE Cat 4 module which supports wireless communication modes of LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, and EDGE, etc. It adopts M.2 form factor and can be integrated into the Luckfox Lyra Pi series
Ā
Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission
Ā
More Flexible for Power Supply
* the PoE module is NOT included.
Ā
Expands to 2 Ć USB-A HOST ports and an MX1.25 USB header via USB HUB
Ā
The USB signal of the MX1.25 USB port can be switched to 4G module M.2 slot via DIP switch, only compatible with the SIM7600G-H-M.2 4G module
* for reference only, please refer to the part list for detailed package content.
Ā
Onboard 3.5mm headphone/microphone audio jack, meets a variety of audio application scenarios
Ā
Compact size, powerful performance, easy to drive large screens
Supports up to 1280 Ć 1280 @ 60Hz resolution. The resolution of the screen in the picture is 800 Ć 1280.
* for reference only, please refer to the part list for detailed package content.
Ā
The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration
Ā
Ā
Ā
|
|
Ā
Ā
Wiki:Ā https://wiki.luckfox.com/Luckfox-Lyra-Pi
Ā
Weight: 0.087 kg
Luckfox Lyra Pi A
Luckfox Lyra Pi A x1
4G Module mounting screw x1
Ā
Luckfox Lyra Pi A W
Luckfox Lyra Pi A W x1
IPX 2.4G 2DB antenna x1
4G Module mounting screw x1
Ā
Luckfox Lyra Pi B
Luckfox Lyra Pi B x1
4G Module mounting screw x1
Ā

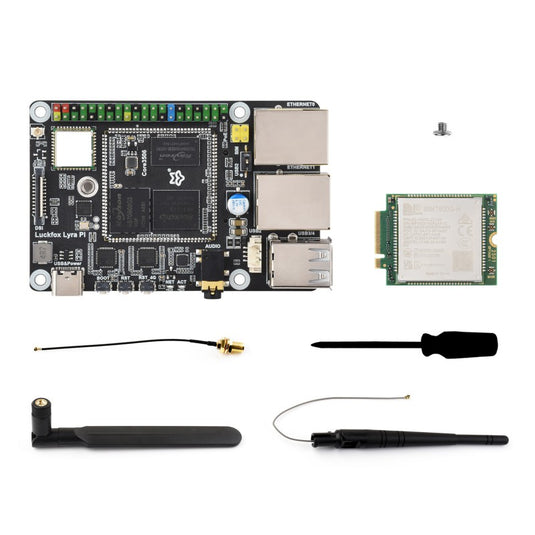

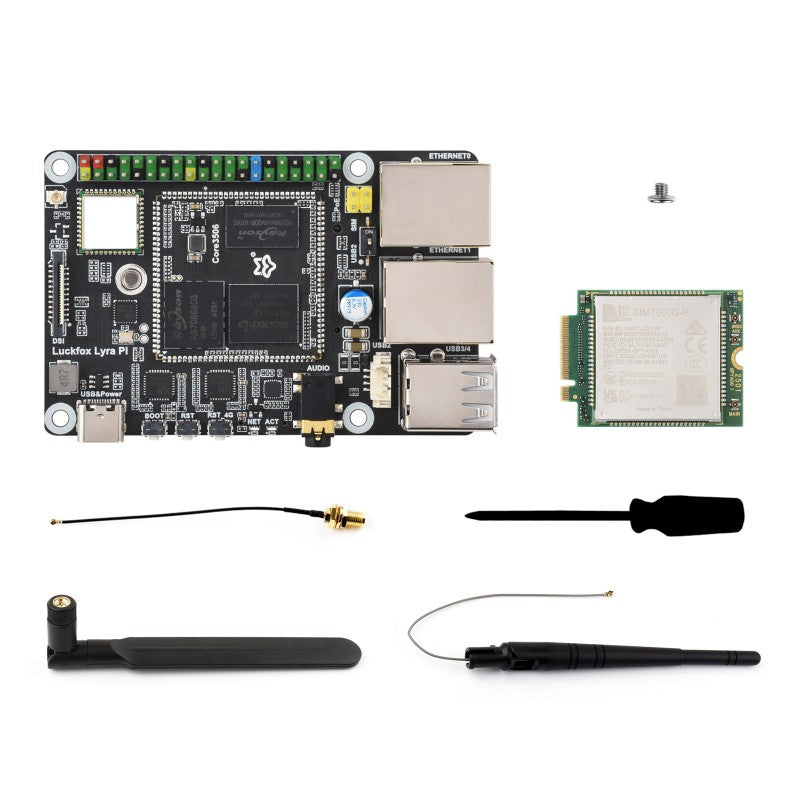

Luckfox Lyra Pi A W 4G Kit
Luckfox Lyra Pi A W x1
SIM7600G-H-M.2 x1
4G antenna x1
IPX 2.4G 2DB antenna x1
IPEX4 to SMA cable x1
Screwdriver x1
4G Module mounting screw x1
