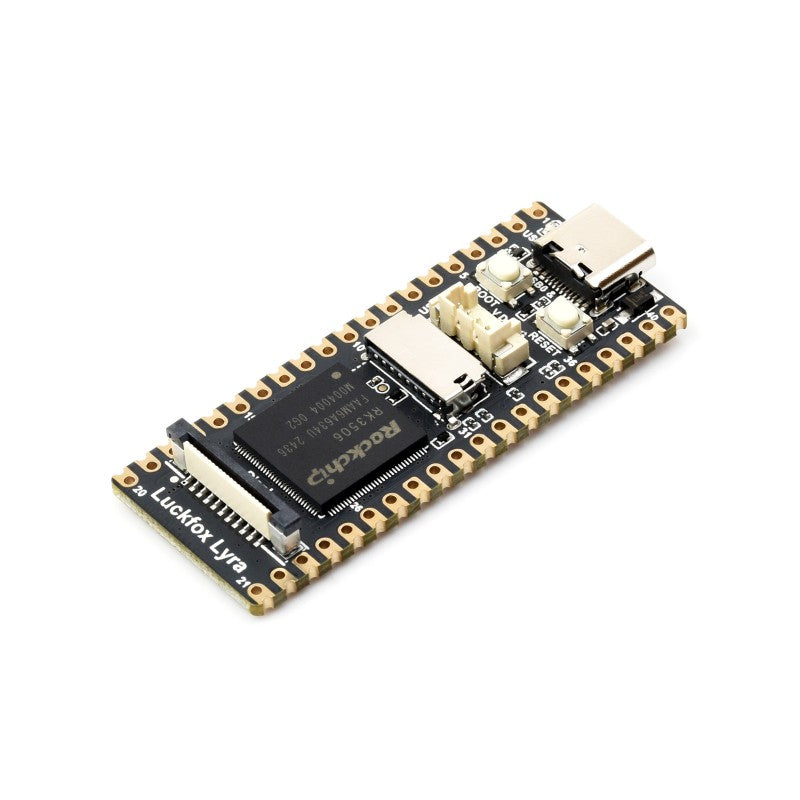

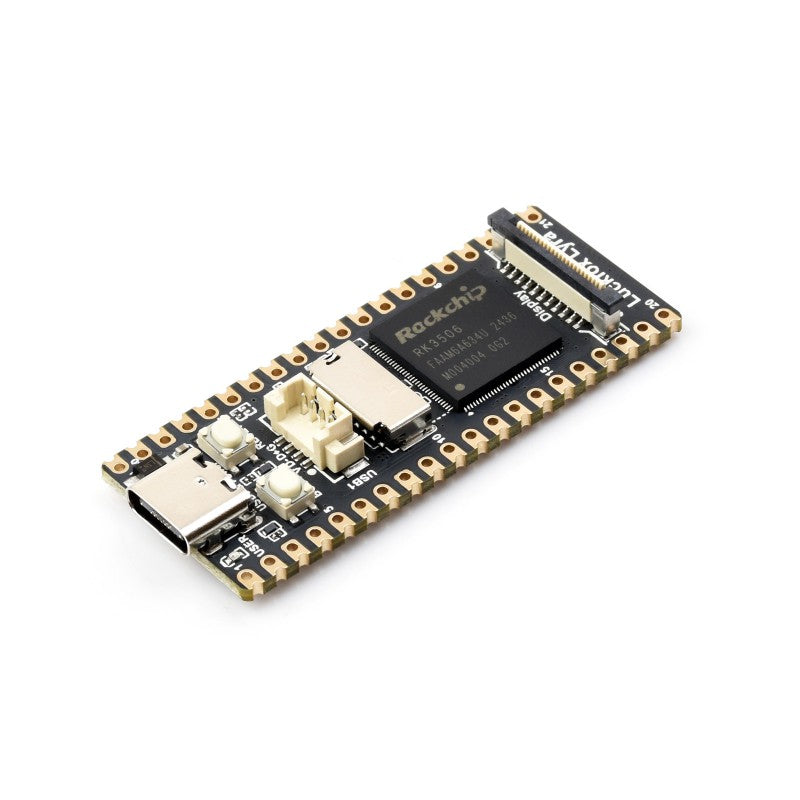

Specifications
| Processor | Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0 |
| Memory | 128MB DDR3L |
| USB | USB OTG2.0 × 2 |
| Display | MIPI DSI 2-lane |
| GPIO | 24 × Rockchip Matrix IO pins |
| Default Storage | Luckfox Lyra: TF card (Not included) Luckfox Lyra B: SPI NAND FLASH (256MB) |
Version And Pinheader Options
Kit Selection
Highly Integrated And Powerful Performance
- Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
- Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
- Built-in 128MB DDRL3 for multi-core applications
- The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
- Built-in audio and video codec, supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions
Easier To Develop
Integrates TF Card Slot, DSI Interface And USB Connector
MIPI DSI 2-Lane Interface
Compact Size, Powerful Performance, Easy To Drive Large Screens
* for reference only, please refer to the Package Content for the detailed part list. Supports up to 1280 × 800 @ 60Hz resolution.
Rockchip Matrix IO Design
The Rockchip Matrix IO Supports 98 Multiplexed Functions
And Allows Flexible Pinout Configuration

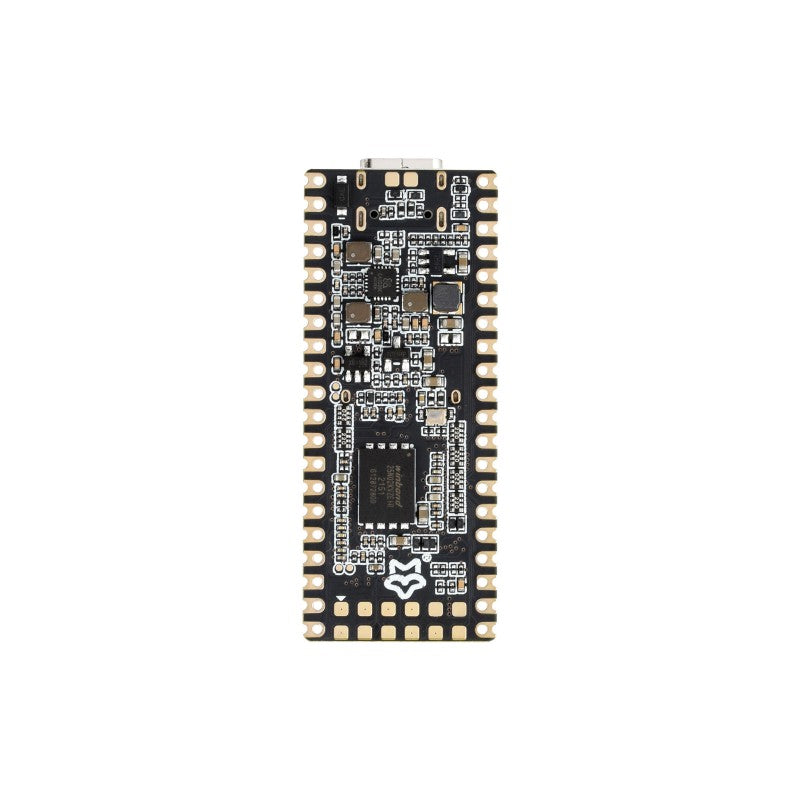

Optional For 256MB SLC NAND FLASH
Provides A Better User Experience
* Only Luckfox Lyra B versions with 256MB Flash, while the Luckfox Lyra versions require an additional TF card (NOT included) for storage.
Suitable For More Application Examples
Pin Definition

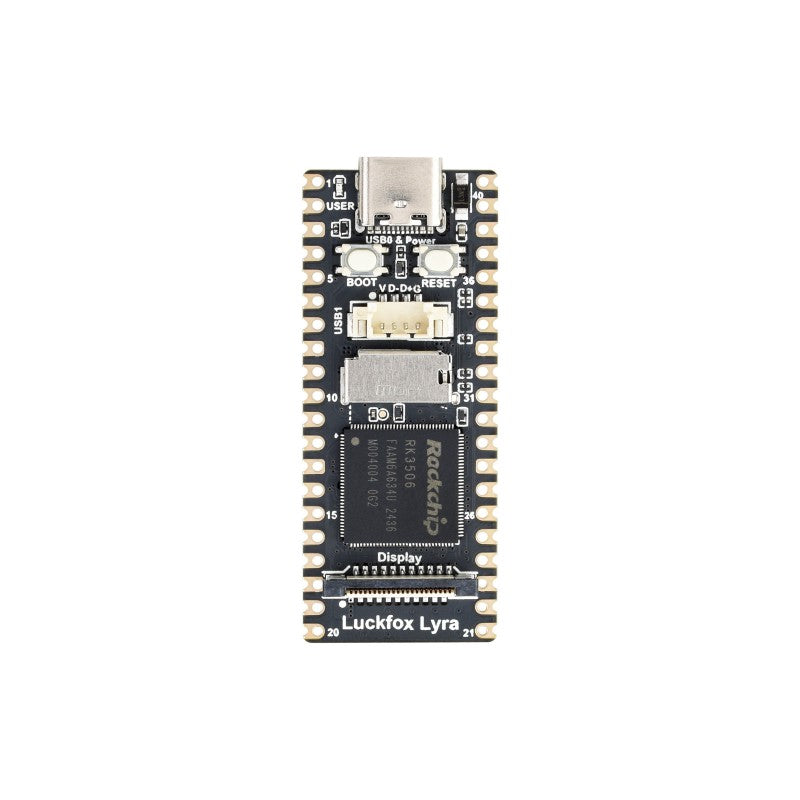

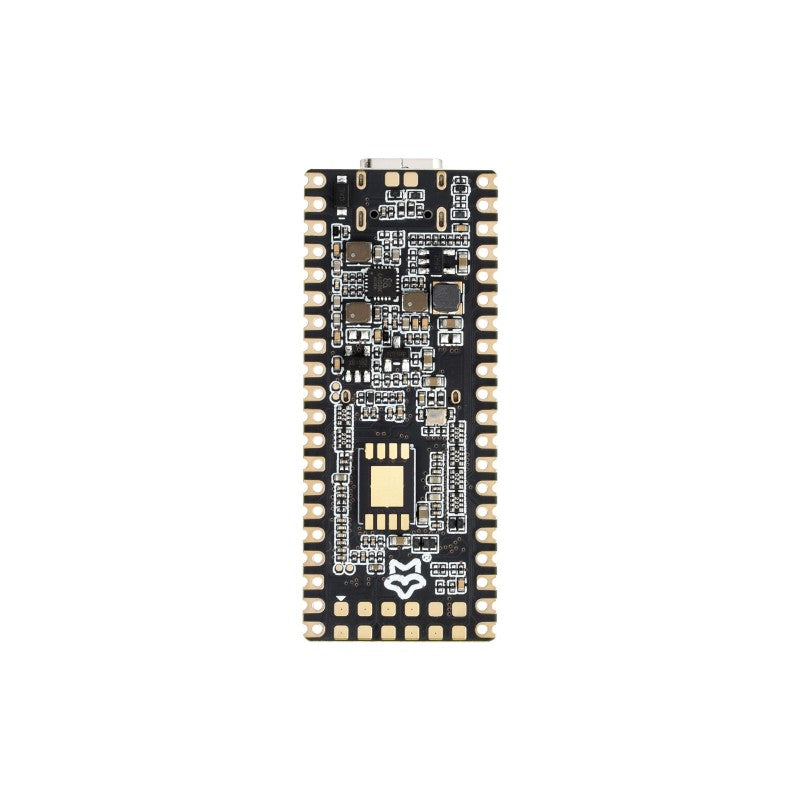

What's On Board
|
|
Outline Dimensions
Resources & Services
Wiki: https://wiki.luckfox.com/Luckfox-Lyra/
Package Contents:
Weight: 0.014 kg
Luckfox Lyra / Luckfox Lyra B
Luckfox Lyra / Luckfox Lyra B LCD Kit A
- 10.1-DSI-TOUCH-A ×1
- MX 1.25 2PIN to 2.54 3PIN cable x1
- OPTIONS Luckfox Lyra / Luckfox Lyra B ×1
- MX 1.25 2PIN to 4PIN cable x1
- MIPI-DSI-Cable-12cm x1
- FFC 22PIN cable ~200mm (opposite sides) x2
