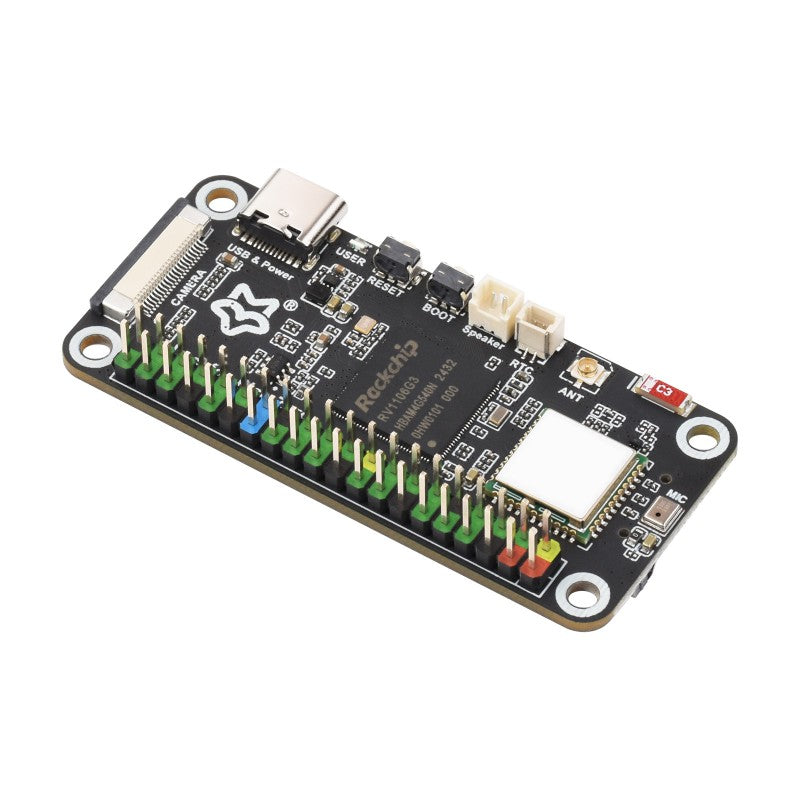

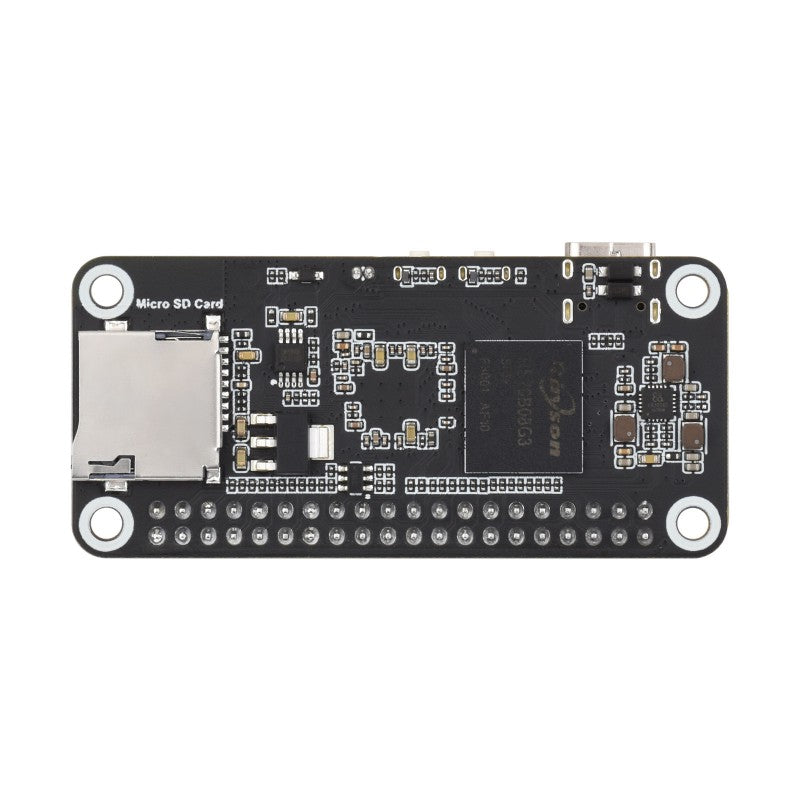

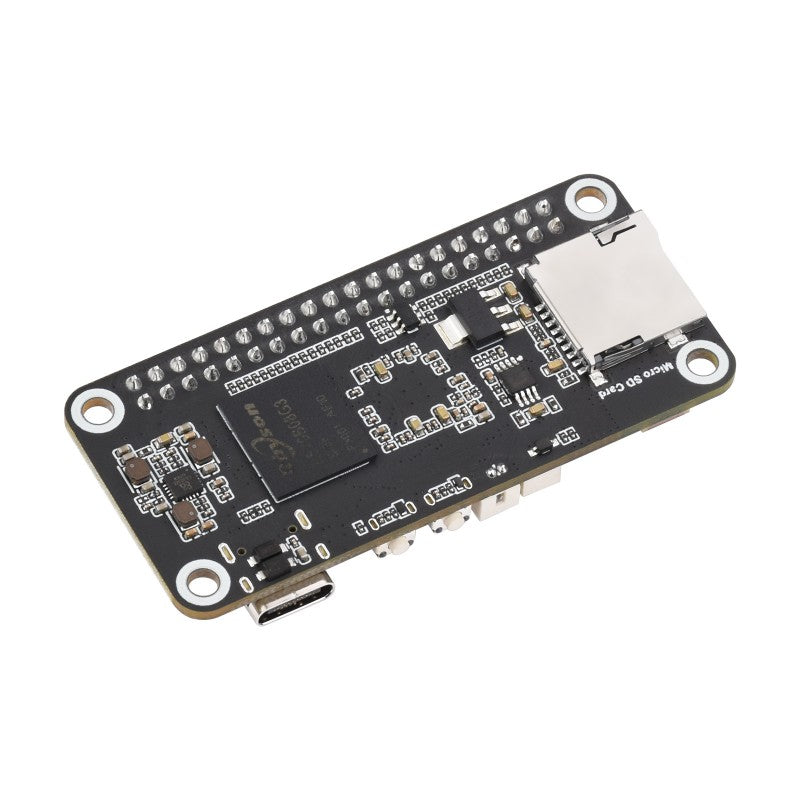

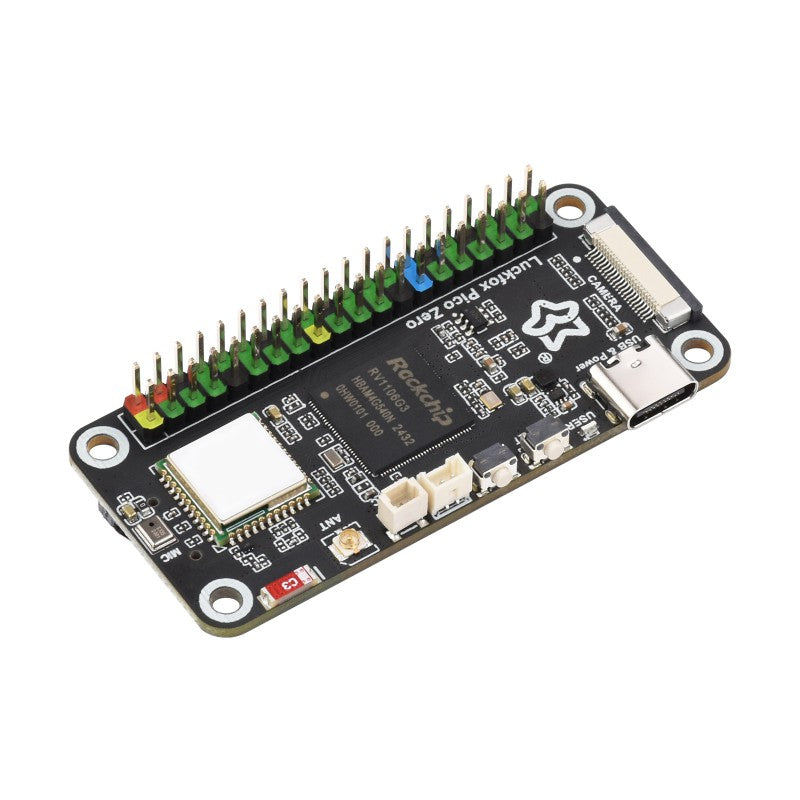

Luckfox Pico Zero
The Luckfox Pico Zero is a cost-effective Linux micro development board, based On Luckfox RV1106G3 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C and USB etc., with an onboard wireless module, which is ideal for a wide range of embedded applications.
Highly Integrated and Powerful Performance
| Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU |
| Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS |
| Built-in self-developed third-generation ISP3.2, supports 8-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. |
| Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from the camera are high-definition with a smaller size |
| Built-in 16-bit 256MB DRAM DDR3L, which is capable of sustaining demanding memory bandwidths |
Wi-Fi 6 and Bluetooth Module
Onboard 2.4GHz WiFi 6 and Bluetooth 5.2 (LE) Bluetooth Module
Providing Stable Connection And Efficient Transmission
Antenna Switching
Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios
MIPI CSI 4-lane Interface
Composed of dual MIPI-CSI (2-lane) interfaces
* for reference only, please refer to the Package Content for the detailed part list.
The resolution of the camera shown in the picture is 1280 × 1080. This product supports up to 3840 × 2160 (8M) @15FPS input.
Multiple Audio Interfaces
Onboard microphone + speaker header
meets a variety of audio application scenarios
Meets a Variety of Application Scenarios
Pin Definition

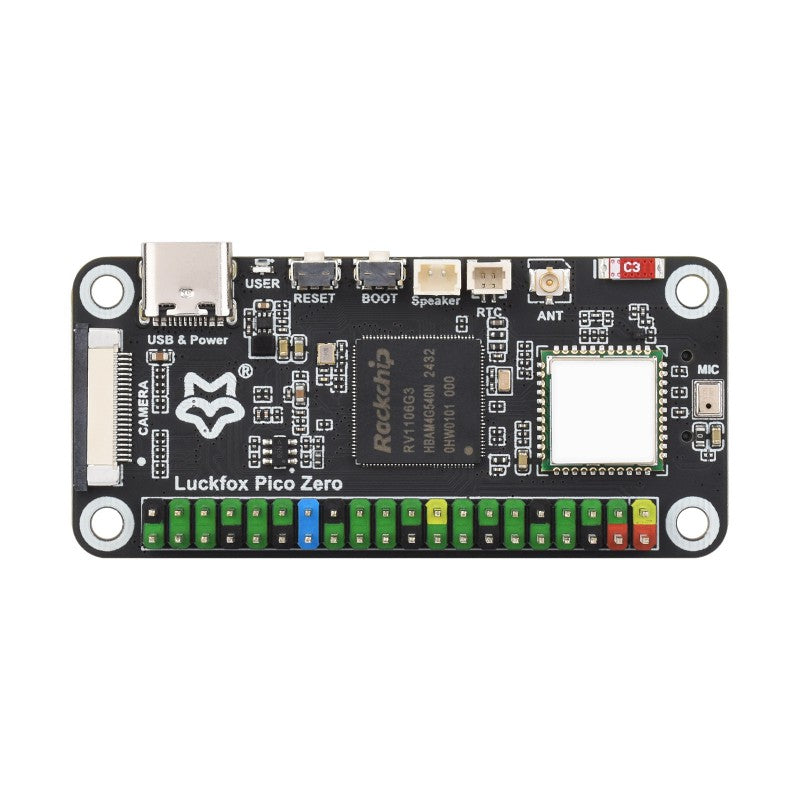

What's On Board
| 1. RV1106G3 Vision processor SoC, integrates ARM Cortex-A7 core |
8. External Antenna Connector |
| 2. USB-C Port For power supply and program burning |
9. Onboard Antenna |
| 3. USER-LED For indicating system operating status in the default image |
10. Wi-Fi / Bluetooth Module 2.4GHz Wi-Fi 6 / Bluetooth 5.2 (LE) module |
| 4. RESET Button | 11. Onboard Microphone |
| 5. BOOT Button Press it when powering on or resetting to enter download mode |
12. 40PIN GPIO Header Compatible with some Raspberry Pi HATs |
| 6. Speaker Header MX1.25 2P connector, supports 8Ω 1W speaker |
13. Camera Interface MIPI CSI (4-lane) |
| 7. RTC Battery Header | 14. TF Card Slot Supports storage expansion only |
| 15. 8GB eMMC |
Outline Dimensions
Resources & Services
Wiki: https://wiki.luckfox.com/Luckfox-Pico-Zero
Package Content
Weight: 0.013 kg
Luckfox Pico Zero x1
