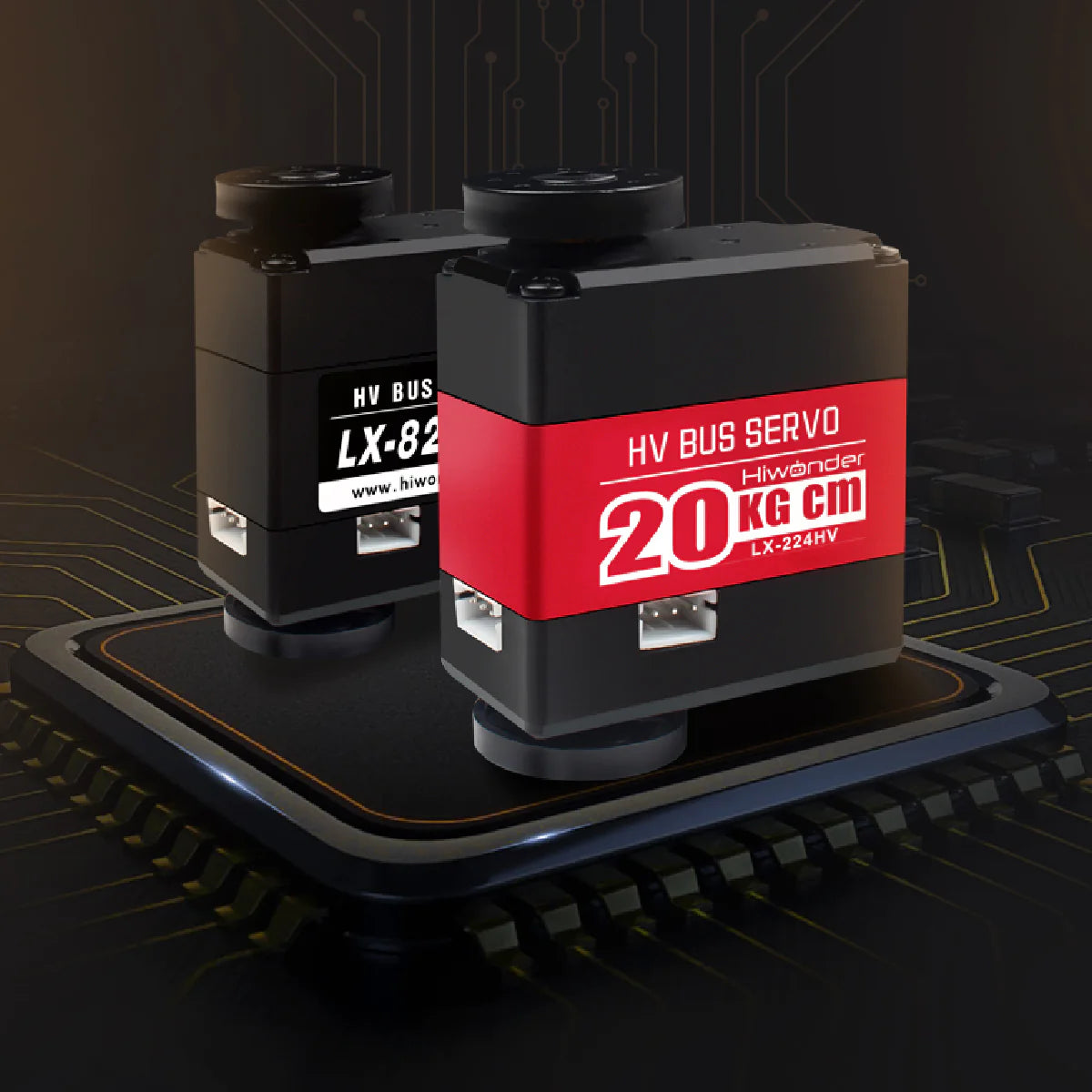

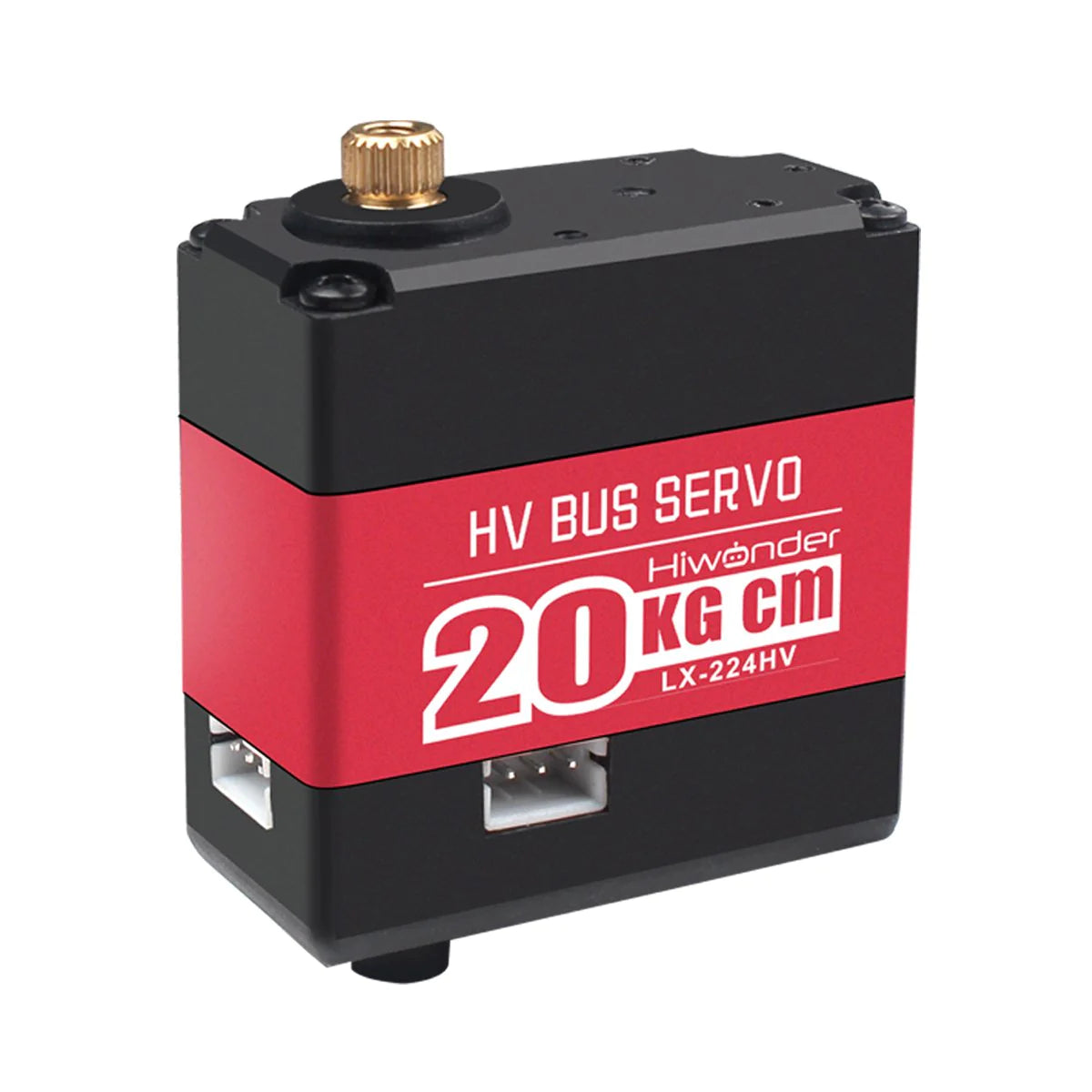

Hiwonder LX-224HV high voltage servo is a serial bus servo with three connectors. Compared with the traditional 7.4V servo, the 11.1V high-voltage servo can reduce the current by more than 60% which can be connected in series.
Feature
Use serial bus servo connector to connect the servo one by one which facilitates the wiring
Internal high precision potentiometer supports angle feedback
Significantly reduce the power consumption and increase service time
Support position/temperature/voltage feedback, protect the servo from burning
Two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360)
Use metal gear to extend the service time
Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
Red Metal Middle Shell
Serial Bus Servo
High Voltage Servo More Power Saving
Temperature/Voltage Feedback /RGB Indicator
High Accuracy Potentiometer
Metal Gear
2 Operation Modes

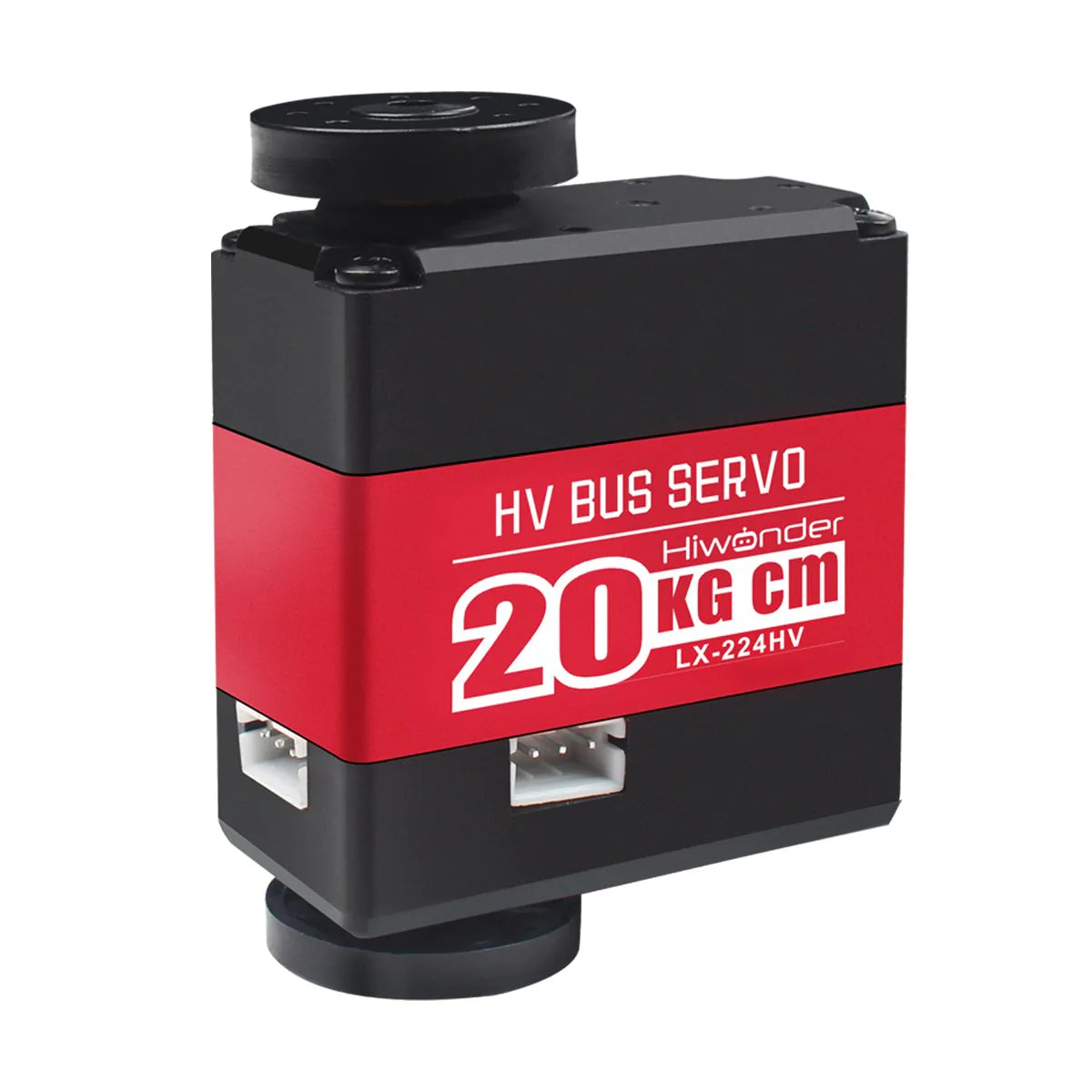

Fixed Double-shaft
Strong Torque
ID ldentification, Bus Communication
Application
High voltage bus servos are used in SpiderPi for stable and better performance! Compatible with Hiwonder double-shaft servo brackets.
