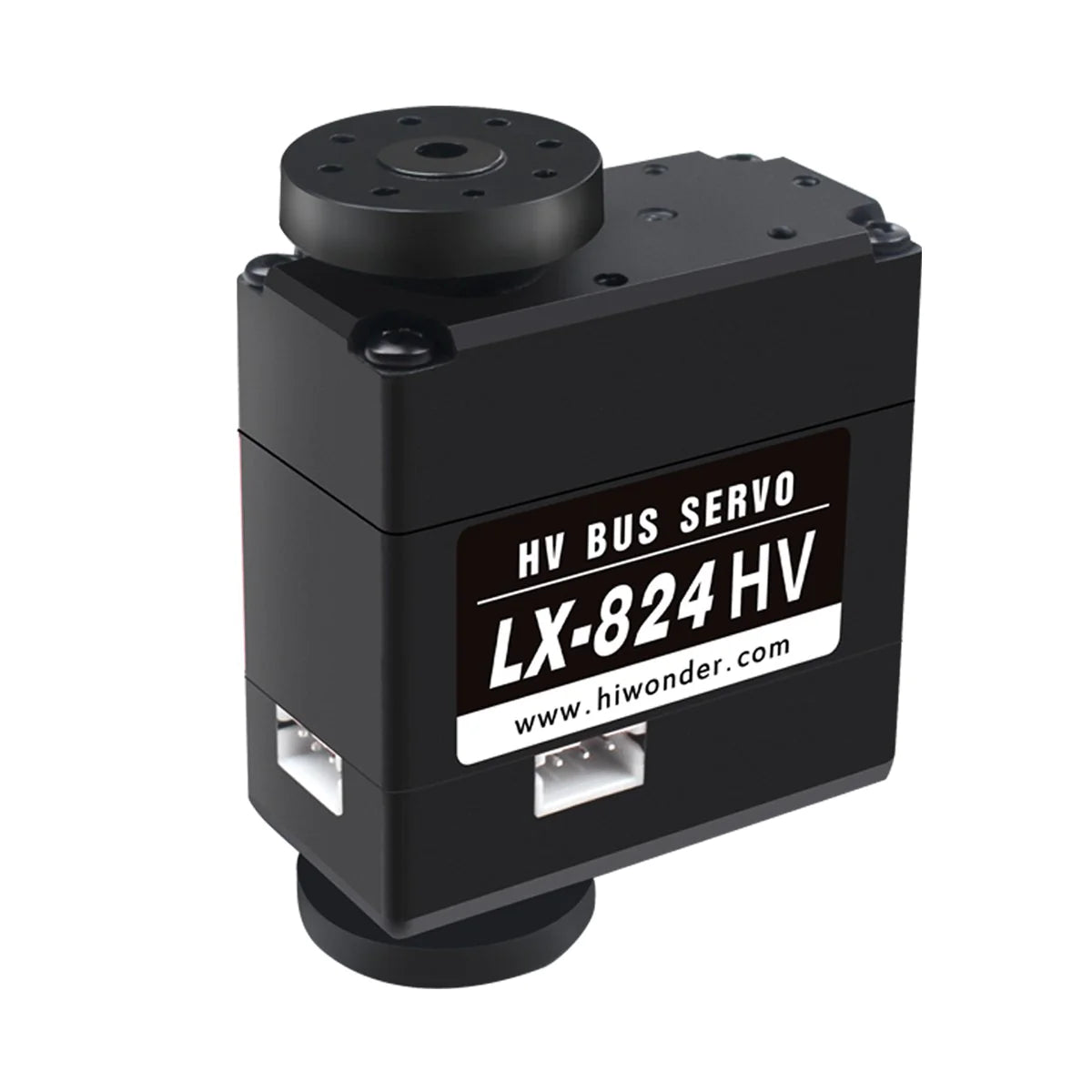

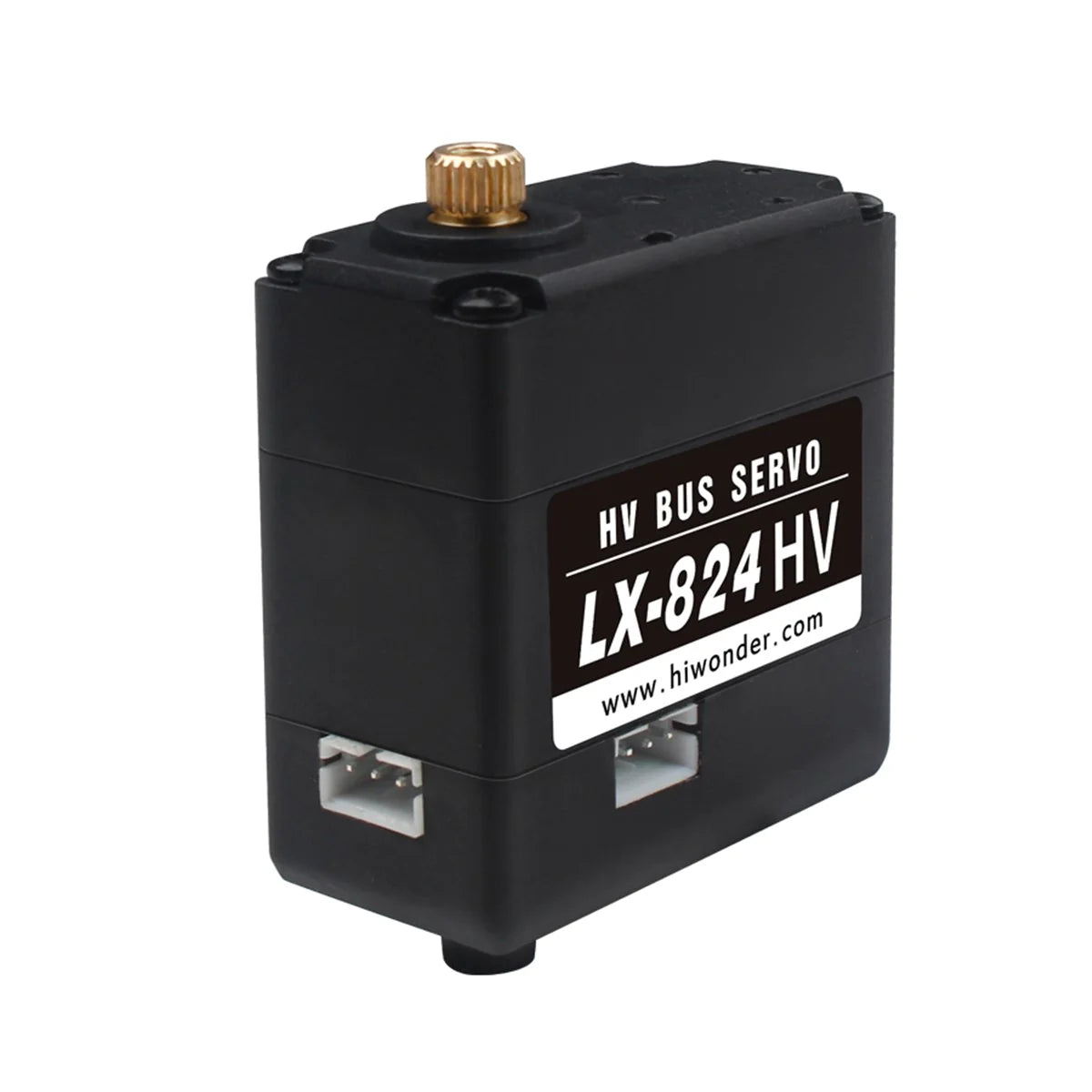

Hiwonder LX-824HV three channels bus high voltage servo is a serial bus servo with three connectors. Compared with the traditional 7.4V servo, the 11.1V high-voltage servo can reduce the current by more than 60%. The servo can also be connected in series, simplifying the wire connection.
Feature
Use serial bus servo connector to connect the servo one by one which facilitates the wiring
Internal high precision potentiometer supports angle feedback
Significantly reduce the power consumption and increase service time
Support position/temperature/voltage feedback, protect the servo from burning
Two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360)
Use metal gear to extend the service time
Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
High Voltage Servo
Serial Bus Servo
Temperature/Voltage Feedback /RGB Indicator
High Accuracy Potentiometer
Metal Gear
2 Operation Modes
Strong Torque
Fixed Double-shaft
ID ldentification, Bus Communication
Application
High voltage bus servos are used in SpiderPi for stable and better performance! Compatible with Hiwonder double-shaft servo brackets.
