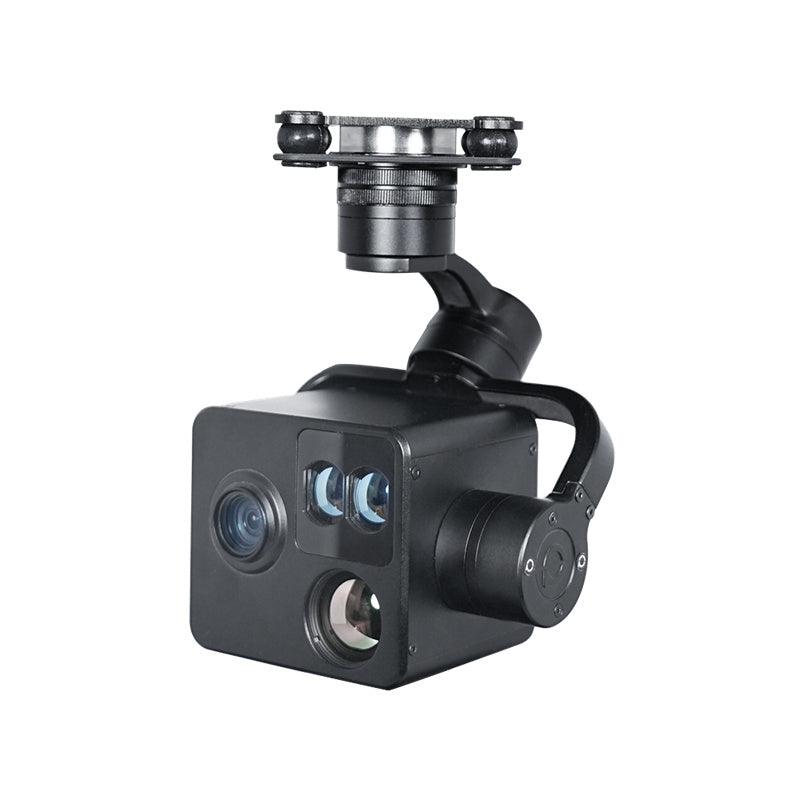

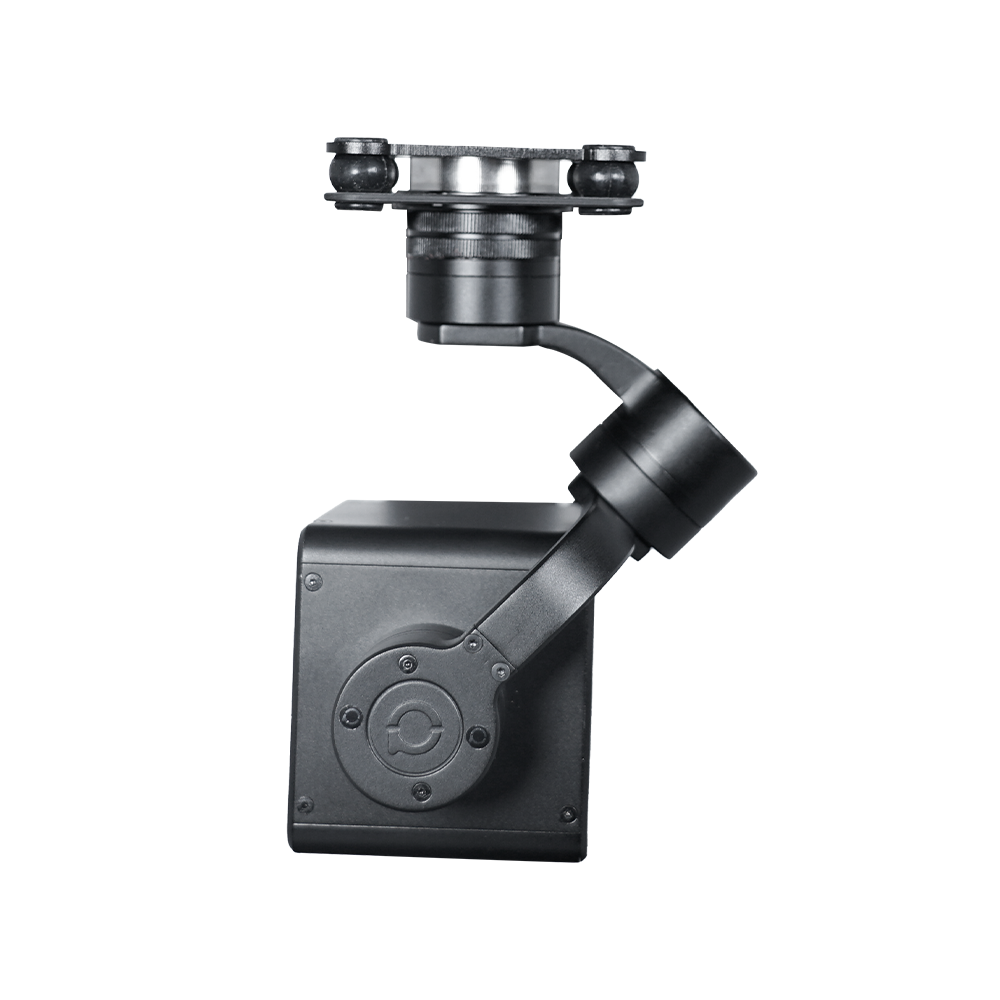

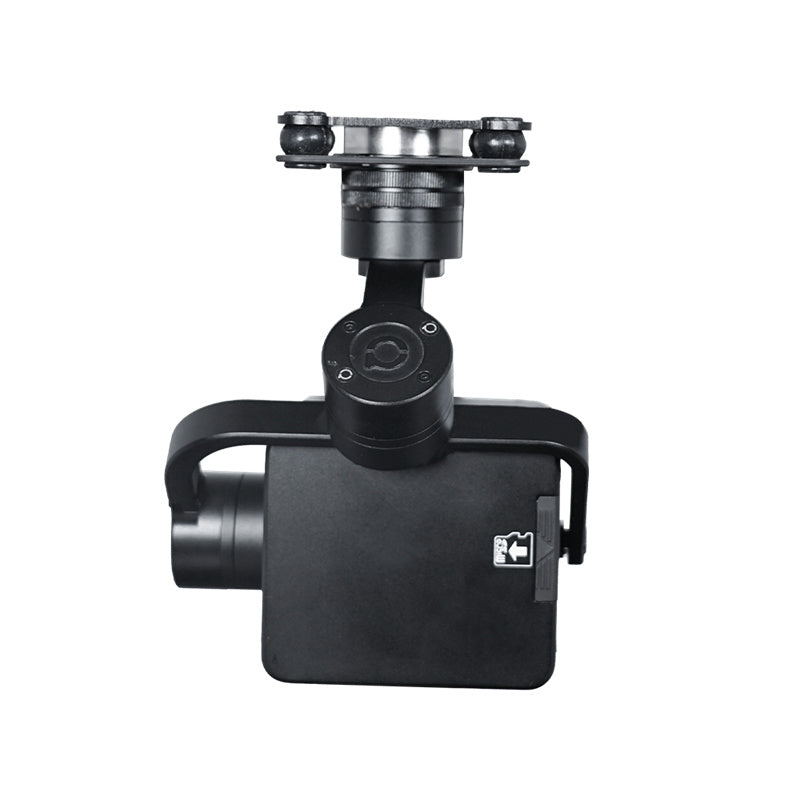

Stabilizing the Mini Z10TIRM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of Ā±0.01Ā° powered by a dedicated processor. Mini Z10TIRM uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360Ā°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.
Ā
Powered by 1/3" CMOS module,the camera has 4.08 Mega valid pixels, supports 10 times optical focus FHD 1080P video. Designed according to the characteristics of aerial photography application. Fast auto-focus, multi functional, small size, and support TCP and TTL serial control.
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 48pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.
The advanced location calculating algorithm is used to calculate the distance of the object within 1500 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military and police.
Mini Z10TIRM supports both Ethernet/IP output. Ethernet output default as 1080P and record is 1080p. It will support 360 degree endless pan.Ā With Viewpro softwareĀ ViewlinkĀ you can fulfill IP output, TTL control. PWM/S.BUS/UDP control is optional, please contact viewpro for special request.
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
Ā
| Hardware Parameter | Ā |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Dynamic current | 1000mA @ 12V |
| Idle current | 800mA @ 12V |
| Working environment temp. | -20ā ~ +60ā |
| OutputĀ | IP(1080P/720p 25/30fps)Ā |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | TCP/TTL |
| Gimbal Spec | Ā |
| Mechanical Range | Pitch/Tilt: -30Ā°ļ½115Ā°,Roll: Ā±40Ā°,Yaw/Pan: Ā±360Ā°*N |
| Controllable Range | Pitch/Tilt: -25Ā°ļ½90Ā°,Ā Ā Yaw/Pan: Ā±360Ā°*N |
| Vibration angle | Pitch/Roll: Ā±0.02Ā°, Yawļ¼Ā±0.02Ā° |
| One-key to center | ā |
| EO Camera Spec | Ā |
| Imager Sensor | 1/3-type CMOS(Progressive Scan) |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 4.08MP |
| Lens optical zoom | 10x, F=3.3~33.0mm, F1.8~3.4 |
| Digital zoom | None |
| Min object distance | 10mm(wide end) to 800mm(tele end) |
| Horizontal viewing angle | 58.2Ā°(wide end) ~ 6.9Ā°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | 0.5lux@F1.8, 50%, 1/30s |
| Illumination range | 100 lx ~100,000 lx |
| Gain | Auto/Manual |
| White balance | ATW1 (Narrow), ATW2 (Wide), single touch, manual (B, R) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Exposure compensation | -12dB ~ +12dB (13steps in total) |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| OSD | Yes |
| Fotoformate | JPEG |
| Videoformate | MP4 |
| EO/IR Camera Object Tracking | Ā |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | Ā±48 pixel/frame |
| Object memory time | 100 frames (4s) |
|
The mean square root values of pulse noise in the object position |
< 0.5 pixel |
| Thermal imager spec | Ā |
| Lens size | 24mm |
| Horizontal FOV | 18.2Ā° |
| Vertical FOV | 14.6Ā° |
| Diagonal FOV | 23.2Ā° |
| Detective Distance (Man: 1.8x0.5m) | 1000Ā meters |
| Recognize Distance (Man: 1.8x0.5m) | 250 meters |
| Verified Distance (Man: 1.8x0.5m) | 125 meters |
| Detective Distance (Car: 4.2x1.8m) | 3067 meters |
| Recognize Distance (Car: 4.2x1.8m) | 767 meters |
| Verified Distance (Car: 4.2x1.8m) | 383 meters |
| Working mode | Uncooled long wave (8Ī¼m~14Ī¼m) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12Ī¼m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ā¤50mK (@25ā) |
| MRTD | ā¤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x~12x |
| Sync correct time | Yes |
| Thermometry type | Not Support |
| Temperature warning | 0ā~100ā |
| Thermal Object Tracking | Ā |
| Update rate of deviation pixel | 25Hz |
| Output delay of deviation pixel | <3ms |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | Ā±32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Laser Rangefinder | Ā |
| Range | 5~1500 meters |
| Resolution | 0.5m |
| Working current: | 80mA ļ¼maxļ¼ |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 3 mrad |
| Laser pulse frequency | 1HZ |
| Power | ļ¼ 1 mW (safe for eye) |
| Ranging mode | Pulse |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| Packing Information | Ā |
| N.W. | 530g |
| Product meas. | 119.4*101.7*157.3mm |
