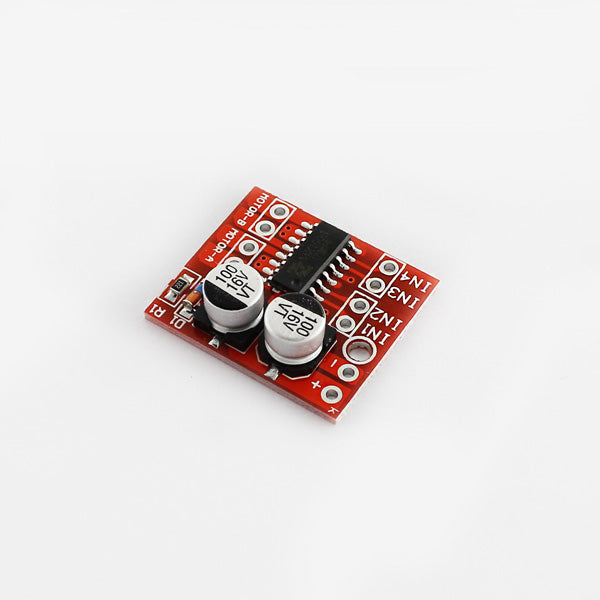

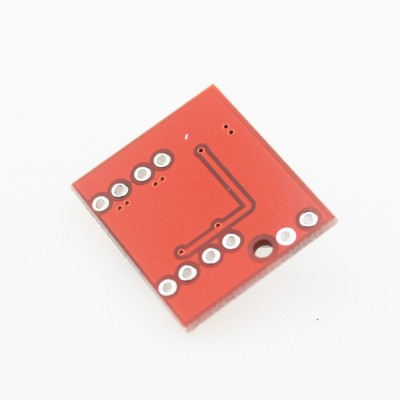

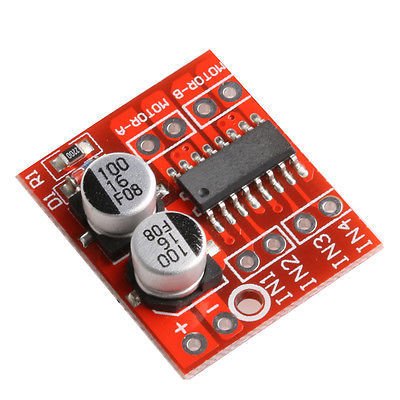

Motor drive module is ideal for use in battery-powered smart car, toy cars, robots. Supply voltage 2V ~ 10V, can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.Use of imported original chip, built-in low on-resistance MOS switch, minimal heat, no heat sink, small size, low power consumption, is ideal for battery powered. (L298N internal transistor switch, low efficiency, high fever, need to add heat sink, bulky, L298N very easy to burn). Dual 1.5A * 2, the peak current to be 2.5A, built-in thermal protection circuit, do not be afraid motor stall burned, automatic recovery after the temperature dropped. Small size, light weight, 0 standby current, is the ideal choice for your car model.
Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
Choosing a selection results in a full page refresh.
Press the space key then arrow keys to make a selection.
Shopping Cart
Logging you in
{"id":1651075514440,"title":"MX1508 DC Motor Driver Module PWM Speed Dual H-Bridge Stepper Motor (L298N mini)","handle":"mx1508-l298n-dc-motor-driver-module","description":"\u003cp\u003eDetails\u003cstrong\u003e:\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan\u003eDual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motor.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eThe module supply voltage 2V-10V.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eSignal input voltage 1.8-7V.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eSingle Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA).\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eBuilt-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eBuilt-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eProduct Size: 24.7 * 21 * 5mm (length, width, height), ultra-small size.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eThe mounting hole diameter: 2 mm.\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan\u003eMotor drive module is ideal for use in battery-powered smart car, toy cars, robots. Supply voltage 2V ~ 10V, can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.Use of imported original chip, built-in low on-resistance MOS switch, minimal heat, no heat sink, small size, low power consumption, is ideal for battery powered. (L298N internal transistor switch, low efficiency, high fever, need to add heat sink, bulky, L298N very easy to burn). Dual 1.5A * 2, the peak current to be 2.5A, built-in thermal protection circuit, do not be afraid motor stall burned, automatic recovery after the temperature dropped. Small size, light weight, 0 standby current, is the ideal choice for your car model.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch5\u003e\u003cspan\u003eSpecifications\u003c\/span\u003e\u003c\/h5\u003e\n\u003cp\u003e\u003cspan\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/FI4MPN3IVA4L63E.LARGE_480x480.jpg?v=1593207511\" alt=\"\"\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ch5\u003e\u003cspan\u003eResources\u003c\/span\u003e\u003c\/h5\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/github.com\/thinkrobotics\/LIBRARIES\/tree\/master\/ELECTRONIC_COMPONENTS\/ELC4010\"\u003e\u003cspan\u003eLibrary\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/github.com\/thinkrobotics\/LIBRARIES\/tree\/master\/ELECTRONIC_COMPONENTS\/ELC4010\"\u003e\u003cspan\u003eSample Code\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003ch5\u003e\u003cspan\u003eTutorial\u003c\/span\u003e\u003c\/h5\u003e\n\u003ciframe width=\"560\" height=\"315\" src=\"https:\/\/www.youtube.com\/embed\/jntVTbv9dD0\" frameborder=\"0\" allow=\"accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e \u003ciframe width=\"560\" height=\"315\" src=\"https:\/\/www.youtube.com\/embed\/oUAaZGauyhU\" frameborder=\"0\" allow=\"accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\n\u003cp\u003e \u003c\/p\u003e","published_at":"2022-12-06T11:22:57+05:30","created_at":"2019-03-04T09:52:03+05:30","vendor":"ThinkRobotics.in","type":"Motor Drivers","tags":["dc motor","DC motor driver","driver","Dual H-Bridge Stepper Motor","ELC4","L298N","motor drivers","MTR-DRV","MX1508"],"price":5499,"price_min":5499,"price_max":5499,"available":false,"price_varies":false,"compare_at_price":22500,"compare_at_price_min":22500,"compare_at_price_max":22500,"compare_at_price_varies":false,"variants":[{"id":27847119175752,"title":"Without Soldered Pin","option1":"Without Soldered Pin","option2":null,"option3":null,"sku":"ELC4010","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"MX1508 DC Motor Driver Module PWM Speed Dual H-Bridge Stepper Motor (L298N mini) - Without Soldered Pin","public_title":"Without Soldered Pin","options":["Without Soldered Pin"],"price":5499,"weight":10,"compare_at_price":22500,"inventory_management":"shopify","barcode":"27847119175752","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/products\/FIJRVPEIVA4LC3F.LARGE.jpg?v=1577794145","\/\/thinkrobotics.com\/cdn\/shop\/products\/2-dc-motor-drive-module-l298n.jpg?v=1577794145","\/\/thinkrobotics.com\/cdn\/shop\/products\/0006010_15a-2-way-mx1508-dc-motor-driver-module-pwm-speed-control.jpeg?v=1577794145"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/products\/FIJRVPEIVA4LC3F.LARGE.jpg?v=1577794145","options":["Soldered"],"media":[{"alt":"MX1508 DC Motor Driver Module","id":866290139208,"position":1,"preview_image":{"aspect_ratio":1.0,"height":400,"width":400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/FIJRVPEIVA4LC3F.LARGE.jpg?v=1577794145"},"aspect_ratio":1.0,"height":400,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/FIJRVPEIVA4LC3F.LARGE.jpg?v=1577794145","width":400},{"alt":"MX1508 DC Motor Driver Module","id":866290171976,"position":2,"preview_image":{"aspect_ratio":1.0,"height":400,"width":400,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/2-dc-motor-drive-module-l298n.jpg?v=1577794145"},"aspect_ratio":1.0,"height":400,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/2-dc-motor-drive-module-l298n.jpg?v=1577794145","width":400},{"alt":"MX1508 DC Motor Driver Module","id":866290204744,"position":3,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/0006010_15a-2-way-mx1508-dc-motor-driver-module-pwm-speed-control.jpeg?v=1577794145"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/0006010_15a-2-way-mx1508-dc-motor-driver-module-pwm-speed-control.jpeg?v=1577794145","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eDetails\u003cstrong\u003e:\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan\u003eDual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motor.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eThe module supply voltage 2V-10V.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eSignal input voltage 1.8-7V.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eSingle Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA).\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eBuilt-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eBuilt-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eProduct Size: 24.7 * 21 * 5mm (length, width, height), ultra-small size.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eThe mounting hole diameter: 2 mm.\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan\u003eMotor drive module is ideal for use in battery-powered smart car, toy cars, robots. Supply voltage 2V ~ 10V, can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.Use of imported original chip, built-in low on-resistance MOS switch, minimal heat, no heat sink, small size, low power consumption, is ideal for battery powered. (L298N internal transistor switch, low efficiency, high fever, need to add heat sink, bulky, L298N very easy to burn). Dual 1.5A * 2, the peak current to be 2.5A, built-in thermal protection circuit, do not be afraid motor stall burned, automatic recovery after the temperature dropped. Small size, light weight, 0 standby current, is the ideal choice for your car model.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch5\u003e\u003cspan\u003eSpecifications\u003c\/span\u003e\u003c\/h5\u003e\n\u003cp\u003e\u003cspan\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0014\/4313\/5560\/files\/FI4MPN3IVA4L63E.LARGE_480x480.jpg?v=1593207511\" alt=\"\"\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ch5\u003e\u003cspan\u003eResources\u003c\/span\u003e\u003c\/h5\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/github.com\/thinkrobotics\/LIBRARIES\/tree\/master\/ELECTRONIC_COMPONENTS\/ELC4010\"\u003e\u003cspan\u003eLibrary\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/github.com\/thinkrobotics\/LIBRARIES\/tree\/master\/ELECTRONIC_COMPONENTS\/ELC4010\"\u003e\u003cspan\u003eSample Code\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003ch5\u003e\u003cspan\u003eTutorial\u003c\/span\u003e\u003c\/h5\u003e\n\u003ciframe width=\"560\" height=\"315\" src=\"https:\/\/www.youtube.com\/embed\/jntVTbv9dD0\" frameborder=\"0\" allow=\"accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e \u003ciframe width=\"560\" height=\"315\" src=\"https:\/\/www.youtube.com\/embed\/oUAaZGauyhU\" frameborder=\"0\" allow=\"accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture\" allowfullscreen=\"\"\u003e\u003c\/iframe\u003e\n\u003cp\u003e \u003c\/p\u003e"}
