Application Scenario

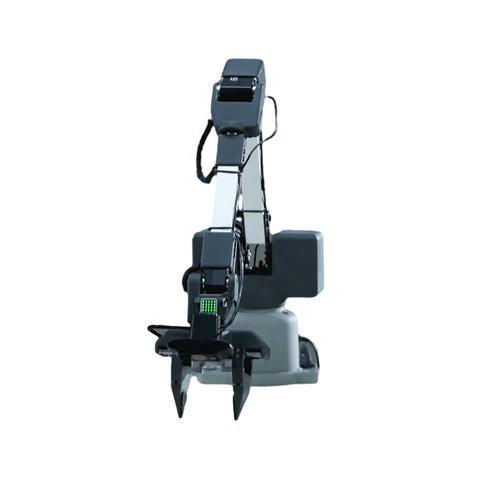

The myArm M750 is a versatile intelligent 6 DOF robotic arm with a reach of 750mm, a rated payload of 500g (up to 1kg maximum), and comes with a 1 DOF parallel end effector (gripper). The "M" stands for Master. It is suitable for applications requiring complex motion control, precise positioning, and high programmability.
For Example: as a standardized robotic arm, it can conduct robot kinematics verification, robot composite scene application verification, and robot remote control scene exploration and development.
|
Handles Diverse Tasks The 750mm arm length is ideal for reaching objects, while the 500g rated load and 1000g maximum load allow it to handle common household items. myArm M750 can fold clothes, sort books, brew coffee, and more. |
Multi-Sensor & Enhanced Control Equipped with sensors that track real-time motion data (position, speed, etc.), the robot arm also identifies anomalies to ensure safe operation. Additionally, its 6+1-axis design mimics human arm flexibility for versatile multi-angle and multi-directional control. |
Product Function
 DOF Modular Design The perfect combination of flexibility and scalability, suitable for |
 Industrial Grade Servo Motor Ensure precise control and long-term stable operation of the |
 Multiple Development Environments Including Python and ROS to meet different development needs. |
 High Precision Encoder Provide precise position, velocity and acceleration information |
 Localized Drag Teaching Intuitive learning and operation method, does not rely on |
High Speed Data Interface Open multiple status interfaces to support complex applications. |
Software programming
The myArm series robots are highly valuable in the fields of education and research, particularly within the widely used development environments of Python and ROS (Robot Operating System). These environments provide robust support, enabling the myArm series products to be extensively utilized in machine learning, artificial intelligence research, complex motion control, and visual processing tasks.
 |
 |
Specifications
| Specification | myArm C750 |
|---|---|
| DOF (Degrees of Freedom) | 6 + 1 |
| Load Capacity | 500g |
| Workload | Rated 500g, Peak 1Kg |
| Horizontal Reach | 750mm |
| Total Span | 1500mm |
| Self-Weight | 4.5kg |
| Power Specifications | 24V 9.2A |
| Repeatability | ±1mm |
| Accuracy | 5 – 8mm |
| Servo Quantity | 8 |
| Servo Type | Industrial-grade high-precision digital servo motor |
| Spin Ability | ±180° |
| End Effector | Parallel jaws, optional camera adaptation |
| USB Connection | Type-C |
| Screen | 2-inch screen (supported) |
| Display | 5×5 LED matrix (Atom end) |
| I/O Interface | 24V digital signal |

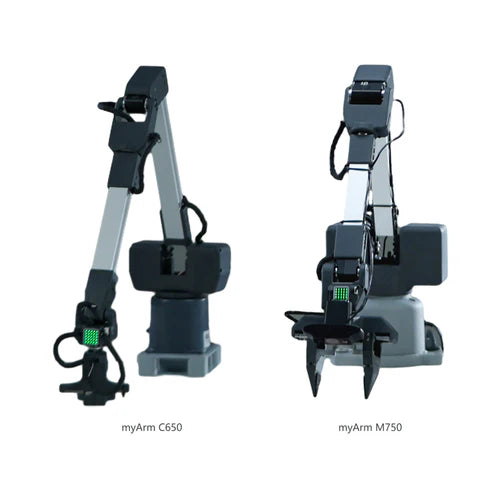

What's Difference
| Specification | myArm C650 | myArm M750 |
|---|---|---|
| Degree of Freedom | 6+1 | 6+1 |
| Payload | - | 500g |
| Working Load | - | 500g Load Capacity, 1000g Maximum Load |
| Working Radius | 650mm | 750mm |
| Total Span | 1300mm | 1500mm |
| Positioning Accuracy | ±1mm | ±1mm |
| Accuracy | 5 – 8mm | 5 – 8mm |
| Weight | 1.95kg | 4.5kg |
| Number of Steering Gears | 8 | 8 |
| Steering Gear Type | High precision digital servo motor | Industrial grade high-precision digital servo motor |
| Power Specifications | 12V5A | 24V9.2A |
| Joint Maximum Rotation | ±180° | ±180° |
| End Effector | Dual-finger touch control + dual-button operation | Parallel gripper compatible with optional camera |
| USB Connection | Type-C | Type-C |
| Atom Tip | 5×5 LED matrix | 5×5 LED matrix |
| Communication Frame Rate | >50Hz | >50Hz |
| Programming | Python + ROS | Python + ROS |
myStudio
Centralized Robot Management: myStudio offers firmware updates, video tutorials, and Maintenance/repair information, all accessible from a one-stop platform.
| Windows | Download |
| Linux | Download |
| Mac | Download |
Resources
| User Mannual | Download |
| GitHub Repository | View |
| Catalogue | View |
myArm C750 Package Contents
| myArm M750 | 1 |
| USB Data Cable |
1 |
| 24V 5A Power Adapter |
1 |
| J6 Joint Lego Interface Adapter |
1 |
