The all-in-one design enables it to fully utilize the working space and perfectly integrate into the production environment. The anti-collision detection function based on the precise dynamic model enables it to work well with human.
 Powerful & User-Friendly Featuring high-standard, self-developed harmonic joint modules, the unit offers high-performance quality. Compared to the myCobot Pro 600, its size is reduced by 30% without compromising payload capacity. |
 Desktop PC-Level Main Control Equipped with a customized Linux operating system and proprietary Roboflow robot control software, it supports uninterrupted applications 24/7. |
Six degrees of freedom of joint motion, a 630mm radius of motion, and a 2KG payload help achieve your ideal application scenario.
Meet your different scenarios of peripheral control and realize your creative thoughts and thoughts.
The device offers an array of hardware connectivity options, providing users with comprehensive and targeted interface choices. It supports various peripheral interfaces including USB, EtherNet/IP, RS485, and 24V-I/O, meeting the full-scene support needs for robotic application development.
This refers to an all-in-one robot programming and control software that offers features like visual programming interaction, quick movement control, drag-and-teach, and robot status query configuration. It supports various connection types including Modbus, VNC, and Socket to facilitate easy programming and rapid application of robots for users.
Support is extended for the ROS1, ROS2, and Gazebo simulation environments, with open-source robot control driver files provided. Basic RVIZ and MoveIT use cases are available, allowing for the customization of integrated application scenarios. Robot 3D and URDF files are also made accessible, enabling users to adapt to a wider range of simulation systems.
The four major personalized robot application scenarios include: 3D unstructured visual sorting, 2.5D palletizing sorting, robot writing and painting, and compound robot mobile inspection. It provides product integration support, covering a variety of peripheral devices such as 3D cameras, recognition software, recognition algorithms, actuators, industrial PCs, and mobile AGVs, to meet the customized application needs of different users.

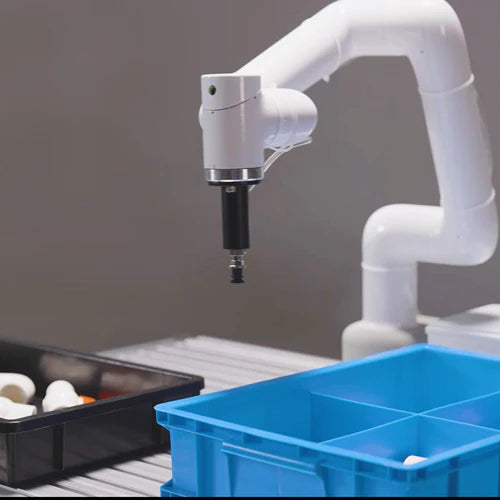

 3D Unstructured Visual Sorting |
 2.5D Palletizing and Sorting |

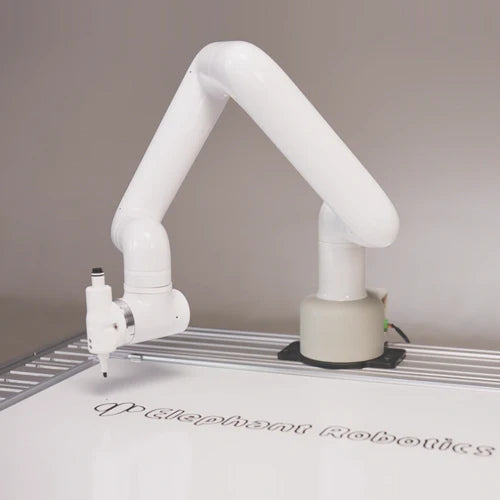

 Robot Writing and Painting |

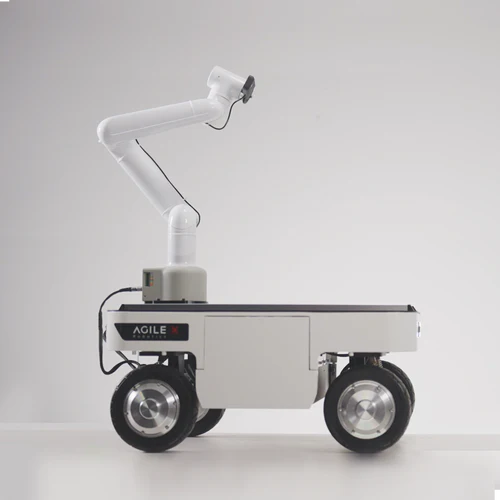

 AGV + Robotic Arm |
myStudio is a one-stop platform for myCobot Pro 630.
The main functions of myStudio are: 1) Update the firmware; 2) Provide video tutorials on how to use the robot; 3) Provide maintenance and repair information (such as video tutorials, Q&A, etc.
| Windows | Download |
| Linux | Download |
| Mac | Download |
Elephant Robotics is targeted at robotic collaboration applications and creating “my-series” product line.
| myCobot Pro 630 Specifications | |
|---|---|
| DOF | 6 |
| Reach | 630 mm |
| Payload | ≤ 2 Kg |
| Repeatability | ±0.1 mm (Standard) ISO 9283 |
| Life Span | >10000 h |
| Power Supply | DC 48V |
| Joint Ranges | J1: ±360° J2: ±135° J3: ±135° J4: ±150° J5: ±360° J6: ±360° |
| Supported Operating Systems | Windows Linux Mac |
| Communication Protocols | TCP/IP-Socket MODBUS EtherNet/IP |
| Programming Languages and Software | ROS 1 ROS 2 myBlockly myStudio Matlab Python C++ |
| Connectivity | WiFi-2.4G/5G BT–2.4G/5G USB 2.0 × 2 USB 3.0 × 2 RJ45 × 1 RS 458 |
| Video Output | MicroHDMI × 2 (supports wireless VNC connectivity) |
| Base Out Power | 24V 2A (Max) |
| Base INPUT | 24V 50mA (Max) NPN × 6 |
| Base OUTPUT | 24V 50mA (Max) PNP × 6 |
| Tools Out Power | 24V 2A (Max) |
| Tools INPUT | 24V 50mA (Max) NPN × 2 |
| Tools OUTPUT | 24V 50mA (Max) PNP × 2 |
| Gitbook [Recommended reading] | View |
| Github | View |
| User Manual | Download |
No reviews yet. Be the first to share your experience!
For more discussion Click Here
Discover More In:
Category: View all Robotic Arm Kit
