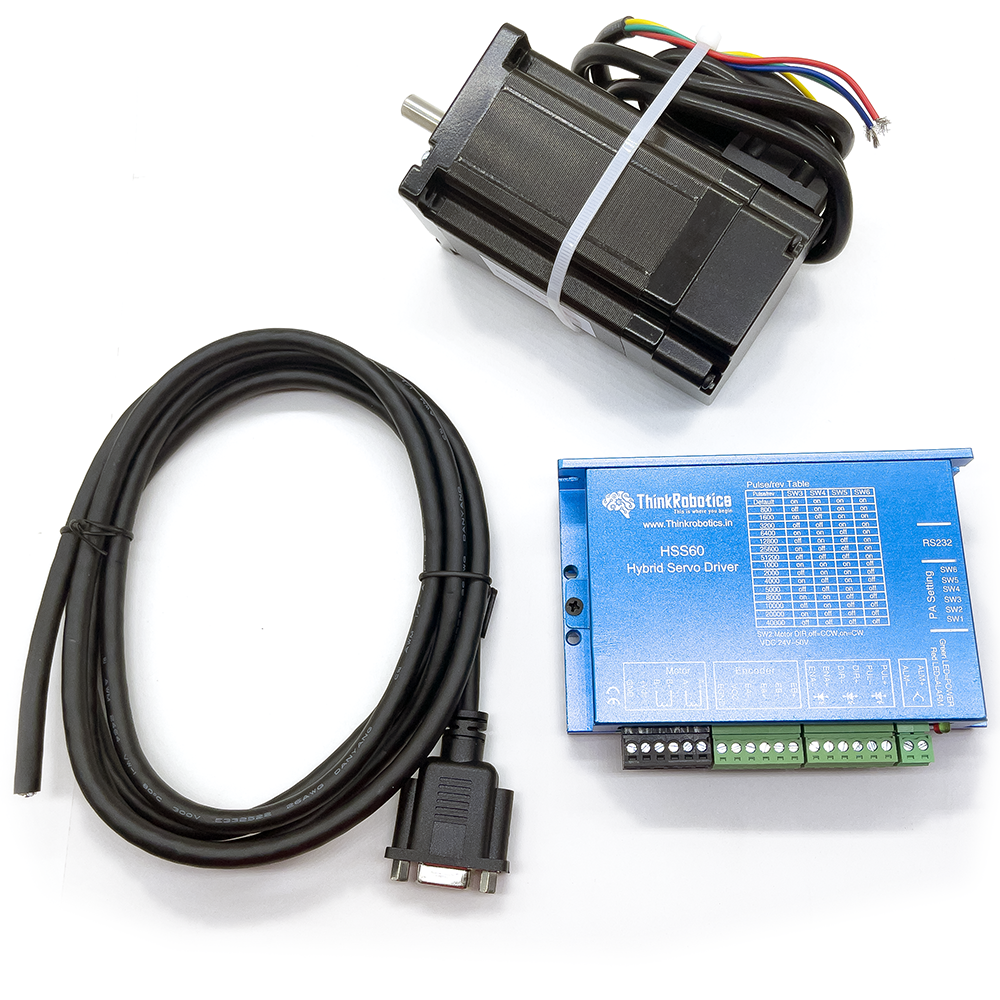

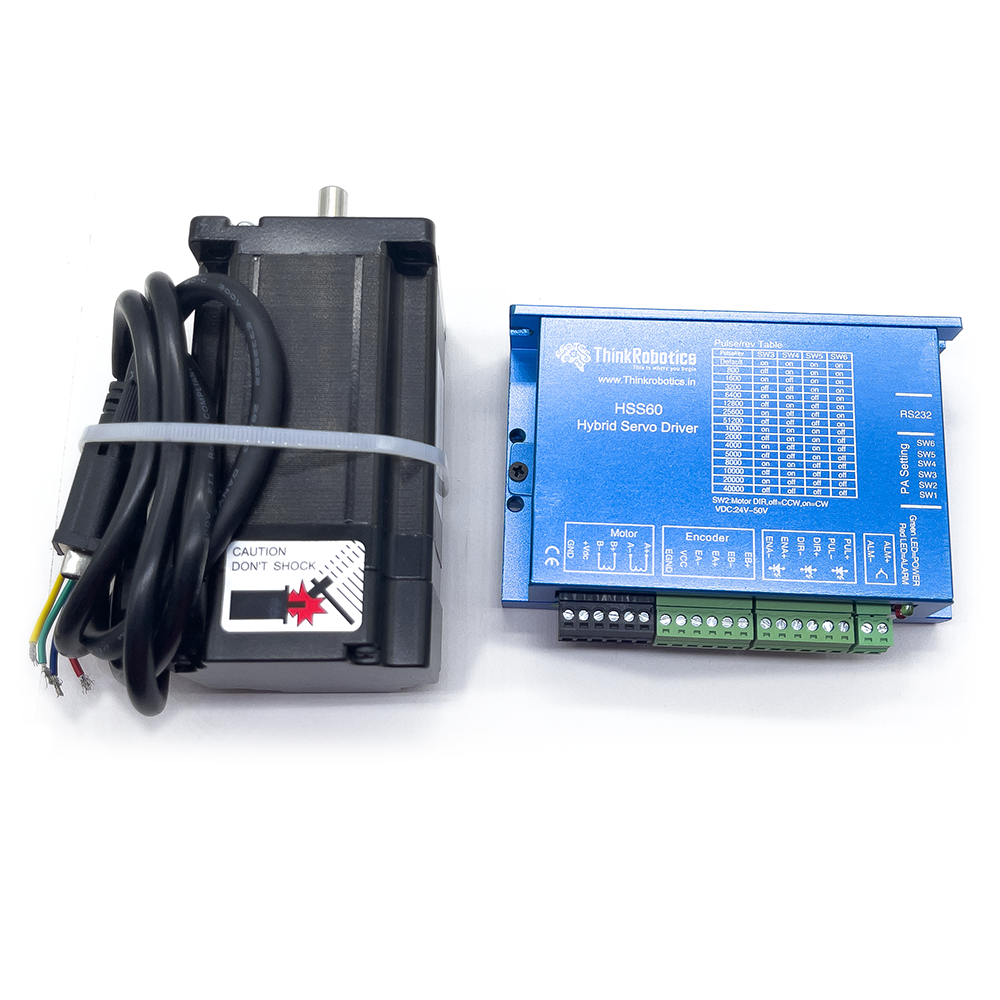

NEMA 24 EASY SERVO MOTOR & DRIVER

NEMA 24 closed loop stepper motor as the controlled output returns to the control input in a certain way and exerts control influence on the input. The closed-loop control of the stepper motor uses position feedback or speed feedback to determine the phase conversion corresponding to the rotor position, which can greatly improve the performance of the stepping motor. These motors are also called Easy Servo Motors.

Motor Parameters:

  • Model: 60HSE3N-D25
  • Step Angle:  1.8°
  • Rated Current: 5.0A
  • Rated Voltage: 2.25VDC
  • Phase Resistance: 0.45 ± 10%Ω
  • Phase Inductance: 1.8 ± 20%mH
  • Holding Torque: 3 N.m
  • Surface Treatment: Black Electrophoresis
  • Dielectric Strength: 500VAC / 5mA / 1min
  • Insulation Resistance: ≥100M Ω / 500VDC
  • Insulation: Class B
  • Motor Length: 76mm
  • Total Length: 97mm
  • Encoder Resolution: 1000 pulse per rotation
  • Shaft Radial Play 0.02Max.(450g-load)
  • Shaft Axial Play 0.08Max.(450g-load)
  • Weight: 1.55kg

Torque/Frequency Curve


Remark: black curve is NEMA24 standard stepper motor torque curve, red curve is NEMA24 closed loop torque curve.

DRIVER DIMENSIONS

WIRING DIAGRAM

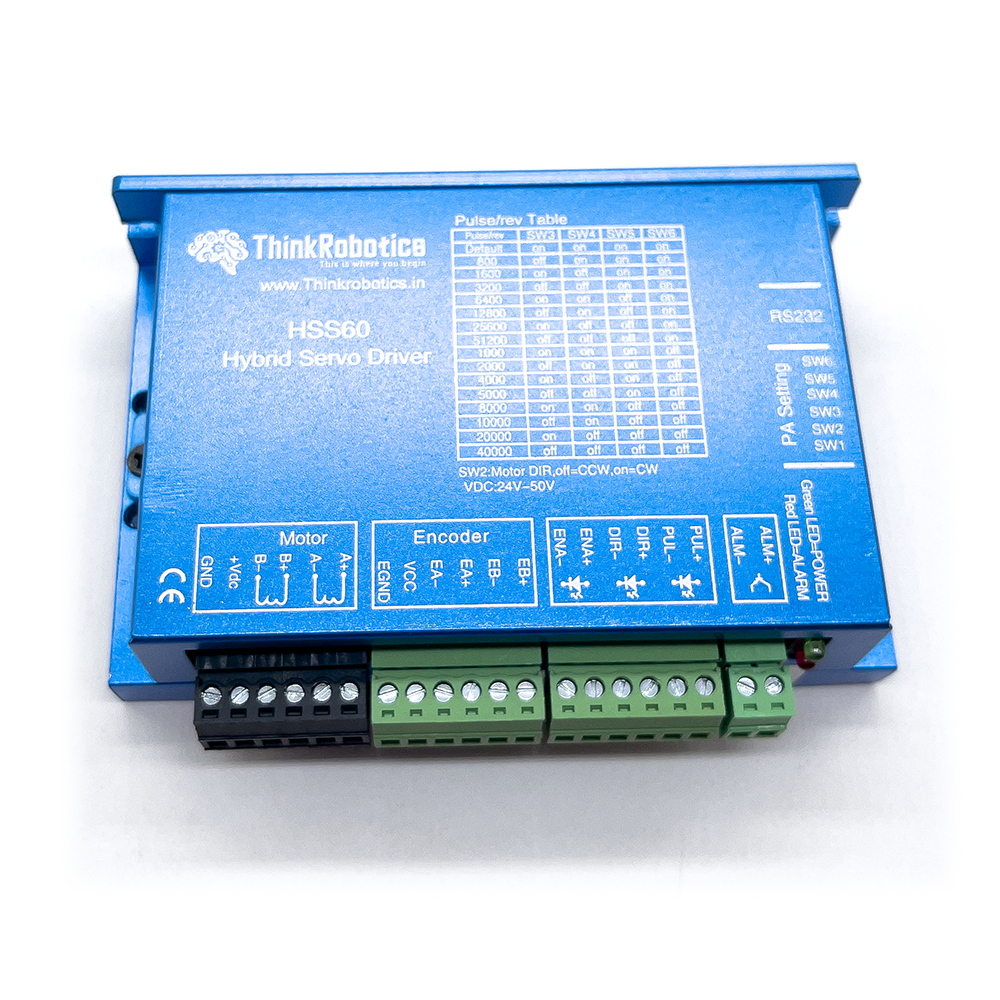

Driver HSS60 Features:

  • Position error correction and never lose steps
  • Quick response and perfect acceleration, High torque at high speed
  • Automatic current adjustment based on load, lower temperature rising
  • Over-current, over-voltage and position ultra difference protection function
  • Pulses response frequency can reach 200KHZ
  • 16 kinds microsteps choice, highest 51200microsteps/rev.
  • Drive NEMA 24 series 3N.m closed loop stepper motor
  • Voltage range: DC24V~50V


Microstep selection:

Micorstep/rev

SW3

SW4

SW5

SW6

Default（400）

on

on

on

on

800

off

on

on

on

1600

on

off

on

on

3200

off

off

on

on

6400

on

on

off

on

12800

off

on

off

on

25600

on

off

off

on

51200

off

off

off

on

1000

on

on

on

off

2000

off

on

on

off

4000

on

off

on

off

5000

off

off

on

off

8000

on

on

off

off

10000

off

on

off

off

20000

on

off

off

off

40000

off

off

off

off
What is closed loop and how does it improve performance?
Closed loop uses position or speed feedback to determine rotor position and prevent missed steps, improving accuracy and torque especially at higher speeds. The encoder resolution is 1000 pulses per rotation.
What are the key electrical and mechanical specifications of the motor?
Key specs include a 1.8 degree step angle, rated current 5.0 A, rated voltage 2.25 VDC, phase resistance 0.45 ohm, and phase inductance 1.8 mH, with a holding torque of 3 N.m. The motor length is 76 mm, total length 97 mm, and it weighs 1.55 kg.
What driver and voltage range should be used with this motor?
Use the HSS60 driver with a supply voltage in the range DC 24 to 50 V. The motor is designed for 3 N.m closed loop operation with 5.0 A rated current.
How many microsteps are available and how do I configure them?
The driver supports 16 microstep configurations and up to 51200 microsteps per revolution. Microstep settings are selected by SW3 SW4 SW5 SW6, with a default of 400 microsteps per revolution and other options such as 800, 1600, 3200, 6400, 12800, 25600, and 51200.
Where can I find the wiring diagram and installation guidance?
A wiring diagram and installation guidance are provided with the product information to help with connections and setup.
