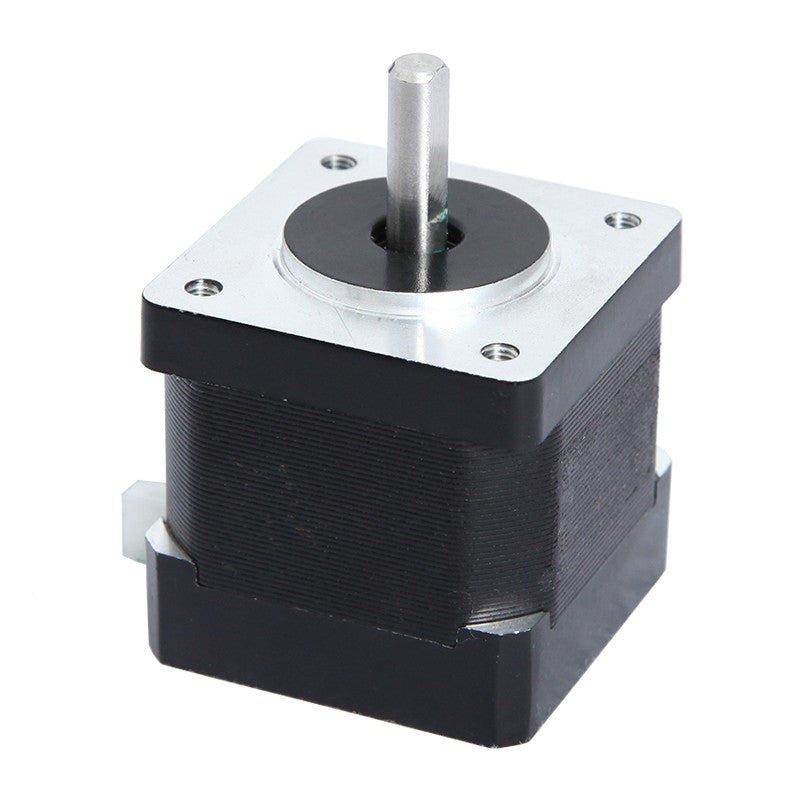

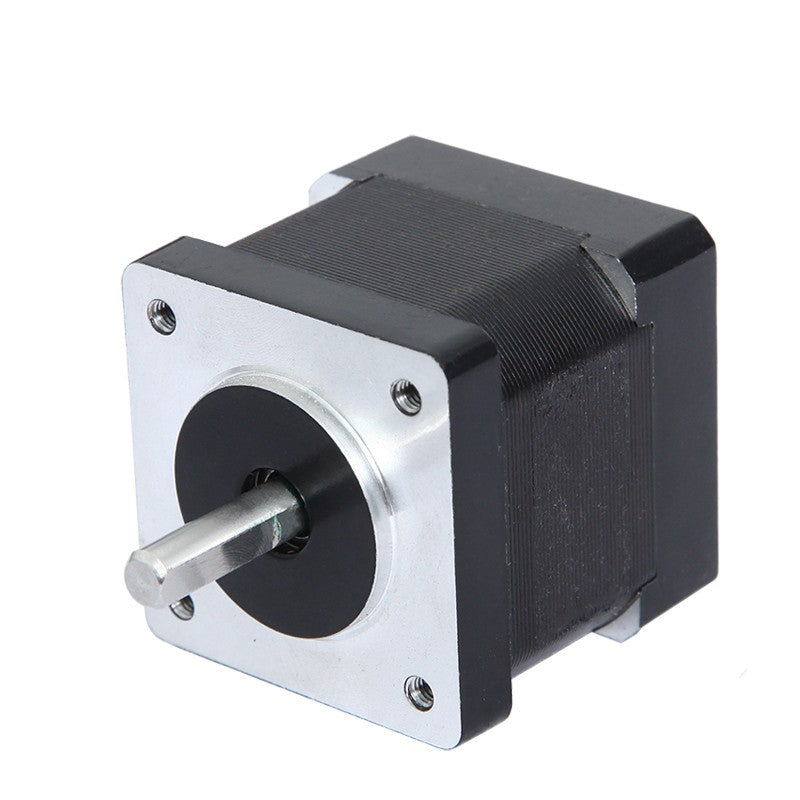

DEWO Motors 0.9° / 1.8° NEMA14 2-Phase Hybrid Stepper Motor
Specifications:
- Model: 35HD45-0804A05-A24
- Step Angle: 1.8° ± 5%
- Rated Voltage: 3.04VDC
- Rate Current: 0.8A
- Phase Resistance: 3.8±10%Ω
- Phase Inductance: 6.8±20%mH
- Holding Torque: 2.1 Kg.cm
- Surface Treatment: Black Electrophoresis
- Dielectric Strength: 500VAC / 5mA / 1min
- Insulation Resistance: ≥100M Ω / 500VDC
- Insulation: Class B
- Wires: AWG26 UL1007
- Motor Length: 30mm
- Motor Weight: 250g
- Shaft Profile: Round
- Shaft Diameter: 5mm
- Shaft Length: 24mm
- Shaft Radial Play 0.02Max.(450g-load)
- Shaft Axial Play 0.08Max.(450g-load)
|
Specifications:
- Model: 35HM28-0244A05-D24
- Step Angle: 0.9° ± 5%
- Rated Voltage: 11.52VDC
- Rate Current: 0.24A
- Phase Resistance: 48±10%Ω
- Phase Inductance: 50±20%mH
- Holding Torque: 0.7 kg.cm
- Surface Treatment: Black Electrophoresis
- Dielectric Strength: 500VAC / 5mA / 1min
- Insulation Resistance: ≥100M Ω / 500VDC
- Insulation: Class B
- Wires: AWG26 UL1007
- Motor Length: 30mm
- Motor Weight: 250g
- Shaft Profile: D
- Shaft Diameter: 5mm
- Shaft Length: 24mm
- Shaft Radial Play 0.02Max.(450g-load)
- Shaft Axial Play 0.08Max.(450g-load)
|
|
Drawings
35HS45-0804A05-A24 (1.8° - Round Shaft)
35HM28-0244A05-D24 (0.9° - D Shaft)
