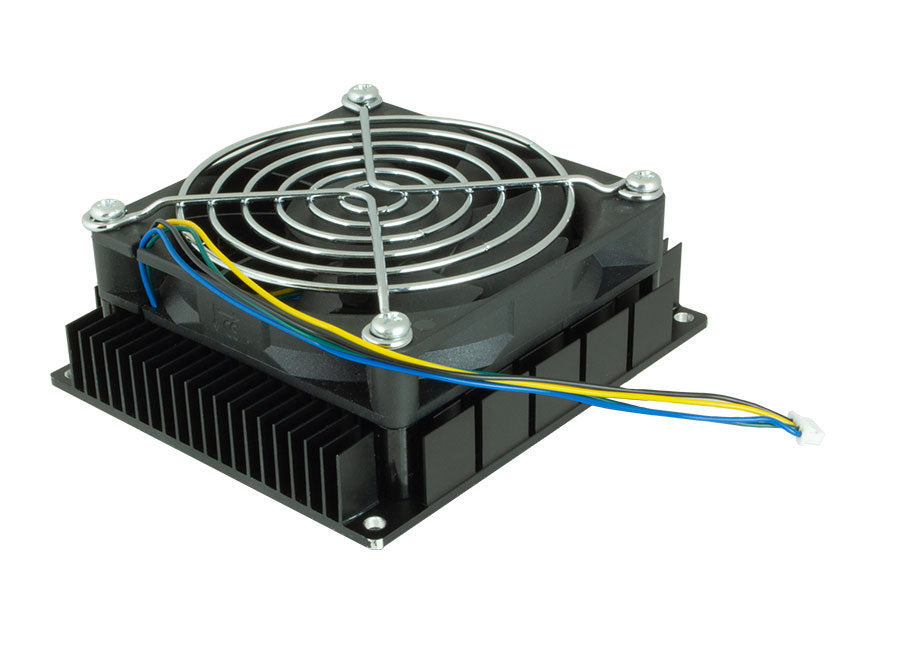

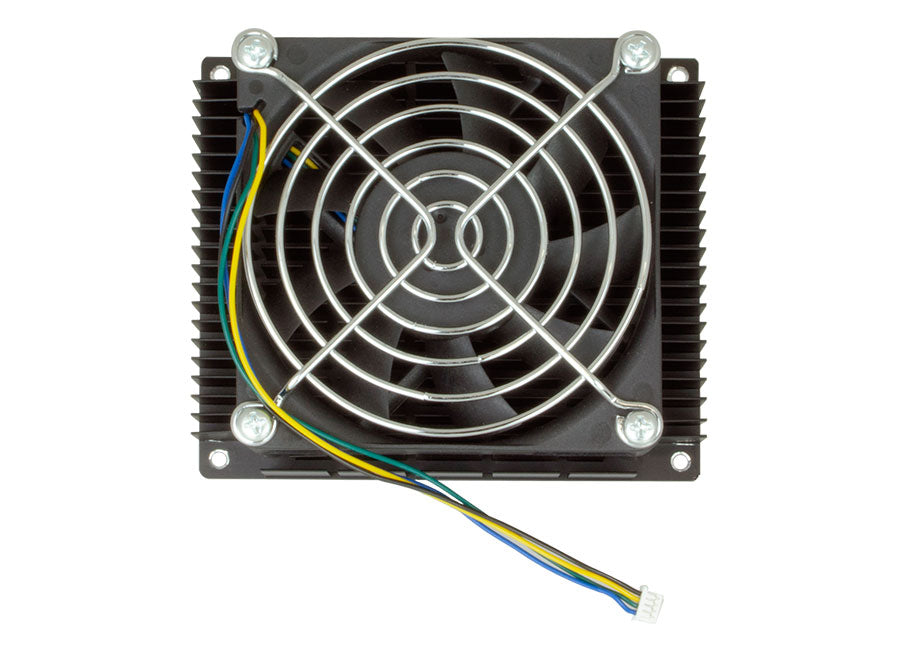

NVIDIA® Jetson AGX Xavier™ Active Heat Sink

SKU: SBC2062

₹ 12,999.99 ₹ 19,999.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
NVIDIA® Jetson AGX Xavier™ Active Heat Sink₹ 12,999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

The NVIDIA® Jetson™ AGX Xavier™ is the world’s first AI computer for autonomous machines. NVIDIA Jetson AGX Xavier has an impressive 512-core Volta GPU and 64 Tensor cores with discreet dual Deep Learning Accelerator (DLA) NVDLA engines. The platform offers 20x the performance and 10x the power efficiency of the Jetson TX2. Connect Tech is proud to provide small form factor carriers and embedded system solutions for the AGX Xavier. To assist in your selection of our solutions, we have included accessories to match our products. Readily available thermal options get you up and running fast.

  • Designed to fit the NVIDIA® Jetson AGX Xavier™ modules
  • Dissipates the heat produced by the module through a fan
  • Dimensions: 100mm x 87mm x 36.7mm/3.93″ x 3.43″ x 1.44″

Specifications

Compatibility

NVIDIA® Jetson AGX Xavier™
Dimensions

100mm x 87mm x 36.7mm/3.93″ x 3.43″ x 1.44″
Weight

204g
Fan Connector

4-pin Molex 51021-0400
Mating Header

4-pin Molex 53261-0471
Thermal Resistance

0.5 C/W
Mounting Fasteners

M3.0X0.5 PPHMS, 30mm long, S.S
Mounting Fastener Torque Rating

5.2 in-ib
Is this heat sink compatible with the Jetson AGX Xavier module?
Yes. It is designed to fit NVIDIA Jetson AGX Xavier modules and matches the 100 mm by 87 mm by 36.7 mm footprint.
How does the heat sink dissipate heat from the module?
It is an active heat sink that dissipates heat through a fan.
What are the electrical connection specifications for the cooling fan?
The fan uses a 4 pin Molex 51021-0400 connector and the mating header is a 4 pin Molex 53261-0471.
What mounting hardware and torque are specified for installation?
Mounting fasteners are M3.0X0.5 PPHMS, 30 mm long, stainless steel, with a torque rating of 5.2 in-ib.
What are the physical dimensions and weight of the heat sink?
Dimensions are 100 mm by 87 mm by 36.7 mm and the weight is 204 g.
A
Admin
Welcome to the discussion thread for NVIDIA® Jetson AGX Xavier™ Active Heat Sink
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Heatsinks & Cooling Fans → NVIDIA Jetson → NVIDIA Jetson Accessories & Cameras →

Category: View all Single Board Computers

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

The NVIDIA® Jetson™ AGX Xavier™ is the world’s first AI computer for autonomous machines. NVIDIA Jetson AGX Xavier has an impressive 512-core Volta GPU and 64 Tensor cores with discreet dual Deep Learning Accelerator (DLA) NVDLA engines. The platform offers 20x the performance and 10x the power efficiency of the Jetson TX2. Connect Tech is proud to provide small form factor carriers and embedded system solutions for the AGX Xavier. To assist in your selection of our solutions, we have included accessories to match our products. Readily available thermal options get you up and running fast.

  • Designed to fit the NVIDIA® Jetson AGX Xavier™ modules
  • Dissipates the heat produced by the module through a fan
  • Dimensions: 100mm x 87mm x 36.7mm/3.93″ x 3.43″ x 1.44″

Specifications

Compatibility

NVIDIA® Jetson AGX Xavier™
Dimensions

100mm x 87mm x 36.7mm/3.93″ x 3.43″ x 1.44″
Weight

204g
Fan Connector

4-pin Molex 51021-0400
Mating Header

4-pin Molex 53261-0471
Thermal Resistance

0.5 C/W
Mounting Fasteners

M3.0X0.5 PPHMS, 30mm long, S.S
Mounting Fastener Torque Rating

5.2 in-ib
FAQ
Is this heat sink compatible with the Jetson AGX Xavier module?
Yes. It is designed to fit NVIDIA Jetson AGX Xavier modules and matches the 100 mm by 87 mm by 36.7 mm footprint.
How does the heat sink dissipate heat from the module?
It is an active heat sink that dissipates heat through a fan.
What are the electrical connection specifications for the cooling fan?
The fan uses a 4 pin Molex 51021-0400 connector and the mating header is a 4 pin Molex 53261-0471.
What mounting hardware and torque are specified for installation?
Mounting fasteners are M3.0X0.5 PPHMS, 30 mm long, stainless steel, with a torque rating of 5.2 in-ib.
What are the physical dimensions and weight of the heat sink?
Dimensions are 100 mm by 87 mm by 36.7 mm and the weight is 204 g.
