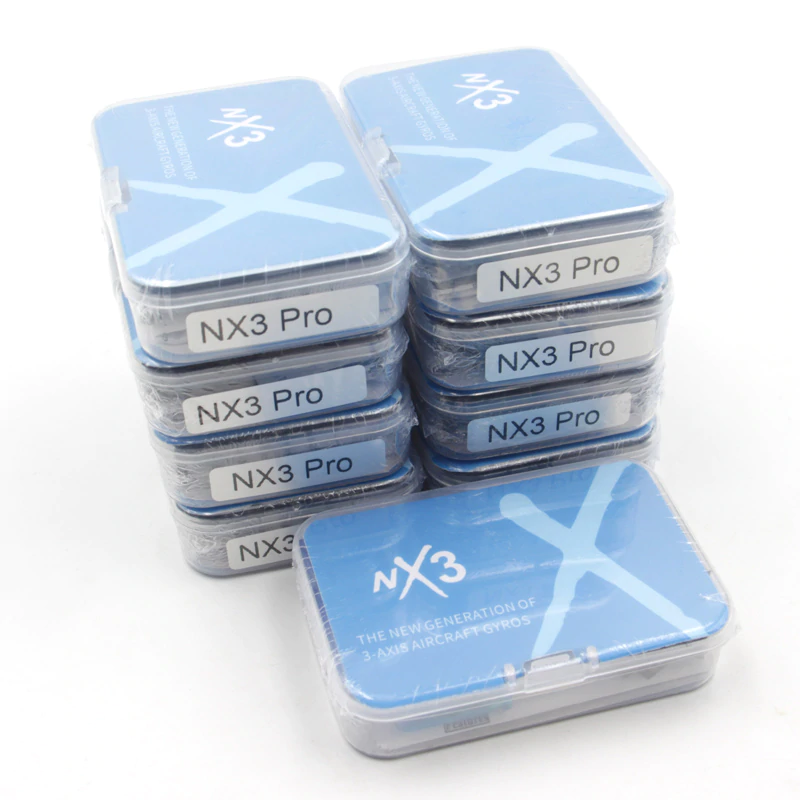

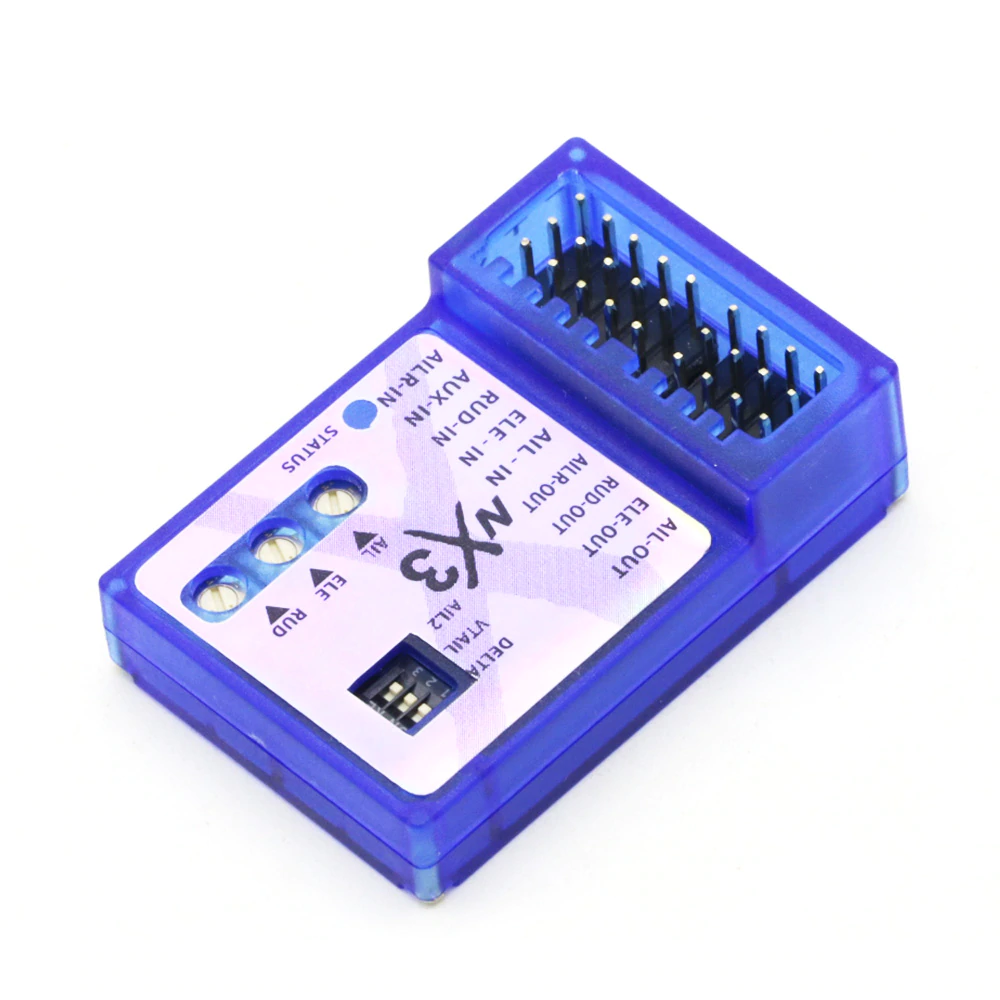

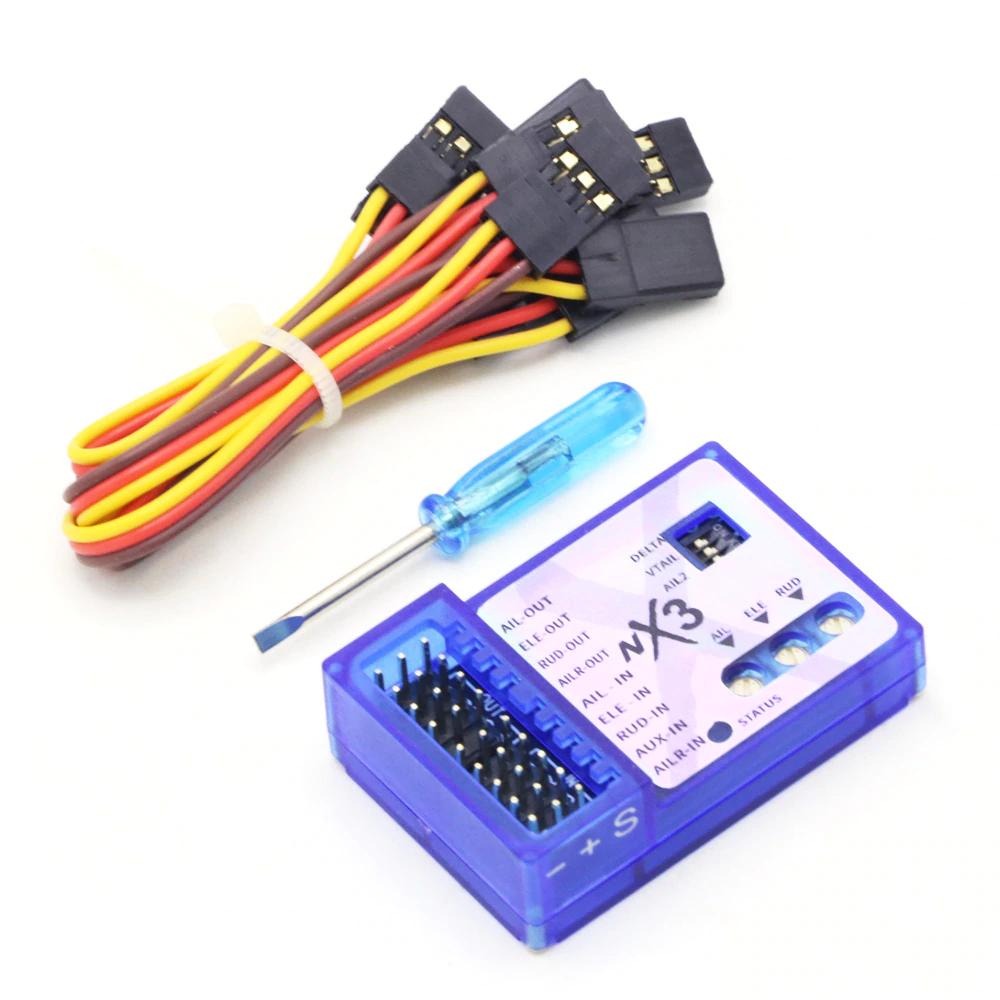

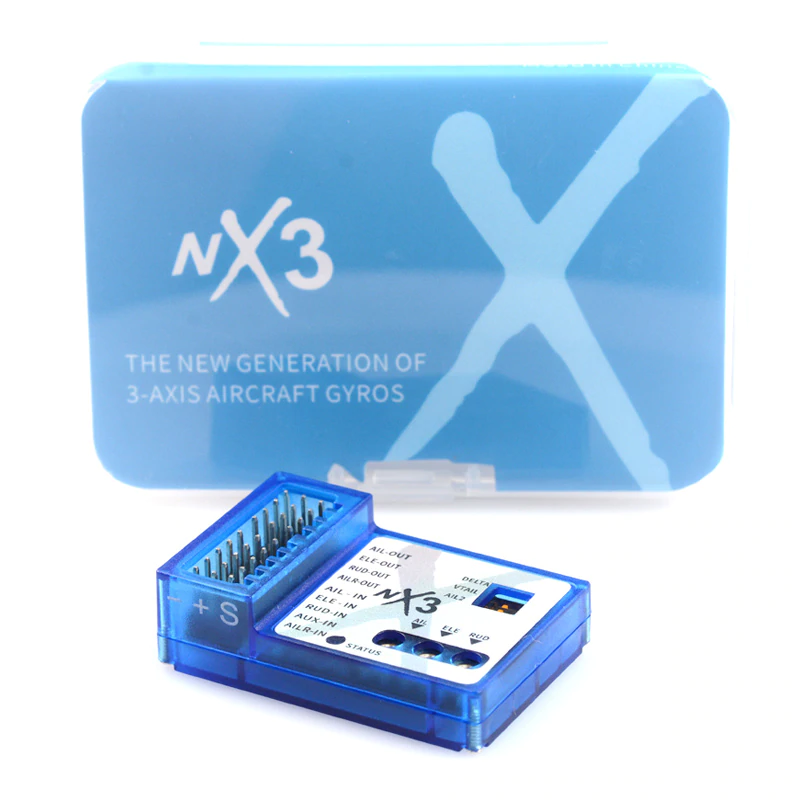

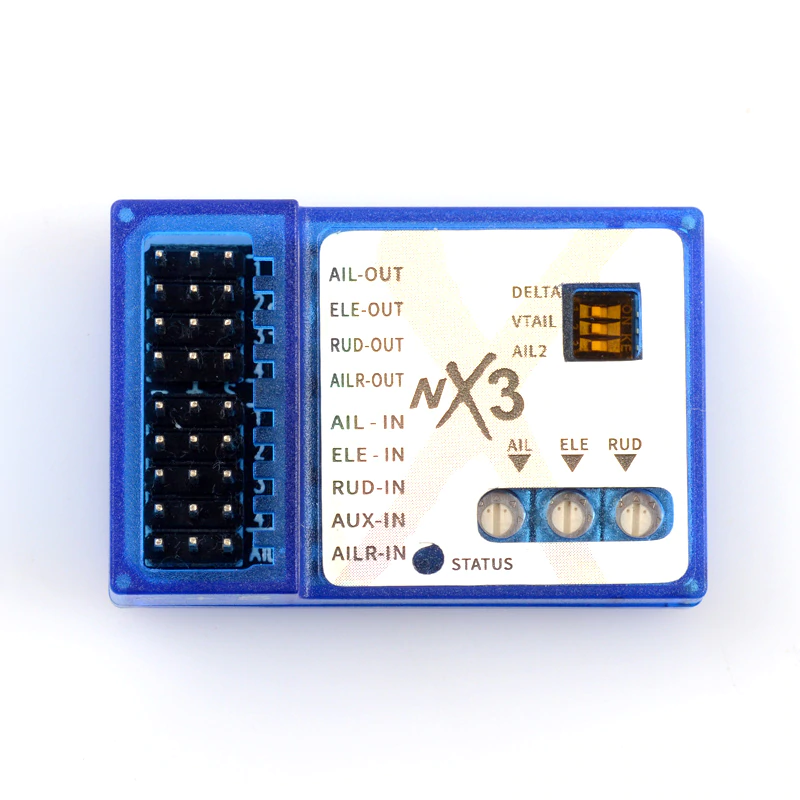

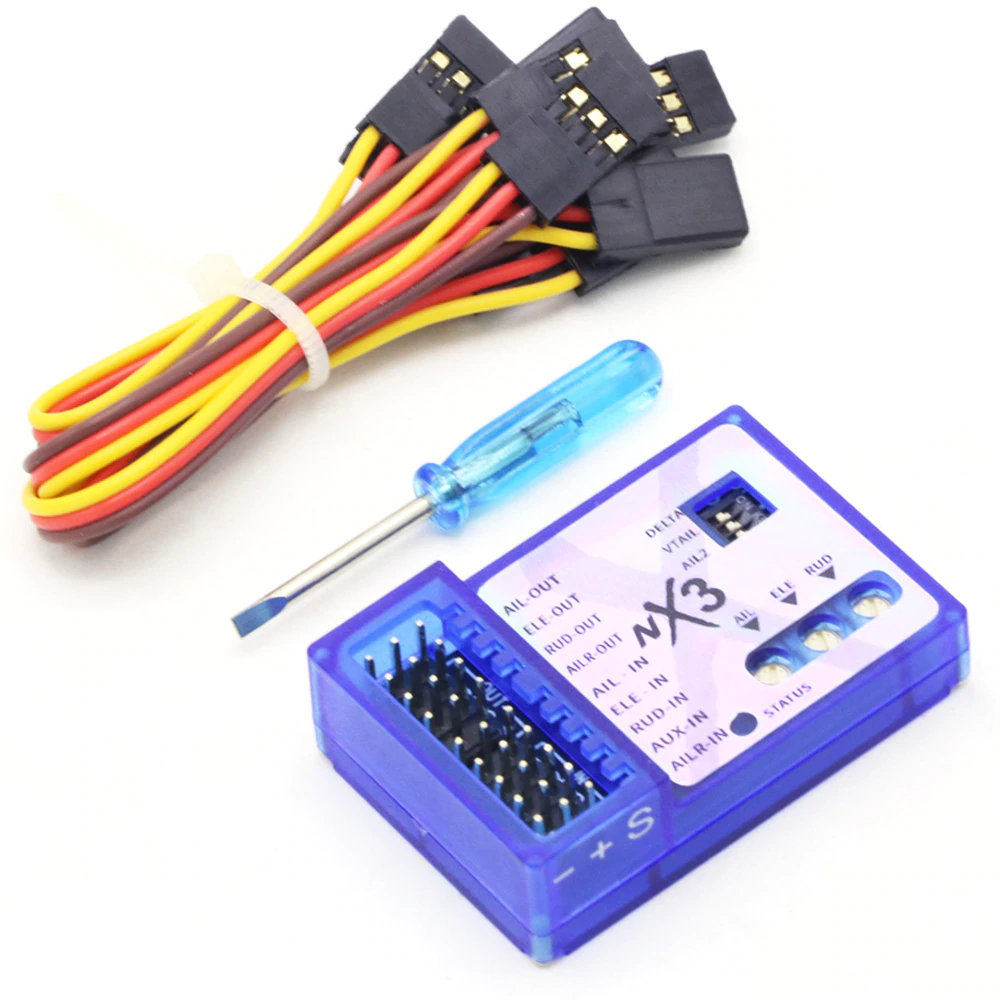

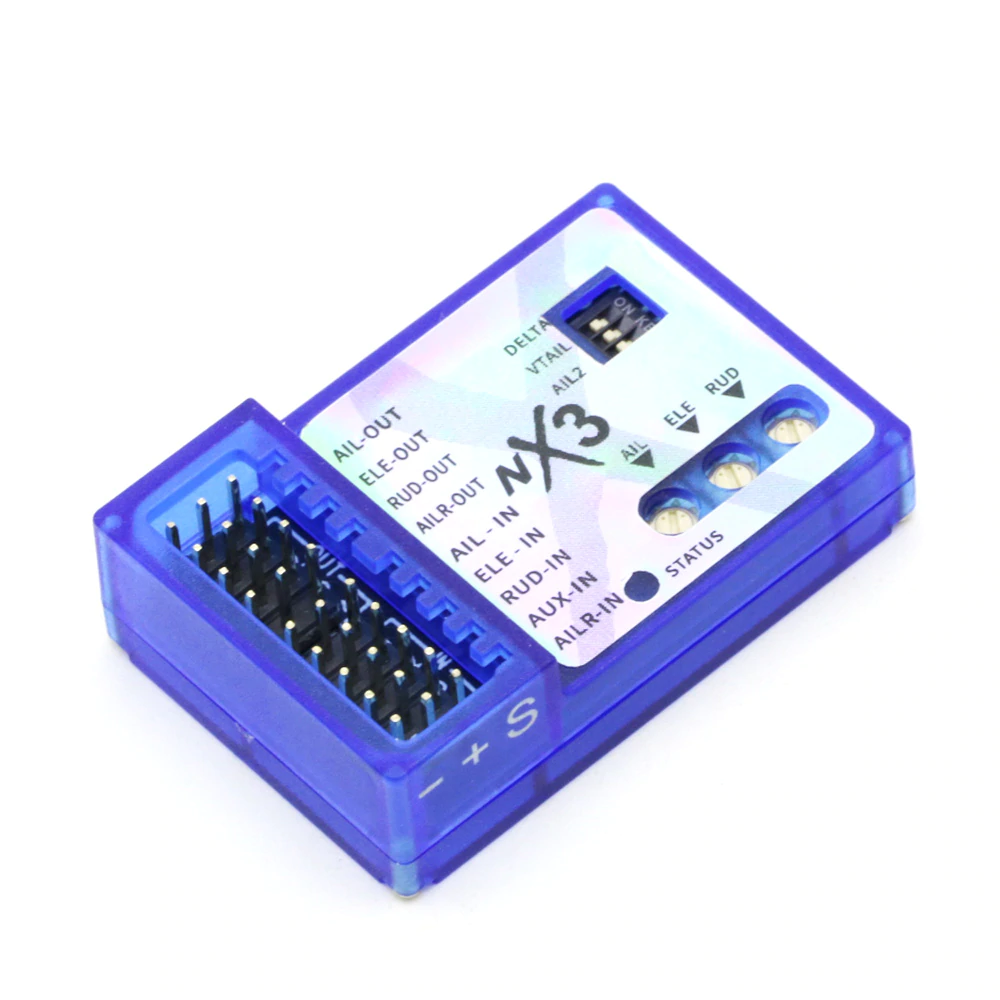

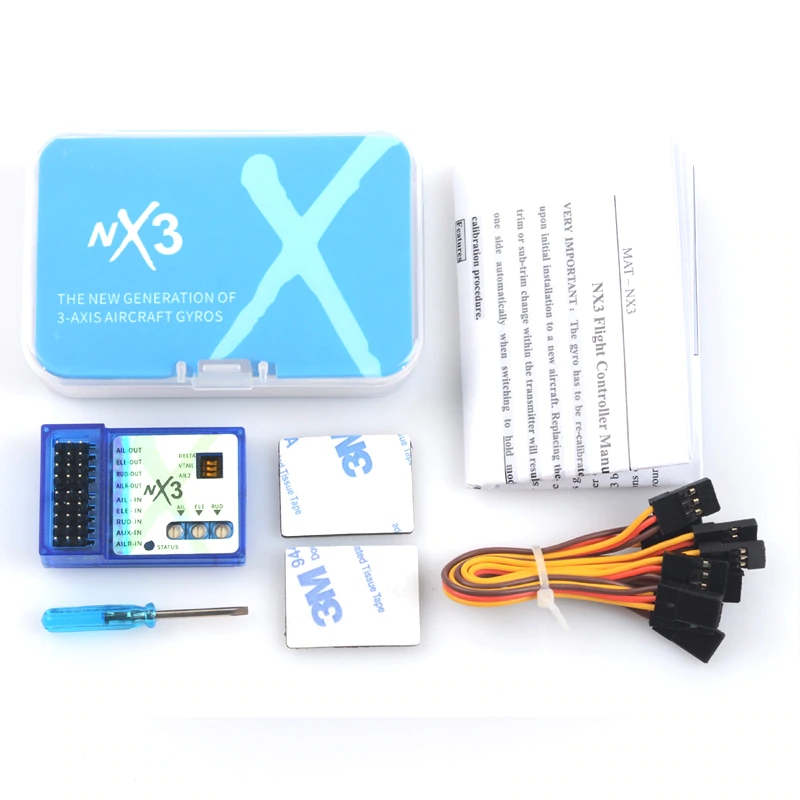

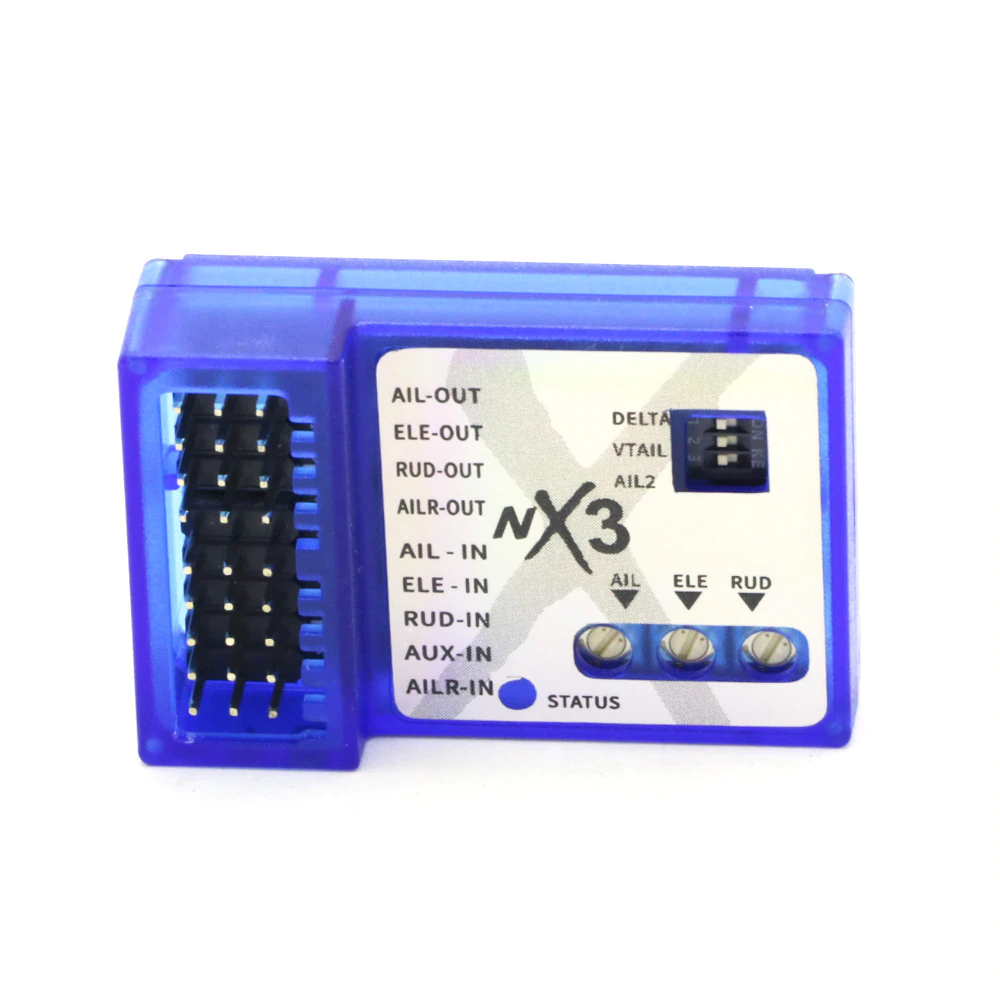

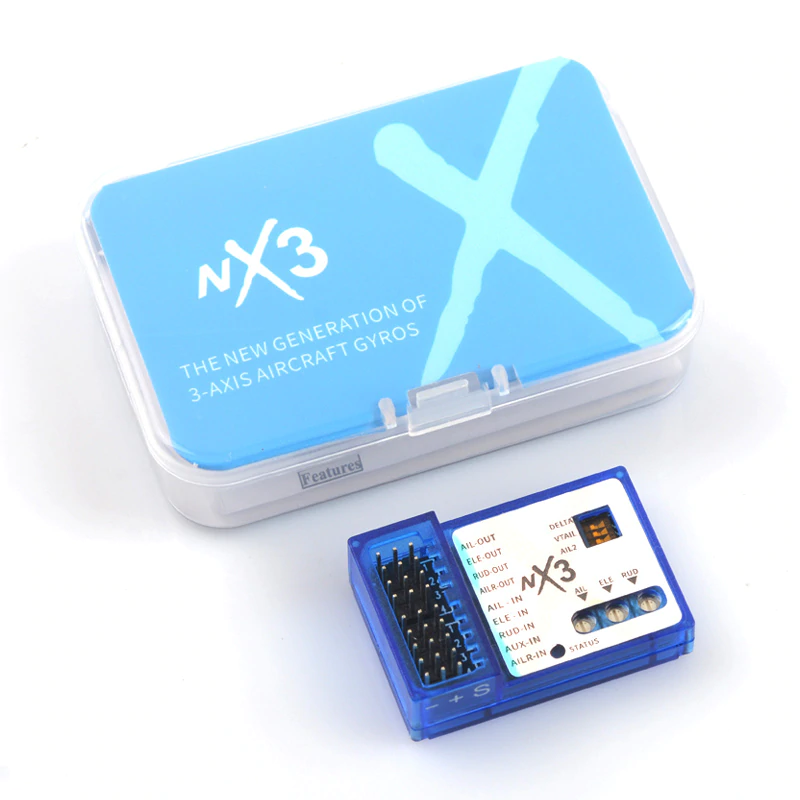

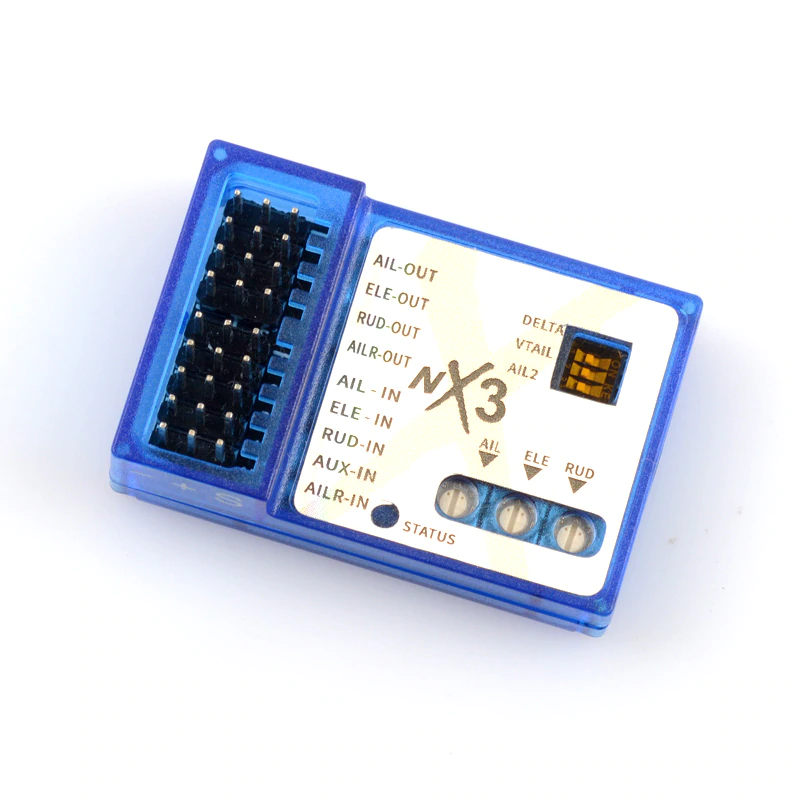

NX3 3D Flight Controller / Gyroscope Balancer for fixed wing aircrafts and RC Planes

SKU: DRO2016P

₹ 2,189.99

In stock | Ready to ship

Select variant

Variant NX3 Pro

NX3 Pro NX3 EVO S

Chat with us on WhatsApp We reply quickly! Contact Us

NX3 3D Flight Controller / Gyroscope Balancer for fixed wing aircrafts and RC PlanesNX3 Pro₹ 2,189.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

The NX3 3D flight controller features a micro design, small size, supports single aileron model, V-tail model, delta wing model and dual aileron (flaperons) aircraft - Can also be used for 2 - axis on jets using 2 servos for ailerons and a servo on the elevator or if the jet uses 2 servos only, one serving the left aileron and elevator, and the other servo serving the right aileron and elevator, it can be set to a delta wing.

Features:
Humanized design, independent potentiometer adjust for different axis sensitivity
Optional - Three-mode switched from controller,

1 - normal stability mode,
2- gyro off mode,
3- calibration.

Specifications

Input voltage: DC5 - 6V, directly connected to the ESC's BEC power supply can be use.
Operating Current: 18mA
Working temperature: -20 Celsius to 85 Celsius
Dimensions: 25 × 40mm
Net Weight: 6.5g

Resources

Datasheet

Tutorial

What wing configurations are supported by the NX3 unit?

It supports single aileron, V tail, delta wing, and dual aileron (flaperon) configurations. It can also be used for 2 axis jets using two servos for the ailerons and an elevator, or two servos serving left and right aileron and elevator, and it can be set to delta wing.

What are the power and operating requirements?

The NX3 accepts DC 5 to 6 volts and can be powered directly from the ESC BEC. It has an operating current of 18 mA and operates from a temperature range of -20 C to 85 C.

How do I switch between the three modes?

The unit offers three modes: normal stability, gyro off, and calibration. The modes are selected from the controller.

What are the physical specifications?

The dimensions are 25 by 40 mm and the net weight is 6.5 g.

Where can I find documentation and support?

Technical documentation and support materials are available as a datasheet and tutorials from ThinkRobotics.
