Specifically designed for D-Robotics RDK X3 MD Module

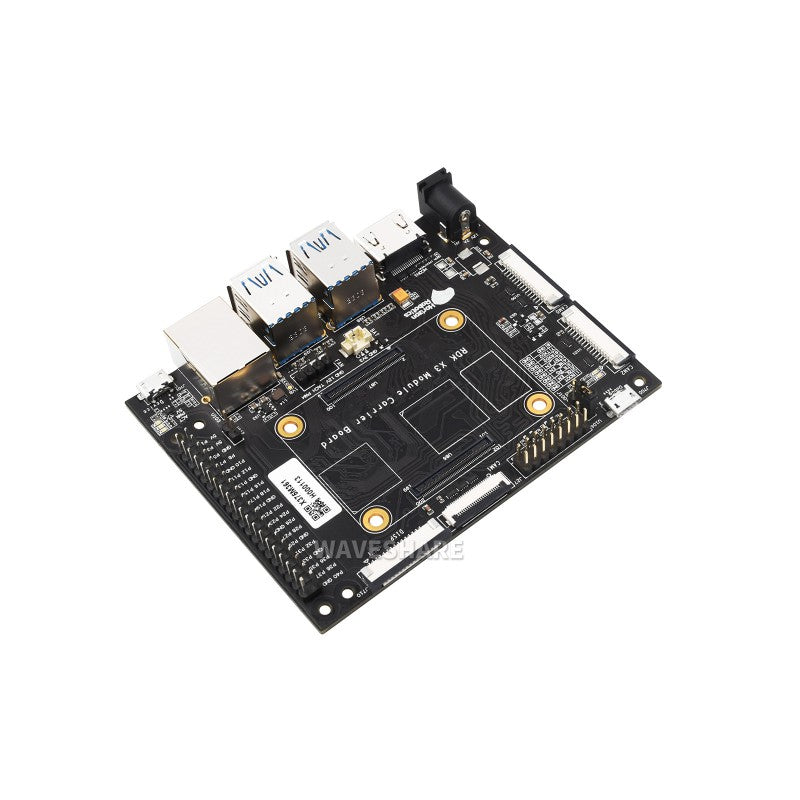

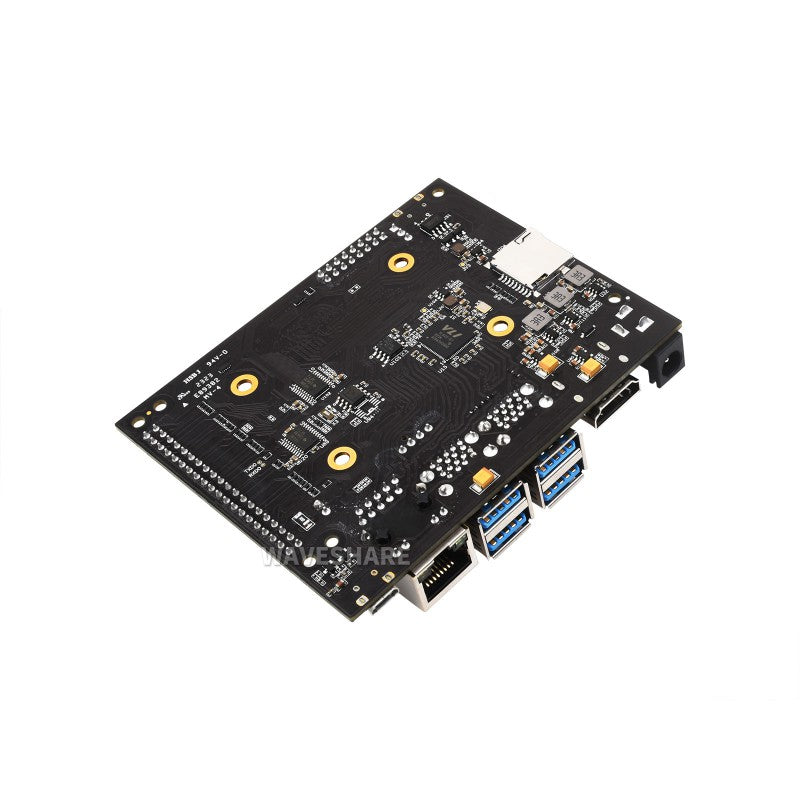

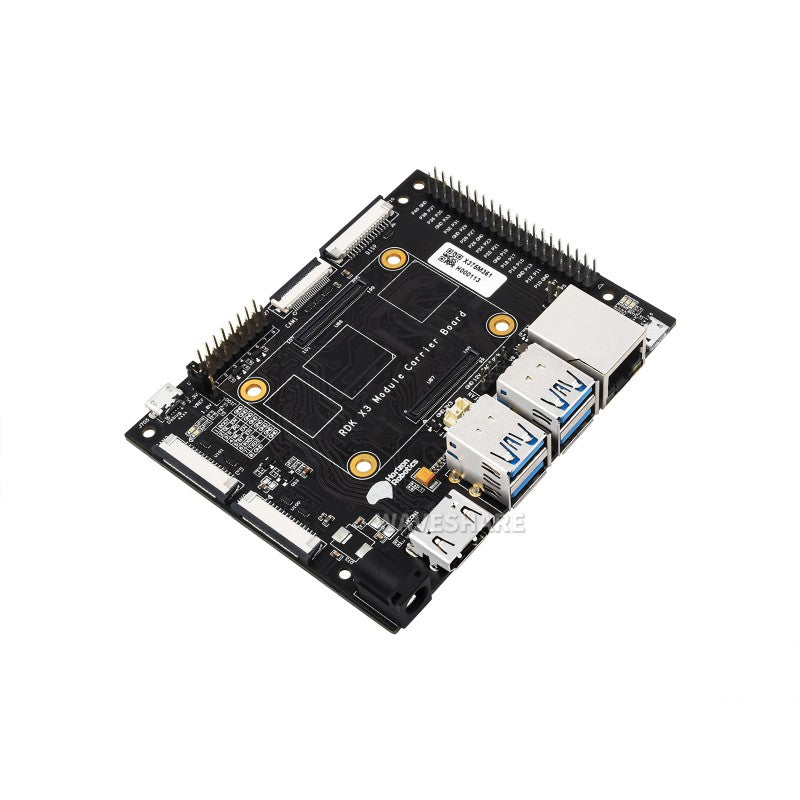

The RDK X3 Module Carrier Board is a companion board for RDK X3 MD Module,Ā provides rich interfaces including USB 3.0, Ethernet, HDMI, MIPI CSI, MIPI DSI andĀ 40PIN header, etc,Ā facilitates functional verification and development of the module.
Ā
| RDK X3 Socket | Suitable for all variants of RDK X3 Module |
| Network | Gigabit Ethernet RJ45 port |
| USB | USB 3.0 Host port Ć 4 Micro USB 2.0 Device port Ć 1 Micro USB port Ć 1 (USB to UART, debug interface) |
| Connectors | 40PIN GPIO header (compatible with Raspberry Pi 40PIN header) 16PIN function control IO |
| Display | MIPI DSI interface (15PIN 1.0mm FPC connector) HDMI port Ć 1 (supports 4K 30fps output) |
| Camera | MIPI CSI 2-lane interface Ć 2 (15PIN 1.0mm FPC connector) MIPI CSI 4-lane interface Ć 1 (24PIN 0.5mm FPC connector) |
| RTC | Onboard RTC battery header |
| Storage | Onboard TF card slot for RDK X3 MD Lite (without eMMC) variants |
| Fan Header | 12V, supports speed control and speed measurement |
| Power Input | 12V / 2A power input |
| Dimension | 99 Ć 80 mm |
Ā

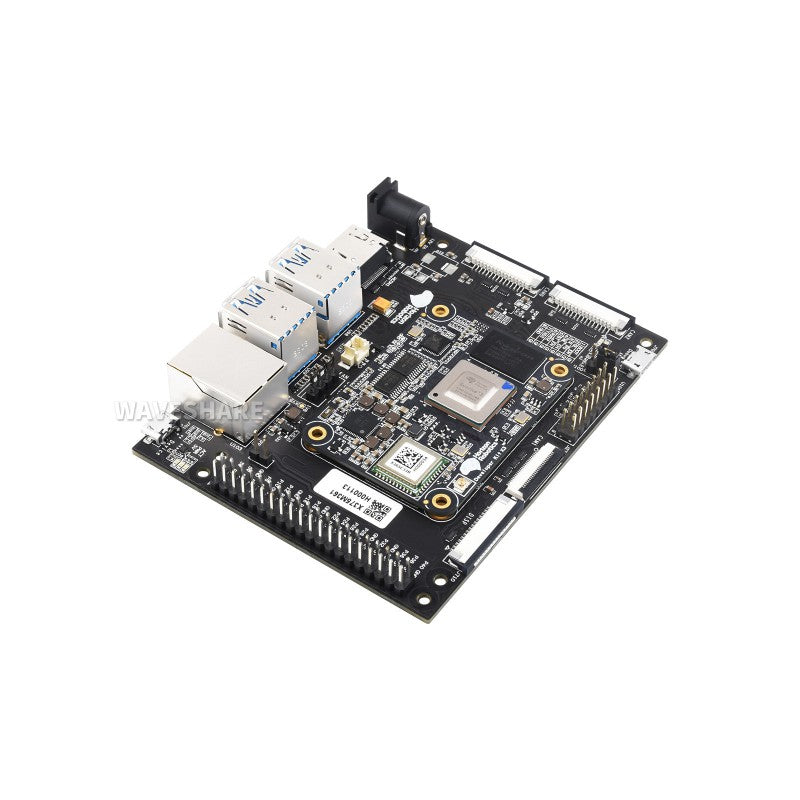

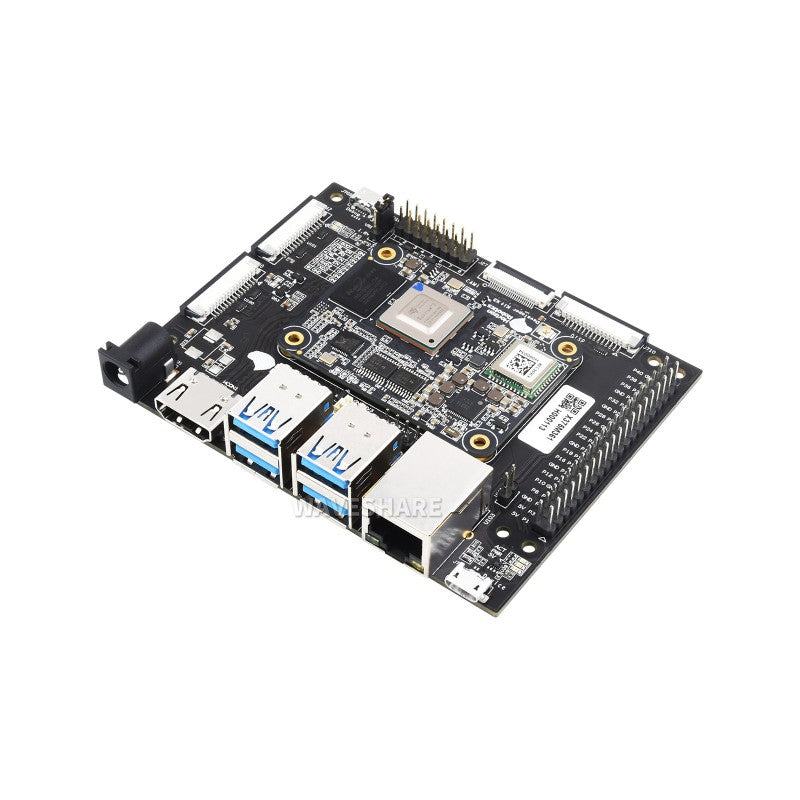

Easily expand multiple interfaces, making development more convenient
* for reference only, the RDK X3 Module is NOT included.
Ā
|

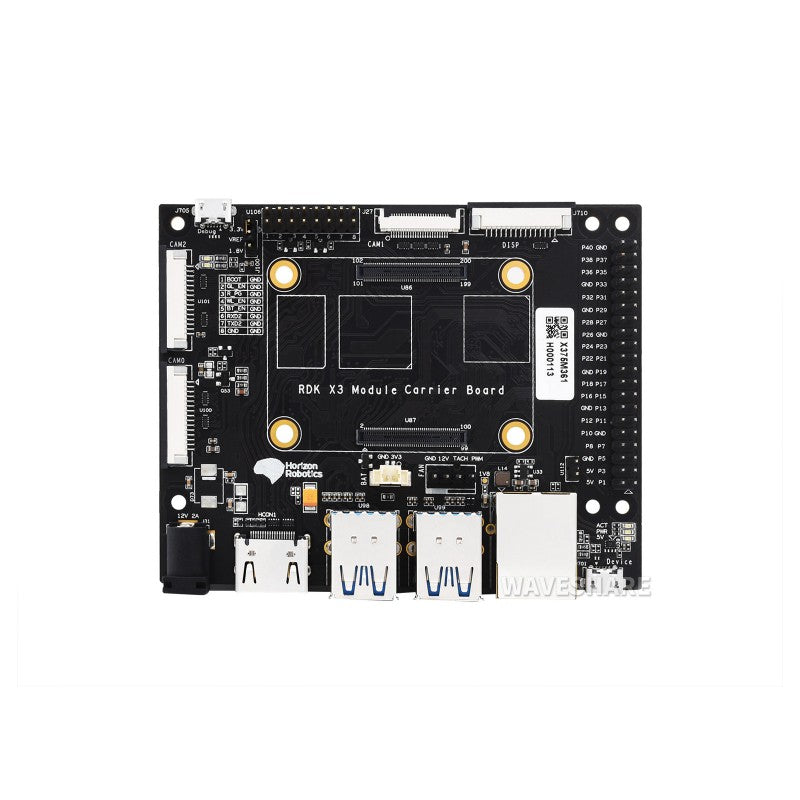

1. 12V DC Power Jack 2. HDMI Port 3. USB 3.0 Host Ports 4. RTC Battery Header 5. 12V Fan Header 6. Gigabit Ethernet Port 7. Micro USB 2.0 Device Port 8. Status Indicators 9. 40PIN Header |

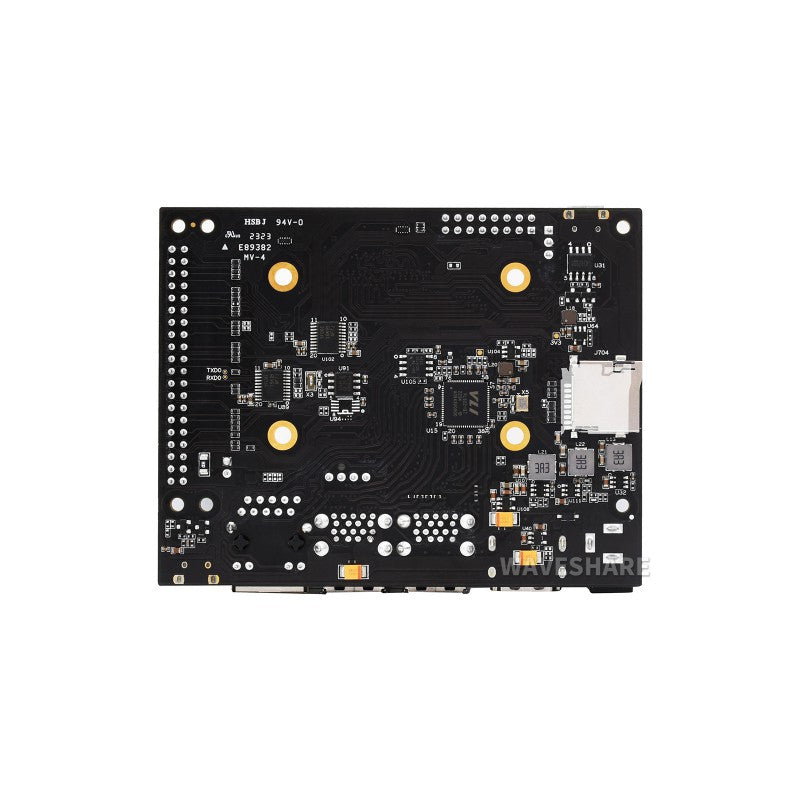

10. MIPI DSI Interface 11. CAM1 Interface (4-lane) 12. RDK X3 Module Socket 13. Function Control IO Header 14. IO Level Selection Header 15. Debug Port (USB to UART) 16. CAM2 Interface (2-lane) 17. CAM0 Interface (2-lane) 18. Micro SD Slot (On the Back) |
Ā
More convenient for users to verify and develop module functions
* for reference only, please refer to the package content for detailed part list.
Ā
Ā
Ā
Wiki:Ā www.waveshare.com/wiki/RDK_X3_MD_Carrier_Board
Ā
Weight: 0.079 kg
RDK X3 MD Carrier Board x1
