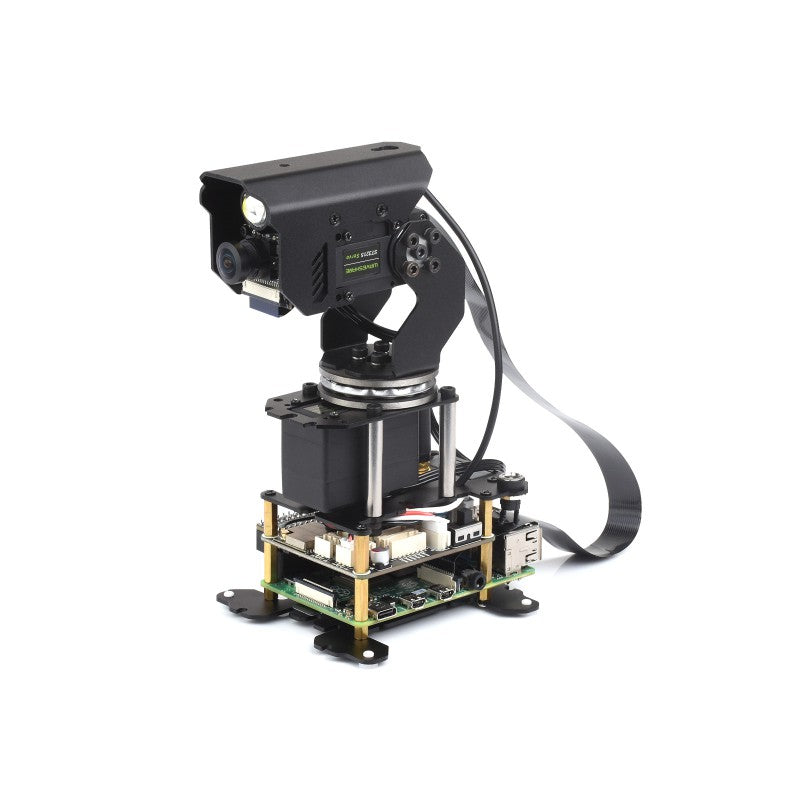

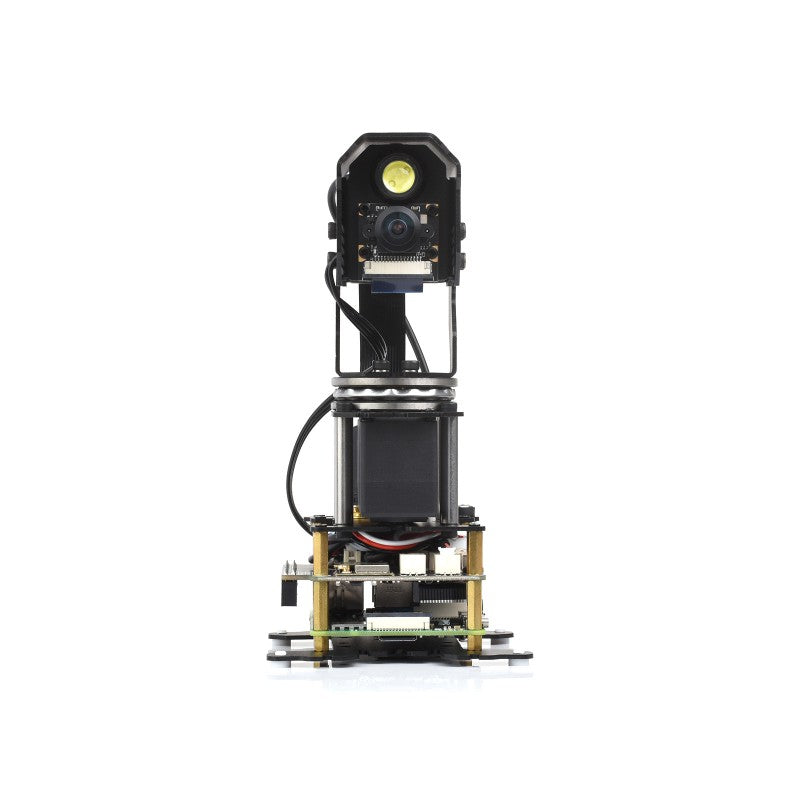

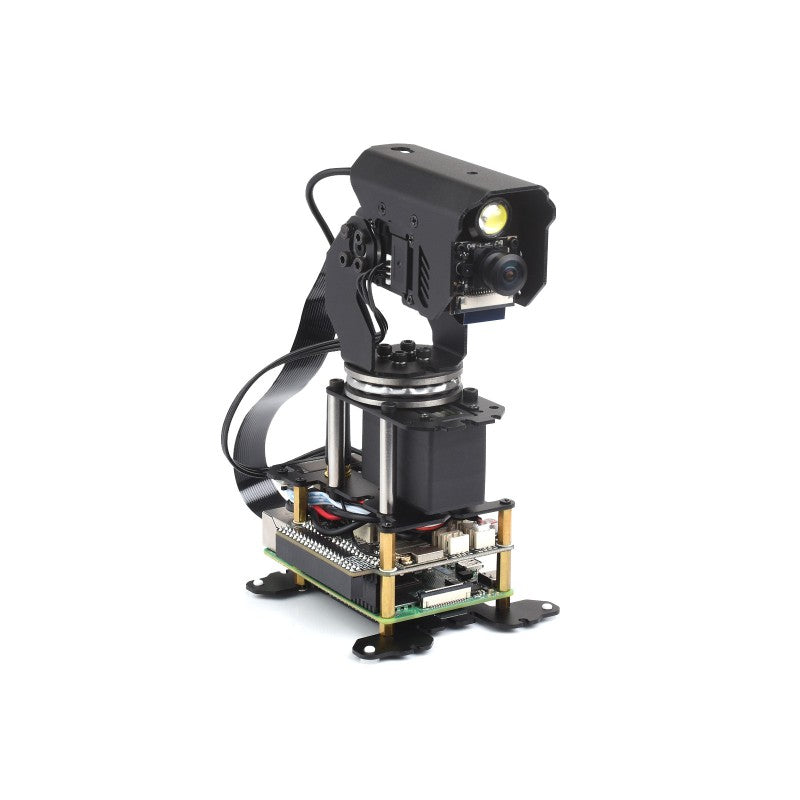

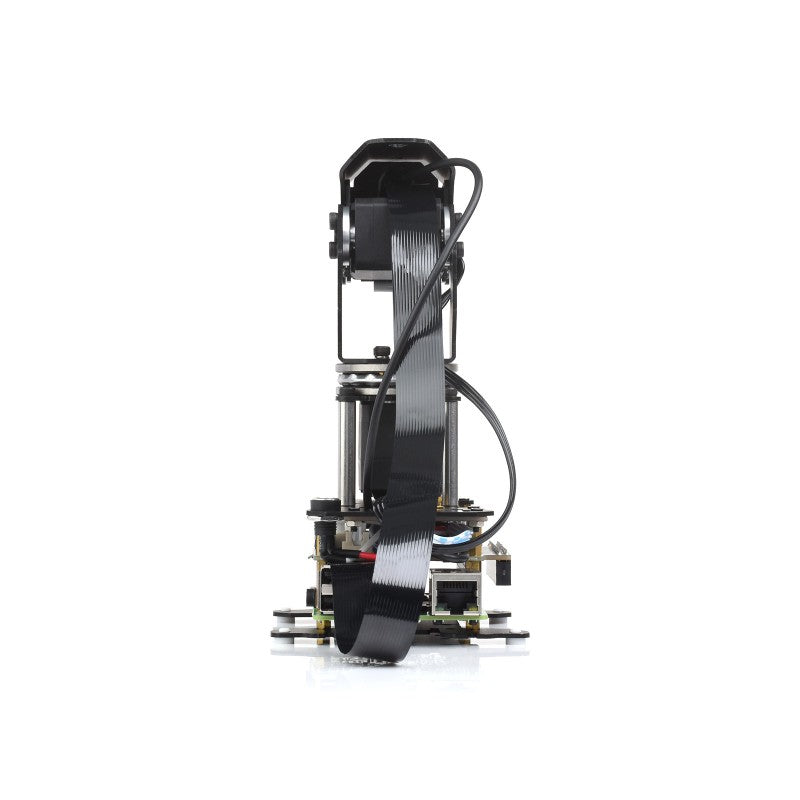

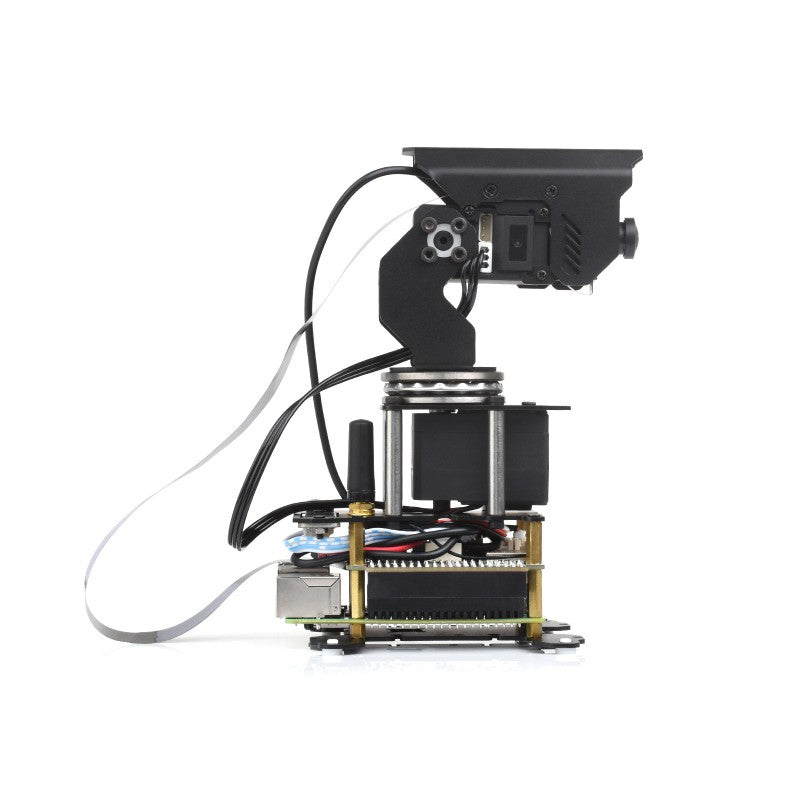

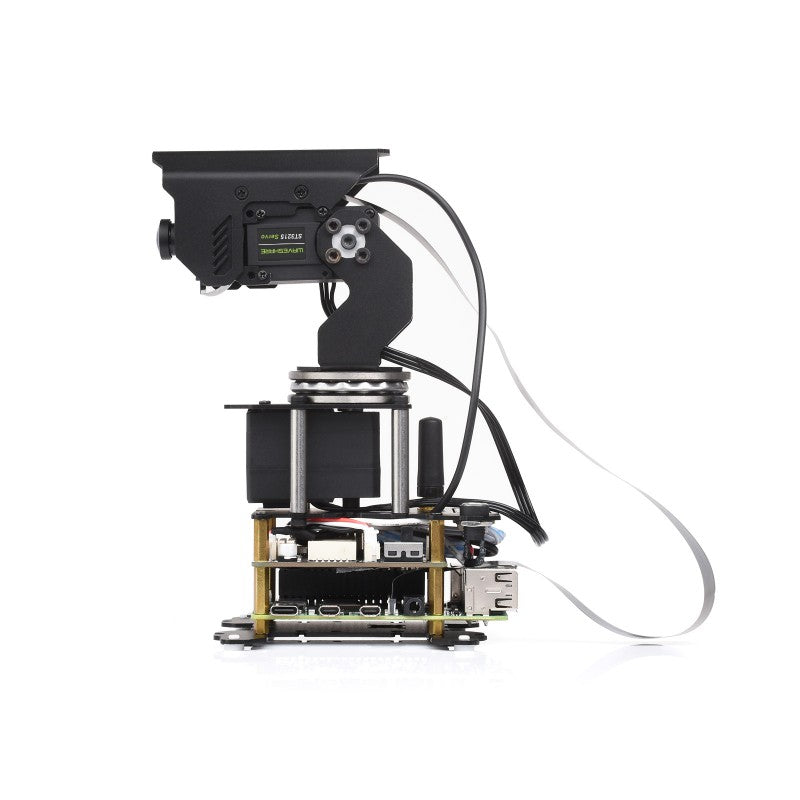

Omnidirectional High-Torque 2-Axis Expandable Pan-Tilt Camera Kit
360° Omnidirectional High-Torque
This Is A High-Torque 2-DOF Expandable Pan-Tilt Camera Module, Adopts Serial Bus Servos For Joints Driven. The Horizontal PAN Axis Rotation Range Up To ±180° (360° In Total), The Vertical TILT Axis Rotation Range Up To -45° ~ 90°. Based On The General Driver Board For Robots, Open Source Control Demos For Web APP To Achieve Photo Taking, Video Recording, Face Detection, Motion Detection, Etc. Supports Flexible Expansion And Secondary Development.
Specifications
DOF
2
DRIVE METHOD
TTL Serial bus servo
SERVO ROTATION SPEED
40rpm
JOINT ANGLE SENSOR
12-bit 360° magnetic encoder
SERVO TORQUE
30kg.cm at12V
JOINT FEEDBACK INFORMATION
servo status, joint angle, rotation speed, joint load, servo voltage, servo current, servo temperature and servo working mode
MAIN CONTROL
ESP32-D0WD-V3
WIRED CONTROL MODE
USB, UART
HOST SUPPORT
Raspberry Pi 4B, Raspberry Pi 5
LED POWER
<1.5W
WEIGHT
441g
DEMO
Real-time video transmission, resolution configuration, zoom, face detection (OpenCV), motion detection (OpenCV), photo taking, video recording, video review, detection condition setting, detection action setting, LED control, pan-tilt control, and serial bus servo setting
Easy To Control Via
Cross-Platform Web Application Allows Connecting And Controlling The Pan-Tilt Module Via Mobile Phones, Tablets And Computers By Clicking The Buttons On The Web App. Supports Secondary Development Of This Open-Source Web App To Customize The User Interface And Add New Functions.
Flexible 360° Omnidirectional Rotation
The Horizontal Rotation Range Up To 360°, The Vertical Rotation Range Up To 135°
Supports Raspberry Pi 4B / 5
Highly Compatible With Raspberry Pi, Can Be Easily Integrated Into Your Project. * for reference only, the Raspberry Pi is NOT included.
Open-Source All Demos
For A Variety Of Practical Functions
Face Detection
Motion Detection
Pan-tilt Control
Video Review
LED Fill Light
Ensures Clear Images In Low-Light Conditions
Small Size × High-Torque
30kg.Cm Ultimate Joint Torque To Meet Various Working Requirements
* for reference only, please refer to the Package Content for detailed part list
Joint Direct-Drive Design With
Adopts Joint Direct-Drive Design With High-Precision Serial Bus Servos, Built In 360° 12-Bit Magnetic Encoder, Supports Obtaining Feedback Information Such As Joint Angle And Joint Load To Realize Closed-Loop Control

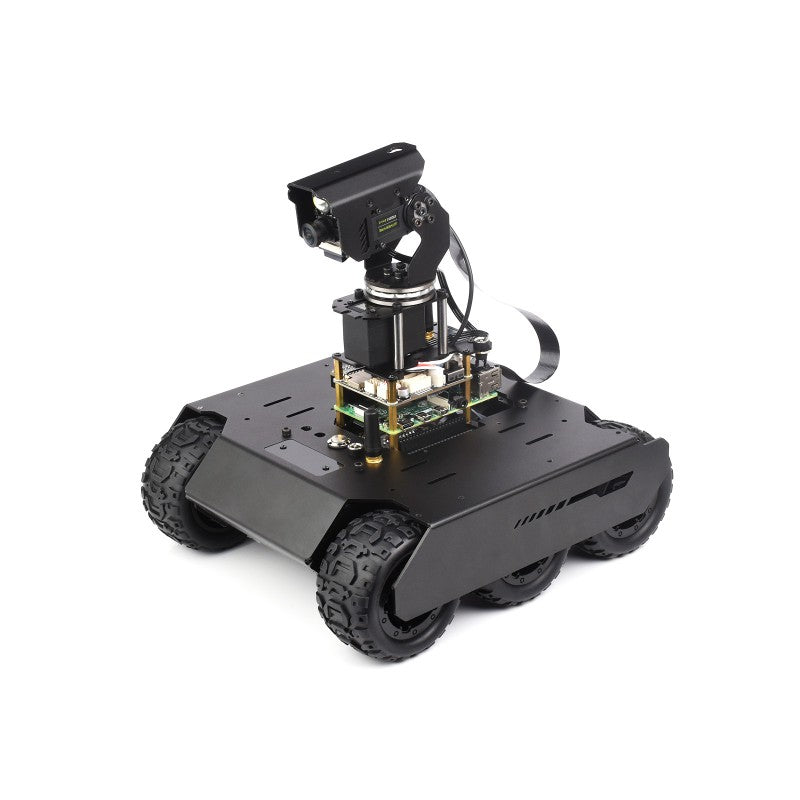

Supports Flexible Expansion And Secondary Development
Comes With A Free Picatinny Rail And 1/4 Screw, Open Source For Models And Drawings.
More Convenient For Users To Integrate This Pan-Tilt Camera Module Into Other Projects
* for reference only, please refer to the Package Content for detailed part list
Outline Dimensions
Resources
Package Contents: Weight: 0.888 kg
Bearing retainer x1
Servo mounting plate (2PCS) x1
Pan-Tilt metal kit (3PCS) x1
Chassis mounting plate (2PCS) x1
LED fill light with PH2.0 male plug x1
RPi Camera (G) (with cable) x1
ST3215 Servo (with cable and screws) x2
3PIN servo connection cable ~300mm x2
FFC 15PIN cable ~600mm x1
Thrust ball plain bearing x1
2.4G antenna x1
DC5521 to XH2.54 male cable ~15cm x1
PH2.0 dual-plug 4PIN cable ~20cm x1
IPEX 1 to SMA adapter cable ~17cm x1
0.91inch OLED x1
General Driver for Robots x1
5.3cm clear suction pad x5
OPTIONS 12V 5A Power supply x1
Screwdriver x1
Jetson Nano Adapter (A) x1
2*5PIN cable ~9cm x1
USB Type-A male to Type-C male cable ~1m x1
Mini cross wrench sleeve x1
Picatinny rail (with spanner) x1
Spanner x1
FFC 15PIN black cable ~400mm x1
Pi5-Camera-Cable-500mm x1
Silicone nonskid feet x8
Screws pack x1
