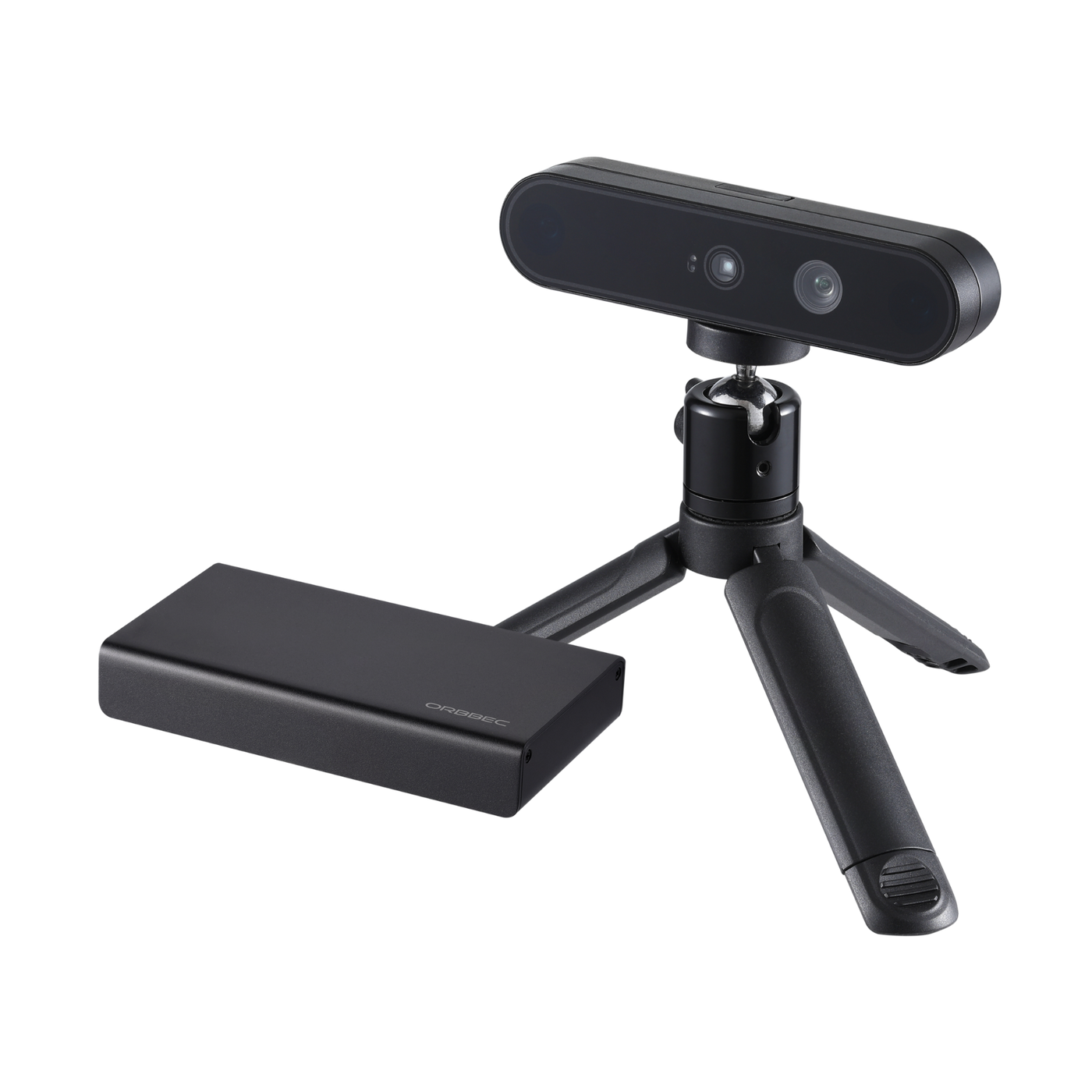

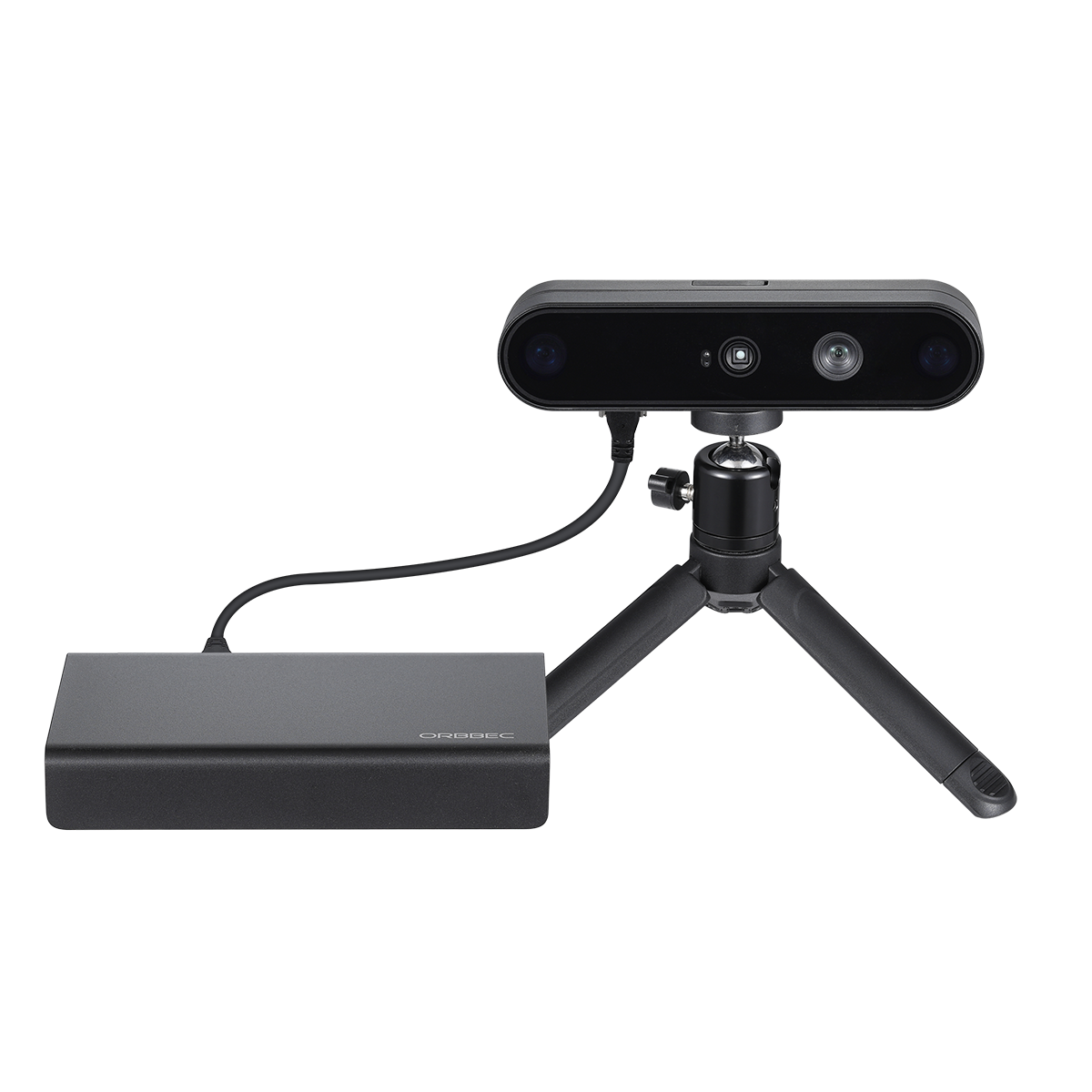

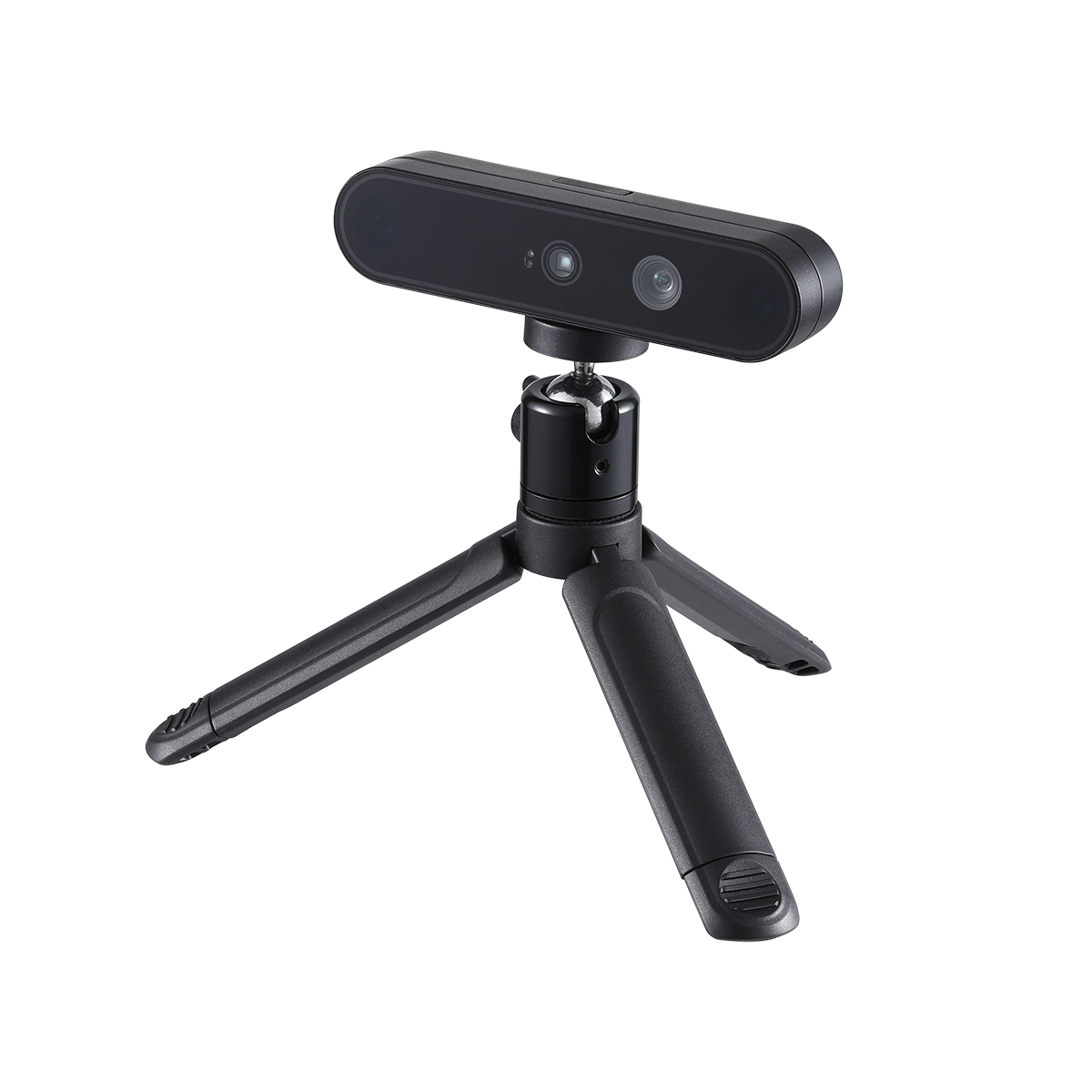

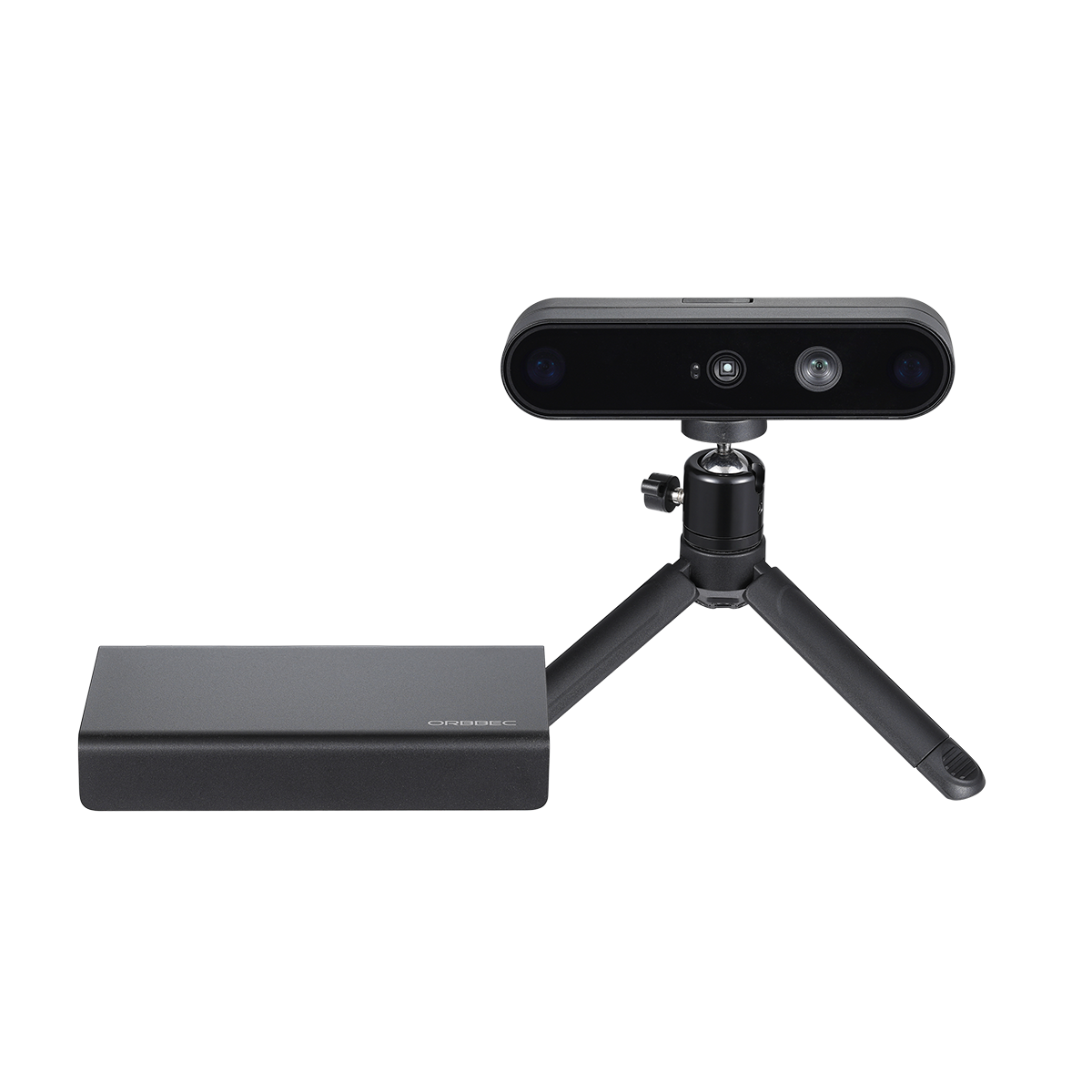

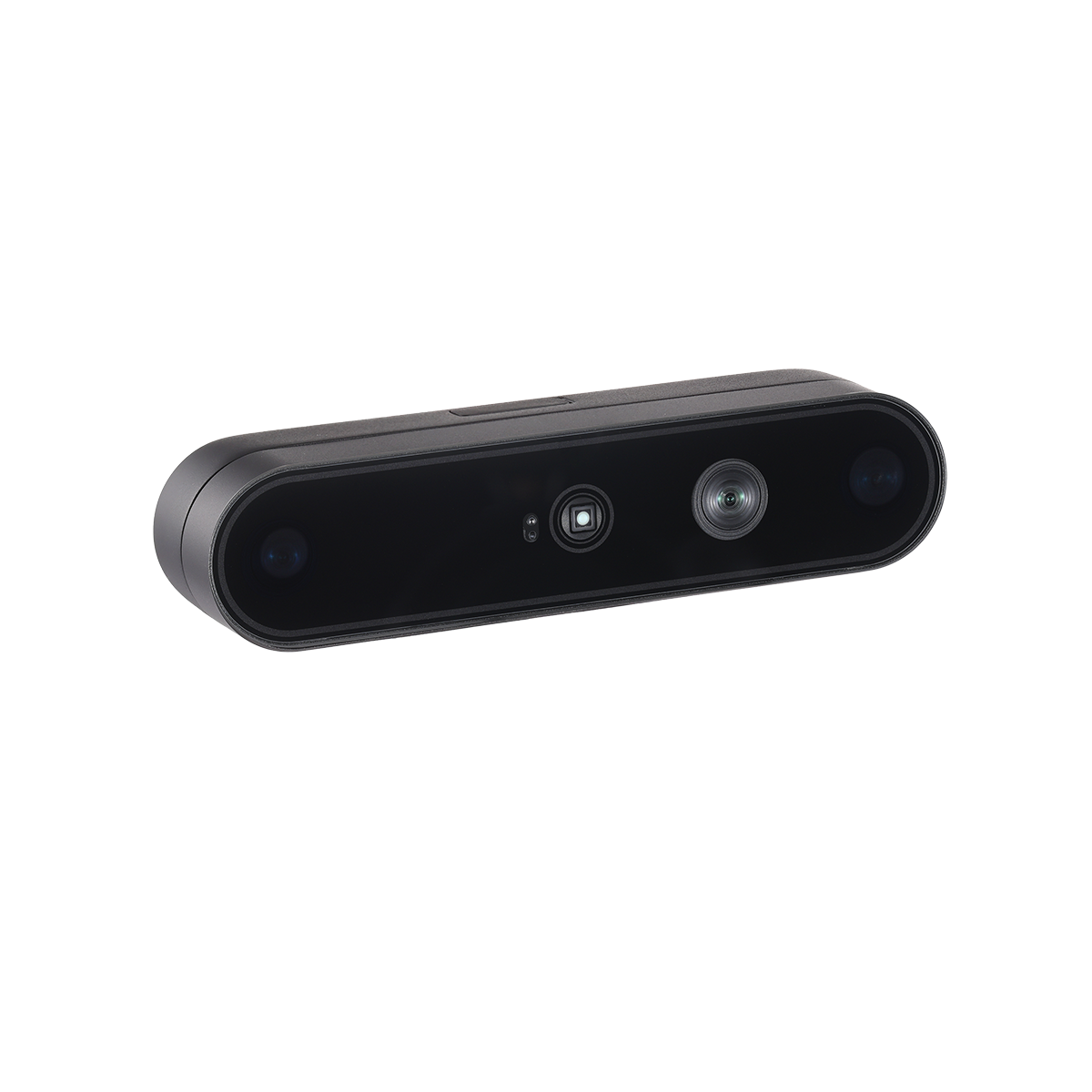

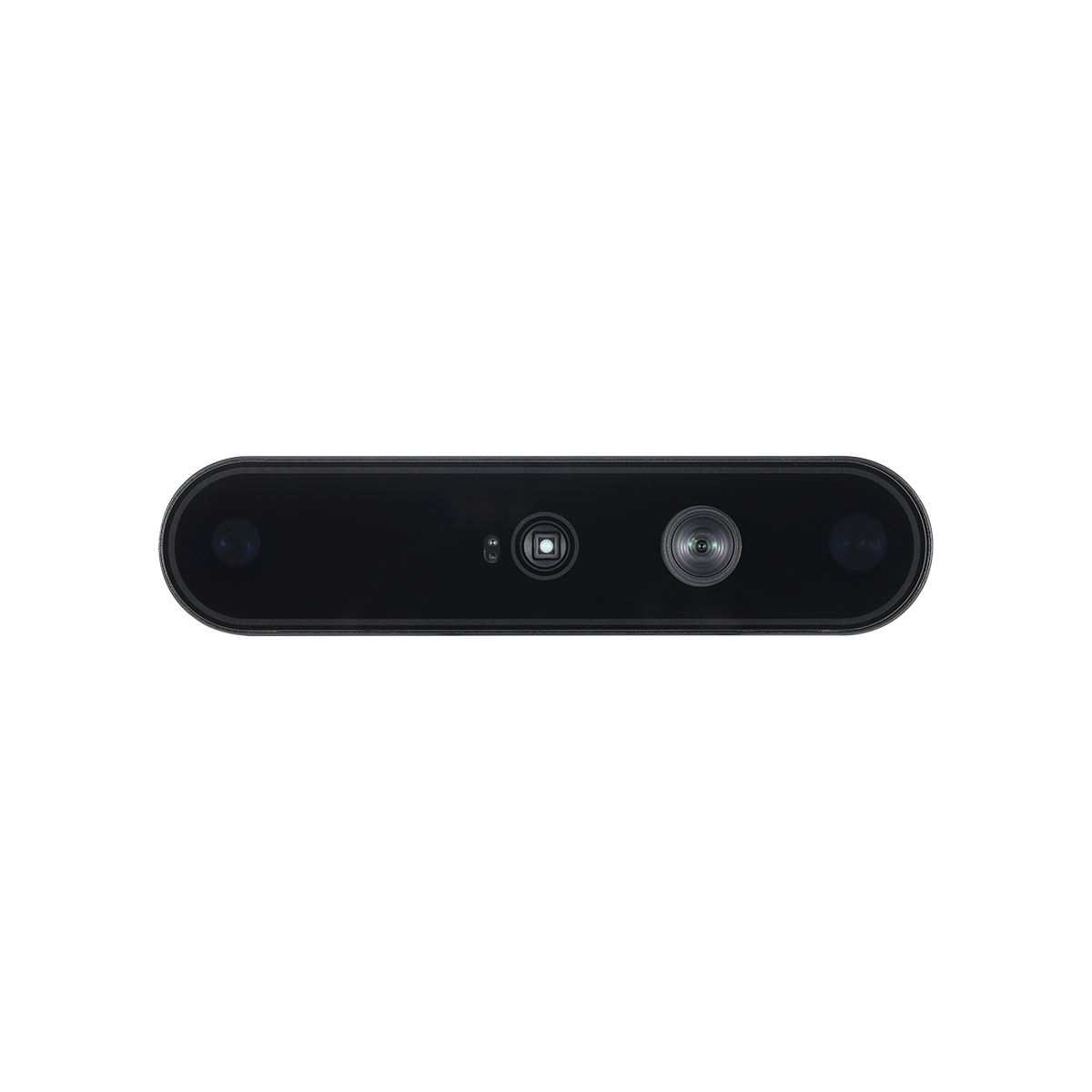

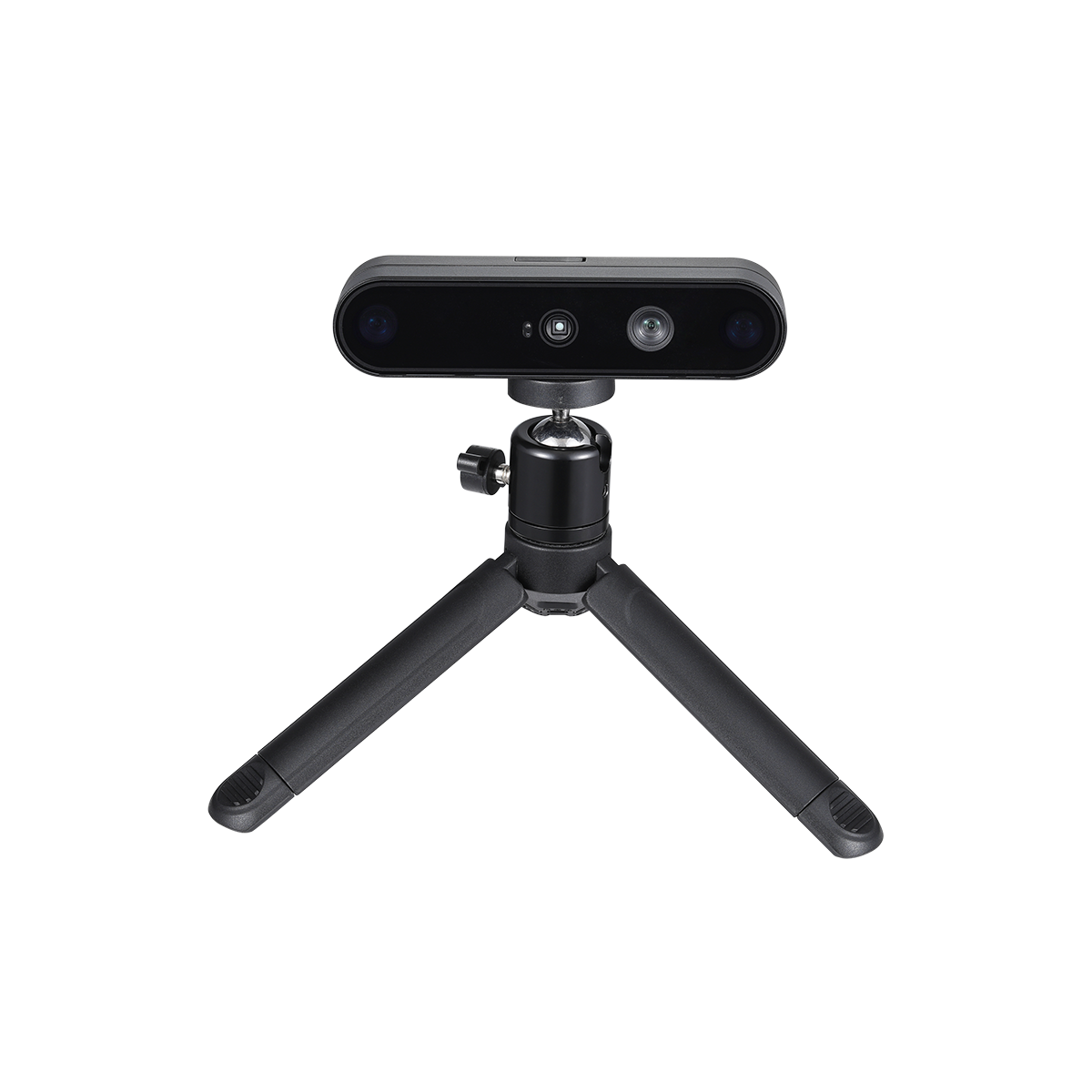

The Orbbec Gemini 2 XL marks Orbbecās debut in long-range 3D cameras suitable for outdoor use. The camera is designed with a depth Field of View (FoV) of up to 101Ā° diagonally, and advanced depth processing for conquering complex and demanding application scenarios.
Gemini 2 XL is easy to set up and operate with the Orbbec SDK, and the camera delivers extremely accurate and reliable data in various lighting conditions from pitch black to outdoor.
| Parameter | Specifications |
|---|---|
| Model |
G30056-86 (PoE) |
| VID/PID | 0x2BC5/0x0671 |
| Technology | Infrared Enhanced Stereo |
| Shutter Type | IR: Global Shutter; Color: Global Shutter |
| Wavelength | 850nm |
| Baseline | 100mm |
| IMU | 6 DoF; Frequency range: 50-2,000Hz. Data format: float |
| Mirror Mode | Supported, non-mirror by default |

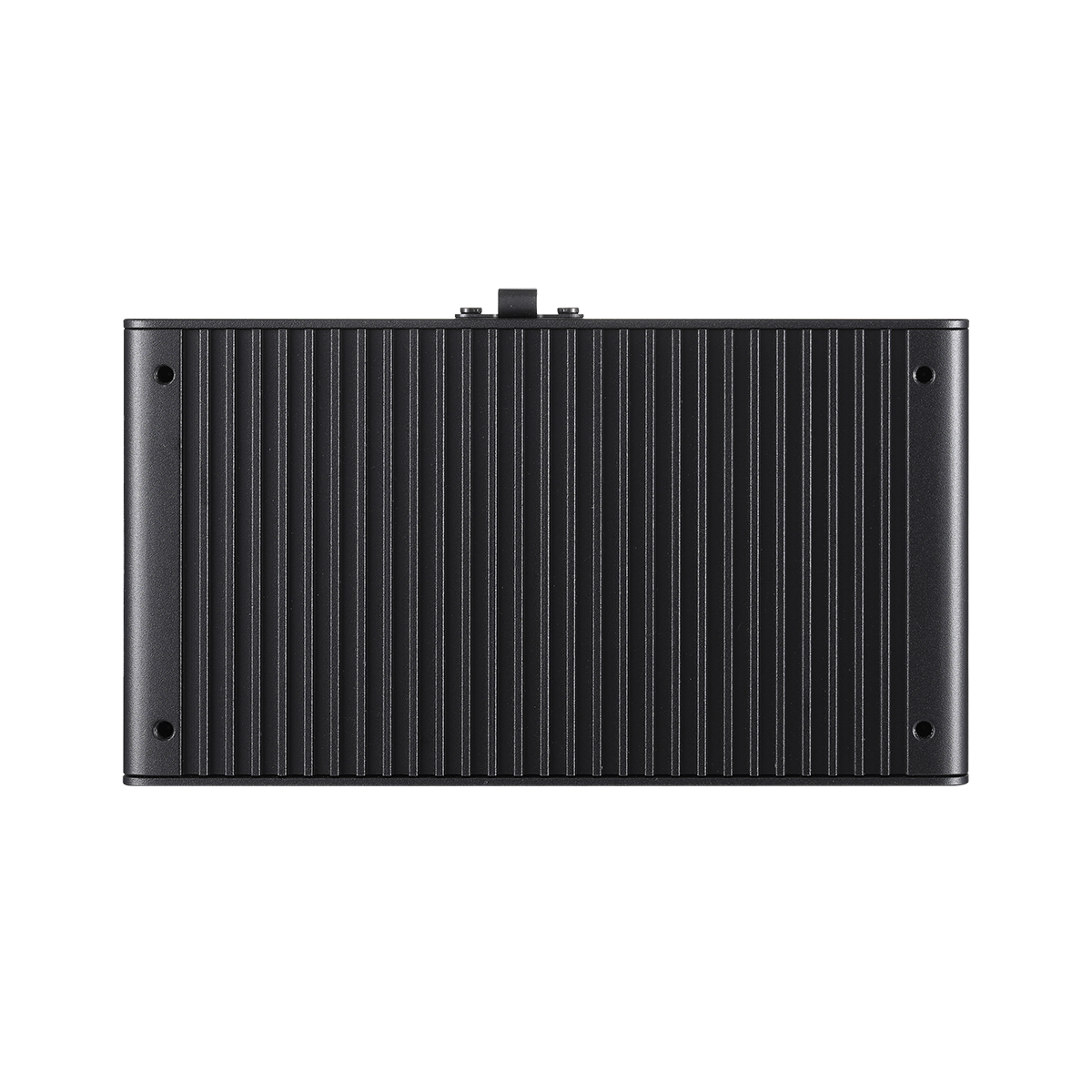

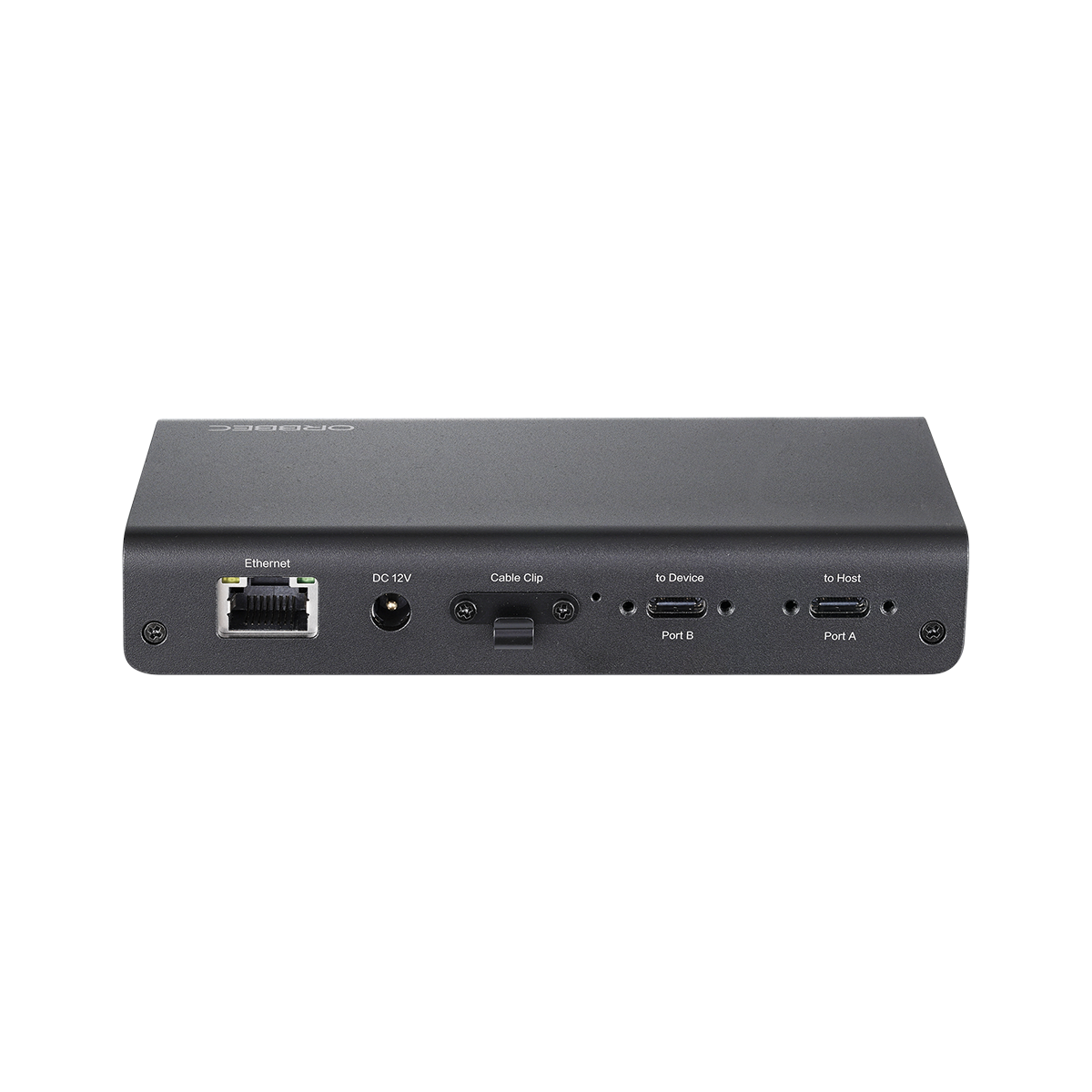

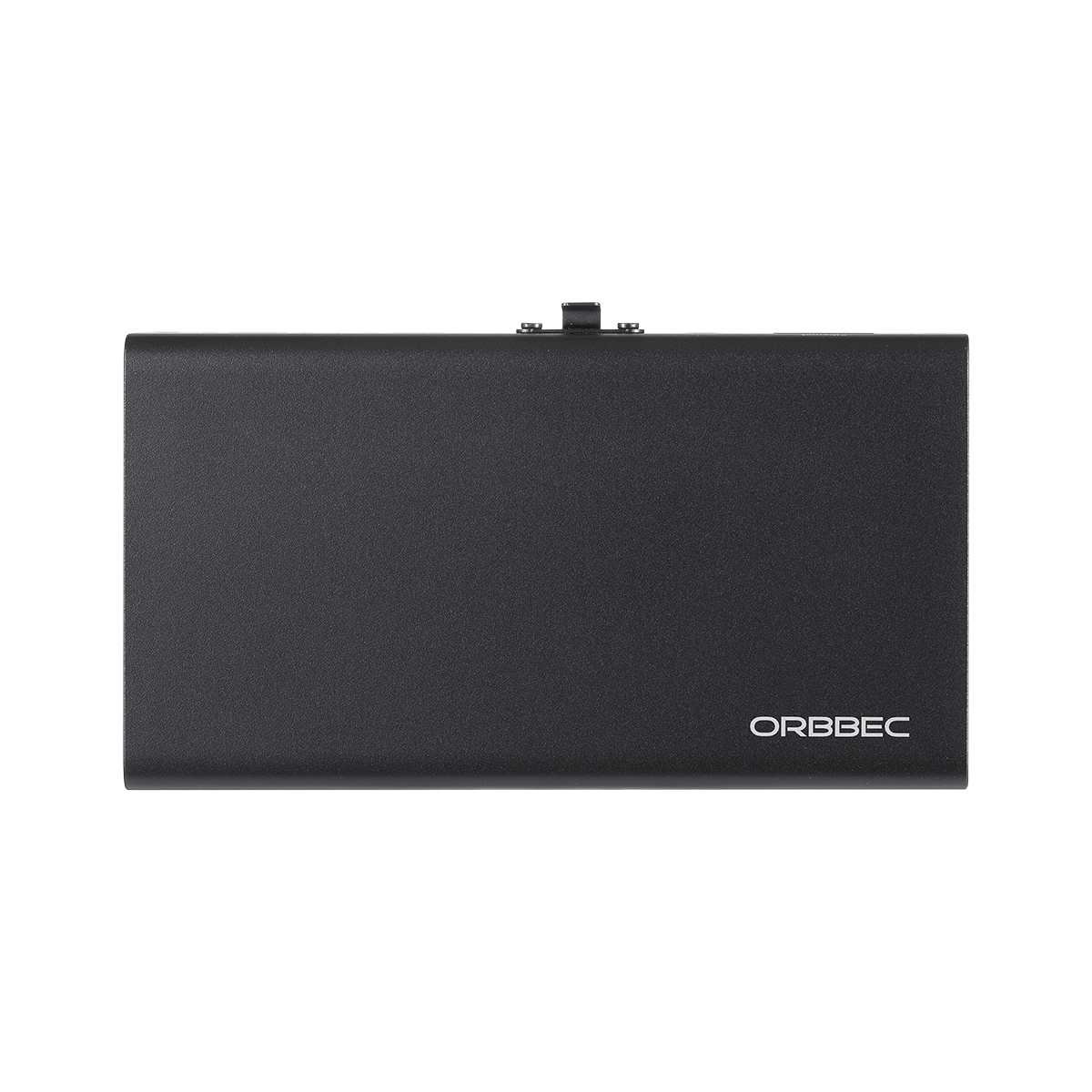

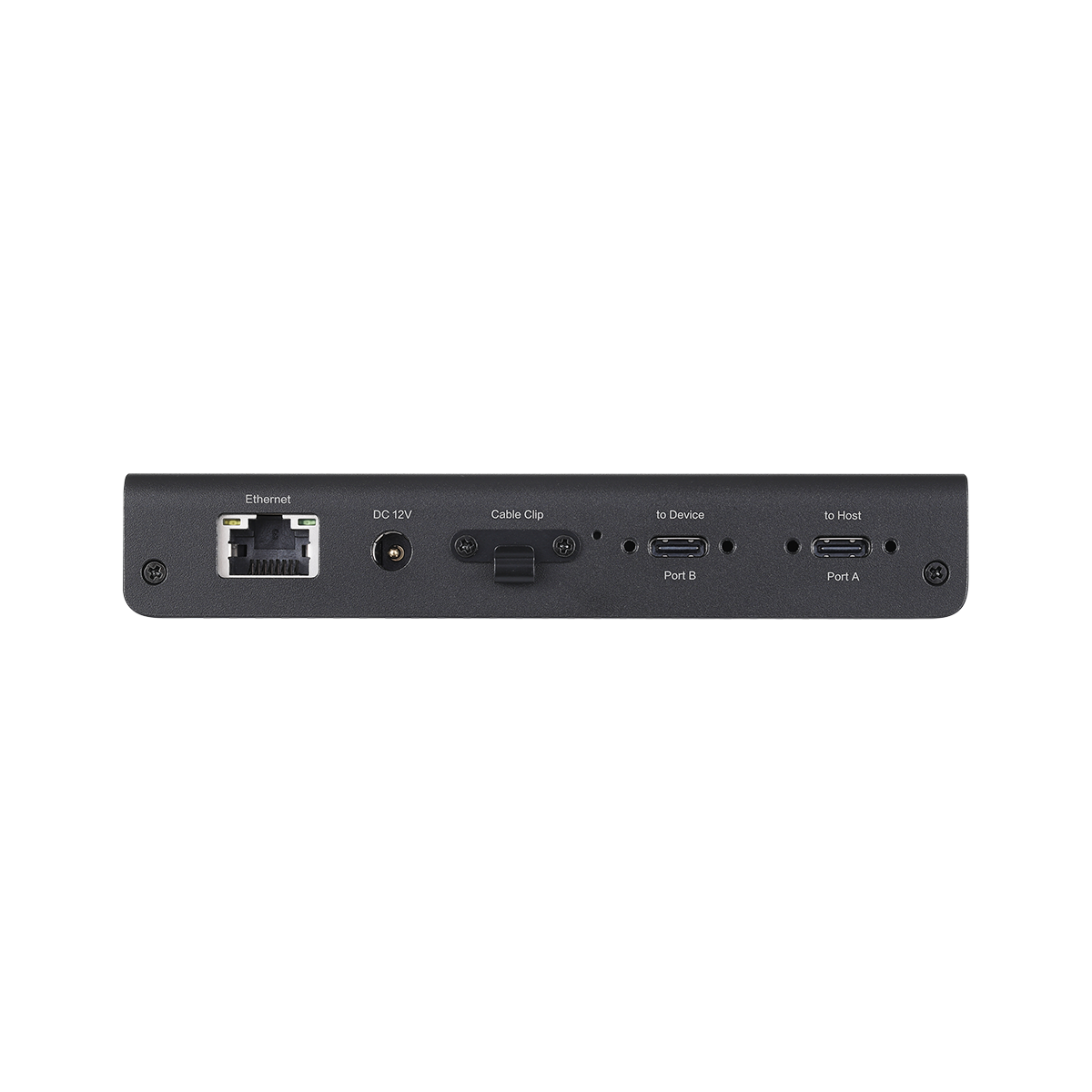

| Processing | OBox Computing Module |
| Data Connection | USB 2.0 USB Type-C/Gigabit Ethernet |
| Operating Modes | Unbinned Dense Default: High accuracy and High-density depth data. Unbinned Sparse Default: Balanced depth accuracy and power consumption. Binned Sparse Default: Low power mode, supports 20fps. |
| Power Input | DC: 12V/2A PoE+: 802.3at (30W Max) |
| Power Consumption | DC: Average < 6W (Peak 12W) PoE: Average < 7W (Peak 14W) |
| Operating Environment | 0Ā°C - 40Ā°C, < 90%RH (non-condensing), Indoor/Outdoor |
| Supported Functions | D2C, Multi-Camera Sync |
| Dimensions (W*H*D) | Camera: 124mm x 29mm x 26mm OBox: 130mm x 22.5mm x 71mm |
| Weight | Camera: 152g OBox: 279g |
| Certifications | Class 1, RoHS, FCC, CE, Reach |
| Installation | Camera: 1 x Ā¼-20UNC, 2 x M4 OBox: 4 x M3 |
| Ā Mode | Resolution | FoV | FPS | Range | Format |
| Unbinned Dense Default | 1280 x 800 | H 91Ā° V 66Ā° |
5, 10 | 0.4m - 20m Optimal Range: 0.40m ā 10m |
Y16/RVL |
| 640 x 400 | |||||
| Unbinned Sparse Default | 1280 x 800 | ||||
| 640 x 400 | |||||
| Binned Sparse Default | 640 x 400 | 5, 10, 15, 20 | Optimal Range: 0.4m ā 5.0m | ||
| RGB* | 1280 x 800 | H 94Ā° V 68Ā° |
5, 10, 15, 20 | RGB888/ MJPEG | |
| 1280 x 720 | |||||
| 800 x 600 | |||||
| 640 x 400 | RGB888/ YUYV/MPEG | ||||
| 640 x 360 |
