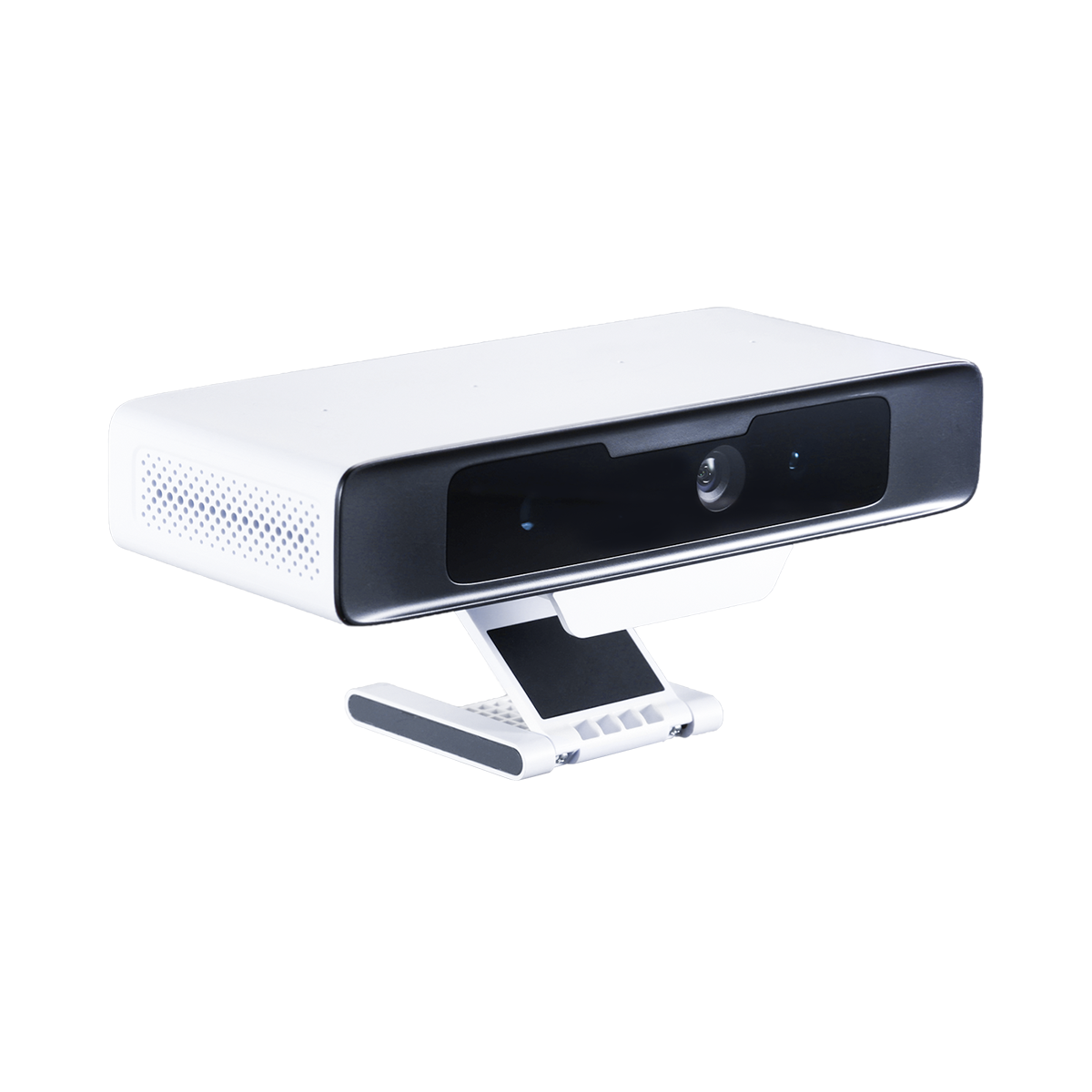

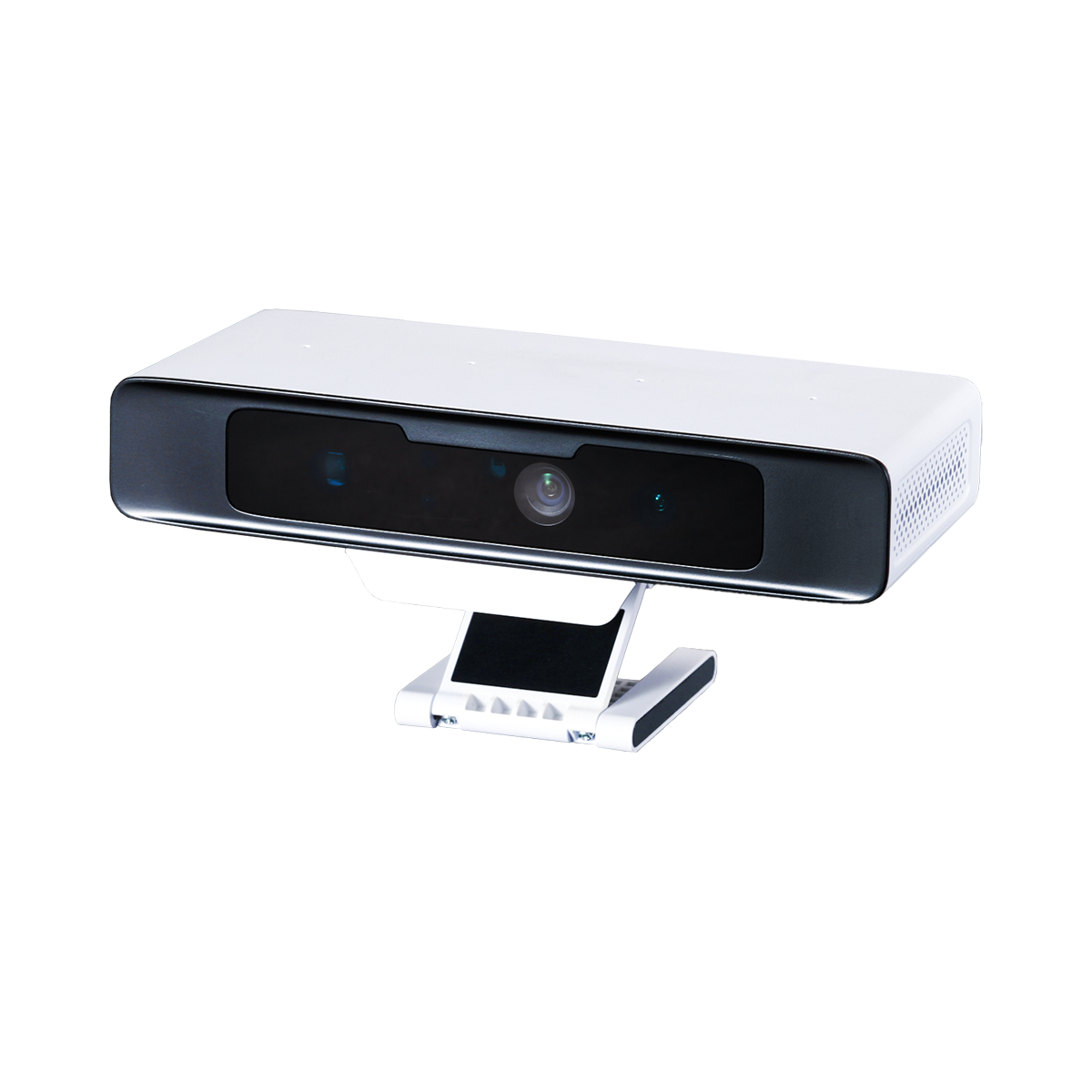

Persee 2 is based on active stereo technology and uses Orbbec’s custom ASIC for high quality depth processing. In addition to a high-performance camera with built-in depth processing, it also has an embedded Amlogic A311D processor with high performance GPU and NPU to run user applications. Android/Linux support and a choice of multiple port selections including ethernet, USB, HDMI, headphone jack and MicroSD, makes Persee 2 the ideal all-in-one solution for low-cost and compact design.
Persee 2 is easy to set up with Orbbec SDK running on the embedded board, and delivers highly accurate and reliable data for indoor operation.
| Product Name |
Persee 2 |
|---|---|
| Range |
*0.2m – 10m |
| Processor |
Amlogic A311D Quad Core A73+ Dual Core A53 with NPU Orbbec ASIC for Depth Processing |
| Depth FOV |
H91° V66° |
| RGB FOV |
H93° V68° |
| Depth Resolution/FPS |
Up to 1280X800@30fps |
| RGB Resolution/FPS |
Up to 1280X800@30fps |
| RAM/Storage |
4GB/32GB |
| Operating Environment |
0℃ -35℃; Indoor/Semi-Outdoor; 5%-95%RH |
| WiFi/BT |
802.11a/b/g/n/ac, Bluetooth 5.0 |
| Ports |

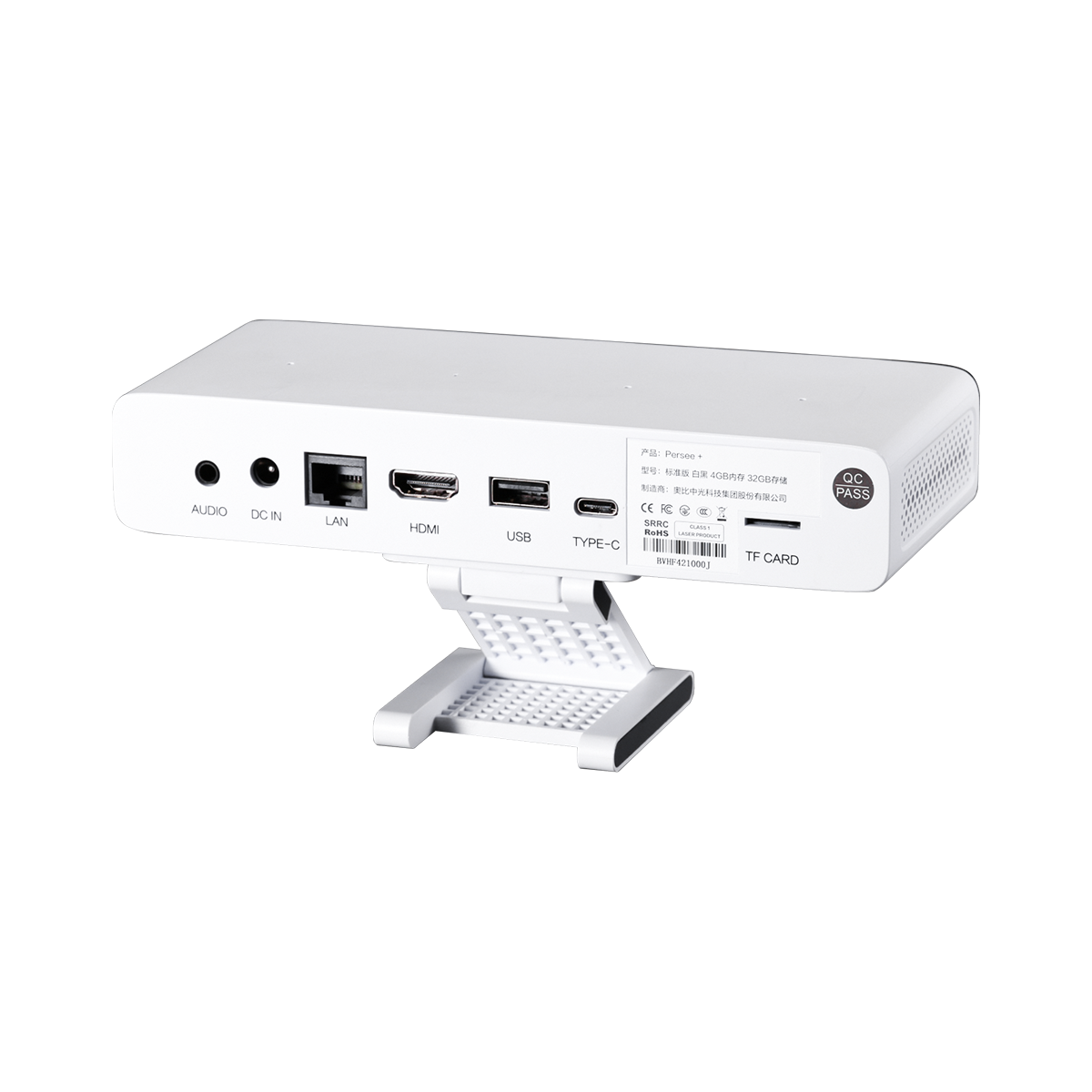

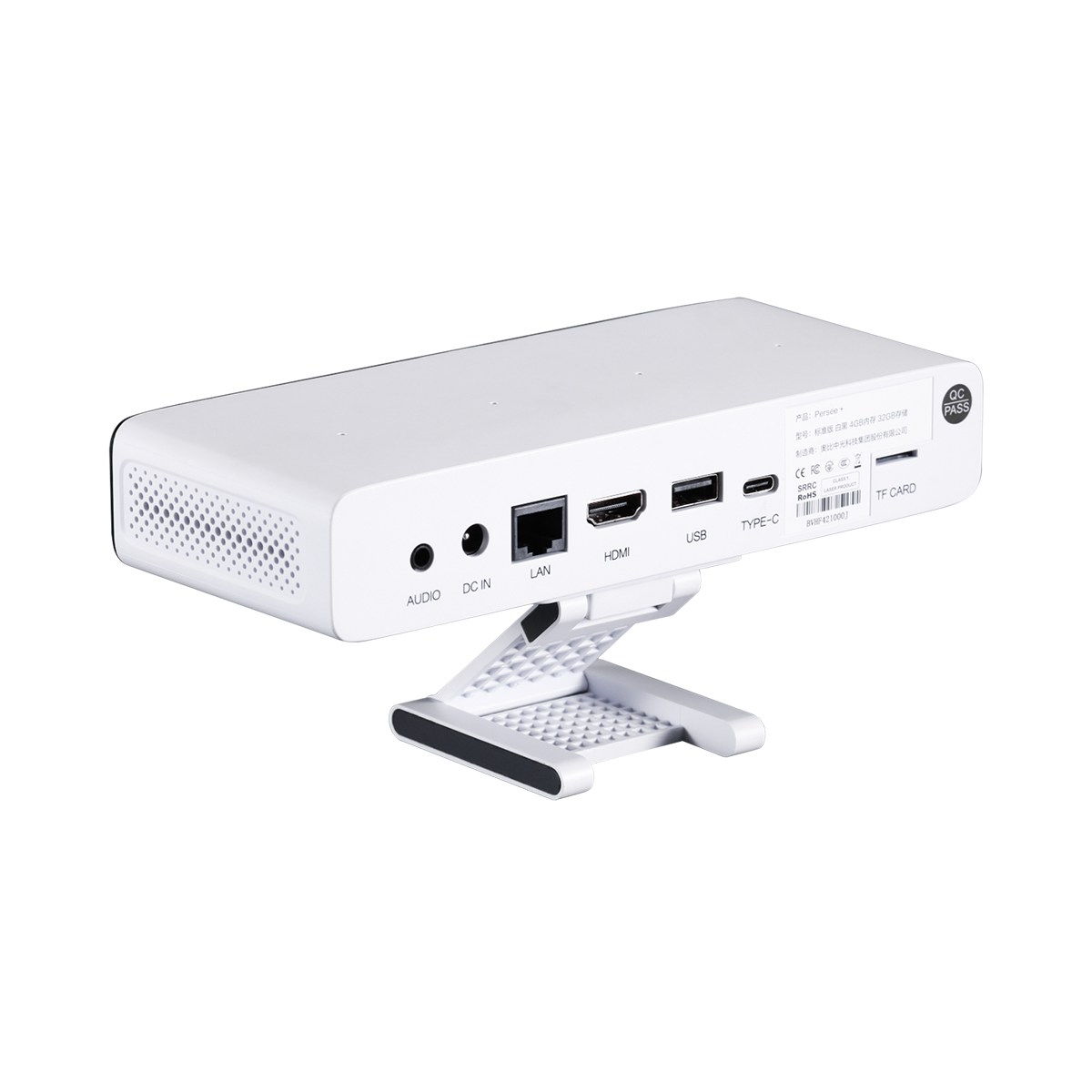

USB 2.0 Type-A, USB 2.0 Type-C (Debug and Firmware Update), Gigabit Ethernet, HDMI 2.0, 3.5mm Audio Output, MicroSD Expansion Slot |
| Power Input |
DC 12V/2A |
| Microphone |
4 Microphone Linear Microphone Array |
| SDK Support/OS |
Orbbec SDK; Built-In Android 9.0/Ubuntu 18.04 |
|
Dimensions (W*H*D) |
180mm x 45mm x 76.5mm |
| Weight |
352g |
| Installation |
Bottom: ¼-20UNC |
| Wavelength |
850nm |
