Advanced AI Computer For Smaller, Lower-Power Autonomous Machines

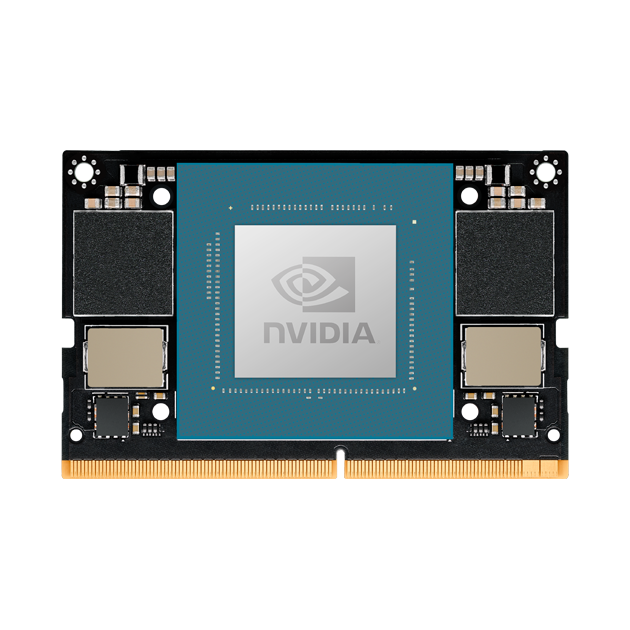

N-VIDIA® Jetson Orin™ Nano is available in 4GB and 8GB versions, up to 20 TOPS/40 TOPS and 40/80X the performance of the last generation for multiple concurrent AI inference pipelines. Also with high-speed interface support for multiple sensors, it is an ideal solution for a new age of robotics.
Product Features
The 8GB version of the Jetson Orin Nano series delivers up to 40 TOPS of AI performance in a compact and small form factor, with power options between 7W and 15W, up to 80X the performance of N-VIDIA Jetson Nano, setting a new standard for entry-level edge AI.
40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, TF card slot, DC power jack
NETWORKING
1x GbE
1x GbE Connector
1x GbE
1x GbE Connector
DIMENSIONS
69.6 mm x 45 mm 260-pin SO-DIMM connector
103 × 90.5 × 34mm
69.6 mm x 45 mm 260-pin SO-DIMM connector
103 × 90.5 × 34mm
100 mm x 79 mmx 21 mm
* USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. ** Virtual Channels for Jetson Orin Nano are subject to change Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
Professional Application Software And Models
N-VIDIA Software All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.
Pretrained Models Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.
N-VIDIA Platforms For Robotics, AI Speech, And Smart Cities
N-VIDIA Software Platforms Including Isaac For Robotics, Riva For AI Speech, And Metropolis For Video Analytics, Are Available To Speed Vertical-Specific Applications
N-VIDIA Isaac Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.
N-VIDIA Riva N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.
N-VIDIA Metropolis N-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.
