Best seller

Waveshare

PCIe to 2-Channel 2.5G Ethernet HAT for Raspberry Pi 5

SKU: WVSH0623

ā‚¹ 3,549.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
PCIe to 2-Channel 2.5G Ethernet HAT for Raspberry Pi 5ā‚¹ 3,549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

PCIe TO 2-CH 2.5G ETH adapter for Raspberry Pi 5, supports Raspberry Pi OS / Ubuntu / OpenWrt, equipped with dual RTL8125 high-performance chips

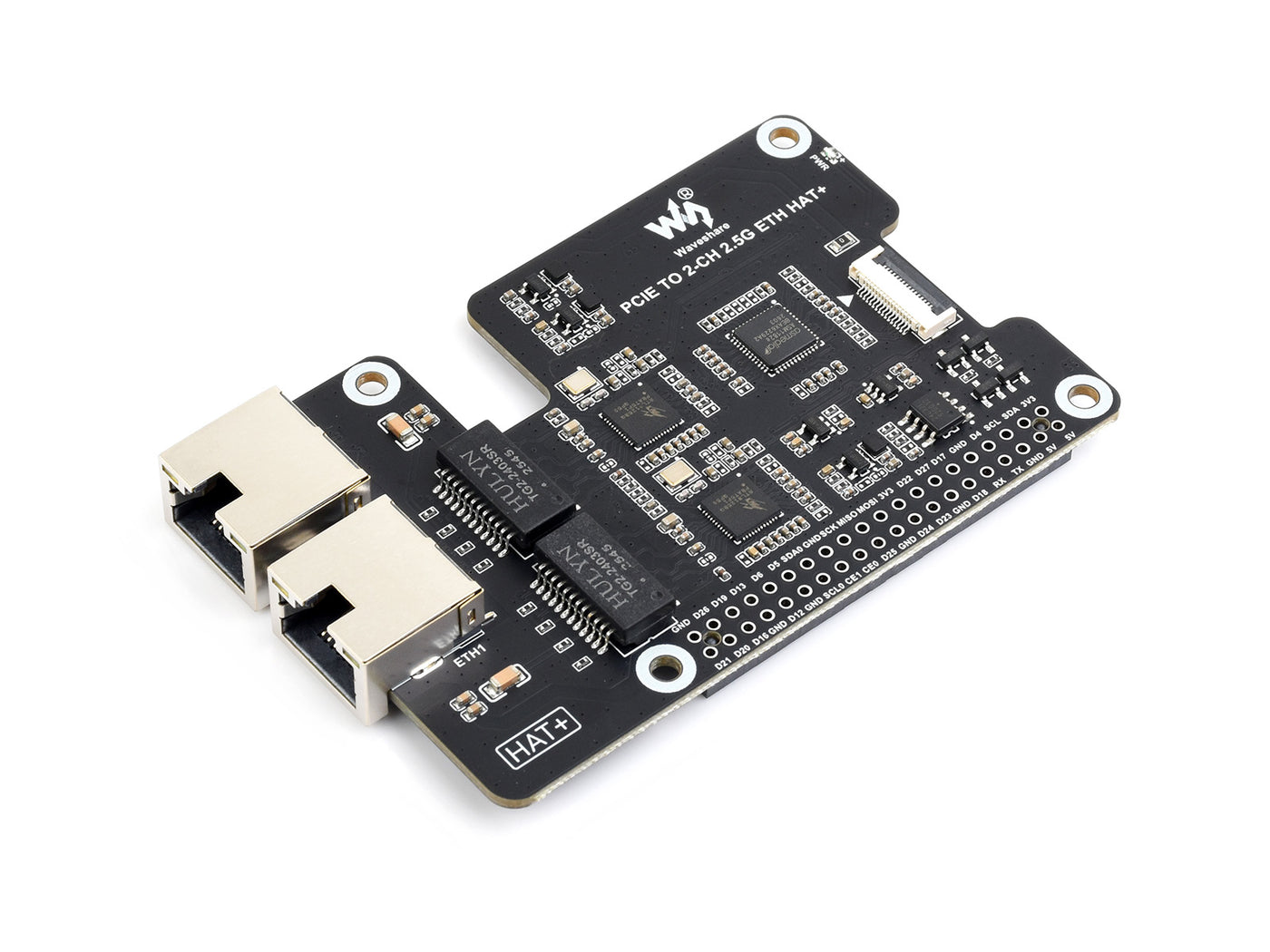

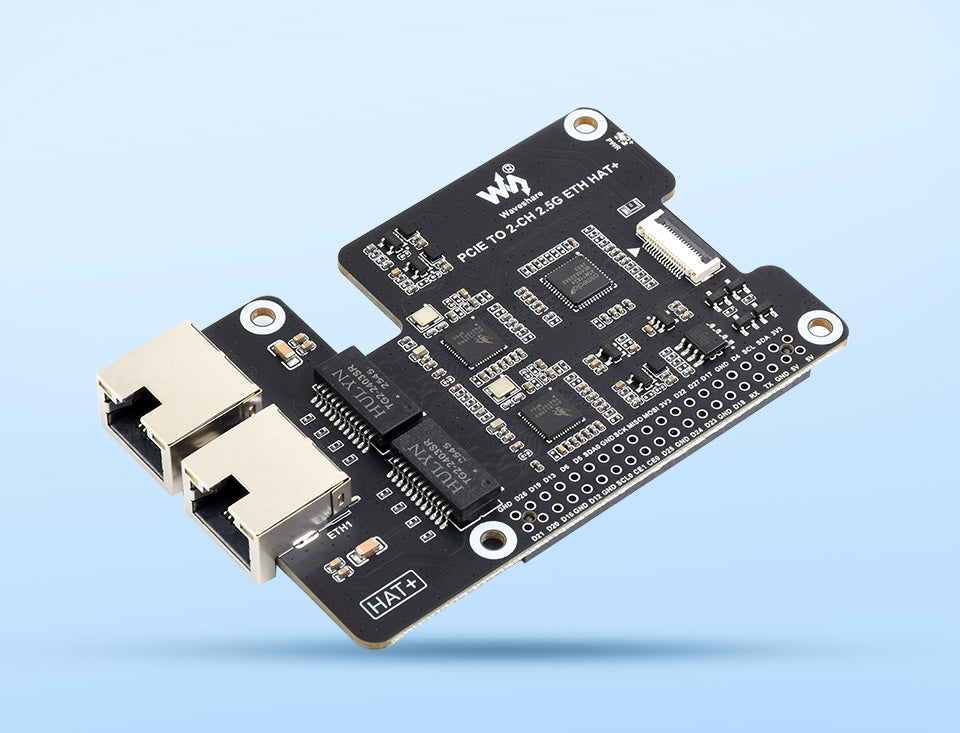

PCIE TO 2-CH 2.5G ETH adapter

Designed for Raspberry Pi 5, driver-free, plug and play

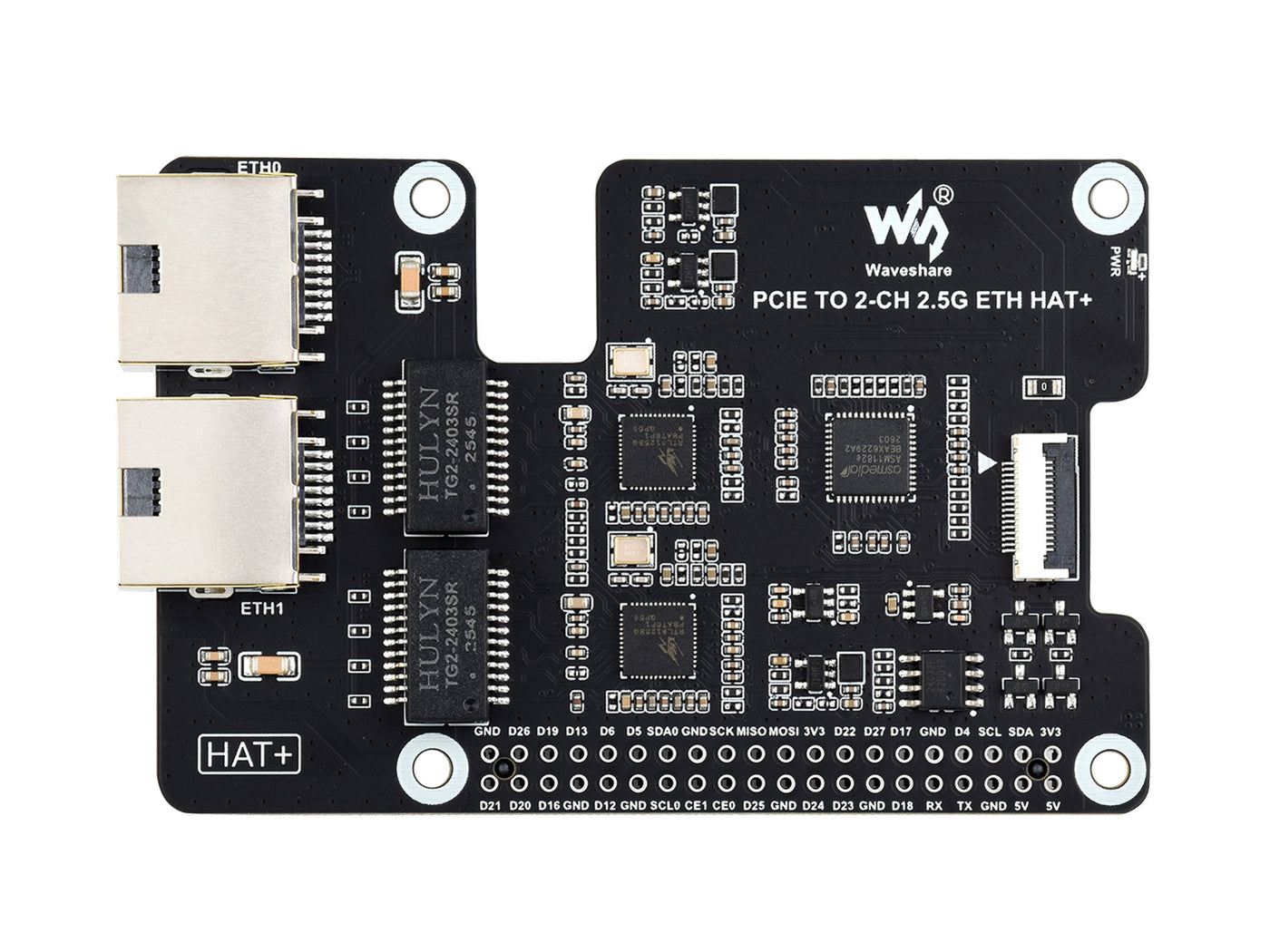

PCIE TO 2-CH 2.5G ETH adapter, front view
Specifications
CONTROLLER RTL8125
Ethernet Port RJ45 2.5G ETH Ɨ 2
PCIe Interface PCIe x1 Gen2
Power supply 5V
Network standard 10 / 100 / 1000 / 2500Mbps
Indicator status green indicator: keeps blinking when communication
yellow indicator: lights up when connected

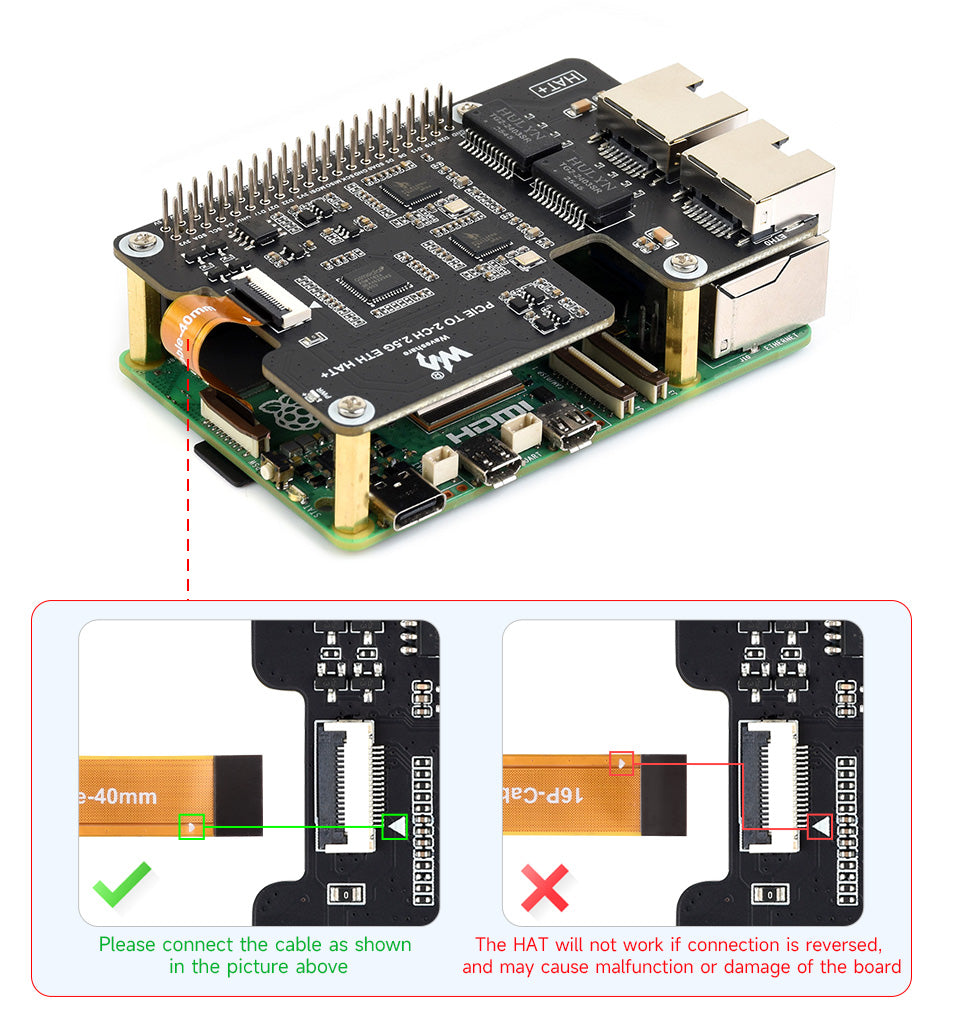

Connecting to Pi 5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

PCIE TO 2-CH 2.5G ETH adapter, Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

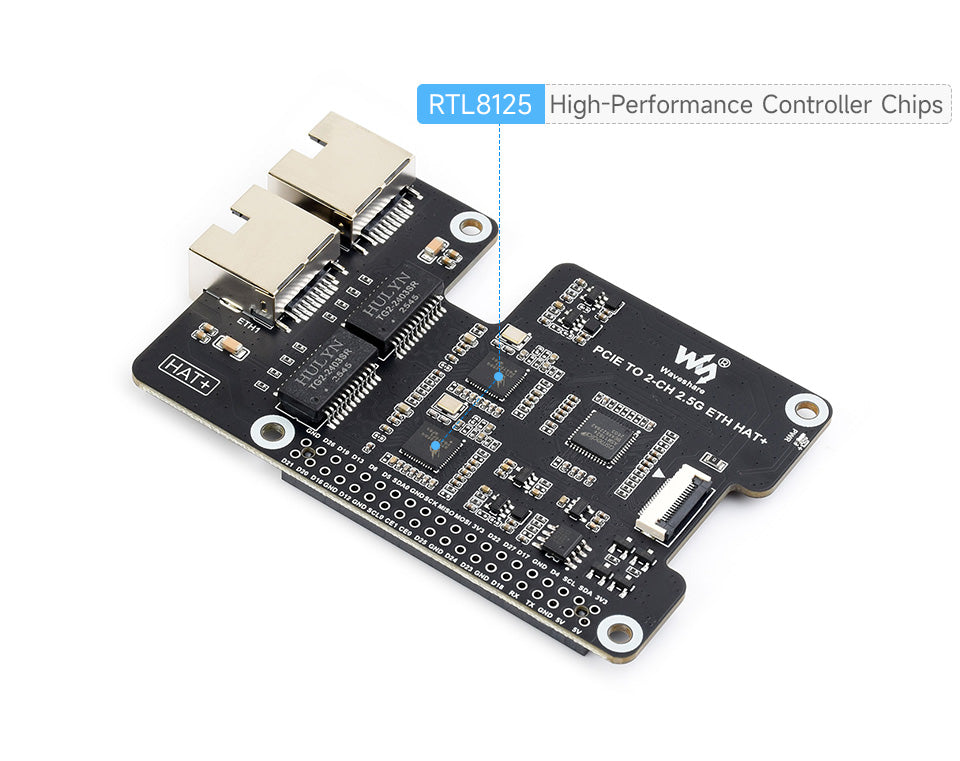

High-performance controller

Onboard high-performance dual RTL8125 chips, supports Raspberry Pi OS,
Driver-free, Plug and Play

PCIE TO 2-CH 2.5G ETH adapter, High-performance controller

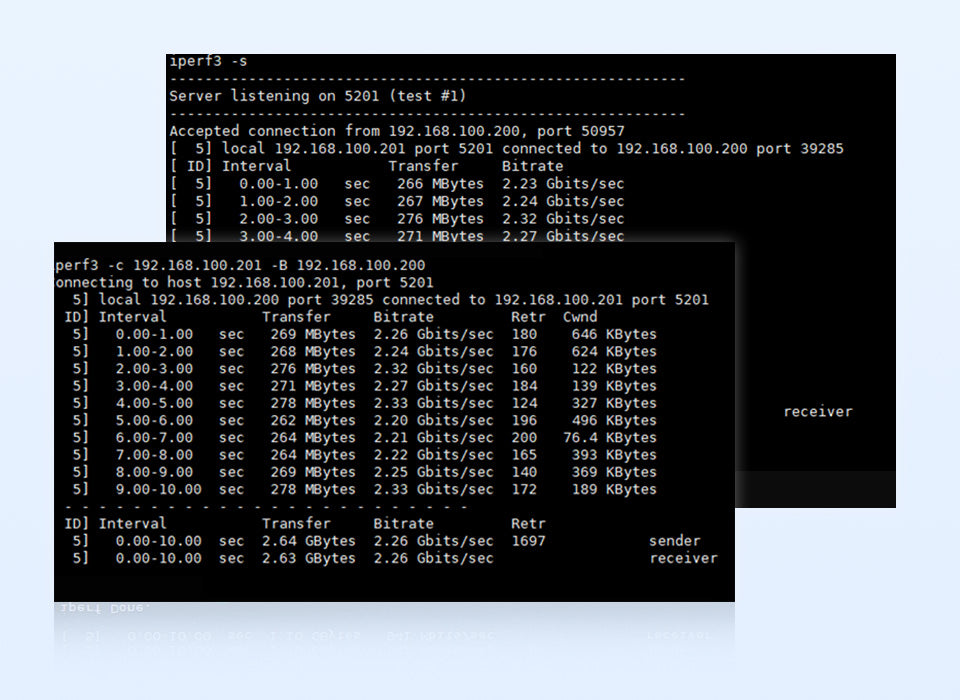

Network Speed Measurement

Supports Raspberry Pi OS / Ubuntu / OpenWrt, stable and reliable network speed

PCIE TO 2-CH 2.5G ETH adapter, Network Speed Measurement

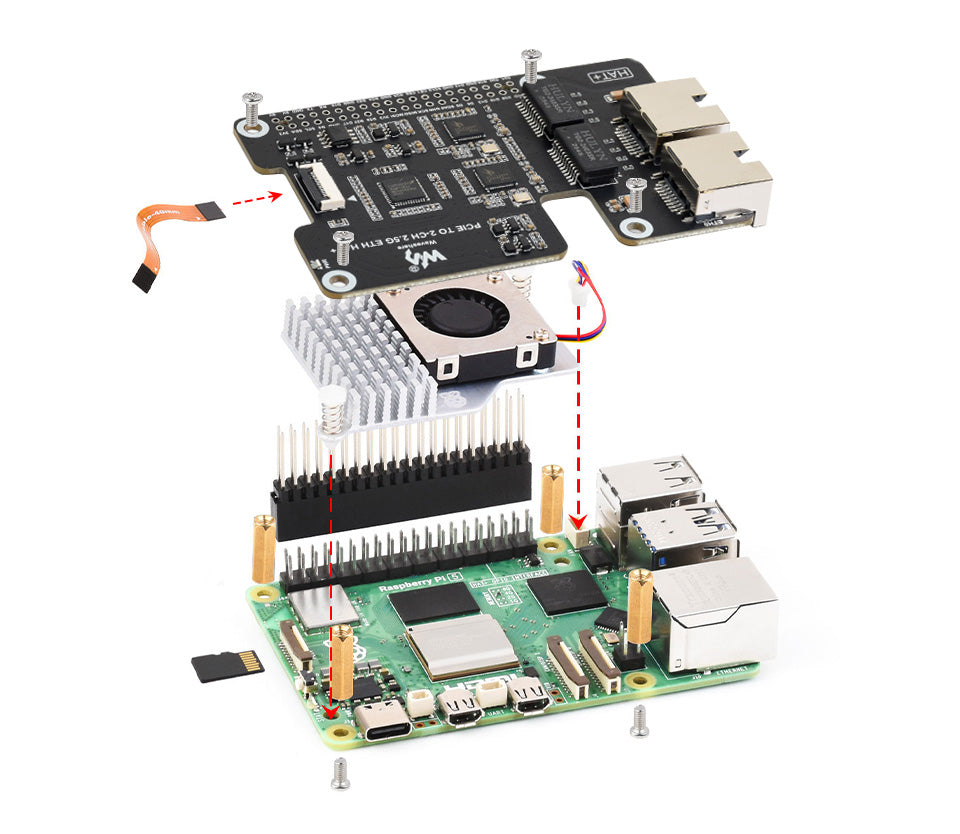

How to install
PCIE TO 2-CH 2.5G ETH adapter, How to install

PCIe TO MiniPCIe HAT+, Hat+ standard

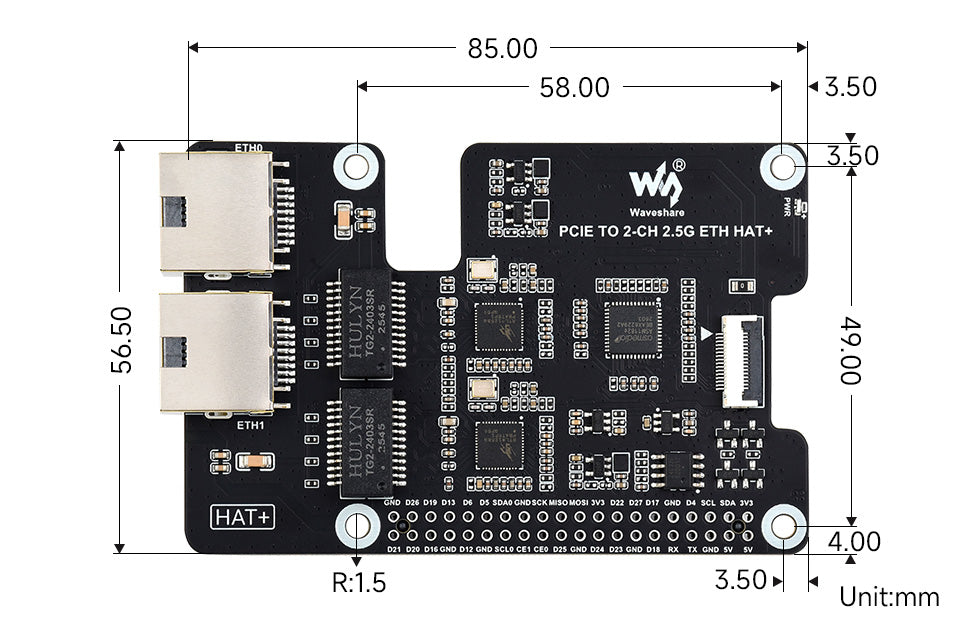

Outline dimensions
PCIe adapter board selection
Product Model Extended Interface PCIe Version mounting solution Power monitoring features

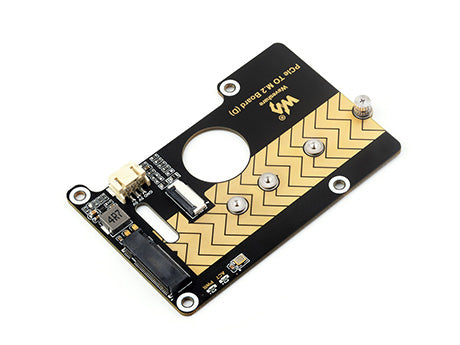

PCIe TO M.2 Board (D)		 M.2_M_KEY PCIe Ɨ1 Gen2/3 on top NVME, 2280

PCIe TO 2-CH M.2 HAT+ (B)		 M.2_M_KEY Ɨ 2 PCIe Ɨ1 Gen2 HAT+ āˆš 2-ch NVME, 2280

PCIe TO 2-CH M.2 HAT+		 M.2_M_KEY Ɨ 2 PCIe Ɨ1 Gen2 HAT+ āˆš 2-ch NVME, 2242

PCIE TO 2-CH 2.5G ETH HAT+ 		2.5G ETH Ɨ 2 PCIe Ɨ1 Gen2 HAT+ āˆš 2.5G ETH Ɨ 2

PCIe TO M.2 HAT+		 M.2_M_KEY PCIe Ɨ1 Gen2/3 HAT+ āˆš NVME, 2242

PCIe TO M.2 MINI		 M.2_M_KEY PCIe Ɨ1 Gen2/3 on top NVME, 2242, compact size

PCIe TO M.2 Board (C)		 M.2_M_KEY PCIe Ɨ1 Gen2/3 on side NVME, 2280, side-mounting

PCIe TO Gigabit ETH Board (C)		 Gigabit ETH PCIe Ɨ1 Gen2 on side Gigabit ETH port, side-mounting

PCIe TO 2.5G ETH Board (C) 		2.5G ETH PCIe Ɨ1 Gen2 on side 2.5G ETH port, side-mounting

PCIe TO M.2 USB HAT+		 M.2_M_KEY, USB3.2 Ɨ 4 PCIe Ɨ1 Gen2 on top āˆš NVME, 2280, expanded USB3.2 ports

PCIe TO 4G/5G M.2 USB3.2 HAT+		 M.2_B_KEY, USB3.2 Ɨ 3 PCIe Ɨ1 Gen2 HAT+ āˆš supports 4G/5G modules, expanded USB3.2 ports

PCIe TO USB 3.2 Gen1 Board (C)		 USB3.2 Ɨ 4 PCIe Ɨ1 Gen2 on side expanded USB3.2 ports, side-mounting

PCIe TO USB 3.2 Gen1 HAT+		 USB3.2 Ɨ 4 PCIe Ɨ1 Gen2 HAT+ āˆš expanded USB3.2 ports

PCIe TO Gigabit ETH USB3.2 HAT+		 USB3.2 Ɨ 3, Gigabit ETH PCIe Ɨ1 Gen2 HAT+ āˆš expanded USB3.2 ports and Gigabit ETH port

PCIe TO MiniPCIe GbE USB3.2 HAT+		 USB3.2 Ɨ 2, MiniPCIe, Gigabit ETH PCIe Ɨ1 Gen2 HAT+ āˆš expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port

RM520N-GL 5G HAT+		 M.2_B_KEY PCIe Ɨ1 Gen2 HAT+ āˆš access to 5G networking via PCIe interface, multiple 5G modules compatible

PoE M.2 HAT+		 M.2_M_KEY PCIe Ɨ1 Gen2/3 HAT+ with PoE function, NVME, 2242

PoE M.2 HAT+ (B)		 M.2_M_KEY PCIe Ɨ1 Gen2/3 HAT+ with PoE function, NVME, 2280

PoE M.2 HAT+ (C)		 M.2_M_KEY PCIe Ɨ1 Gen2/3 HAT+

PoE M.2 E KEY HAT+		 M.2_E_KEY PCIe Ɨ1 Gen2/3 HAT+ with PoE function, Wi-Fi, Bluetooth, 2230

PCIe TO ETH M.2 HAT+		 M.2_M_KEY, Gigabit ETH PCIe Ɨ1 Gen2 HAT+ āˆš with Gigabit ETH port, NVME, 2280

PCIE TO M.2 E KEY HAT+		 M.2_E_KEY PCIe Ɨ1 Gen2/3 HAT+ Wi-Fi, Bluetooth, M.2_E_KEY, 2230

PCIE TO M.2 E KEY HAT+ (D)		 M.2_E_KEY PCIe Ɨ1 Gen2/3 on top

PCIe TO MiniPCIe HAT+		 MiniPCIe PCIe Ɨ1 Gen2 HAT+ Wi-Fi, Bluetooth, MiniPCIe

PCIe TO PCIe x1 Board (C)		 PCIe Ɨ1 PCIe Ɨ1 Gen2/3 on side Compatible with PCIe x1, x4, x8, and x16 devices

PCIe TO 2-CH PCIe HAT		 PCIe 16PIN x2 PCIe Ɨ1 Gen2 HAT Expands 2-Ch PCIe FFC connectors

PCIe TO 4-CH PCIe HAT		 PCIe 16PIN x4 PCIe Ɨ1 Gen2 HAT Expands 4-Ch PCIe FFC connectors

PCIE TO 4-CH NVME Board (B)		 M.2_M_KEY Ɨ 4 PCIe Ɨ1 Gen2 on bottom āˆš 4-ch NVME, 2280, onboard DC power jack

PCIe TO 2-CH SATA HAT+		 SATA Ɨ 2 PCIe Ɨ1 Gen2 on top 2-ch SATA interfaces
PCIE TO 4-CH Gigabit ETH Board (B)
PCIE TO 4-CH 2.5G ETH Board (B)		 2.5G ETH Ɨ 4 PCIe Ɨ1 Gen2 on bottom āˆš 4-ch ETH ports
PCIE TO 4-CH Gigabit ETH Board (B)
PCIE TO 4-CH Gigabit ETH Board (B)		 Gigabit ETH Ɨ 4 PCIe Ɨ1 Gen2 on bottom āˆš 4-ch ETH ports

Weight: 0.043 kg

Quick Overview

  1. PCIE TO 2-CH 2.5G ETH HAT+ x1
  2. 16P-Cable-40mm x1
  3. 2*20 Pin header (2.54mm pitch) x1
  4. Screws pack x1
1
216P-Cable-40mm
32*20 Pin header (2.54mm pitch)
4
What is this PCIe to 2-Channel 2.5G Ethernet HAT used for on a Raspberry Pi 5?
It adds two 2.5G Ethernet ports via a PCIe x1 Gen2 interface. It is designed to work with Raspberry Pi 5.
Is the adapter driver free and easy to install?
Yes, it is driver-free and plug and play. It supports Raspberry Pi OS, Ubuntu, and OpenWrt.
What speeds do the Ethernet ports support?
The two RJ45 ports support 2.5G Ethernet. They are compatible with 10/100/1000/2500 Mbps networks.
What power supply does it require?
It uses a 5V power supply.
How does it connect to the Pi 5 and what cable is used?
It connects to the Raspberry Pi 5 through the 16PIN PCIe interface using a 16PIN PCIe cable.
