PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT For Raspberry Pi 5

SKU: WVSH0483

ā‚¹ 2,999.99 ā‚¹ 3,299.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT For Raspberry Pi 5ā‚¹ 2,999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

PCIe TO GigE & USB HUB HAT

PCIe To Gigabit Ethernet And USB 3.2 Gen1

Designed for Raspberry Pi 5, driver-free, plug and play

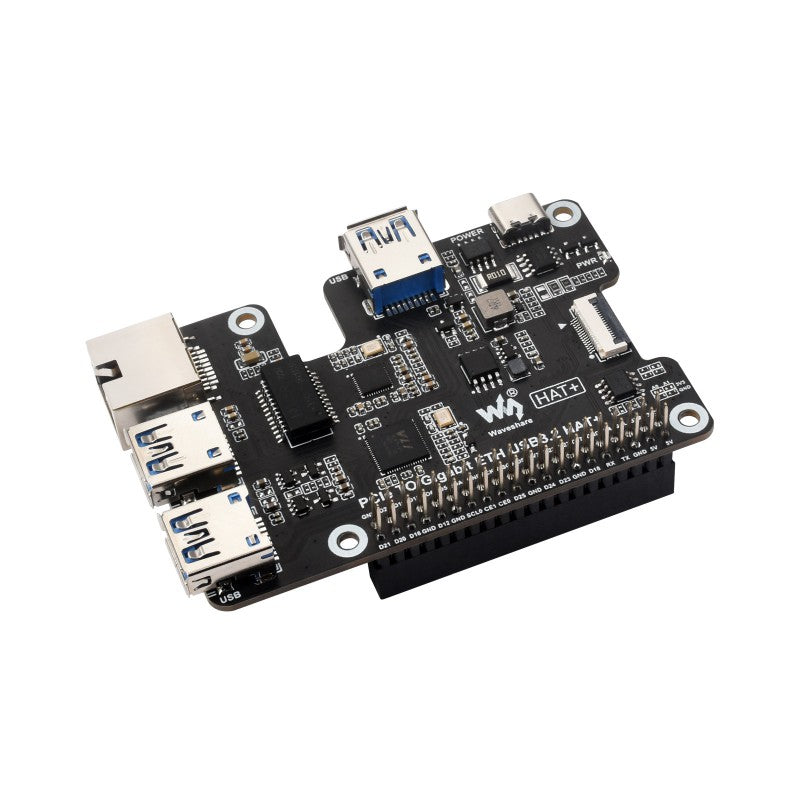

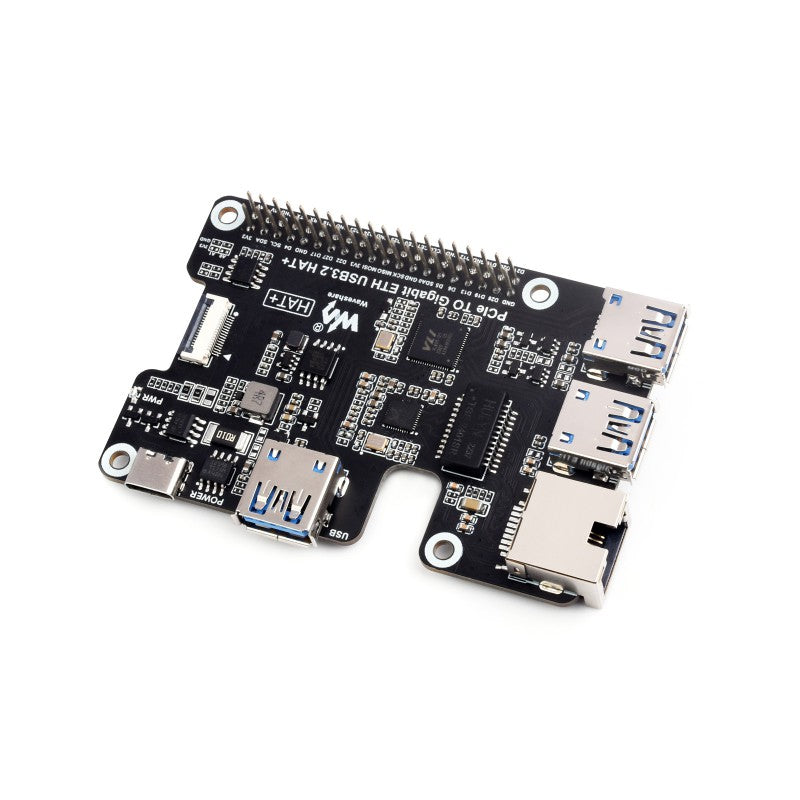

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, front view and features

Ā

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5Ā

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, how to connect the Pi5

* for reference only, please refer to the Package Content for detailed part list

Ā

More USB Capability For Raspberry Pi 5

Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports for connecting more peripherals

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, extends to 3x High Speed USB 3.2 Gen1 ports

Ā

Extends 1x Gigabit Ethernet port

Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, extends to 1x Gigabit Ethernet port

Ā

Network Speed Measurement

Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable
and reliable network speed

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT for Raspberry Pi 5, network speed measurement

Ā

Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of power status, supports USB port power control via software

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT, onboard power monitoring chip and EEPROM

Ā

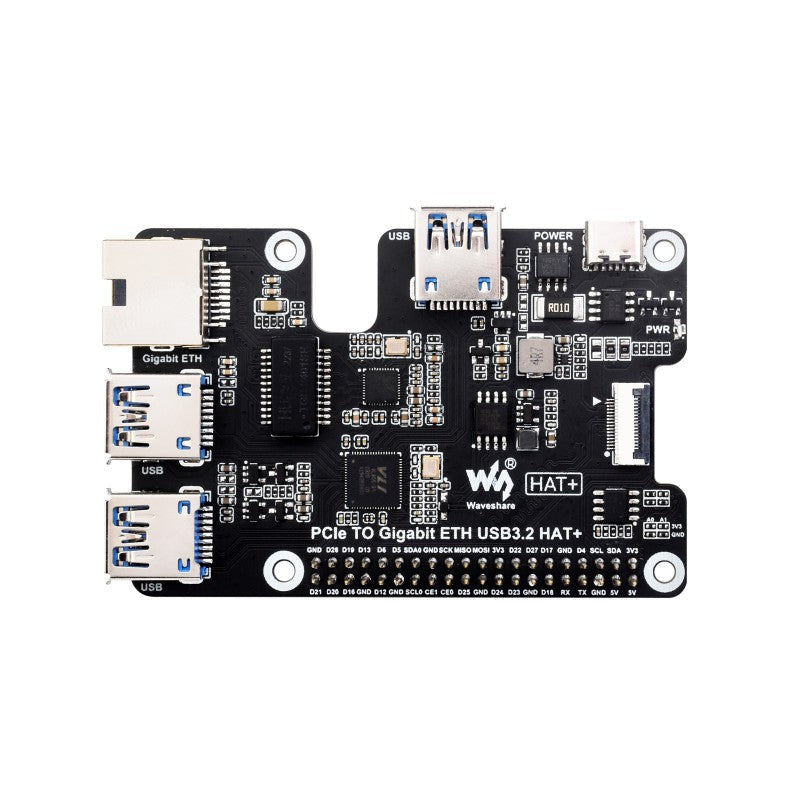

What's On Board

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT, onboard components
  1. VL805
    PCIe to USB 3.2 Gen1 HUB chip
  2. RTL8153B
    USB to Gigabit ETH chip
  3. INA219
    Power monitoring chip
  4. EEPROM
    for saving HAT ID and product information
  5. 16PIN PCIe interface
    for connecting to the PCIe interface of Raspberry Pi 5
  1. Raspberry Pi GPIO header
    for connecting Raspberry Pi 5
  2. Gigabit Ethernet port
    up to 1000Mbps data rate, compatible with 100Mbps
  3. USB 3.2 Gen1 expanded ports
    USB1~USB3
  4. Power port
    for external Type-C 5V DC power supply
  5. PWR LED
    Power indicator

Ā

How to install

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT, how to install

* for reference only, theĀ Raspberry Pi 5Ā andĀ cooling fanĀ are NOT included, please refer to the Package Content for detailed part list

Ā

Outline dimensions

PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT, outline dimensions

Ā

Resources

Wiki:Ā www.waveshare.com/wiki/PCIe_TO_Gigabit_ETH_USB3.2_HAT+

Ā

Package Contains:

Weight:Ā 0.091 kg

  1. PCIe TO Gigabit ETH USB3.2 HAT+ x1
  2. Network cable ~1.5m x1
  3. 16P-Cable-40mm x1
  4. Standoff pack x1
PCIe TO Gigabit ETH USB3.2 HAT+
What is included in the package for the PCIe to Gigabit Ethernet and USB 3.2 Gen1 HAT?
The package includes the PCIe TO Gigabit ETH USB3.2 HAT, a network cable about 1.5 m long, a 16P-Cable 40 mm, and a standoff pack.
Is this HAT compatible with the Raspberry Pi 5 and what interface does it use?
Yes it is designed for Raspberry Pi 5 and connects via the 16 PIN PCIe interface. It is driver free and plug and play.
How many USB ports are provided and what are the network capabilities?
It extends the PCIe interface to 3 high speed USB 3.2 Gen1 ports and 1 Gigabit Ethernet port using RTL8153B, supporting up to 1000 Mbps.
Does the board require external power and what power features exist?
There is a power port for external Type C 5 V power supply and an onboard INA219 power monitoring chip. USB port power can be controlled via software.
Which operating systems are supported and is it driver free?
The solution supports Raspberry Pi OS, Ubuntu, OpenWRT and similar systems. It is driver free and designed for stable network performance.
