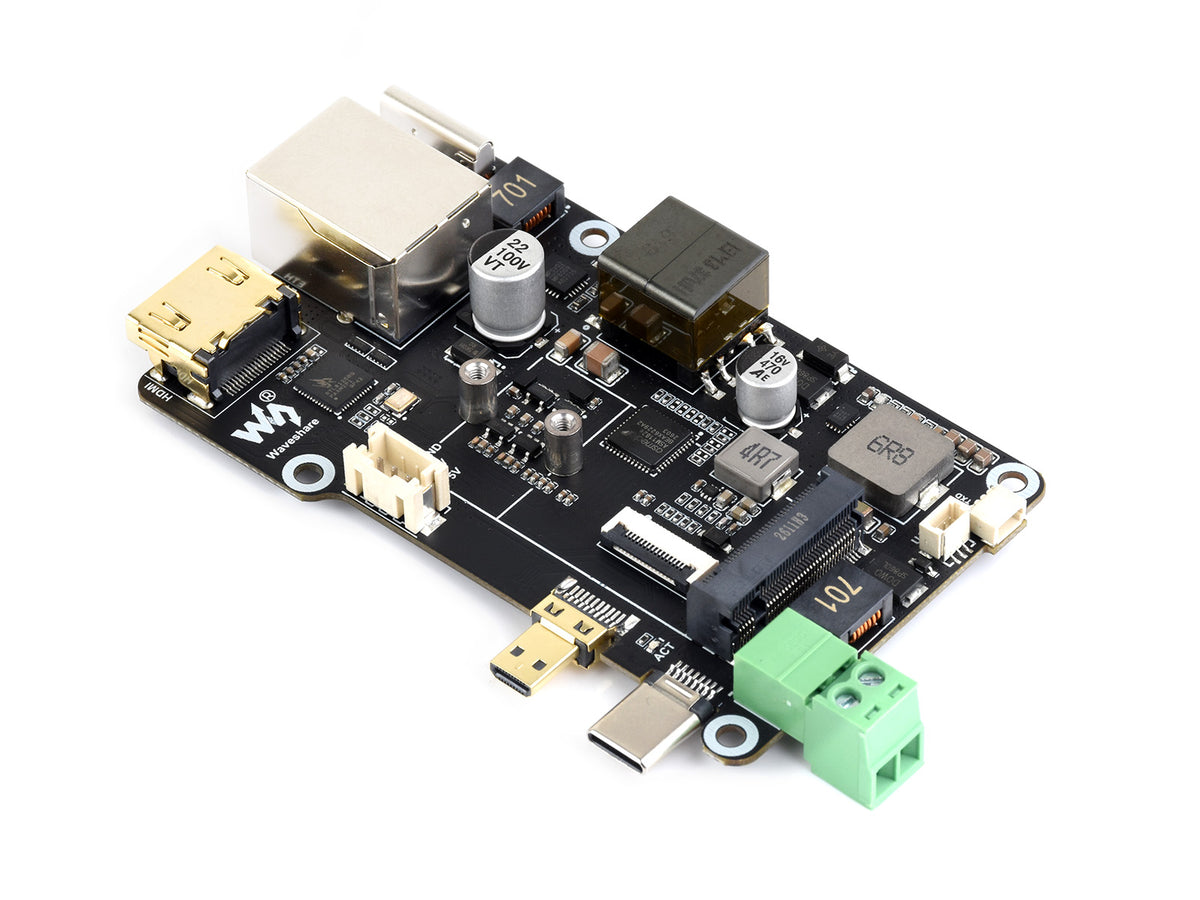

Product image 1

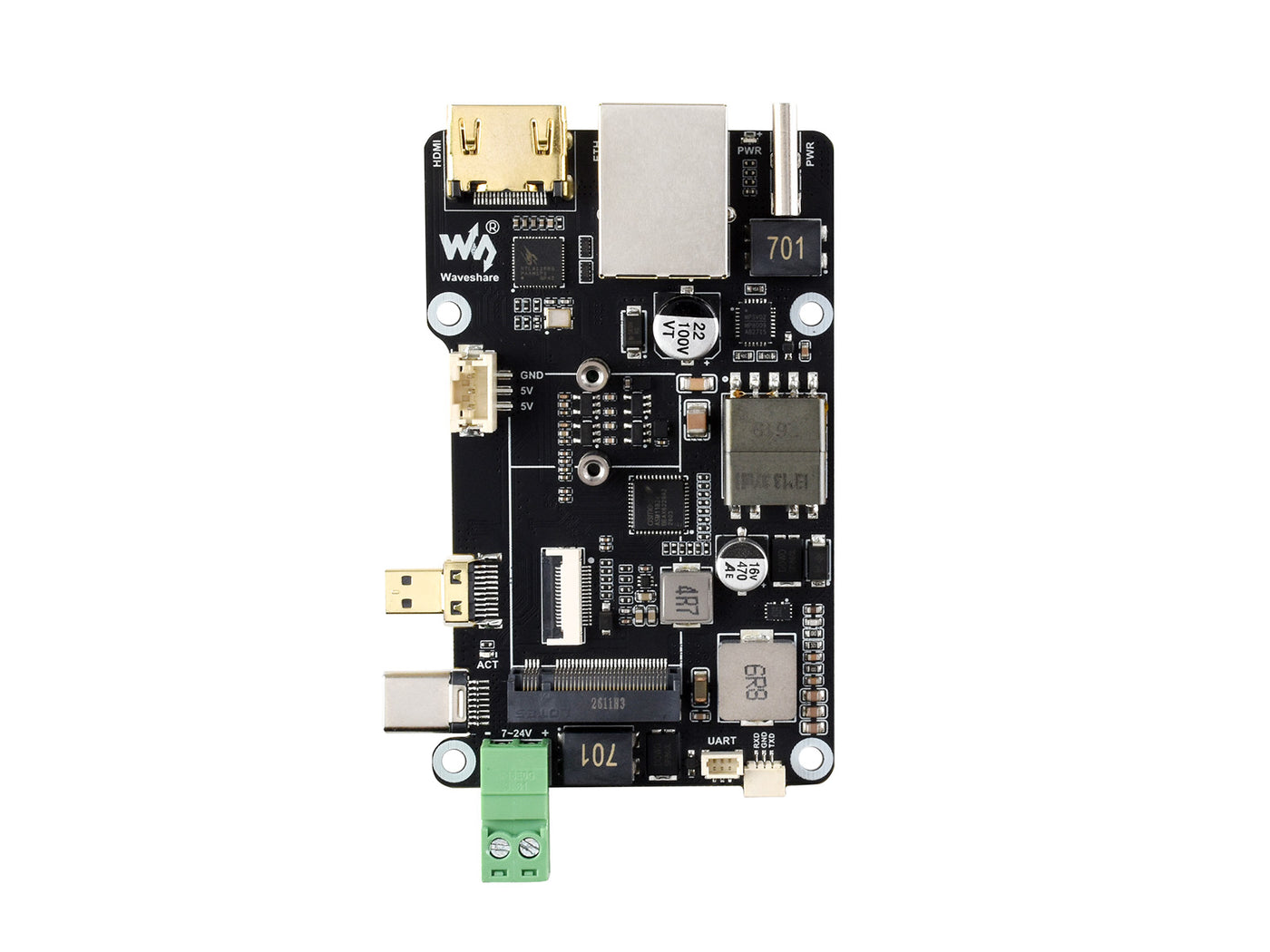

Product image 2

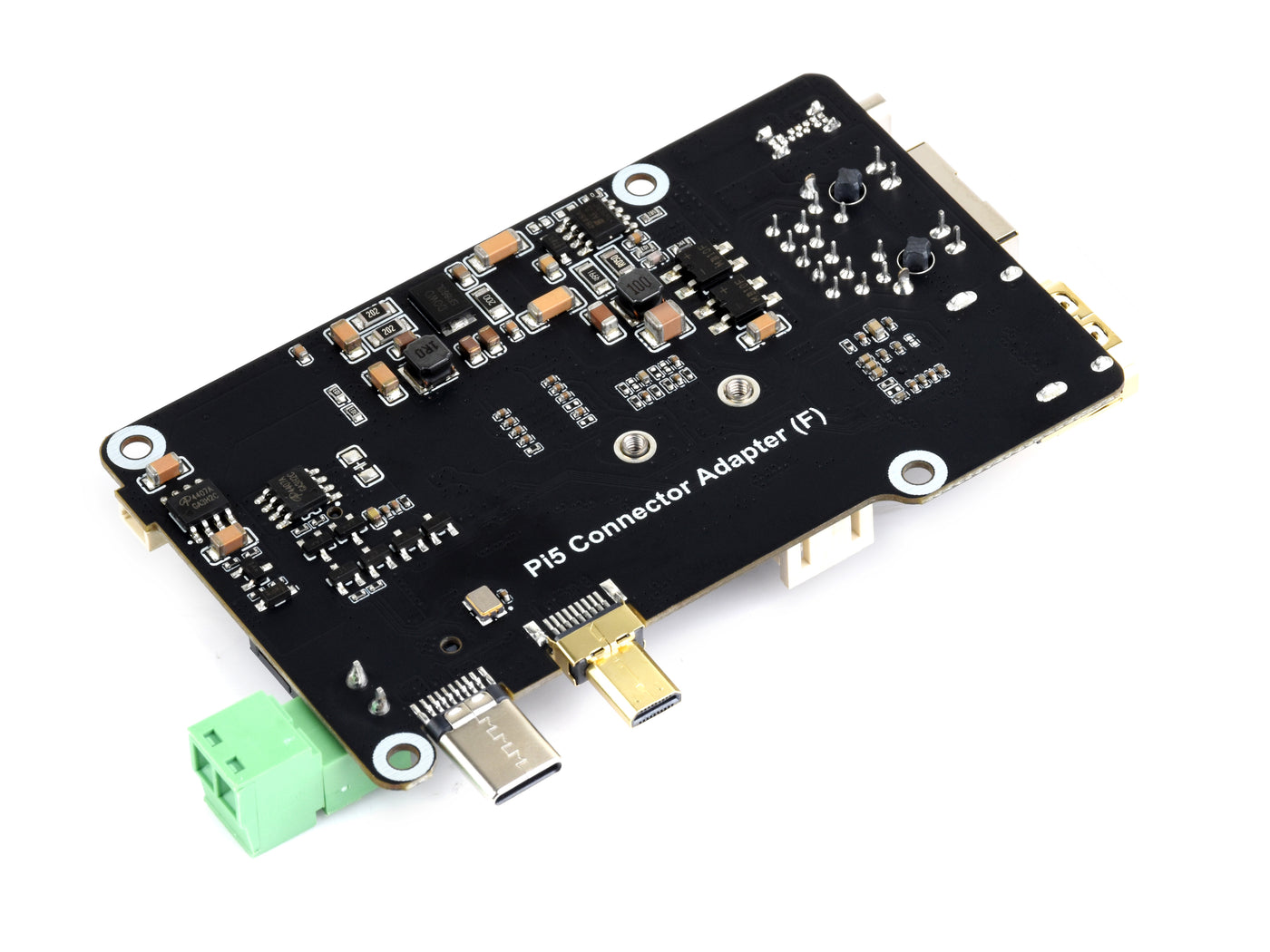

Product image 3

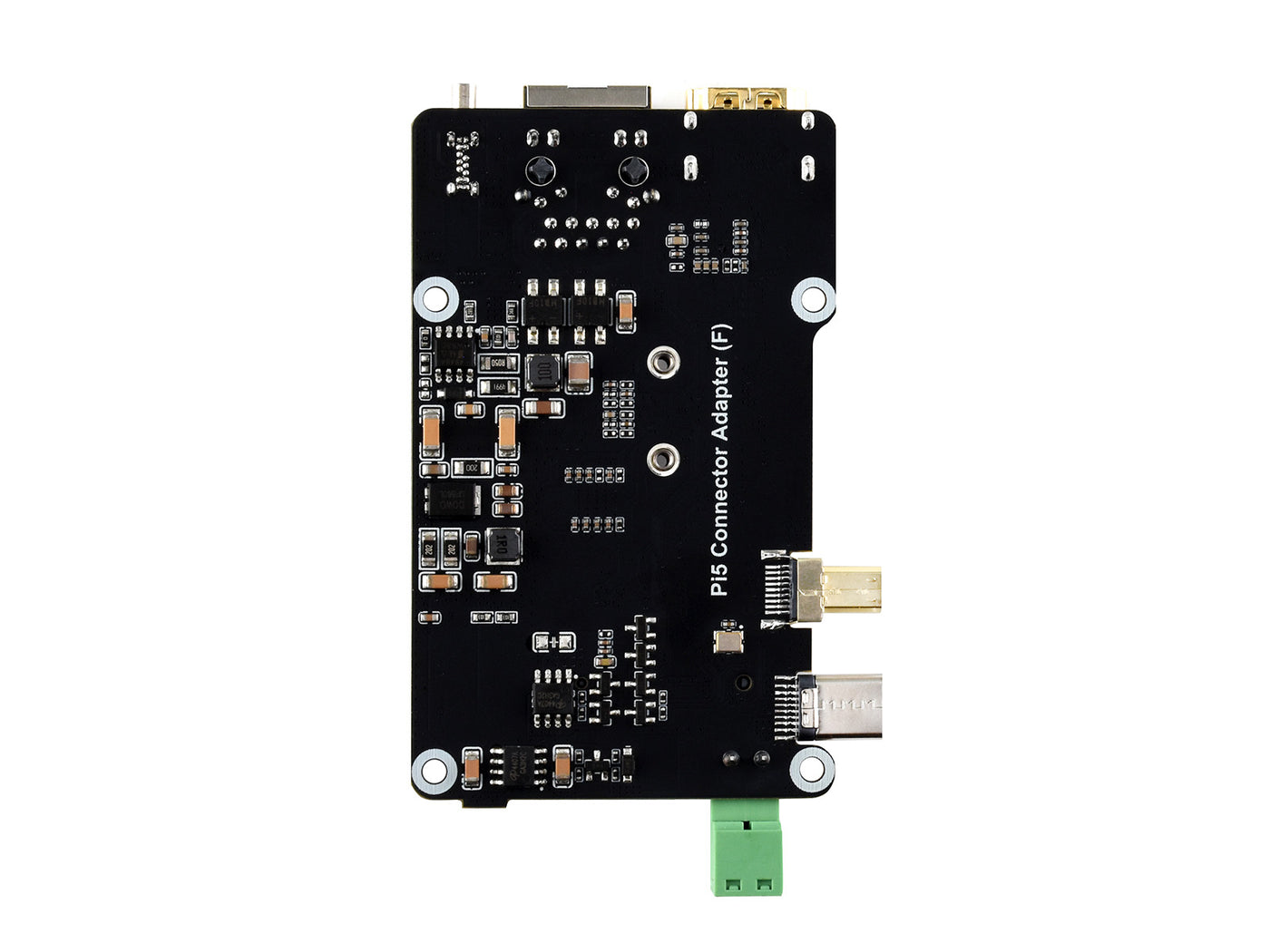

Product image 4

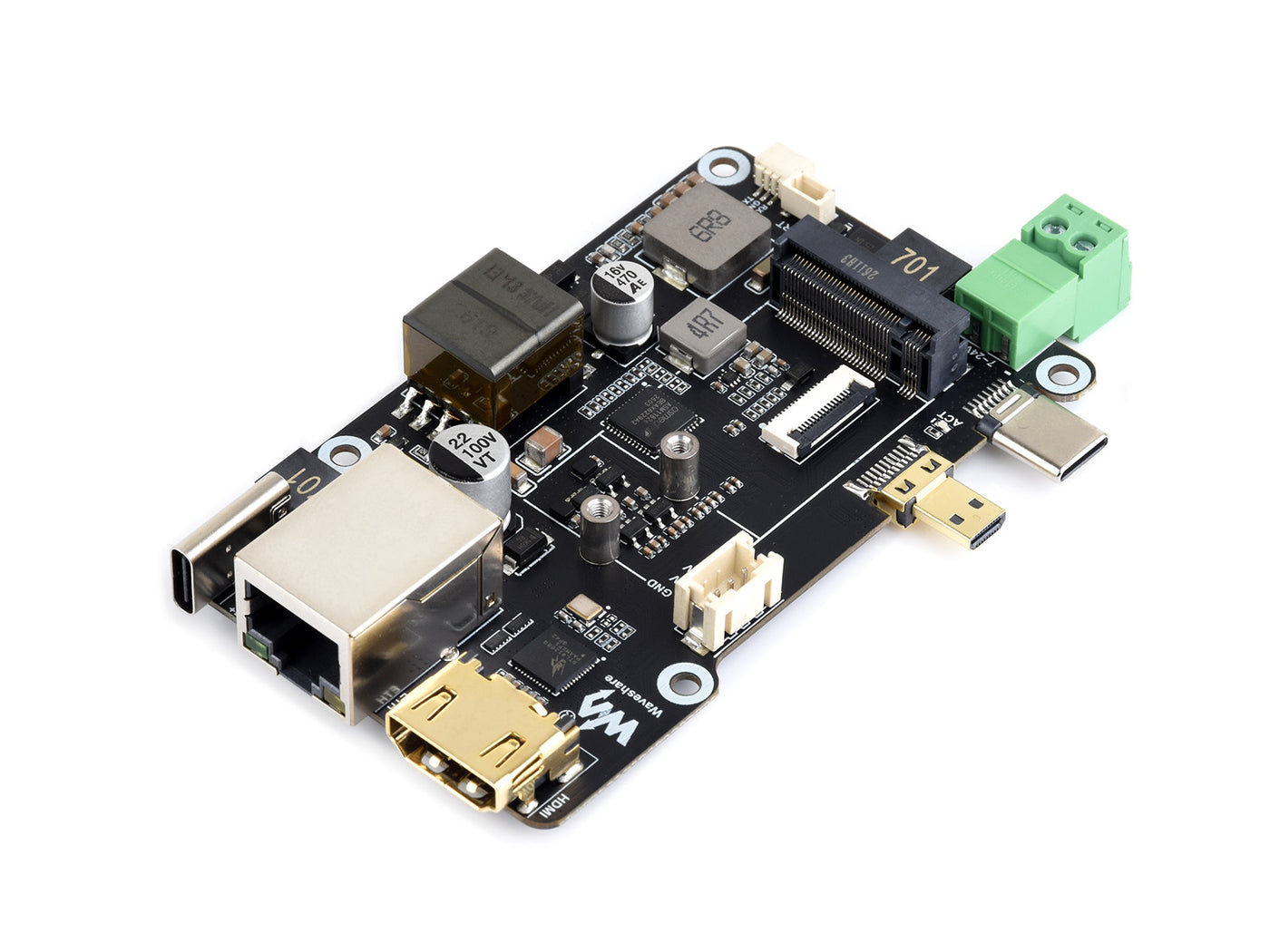

Product image 5
Need Support? Click Here
Free Delivery Above ₹999

Best seller

Waveshare

PCIe To M.2 Multifunctional Adapter, 4K Output, Original RTL8125 2.5GbE Ethernet Controller

SKU: WVSH0650

₹ 4,049.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
PCIe To M.2 Multifunctional Adapter, 4K Output, Original RTL8125 2.5GbE Ethernet Controller₹ 4,049.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

PCIe To M.2 Multifunctional PoE Adapter

Supports Raspberry Pi 5, 4K Output

Onboard 2.5G PoE Ethernet port, supports NVMe Protocol M.2 Solid State Drive,
High-Speed Reading / Writing, Improves Working Efficiency

PCIe To M.2 Multifunctional Adapter, front view

Connecting to Pi 5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5, expanding to an M.2 M KEY slot
and an RJ45 Ethernet port

PCIe To M.2 Multifunctional Adapter, connecting to PI5 via 16PIN cable

* for reference only, please refer to the Package Content for detailed part list


High-Performance Ethernet Controller

Onboard original RTL8125 high-performance 2.5G Ethernet controller, supports Raspberry Pi OS, Driver-free, Plug and Play

PCIe To M.2 Multifunctional Adapter, connecting to PI5 via 16PIN cable



NVMe Solid State Drives Support

Compatible With 2230 / 2242 Size M.2 Solid State Drives
Supports Gen2 Mode, Supports Booting Pi 5 From Solid State Drive

PCIe To M.2 Multifunctional Adapter, compatible With / 2242 / 2230 Size M.2 Solid State Drive

Supports network connection and PoE power supply

Providing both network connection and power supply for your Raspberry Pi in one cable

PCIe To M.2 Multifunctional Adapter, supports networking and PoE power supply

* for reference only, the Raspberry Pi 5 and switch are NOT included.

Easy to connect the HDMI screen

Converts Micro HDMI port to HDMI female port for easier connection

PCIe To M.2 Multifunctional Adapter, connecting to Raspberry Pi 5

Three Power Supply Methods

Supports Power Supply via Type-C port, 7 ~ 24V Screw Terminal, and PoE Ethernet port

PCIe To M.2 Multifunctional Adapter, two power supply methods

Supports 4K Outputs

PCIe To M.2 Multifunctional Adapter, dual 4K outputs

Assembly Example

PCIe To M.2 Multifunctional Adapter, assembly example

Outline dimensions

PCIe To M.2 Multifunctional Adapter, outline dimensions

Weight: 0.047 kg

Quick Overview

  1. Pi5 Connector Adapter (F) x1
  2. SH1.0 3PIN cable (opposite) 100mm x1
  3. SH1.0 3PIN cable 100mm x1
  4. 16PIN FFC cable 100mm (same direction) x1
  5. Screws pack x1
1Pi5-Connector-Adapter-F
2
3
4
5
Which Raspberry Pi models and operating system does the adapter support?
It supports Raspberry Pi 5 and Raspberry Pi OS, and it is driver-free and plug-and-play.
Can I use NVMe M.2 drives with this adapter and can the Pi 5 boot from an SSD?
Yes, it supports NVMe protocol M.2 SSDs including 2230 and 2242 sizes, and can boot Pi 5 from an SSD in Gen2 mode.
What are the network and PoE capabilities of the adapter?
It has an onboard RTL8125 2.5G Ethernet controller and supports 2.5 GbE networking with PoE power supply.
How is the adapter connected to the Raspberry Pi 5 and what ports does it expose?
It connects via the Raspberry Pi 5 16PIN PCIe interface and provides an M.2 M KEY slot and a RJ45 Ethernet port.
Does the adapter support 4K video output?
Yes, it supports 4K output.
