Best seller

Waveshare

PoE Hat J for Raspberry Pi 5/CM5, 5V/5A, isolated SMPS

SKU: WVSH0626

ā‚¹ 2,049.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
PoE Hat J for Raspberry Pi 5/CM5, 5V/5A, isolated SMPSā‚¹ 2,049.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

Power Over Ethernet HAT (J) For Raspberry Pi 5 / CM 5, 5V / 5A Output, stable performance, Isolated switched-mode power supply, providing both network and power supply in one Ethernet cable
PoE HAT (J) for Raspberry Pi 5

Suitable For Raspberry Pi 5 / CM 5, Supports IEEE 802.3af/at Network Standard

5V 5A Output, Compatible With Raspberry Pi 5 Official Case

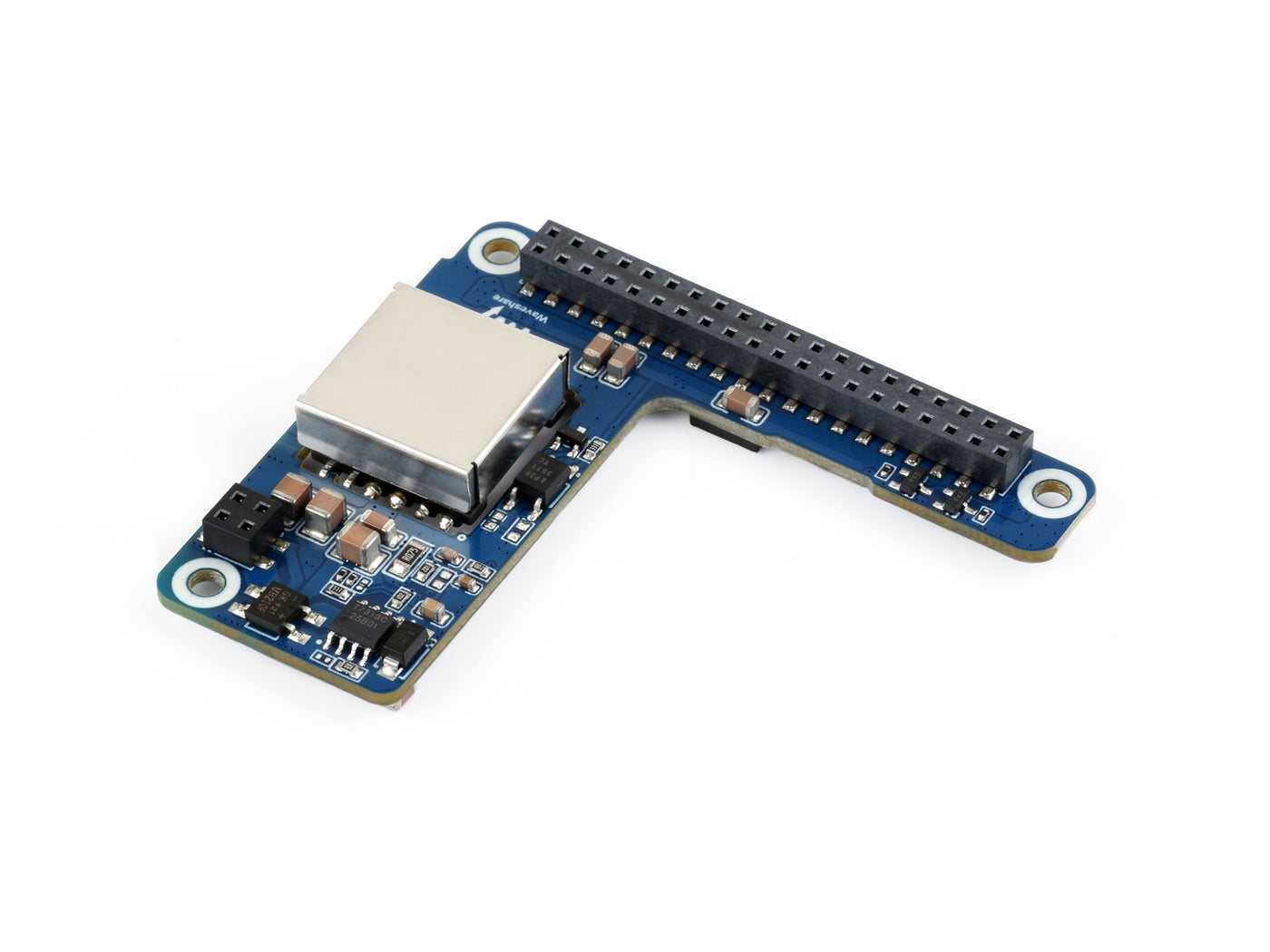

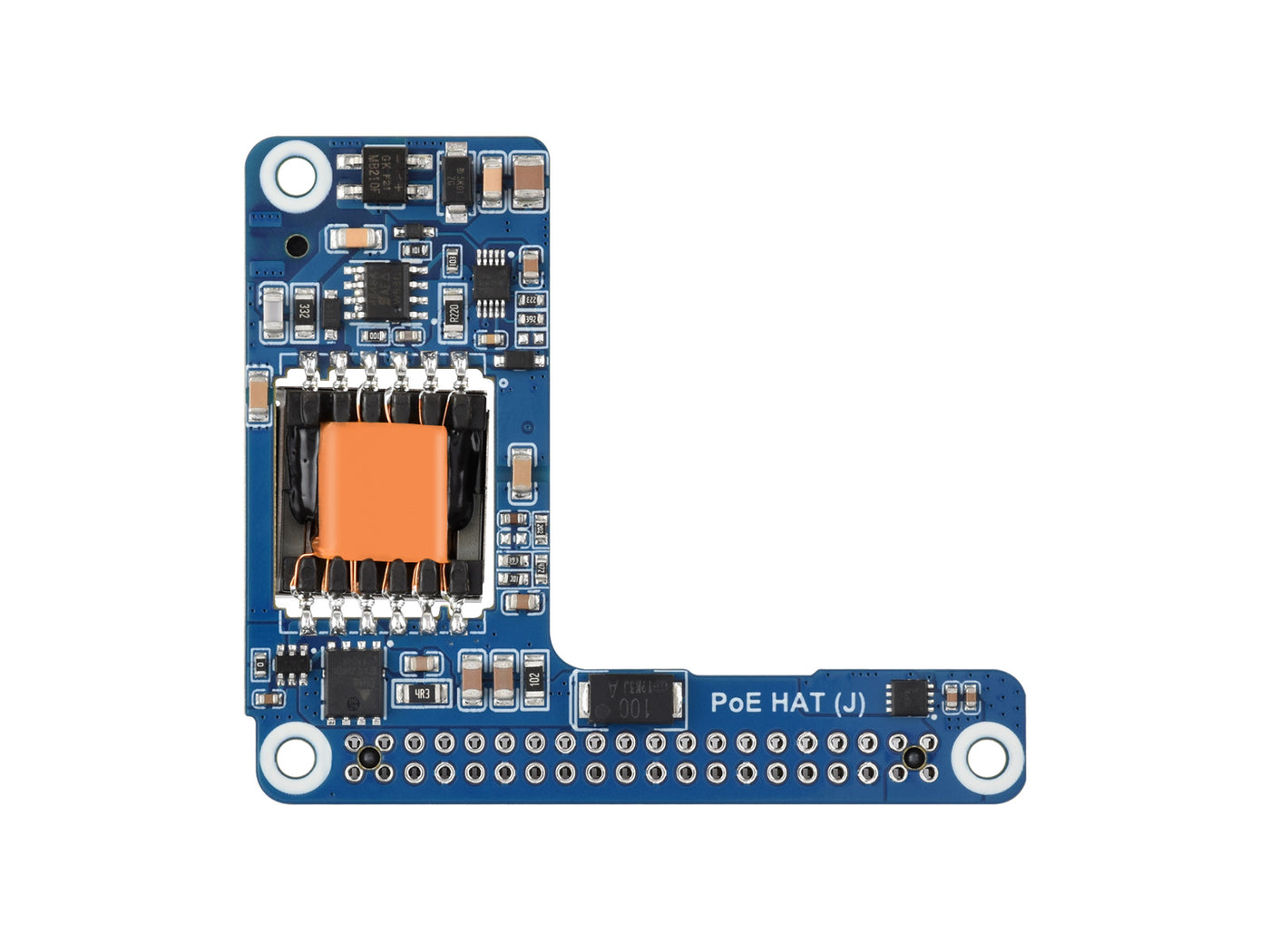

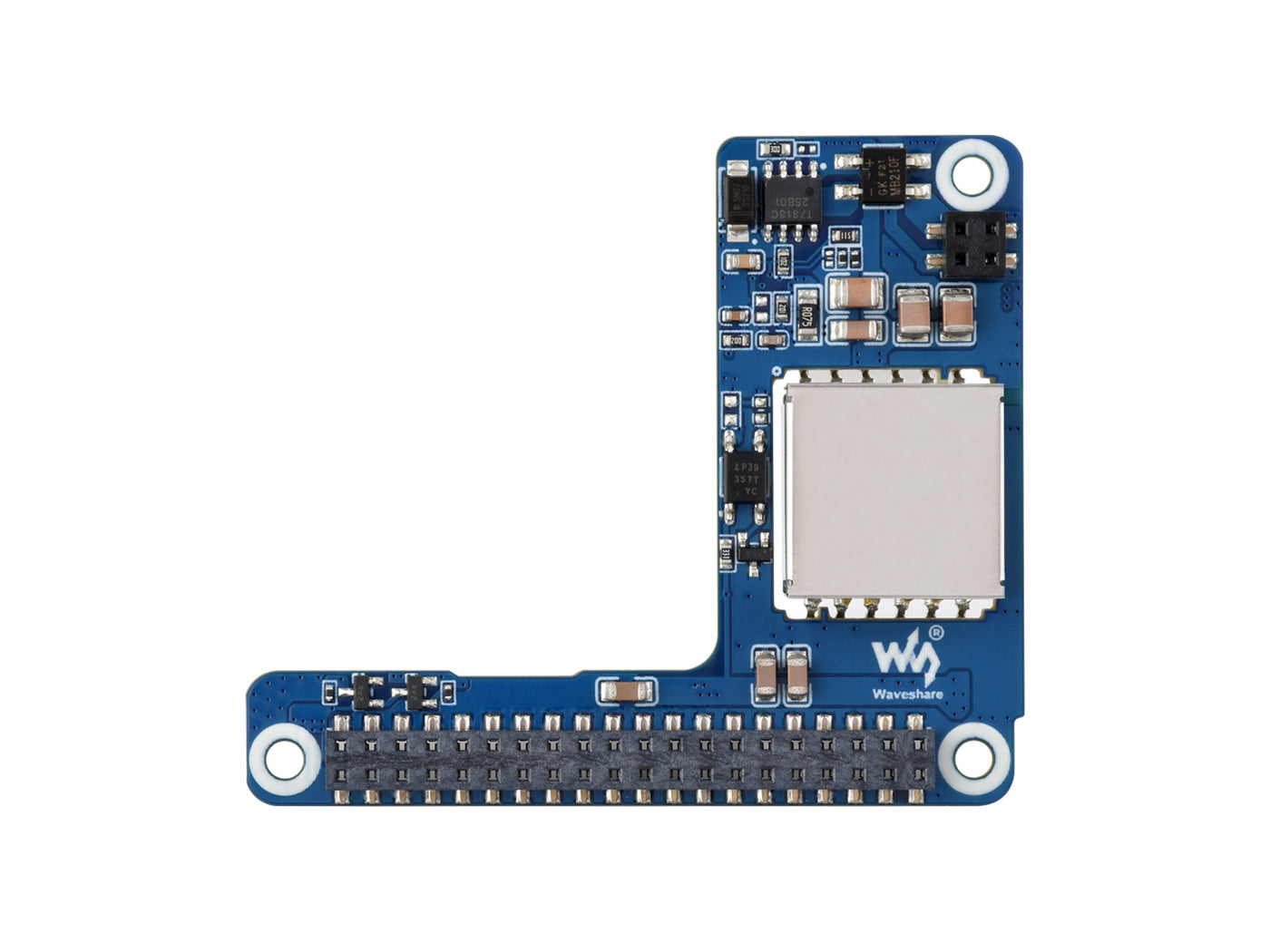

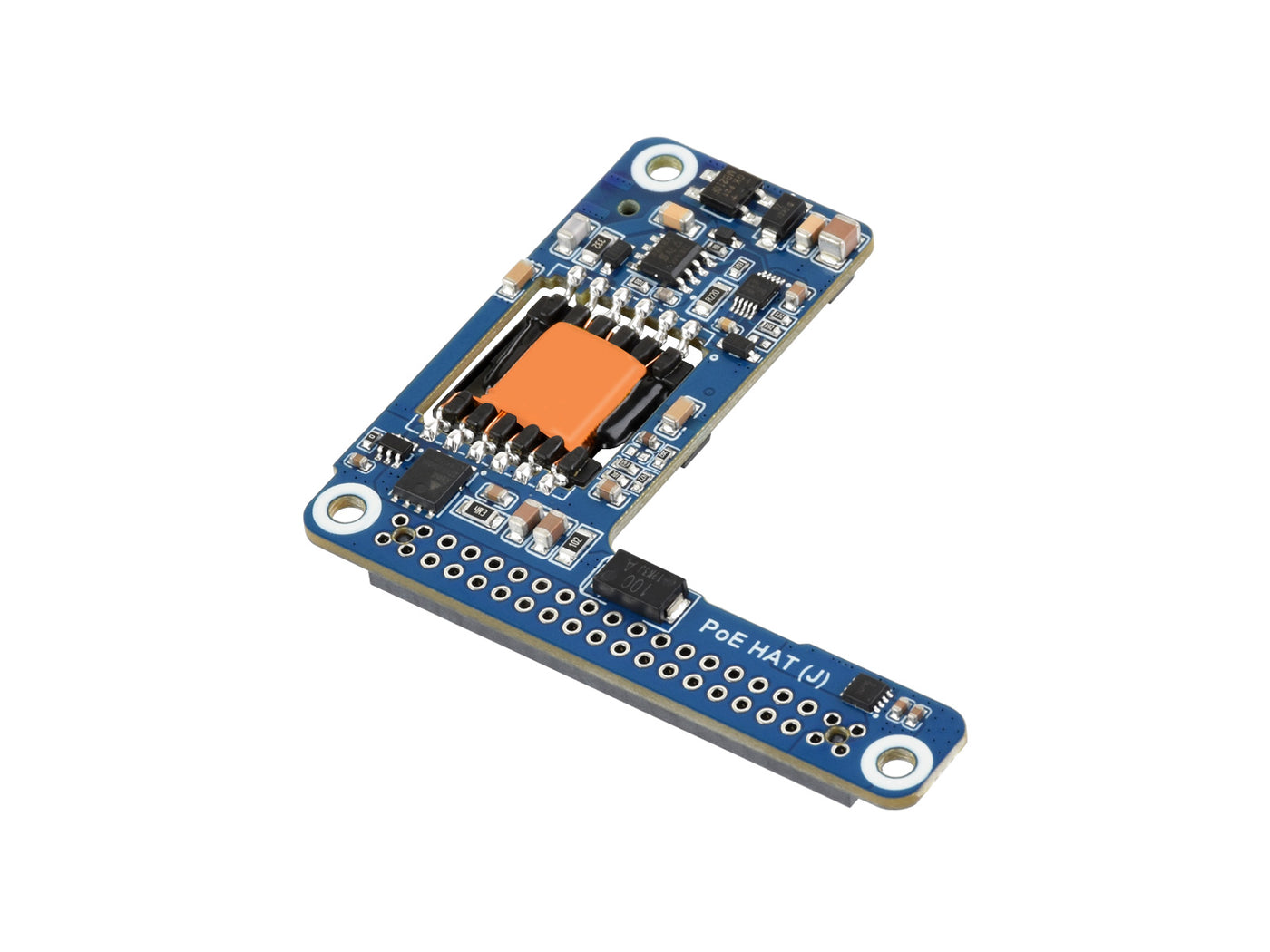

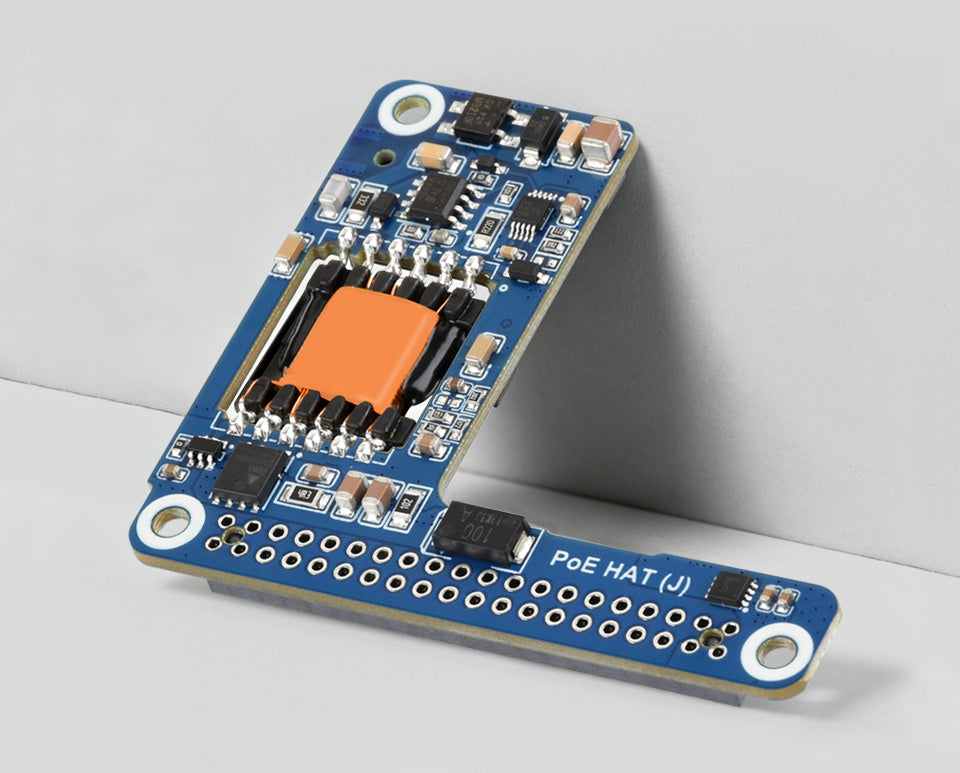

PoE HAT (J), front view
Version Options
PoE HAT (J), front view

PoE HAT (J)
the PoE HAT (J) only

PoE HAT (J), front view

PoE HAT (J) Acce A
PoE HAT (J) + Raspberry Pi 5 Official Case (with cooling fan)


Features at a glance

The PoE HAT (J) is an IEEE 802.3af/at-compliant PoE+ (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  • Standard Raspberry Pi 40PIN GPIO header
  • Supports IEEE 802.3af/at (PoE / PoE+) Network Standard
  • Onboard dedicated IC solution for more stable PoE power performance
  • Adopts isolated switched-mode power supply (SMPS)
  • Compact and easy to assemble

Specifications
PoE HAT (J)
PoE power input 38V ~ 57V DC input
Power output GPIO header: 5V 5A (MAX)
Dimensions 64.98 Ɨ 64.98mm
Network standard IEEE 802.3af/at PoE / PoE+

Raspberry Pi 5 Official Case
Input voltage 5V DC (supplied via four-pin fan header on Raspberry Pi 5)
Fan speed control Pulse width modulation control with tachometer
Maximum airflow 2.79 CFM
Maximum Fan speed 8000 RPM Ā±15%
Case material ABS (base, frame, lid) and PC (fan assembly)
Suitable for Raspberry Pi 5 / CM 5

Standard Raspberry Pi 40PIN GPIO header, easy to assemble into the official case

PoE HAT (J), Raspberry Pi 40PIN GPIO header

PoE / PoE+ support

providing both network connection and power supply for the Raspberry Pi 5 / CM 5 in one cable

PoE HAT (J), Power Over Ethernet
* for reference only, the Raspberry Pi 5 and switch are NOT included, please refer to the package content for detailed part list.

Compatible With Raspberry Pi 5
Official Active Cooler
PoE HAT (J), Raspberry Pi 5 official case
Installation with Raspberry Pi 5
Official Case
PoE HAT (J), installation
* for reference only, the Raspberry Pi 5 and active cooler are NOT included.
Application Example

With this product, you can use an Ethernet cable with PoE function to
power the Raspberry Pi 5 / CM 5 directly


PoE HAT (J), application example

PoE HAT (J), application example

* for reference only, please refer to the Package Content for detailed part list


Outline dimensions
PoE HAT (J), outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide
Product Supported Pi PoE standard PoE power output Feature
Raspberry Pi PoE+ HAT Pi 3B+/4B 802.3af/at 5V 4A Raspberry Pi official (second generation)
PoE HAT (B) 802.3af 5V 2.5A with OLED display, cost effective
PoE HAT (C) 802.3af/at 5V 4A / 12V 2A high power, cost effective
PoE HAT (D) 802.3af 5V 2.5A tailored for Raspberry Pi official case, cost effective
PoE HAT (E) 802.3af 5V 2.5A mini body, tailored for Raspberry Pi official case, cost effective
PoE HAT (F) Pi 5 / CM 5 802.3af/at 5V 4.5A / 12V 2A with metal heatsink, high power, cost effective
PoE HAT (G) 802.3af/at 5V 5A (MAX) compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective
PoE HAT (H) 802.3af/at 5V 5A (MAX) compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective, isolated SMPS
PoE HAT (J) 802.3af/at 5V 5A (MAX)

Weight: 0.039 kg

Quick Overview

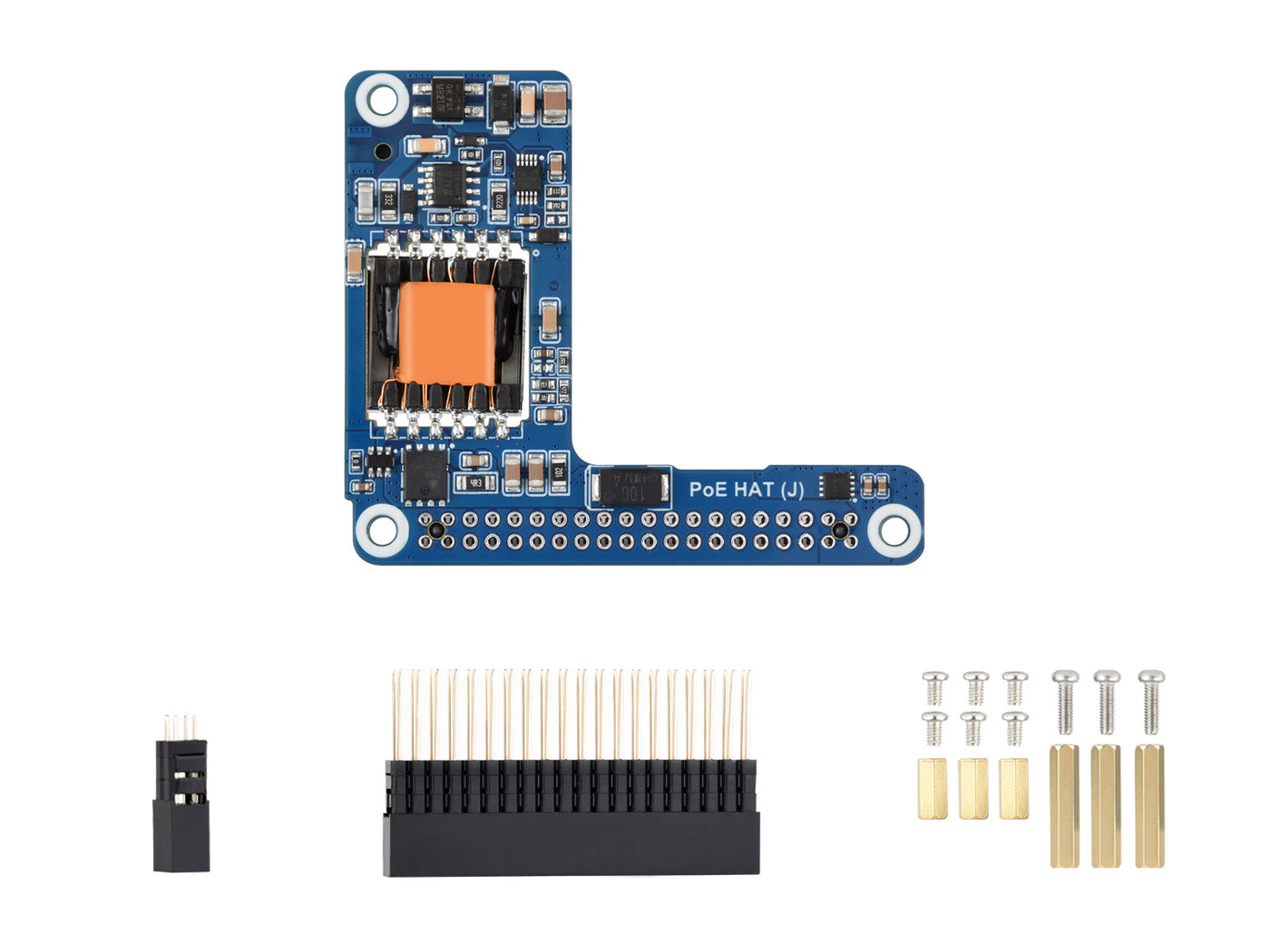

PoE HAT (J)

  1. PoE HAT (J) x1
  2. 2*2 header 3mm (2.54mm pitch) x1
  3. 2*20 header 12.2mm (2.54mm pitch) x1
  4. Standoffs pack x1
1PoE HAT (J)
2
3
4

PoE HAT (J) Acce A

  1. PoE HAT (J) x1
  2. Raspberry Pi 5 Official Case x1
1PoE HAT (J)
2Raspberry Pi 5 Official Case
3
4
5
What Raspberry Pi models is the PoE HAT J designed for?
It is designed for Raspberry Pi 5 and CM5 and supports the IEEE 802.3af/at PoE standard.
What power and network capabilities does it provide?
It delivers 5V 5A output with an isolated switched mode power supply to provide both network connectivity and power over a single Ethernet cable.
Does it connect to the Raspberry Pi using the standard GPIO header?
Yes, it attaches to the standard Raspberry Pi 40 PIN GPIO header.
Are there different version options or bundles available?
Yes, there is the PoE HAT J only option and the PoE HAT J Acce A option which includes the Raspberry Pi 5 Official Case with a cooling fan.
Is it compatible with the Raspberry Pi 5 Official Case?
The PoE HAT J is compatible with the Raspberry Pi 5 Official Case, and the Acce A bundle includes the case.
