PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT

SKU: WVSH0514

₹ 2,499.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
PCIe To M.2 Adapter With PoE Function (B) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Raspberry Pi 5 PoE HAT₹ 2,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

PCIe To M.2 with PoE HAT (B)

Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard

Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

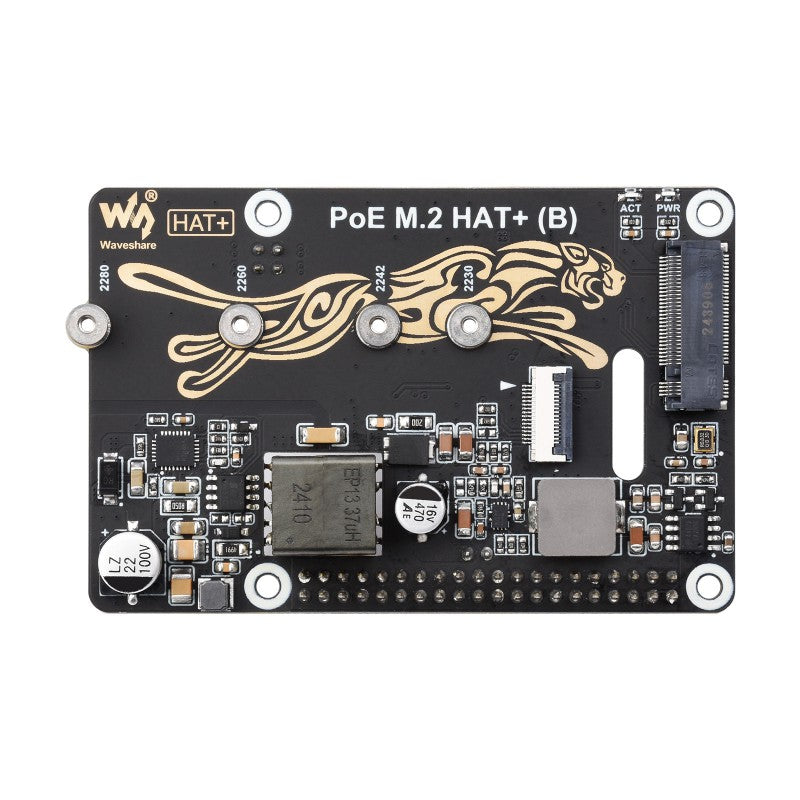

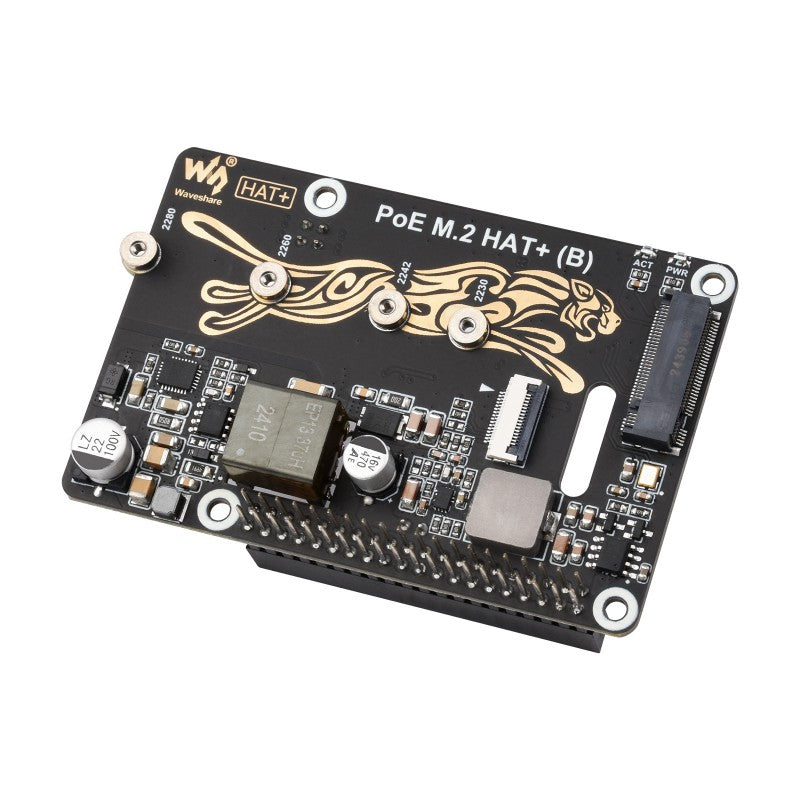

PCIe To M.2 with PoE HAT (B), front view and features



Specifications

PoE power input 37V ~ 57V DC in
Power output GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)
Dimensions 56.0 × 85.0 (mm)
Network standard IEEE 802.3af/at PoE




Improves reading/writing speed of your Pi

PCIe To M.2 with PoE HAT (B), improves reading/writing speed

* for reference only, the Raspberry Pi 5 and Solid State Drive are not included.



NVMe Drive Slot Support


PCIe To M.2 with PoE HAT (B), NVMe Drive slot support

Note: Only supports the NVMe Protocol Solid State Drives.



Adopts Immersion Gold Process

Better appearance | Anti-oxidation | Anti-corrosion | Strong welding

PCIe To M.2 with PoE HAT (B), adopts anti-Oxidation Immersion Gold Process



Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header,
allows connecting other HATs

PCIe To M.2 with PoE HAT (B), connecting to PI5 via 16PIN cable

* for reference only, please refer to the Package Content for detailed part list



Onboard Dual LED Indicators

Easy to monitor the Working Status

PCIe To M.2 with PoE HAT (B), onboard dual LED indicators



NVMe Drive Protocol Support

Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

PCIe To M.2 with PoE HAT (B), compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive



Power Over Ethernet

providing both network connection and
power supply for your Raspberry Pi in one cable

PCIe To M.2 with PoE HAT (B), with PoE function
* for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.



Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi

PCIe To M.2 with PoE HAT (B), onboard 5V & 12V header outputs



How to Install

Attach the thermal tapes first, then install the cooling fan and fix the HAT

PCIe To M.2 with PoE HAT (B), how to install

* for reference only, please refer to the Package Content for detailed part list



PCIe To M.2 with PoE HAT (B), Hat+ standard



Outline dimensions

PCIe To M.2 with PoE HAT (B), outline dimensions



Resources

Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+_(B)



Package Contents:

Weight: 0.023 kg

  1. PoE M.2 HAT+ (B) x1
  2. 16PIN PCIe cable x1
  3. SSD mounting screw x1
  4. Screws pack x1
1PoE M.2 HAT+ (B)234
Is this compatible with the Raspberry Pi 5 and what items are included in the package?
It is designed for Raspberry Pi 5 and connects via a 16PIN PCIe interface. The package includes PoE M2 HAT B, a 16PIN PCIe cable, an SSD mounting screw, and a screws pack. The Raspberry Pi 5 and a solid state drive are not included.
How does PoE power delivery work and what are the current limits for the onboard headers?
PoE input is 37V to 57V DC. The 5V header can output up to 4.5A and the 12V header up to 2A, with a total maximum of 25W for the 12V and 5V outputs.
What NVMe drives are supported and can I boot from the SSD?
It supports NVMe Protocol M2 drives in sizes 2230 2242 2260 2280 and supports Gen2 and Gen3 modes. It is capable of booting the Raspberry Pi 5 from the SSD.
What is included in the package and is the Pi 5 or SSD included?
Included items are PoE M2 HAT B, 16PIN PCIe cable, SSD mounting screw, and screws pack. The Raspberry Pi 5 and the SSD are not included.
How do I install the adapter on the Raspberry Pi 5?
Attach the thermal tapes, then install the cooling fan and fix the HAT onto the Raspberry Pi 5. Connect using the 16PIN PCIe cable and refer to the package contents for the exact parts.
