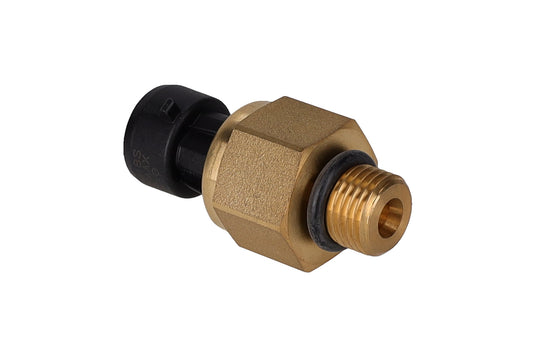

The HONEYWELL PX3 Series Heavy Duty Pressure Transducers are designed for demanding industrial applications requiring accurate and reliable pressure measurement. Utilizing piezoresistive sensing technology with ASIC signal conditioning, these sensors are calibrated and temperature compensated for optimal performance across a wide temperature range.
Industrial refrigerant pressure monitoring in HVAC/R systems
Dry air system pressure measurement
Process control and automation
Transportation: hydraulic, brake, and engine oil pressure monitoring
The PX3 Series is not recommended for use with water, saturated air such as steam and vapor, or ammonia. For more detailed specifications and application guidance, please refer to the datasheet.
Product Disclaimers
Ensure proper installation torque to prevent damage.
Use filters and dehumidifiers to prevent particulates and moisture ingress.
Avoid using with conductive or ionic media to prevent sensor damage.
Follow brazing temperature guidelines to prevent port damage.
