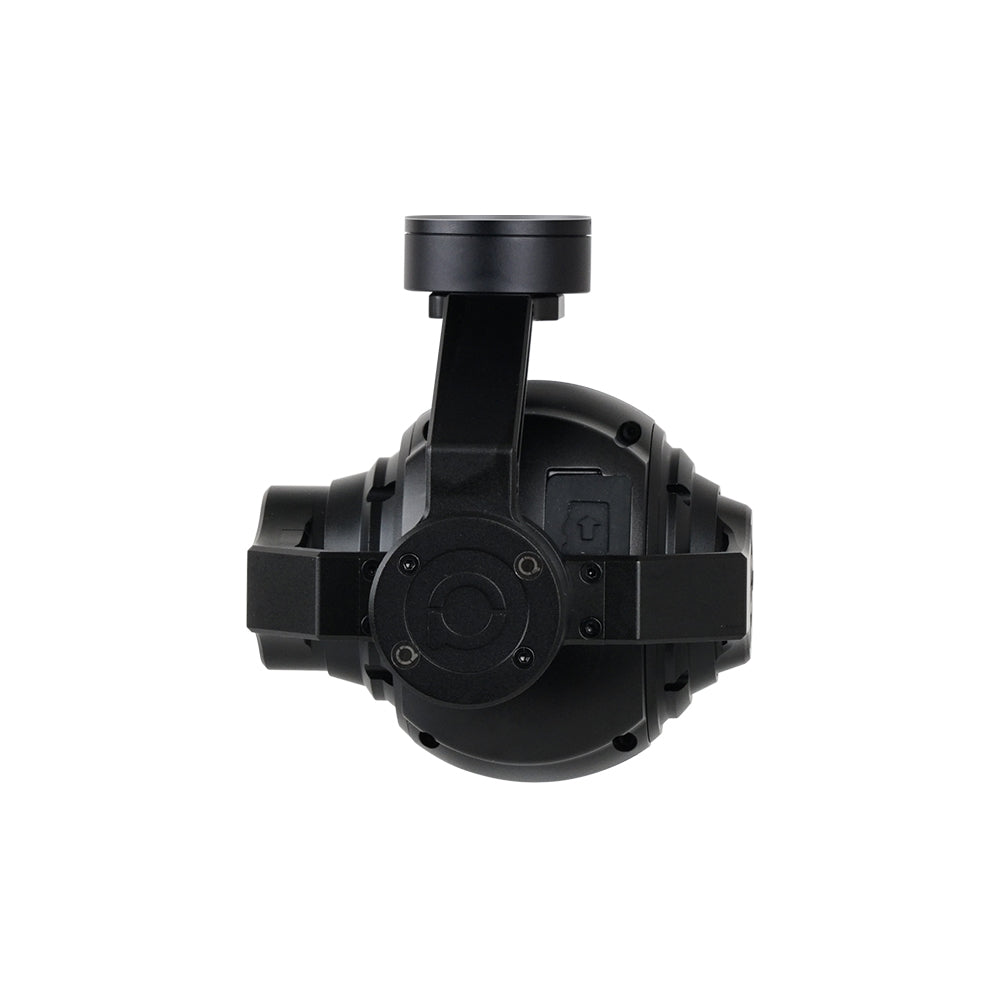

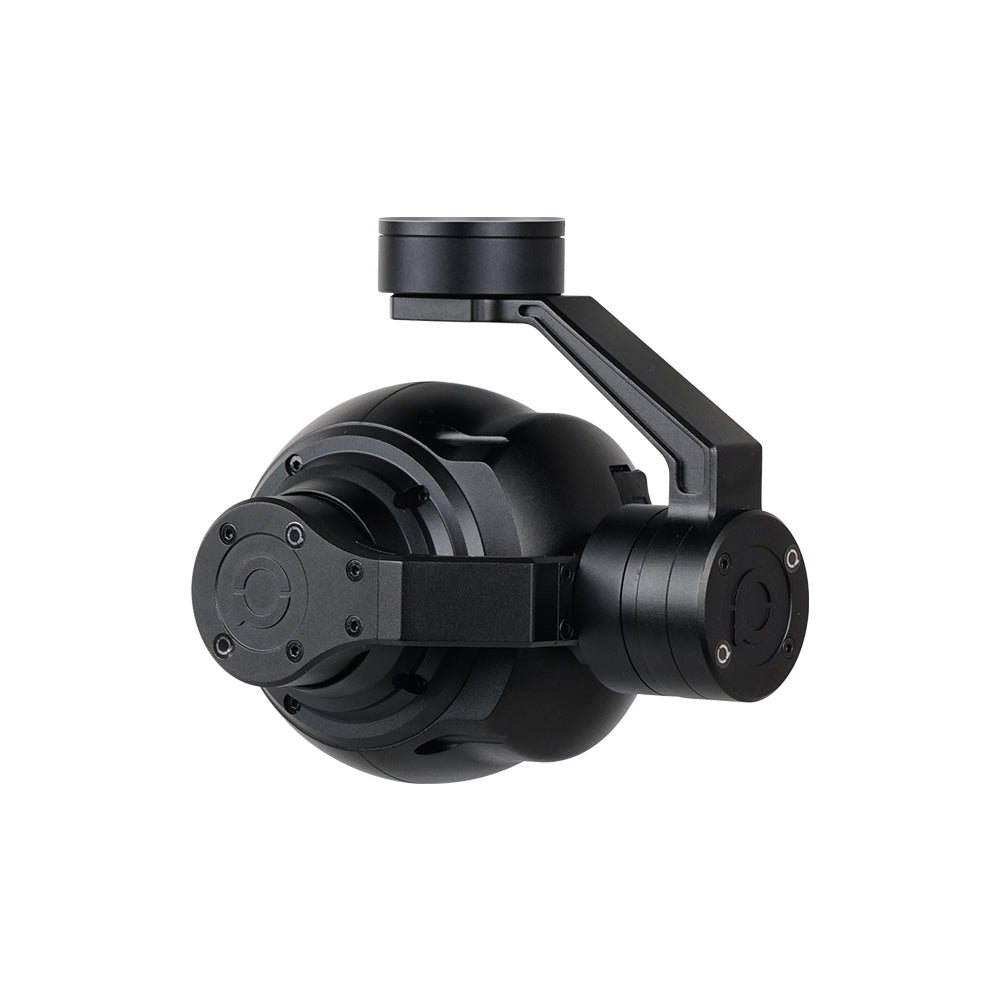

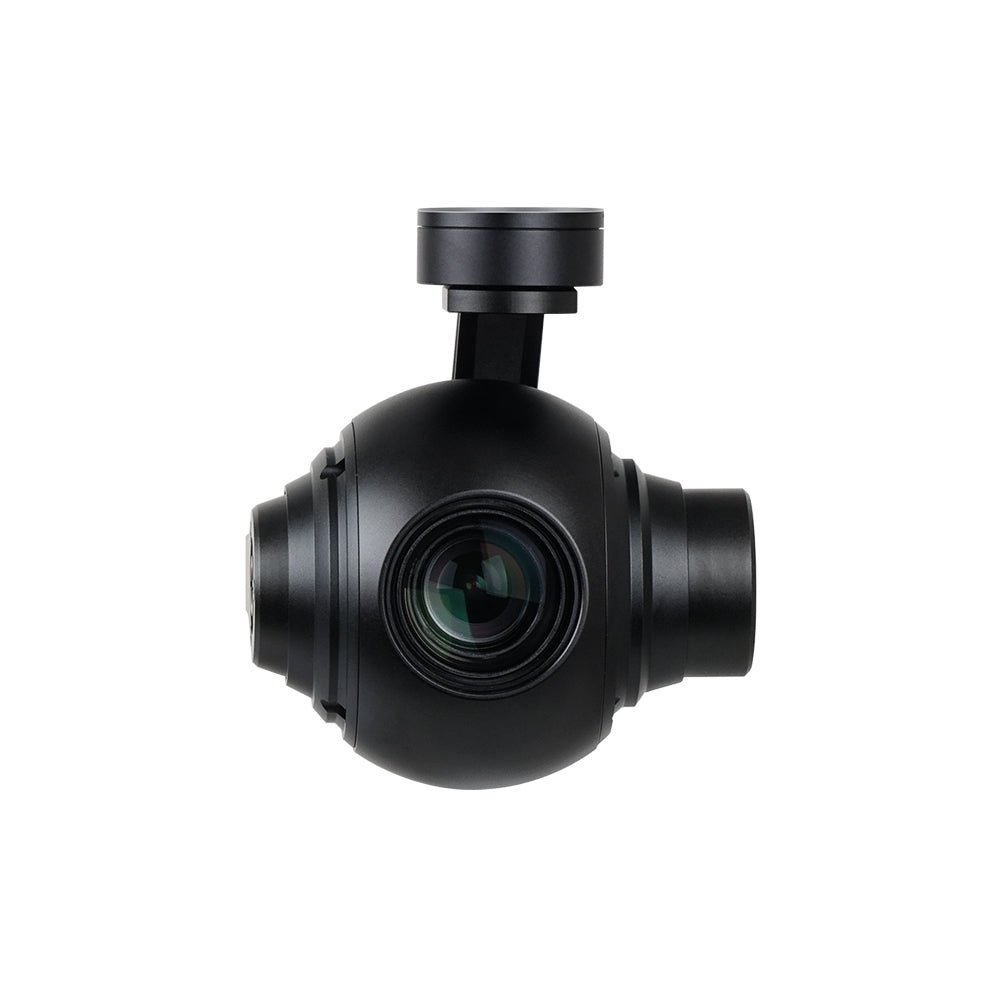

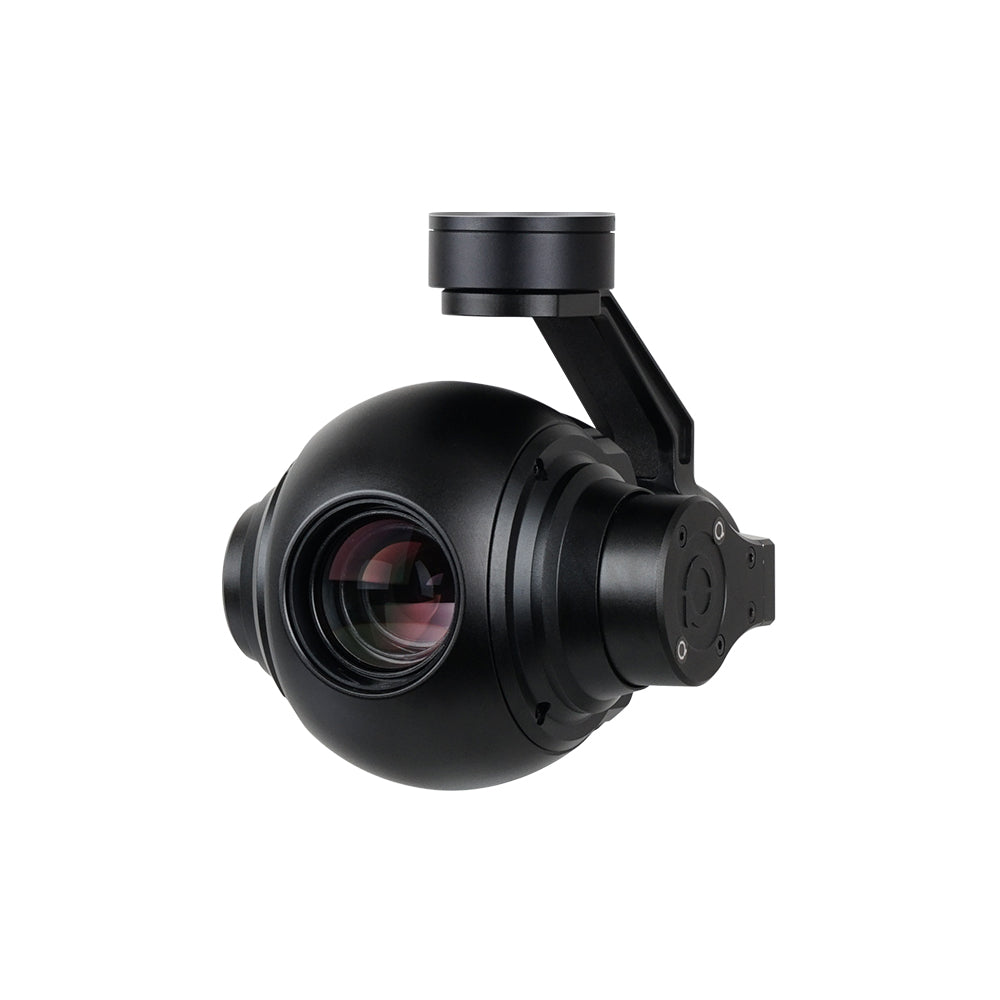

The Q10E is a gimbal designed for 10X zoom camera for drone aerial inspection,surveillance,search and rescue mission.It consists of HD 10X optical zooming camera and a 3-axis high stabilized gimbal, which is able to take and record 1080p 30fps video to an on board TF card, giving you a stable eye in the sky that can be controlled via drone pilot or a secondary individual allowing for an overhead view that can cover a large amount of ground quickly and effectively. The 10X zoom function will allow you to remain at a distance yet zoom closely in on anything that requires your attention.
Q10E gimbal and camera features an 10x optical zoom lens. It powered by 1/3 SENSOR CMOS module, supports approx.2.48 million effective pixels, with Color 0.05lux@F 1.6 ultra-low illumination, can still clearly display image features in the poor light environment, and has a wide dynamic range of 105dB. In the presence of backlight or strong light, the view of the over bright and over dark regions can sill be captured at the same time. Q10E has 2.48 Mega effective pixels, supports 10x optical qutofocus, and HD 1080P video recording. Design for UAV aerial photography, according to aerial characteristics, using fast focus algorithm, focus time <1s.
The Q10E support IP output with 360 degrees continuous. IP output as default is 720P.
Defualt PWM, Serial port TTL and TCP control. Sbus is optional. With Viewpro software Viewlink you can fulfill TTL control.
Q10E is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Q10E have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S (12V - 24V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 450~700mA @ 12V |
| Idle current | 450mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | IP (720p/1080P 25fps) |
| Local-storage | SD card (Up to 256G,class 10, FAT32) |
| Photo storage format | JPG(1920*1080/1280*720) |
| Video storage format | MP4 (1080P 25fps) |
| Control method | PWM / TTL / S.BUS / TCP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: ±105°, Roll: ±70°, Yaw/Pan: ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/2.8" SONY CMOS Sensor |
| Total pixel | 2.48M |
| Picture quality | Full HD 1080 (1920*1080) |
| Optical zoom | 10x, f = 4.9mm ~ 49mm |
| Digital zoom | No |
| Angle of View (Horizontal) | 53.2°(Wide end) ~ 5.65° (Tele end) |
| Sync system | PAL/NTSC; Progressive Scan |
| S/N ratio | more than 50dB |
| Min illumination |
Color : 0.002 lux@F1.2 BW: 0.001lux@F1.2 |
| Day&Night Mode Switch | ICR filter type |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Shutter speed | Auto / Manual (1/5 ~ 1/50,000 sec) |
| Focus | Auto / One Push / Manual |
| Packing Information | |
| N.W. | 506g / 561g (Viewport version) |
| Product meas. | 91.6*111.4*143.1mm (including control box) / 91.6*111.4*148.8mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight cardboard box with foam cushion |
| G.W. | 860g |
| Package meas. | 200*200*150mm |
