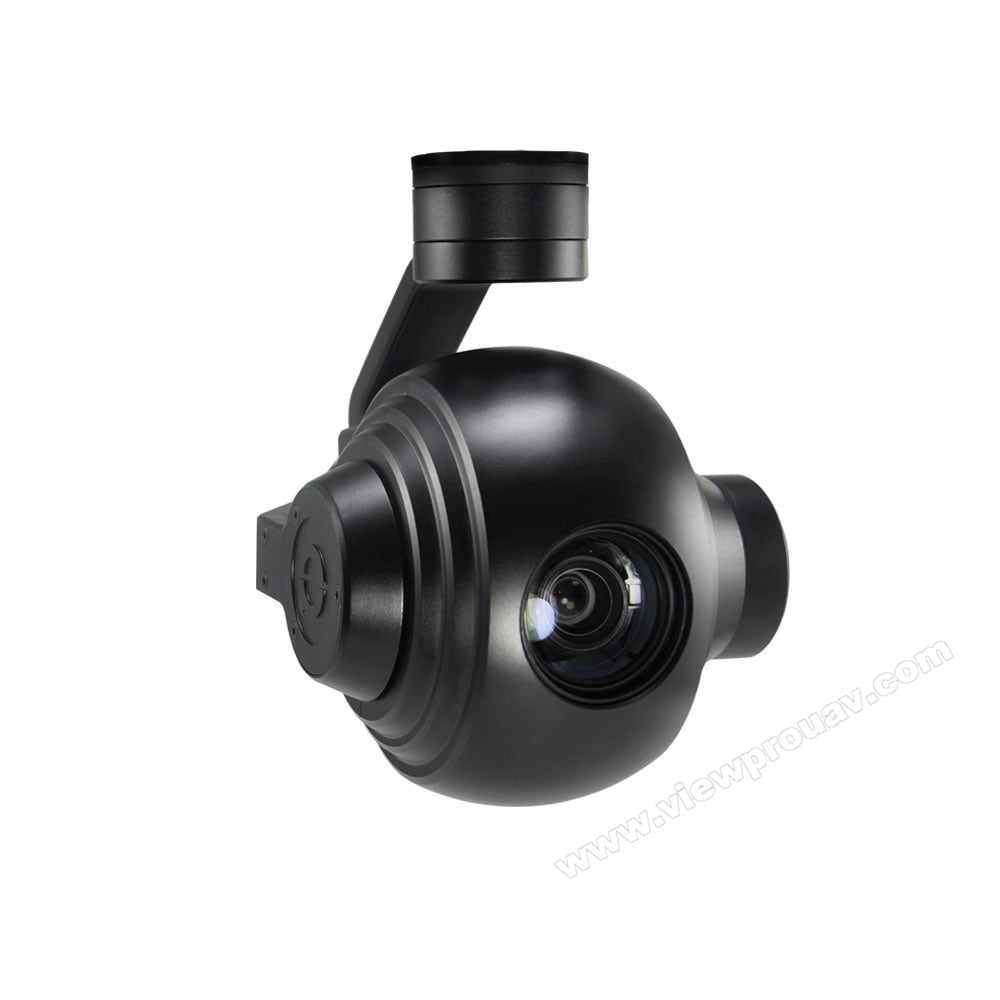

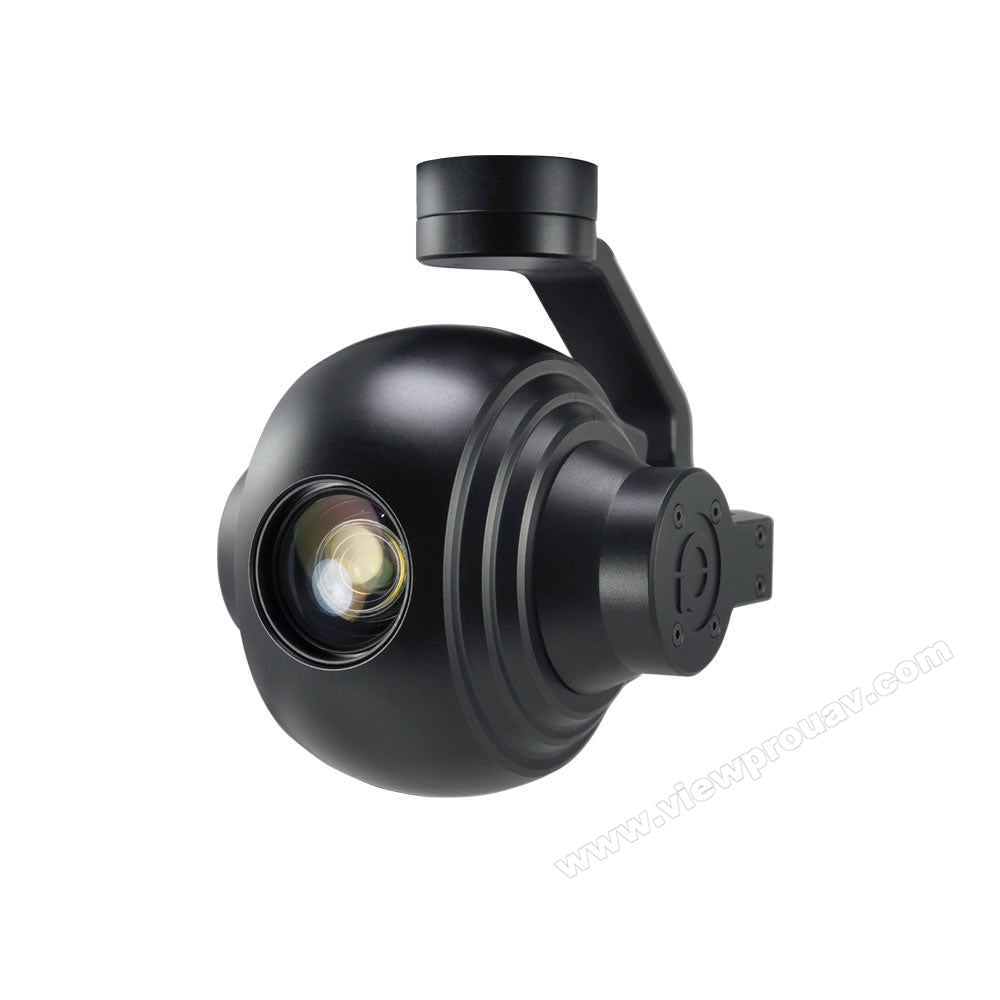

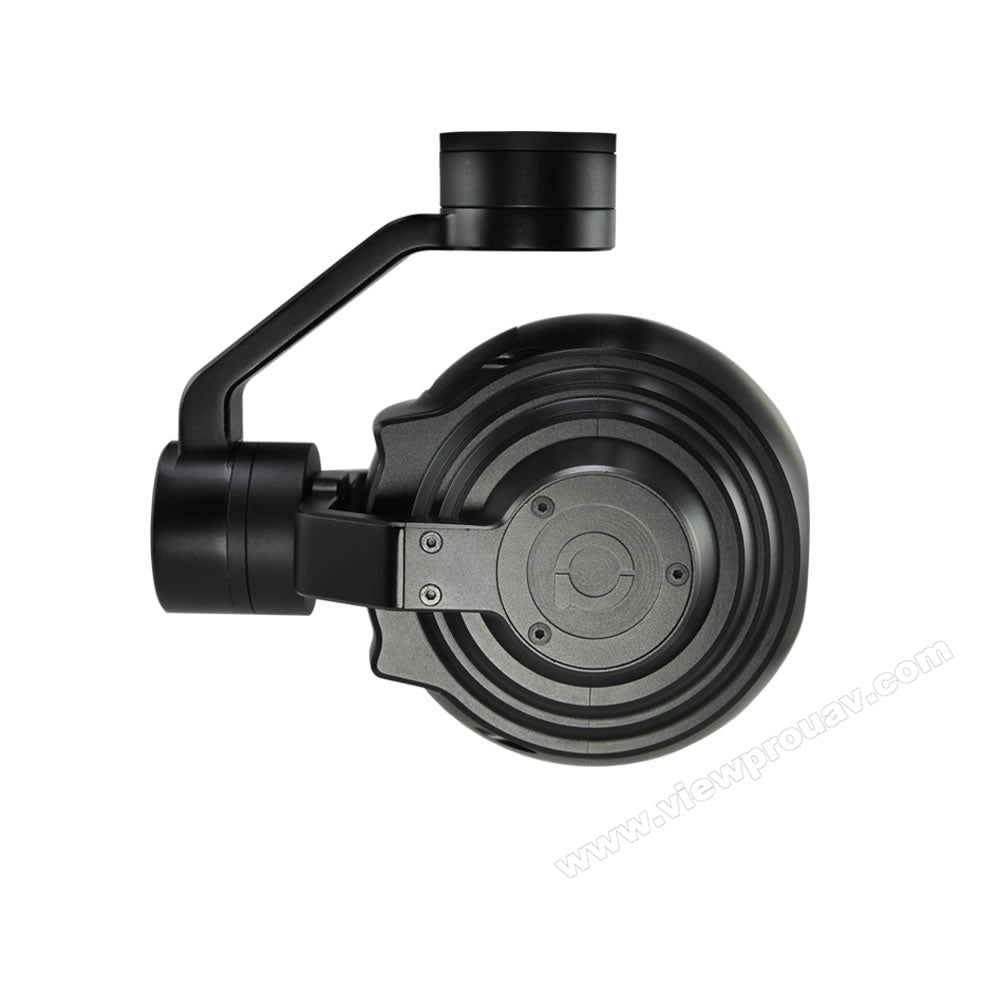

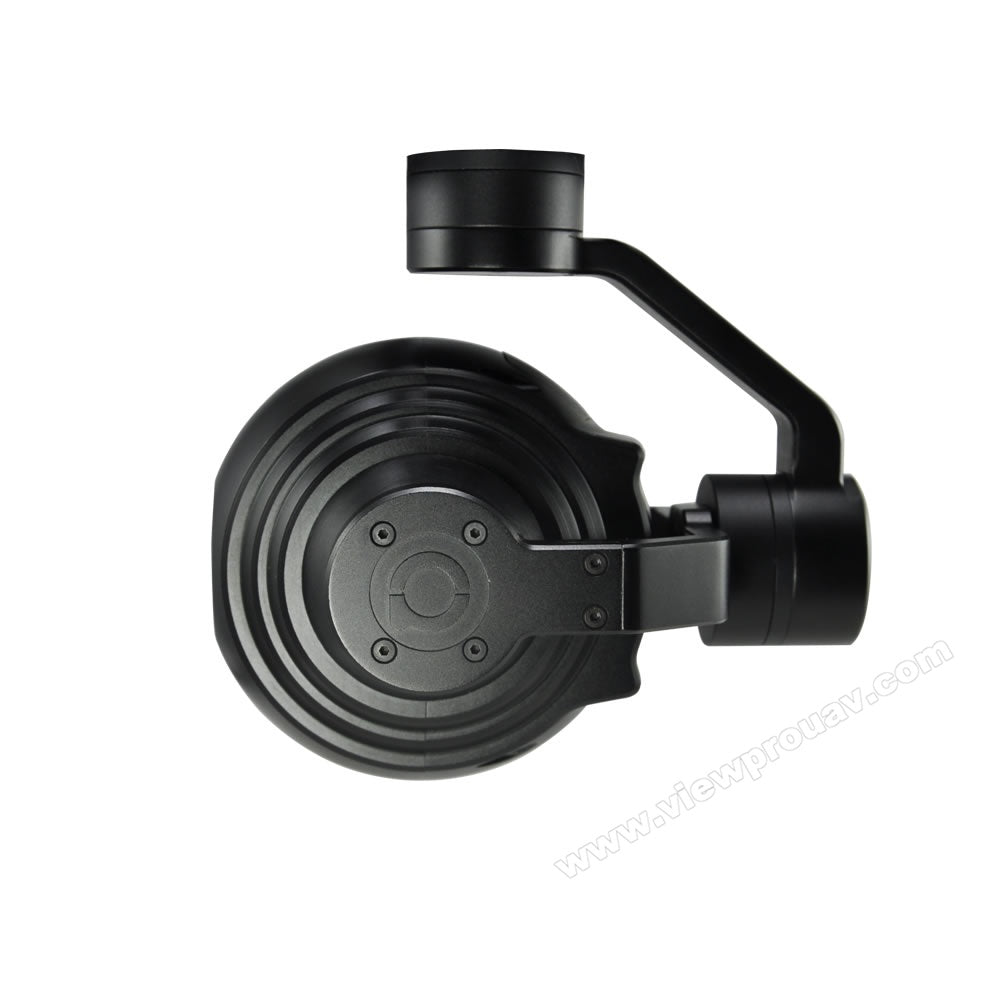

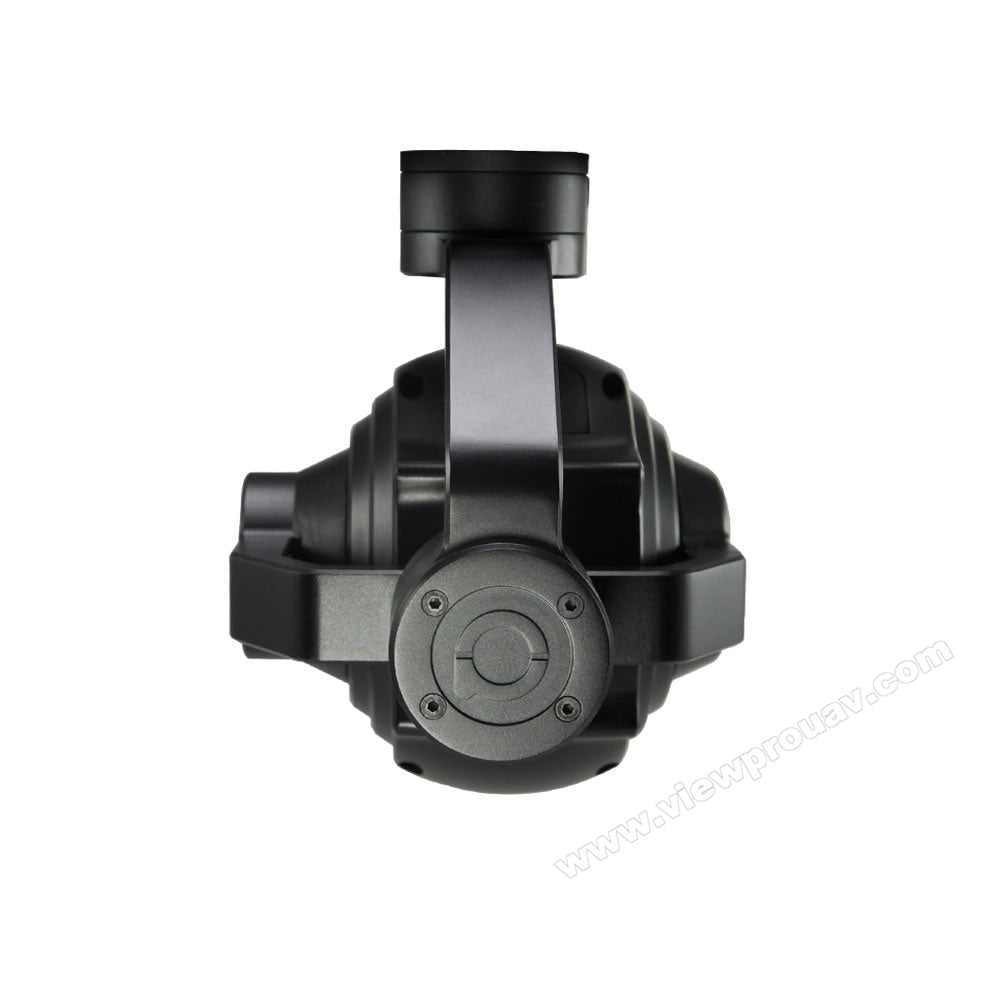

Q10T features 10x optical zoom and auto tracking function. It is a 3-axis gimbal camera for UAV, especially for small drones which require light weight payloads. Alluminum alloy hosing is ideal for light weight meanwhile keeping perfectly anti-interference and cooling. It outputs and records FHD 1080p video with OSD. Connected to GPS module it has geo tagging funcion. Combining with high-precise stabilisation system and automatic thermal compensation algorithm, the gimbal can fulfill high level stablization requirements without thermal drifting.
10x Time Optical Zoom EO Camera
Powered by 10x optical zoom high resolution camera module, Q10T can recognize cars in 1000 meters, which can meet the application requirements of various domains.
Built-in Auto-tracking Function
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
Multi Control Methods
Multi Output Methods Optional
Q10T support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.
Compatible with Viewport
Q10T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Applications
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties
Dimensions
Specification
Hardware Parameter | |
Working voltage | 12V |
Input voltage | 3S ~ 4S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 320mA @ 12V |
Idle current | 240mA @ 12V |
Power consumption | ≤ 3.85W |
Working environment temp. | -20℃ ~ +50℃ |
Output | micro HDMI(HD output 1080P 60fps)/IP |
Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
Control method | PWM / TTL / S.BUS / TCP |
Gimbal spec | |
Pitch/Tilt | ±90° |
Roll | ±85° |
Yaw/Pan | ±300°/±360°(IP output) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.03° |
One-key to center | √ |
Camera spec | |
Imager Sensor | 1/3inch CMOS |
Picture quality | Full HD 1080 (1920*1080) |
Effective pixel | 2.13MP |
Lens optical zoom | 10x, F=4.9~49mm |
Digital zoom | 12x (360x with optical zoom) |
Min object distance | 1.5M |
Horizontal viewing angle | Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end) |
Vertical: 39.8°(wide end) ~ 4.2°(tele end) | |
Focus: 66.6°(wide end) ~ 7.2°(tele end) | |
Sync system | Progressive scanning |
S/N ratio | 38dB |
Min illumination | Color 0.05lux@F1.6 |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
Gain | Auto |
White balance | Auto/Manual |
Shutter speed | Auto |
Backlight compensation | Backlight compensation/strong light inhibition |
User presetting bit | 20 sets |
Image rotation | 180°, Horizontal/Vertical mirror image |
OSD | Yes |
Camera Object Tracking | |
Update rate of deviation pixel | 50Hz |
Output delay of deviation pixel | <10ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 32*32 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | ±48 ~ ±192 pixel/frame |
Object memory time | 100 frames (4s) |
The mean square root values of pulse noise in the object position | < 0.5 pixel |
Packing Information | |
N.W. | 492g |
Product meas. | 140*91.2*126.1mm |
Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
Package meas. | 152*121*167mm |
