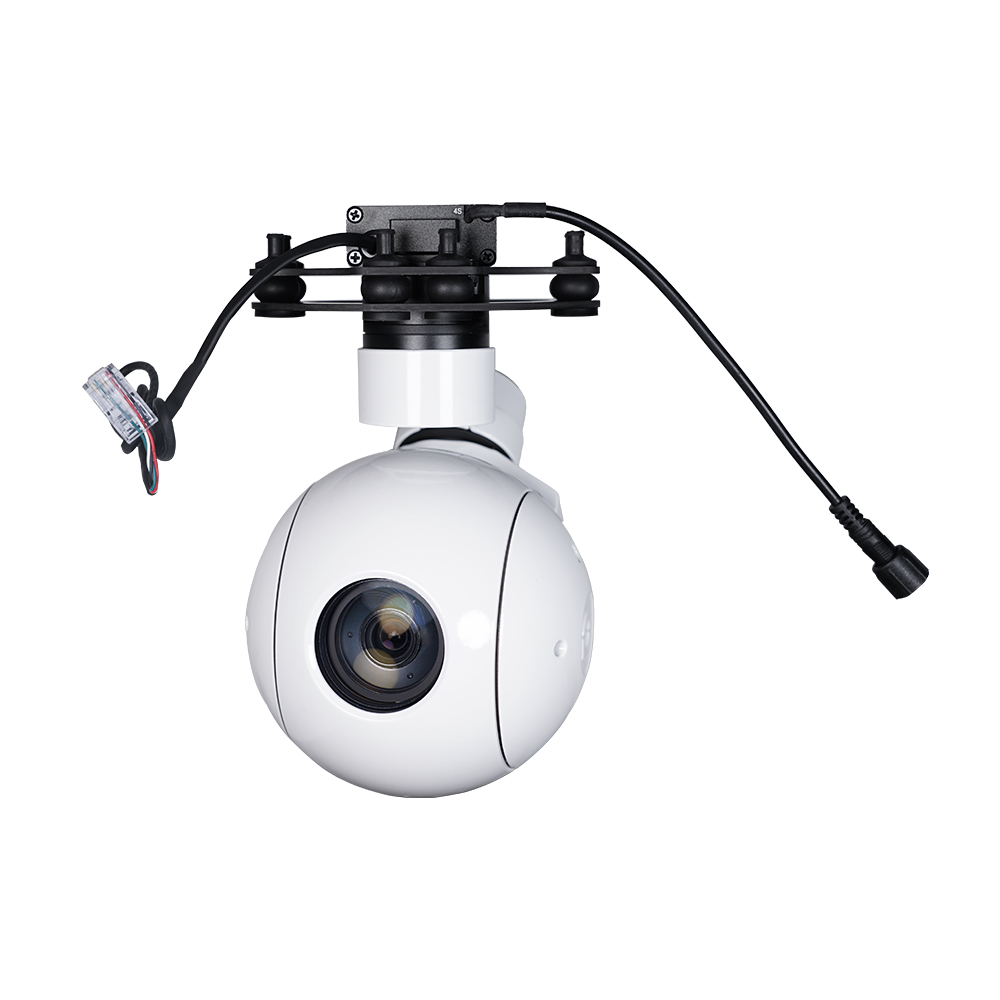

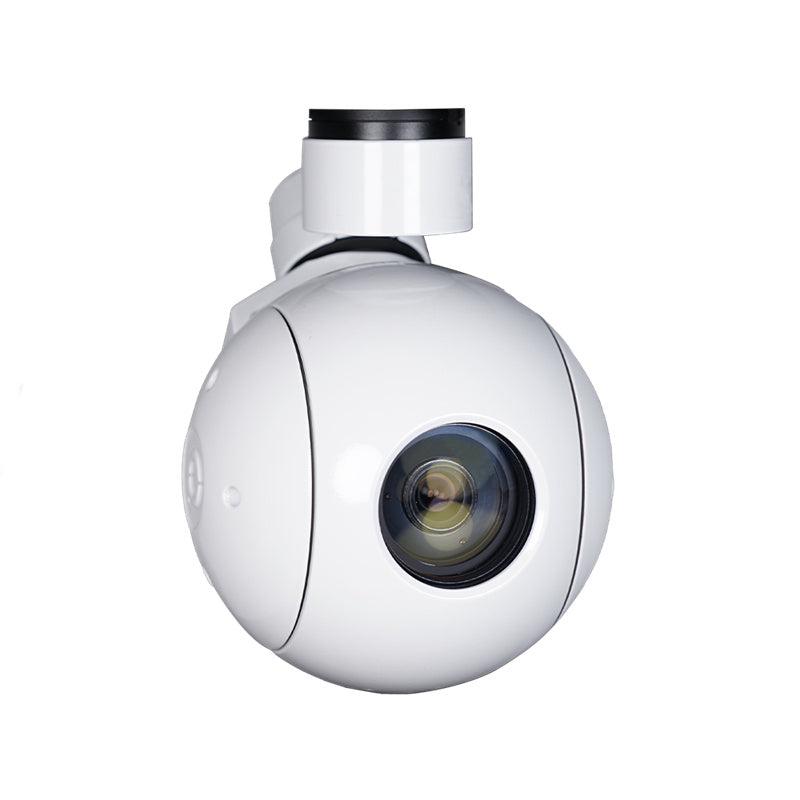

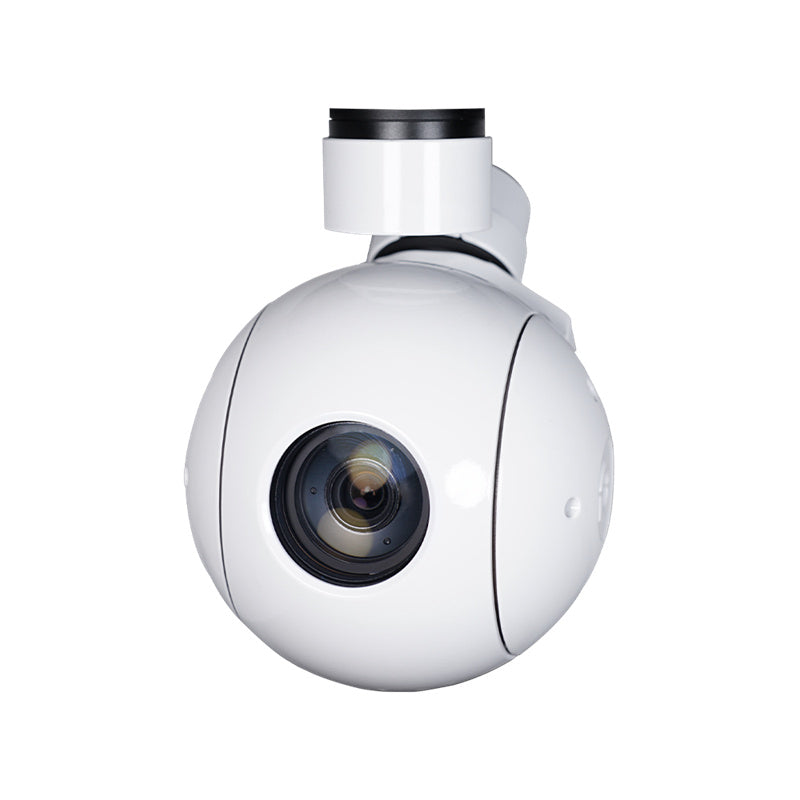

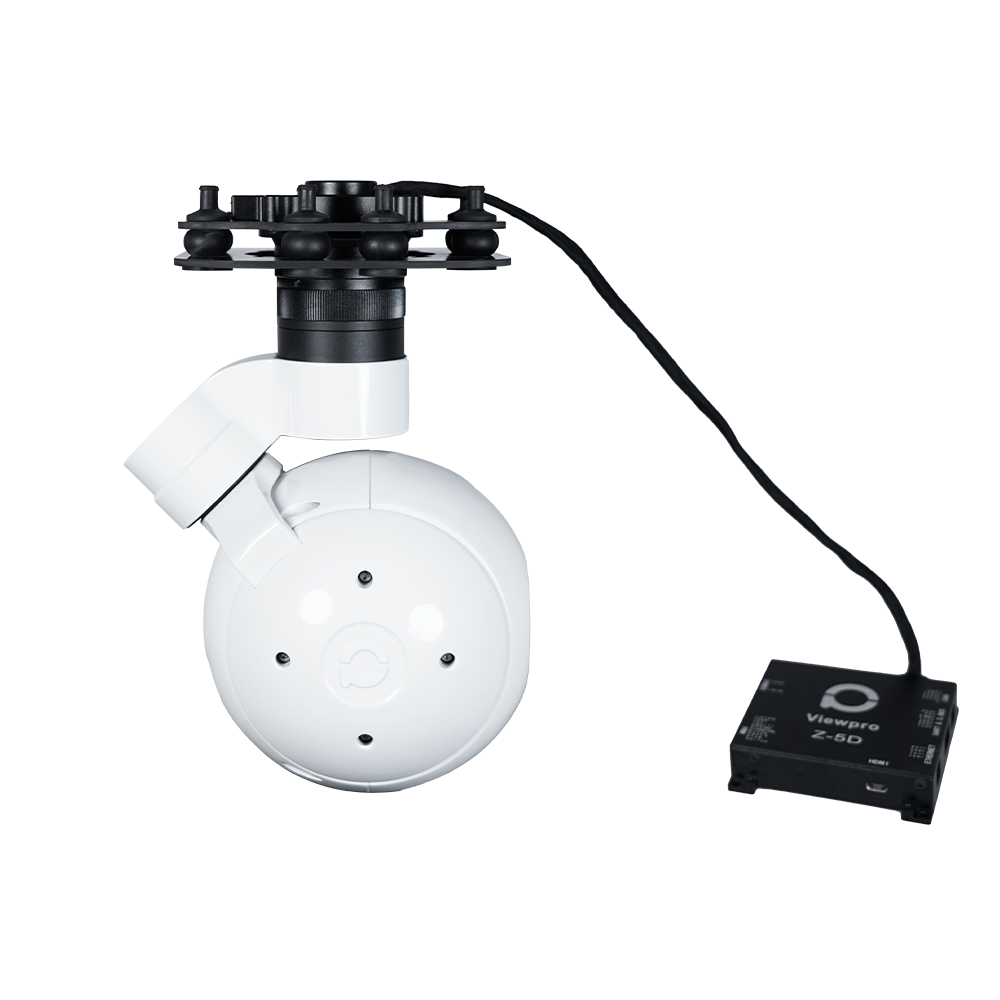

Q30T pro ā ” features a 30x optical zoom lens. Itās powered by SONY 1/2.8ā āExmor RāĀ CMOS module, FHD 1080p video, fast auto-focus speed, designed for UAV aerialĀ photography. A lightweight design combined with 3-axis gimbal makes the gimbalĀ motors ultra-reactive. FOC solution can greatly compensate the vibration of UAV.Ā Yaw axis could realize 360Ā° continuous rotation with default SDI output. At the sameĀ time, Q30T pro can achieve target tracking. The image is stable even at 30 timesĀ optical zoom. All the parameters have been perfectly set, you just need to install theĀ gimbal camera to UAV, then ready to fly.
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30T pro ā ” can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.
Ā
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Q30T ā ” supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.
Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro softwareĀ ViewlinkĀ you can fulfill IP output, TTL control and TCP contorl.
Q30T pro ā ” is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties
| Hardware Parameter | Ā |
| Working voltage | 12V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA @ 12V |
| Idle current | 400mA @ 12V |
| Power consumption | ā¤ 6W |
| Working environment temp. | -20ā ~ +60ā |
| OutputĀ | SDI / IP / micro HDMI(FHD output 1080P 60fps)Ā |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWMĀ / TTL / S.BUS/TCP(IP output version) |
| Gimbal spec | Ā |
|
Angle range of structure design |
Pitch/Tilt: -50Ā°ļ½165Ā°, Roll: Ā±27Ā° Yaw/Pan: Ā±300Ā° / Ā±360Ā°*N(IP / SDI output version) |
|
Angle range of software designĀ |
Pitch/Tilt: -45Ā°ļ½90Ā° Yaw/Pan: Ā±290Ā°/ Ā±360Ā°*N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: Ā±0.02Ā°, Yawļ¼Ā±0.02Ā° |
| One-key to center | ā |
| Camera spec | Ā |
| Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle |
1080p mode: 63.7Ā°(wide end) ~ 2.3Ā°(tele end) 720p mode: 63.7Ā°(wide end) ~ 2.3Ā°(tele end) SD: 47.8Ā°(wide end) ~ 1.7Ā°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority) Bright, EV compensation, Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | Ā |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <10ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | Ā±48 ~ Ā±192 pixel/frame |
| Object memory time | 100 frames (4s) |
|
The mean square root values of pulse noise in the object position |
< 0.5 pixel |
| Packing Information | Ā |
| N.W. | 742g (Viewport version) |
| Product meas. | 109.7*127*184mm/109.7*127*189.7mm (Viewport version) |
| Accessories | 1pc gimbal camera device / plastic box |
