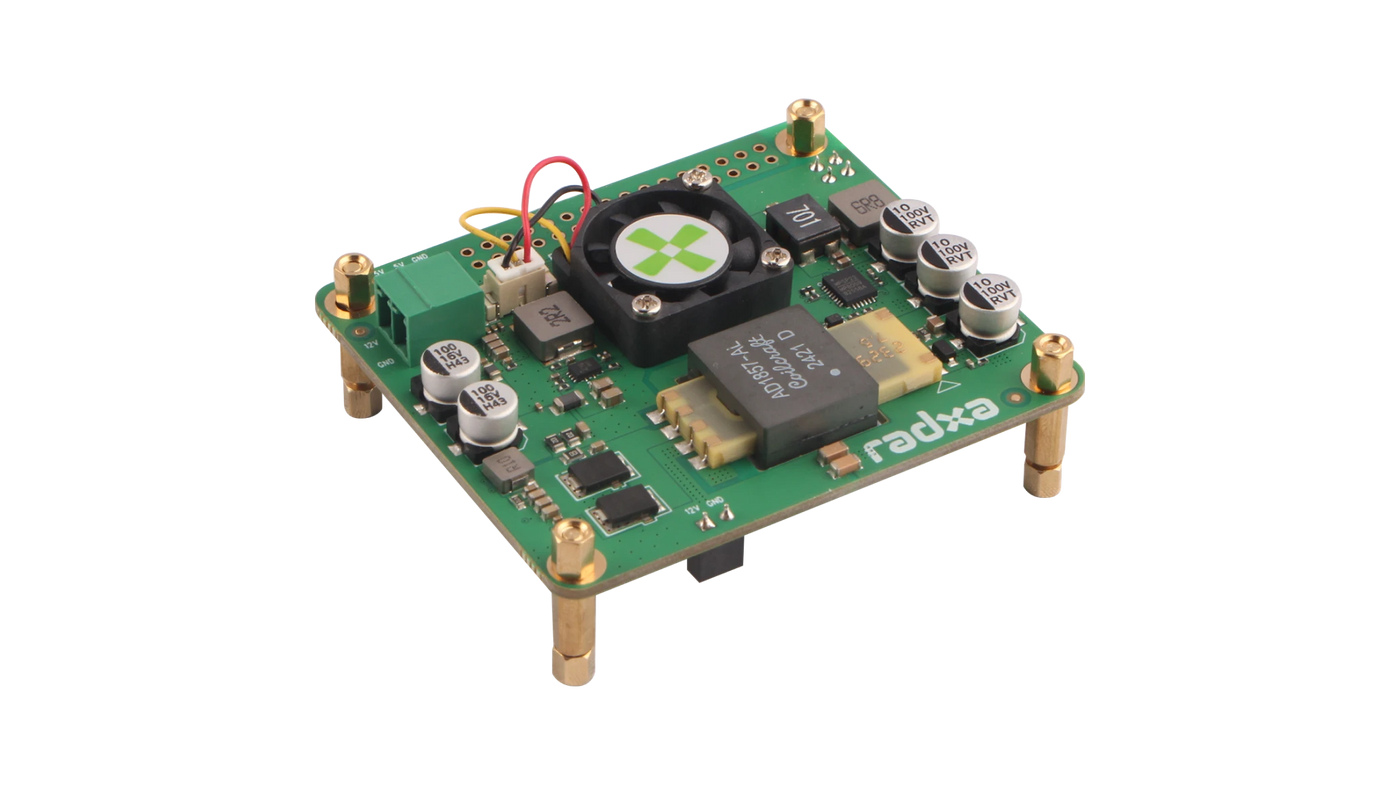

Radxa 25W PoE+ HAT for Radxa X4

SKU: RDXA1364

₹ 2,149.99

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

Radxa 25W PoE+ HAT for Radxa X4₹ 2,149.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

25W PoE+ HAT for X4

Designed for Radxa X4

Distinguishing Features of Two Versions

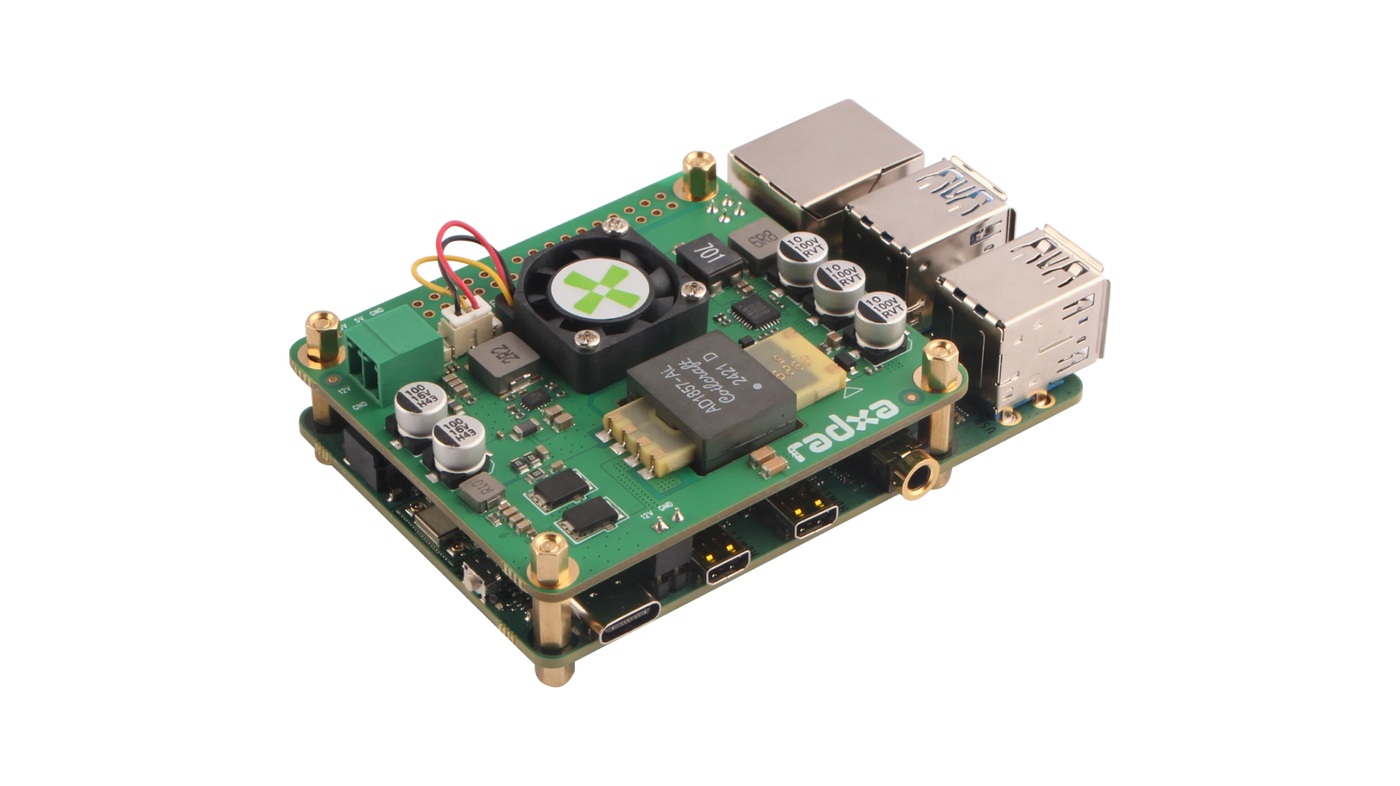

Radxa 25W PoE+ HAT for X4 Powers Radxa X4 via 2-Pin Power Output Interface.

Radxa 25W PoE+ HAT for X4

Two-in-One Network and Power Supply

Compliant with IEEE 802.3at Standards

Significantly streamlines the complexity of network cabling and power management.

Enhanced Heat Dissipation Efficiency

The Radxa 25W PoE HAT for X4 comes equipped with a programmable cooling fan and temperature sensor

Delivering an impressive airflow of 1.45 CFM to help you achieve exceptional processor cooling performance.

Quick and Easy Installation

Tech Specs

Feature	Specification
PoE Standard	IEEE 802.3at
Wide Input Voltage Range	37 ~ 57V
Output Voltage / Current	5V / 4.8A or 12V / 2.1A When only a 5V load is connected: 5V DC / 4.8A When only a 12V load is connected: 12V DC / 2.1A
2-Pin Power Output	Yes
Sensor	Programmable Temperature Sensor
Cooling Fan	Customizable Cooling Fan Size: 20 x 20 mm Speed: 15000 ±15% RPM Airflow: 1.45 CFM
Compatibility	Radxa X4
Operating Temperature Range	0°C to +50°C
Package List	Radxa 25W PoE+ HAT for X4 4x M2.5x9+6 Copper Pillars 4x M2.5x4+6 Copper Pillars 4x M2.5x5 Copper Pillars Note: If used with Radxa Heatsink for X4, replace M2.5x9+6 with M2.5x9+3 copper pillars.

Download

3D Drawings

Download

How does the PoE Plus HAT power the X4 and what standard is used?

It powers the X4 via a 2 pin power output interface and complies with IEEE 802.3at PoE Plus standard.

What are the input and output specifications for this HAT?

The device supports a wide input range of 37 to 57 V. It provides 5 V at up to 4.8 A or 12 V at up to 2.1 A. If only a 5 V load is connected, it delivers 5 V DC at 4.8 A; if only a 12 V load is connected, it delivers 12 V DC at 2.1 A.

What cooling features are included to improve performance?

It includes a programmable cooling fan and a temperature sensor. The fan is 20 x 20 mm, runs at 15000 plus minus 15 percent RPM, and provides 1.45 CFM of airflow.

Is it compatible with the Radxa X4 and are there any installation notes?

Yes it is designed for Radxa X4. If used with the Radxa Heatsink for X4, replace M2.5x9 plus 6 copper pillars with M2.5x9 plus 3 copper pillars.

What is included in the package?

The package includes the Radxa 25W PoE Plus HAT for X4 and mounting pillars: 4x M2.5x9 plus 6 copper pillars, 4x M2.5x4 plus 6 copper pillars, and 4x M2.5x5 copper pillars.
