Compatible with TTL/RS232 standard, converting the TTL signal into RS232 signal, supports full-duplex communication
Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance
Onboard power supply screw terminal, allows 3.3V~5V DC input
Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
Specifications
PRODUCT TYPE
Galvanic isolated TTL To RS232 converter
POWER SUPPLY INTERFACE
Power supply
3.3V ~ 5V
Protection
over-voltage, reverse-proof
DEVICE PORT
TTL/RS232 standard compatible
TTL
Connector
screw terminal
Transmission distance
about 10m
Transmission mode
point-to-point
RS232
Connector
screw terminal
Protection
TVS diode, surge protection & ESD protection, power isolation and signal isolation
Transmission distance
About 15m
Transmission mode
Point-to-point
INDICATORS
PWR
Red power indicator, lights up when there is power supply connection and voltage is detected
TXD
TX indicator, lights up when the TTL port sends data
RXD
RX indicator, lights up when the TTL port receives data

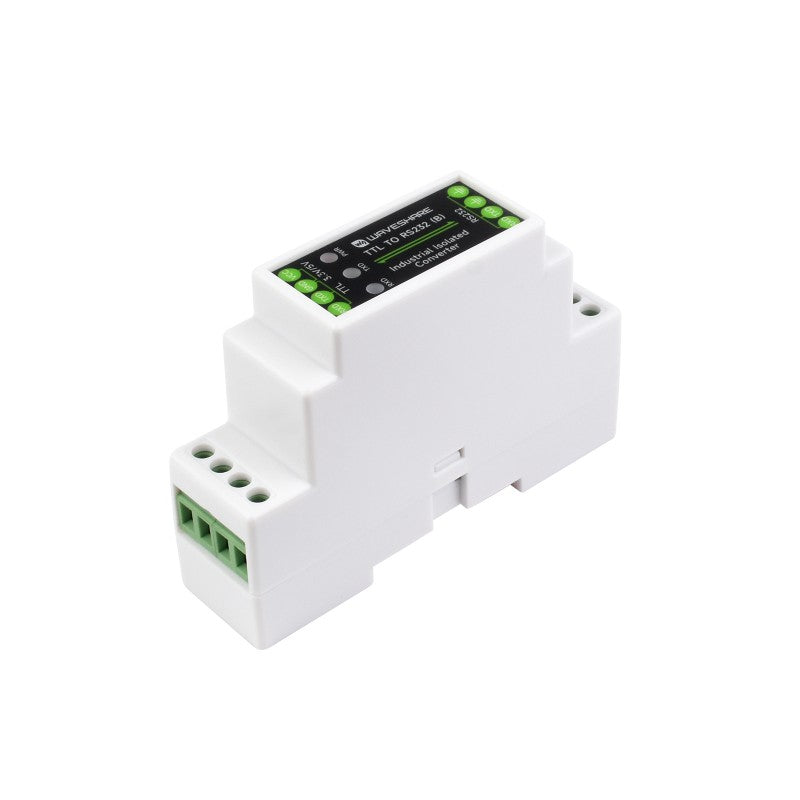

APPEARANCE
Case

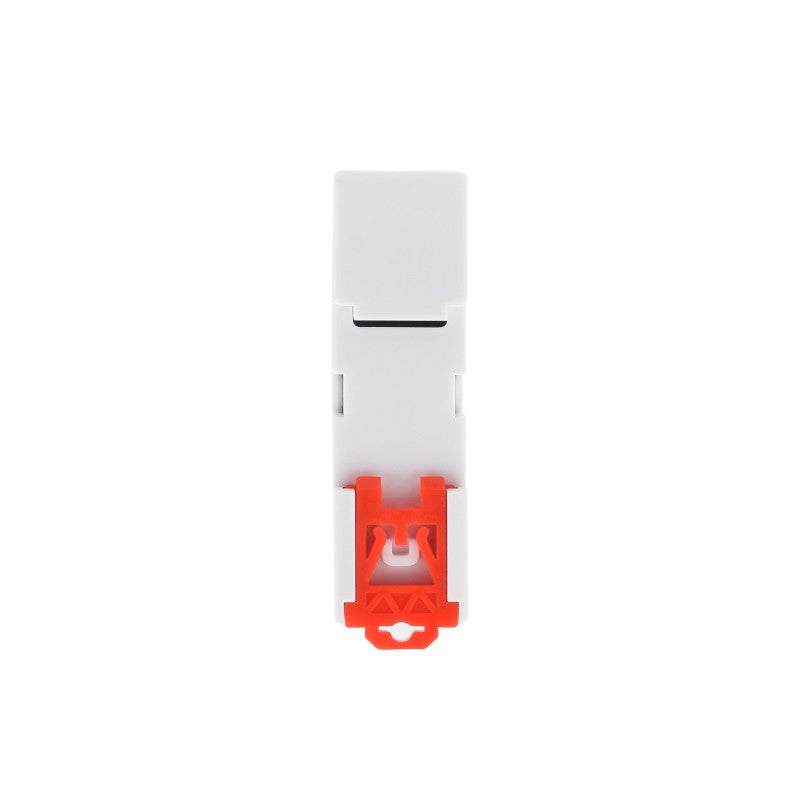

Rail-mount ABS case, suitable for 35mm DIN rail
Dimensions
91.6 × 58.7 × 23.3mm
Primary Function
For Converting The TTL Signal Into RS232 Signal And Expanding Communication Distance

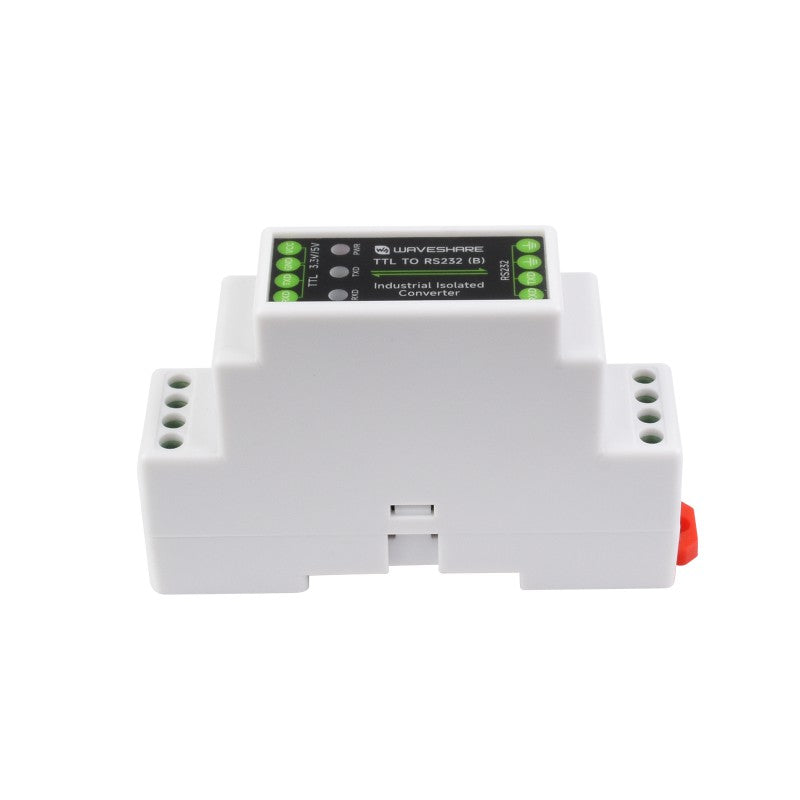

Rail-Mount Support
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely
Multiple Protection, Safe And Stable
Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard ESD protection and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance

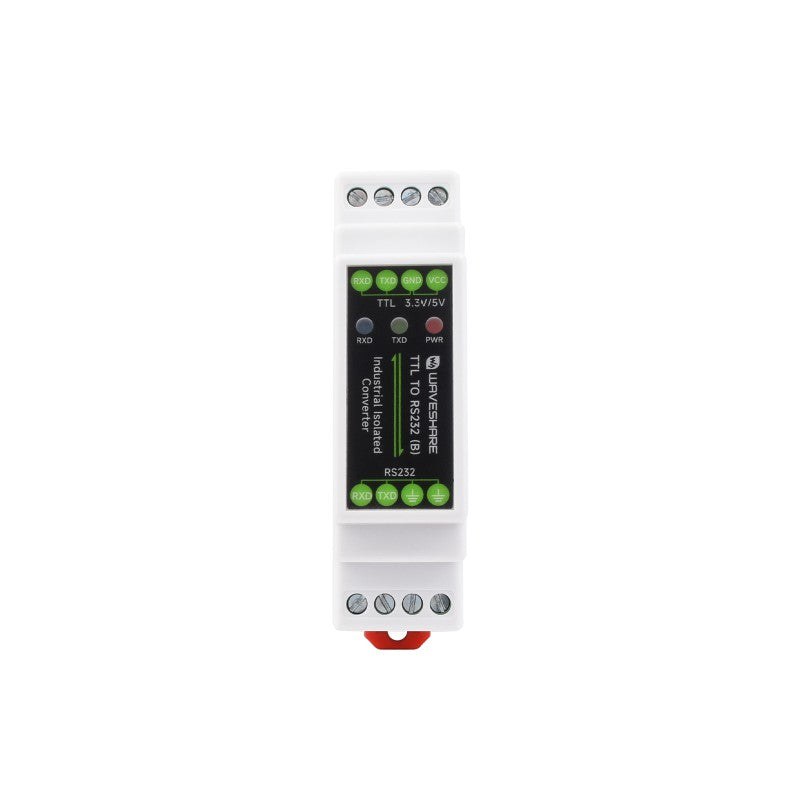

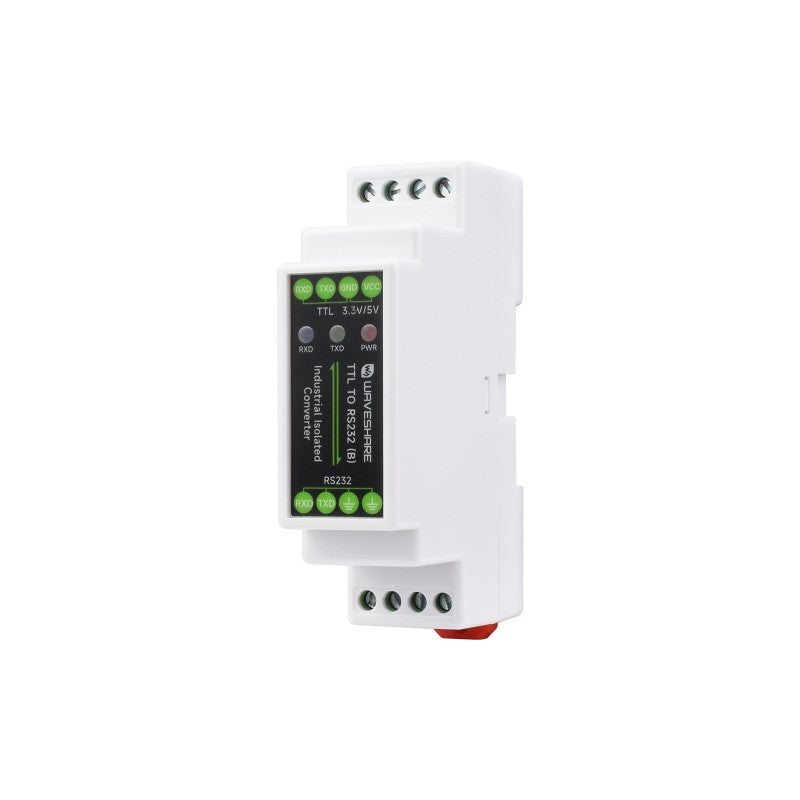

Interface Introduction
TOP SIDE SCREW TERMINAL
BOTTOM SIDE SCREW TERMINAL
VCC
Power Input DC 3.3V~5V power supply
SGND
RS232 signal ground
GND
Ground / TTL signal ground
TXD
TTL transmit data pin
TXD
RS232 transmit data pin
RXD
TTL receive data pin
RXD
RS232 receive data pin
Communication Connection Diagram
TTL convert to RS232, point-to-point, full-duplex communication, suitable for interface conversion
Two groups TTL To RS232 conversion, point-to-point, full-duplex communication, suitable for extending the communication distance of TTL
Application Examples
The TTL To RS232 (B) can be widely used for point-to-point communication network between two hosts, or between host and MCU/Peripheral. It also can be used in application scenarios that require TTL To RS232 conversion such as Industrial Automation and IoT.
