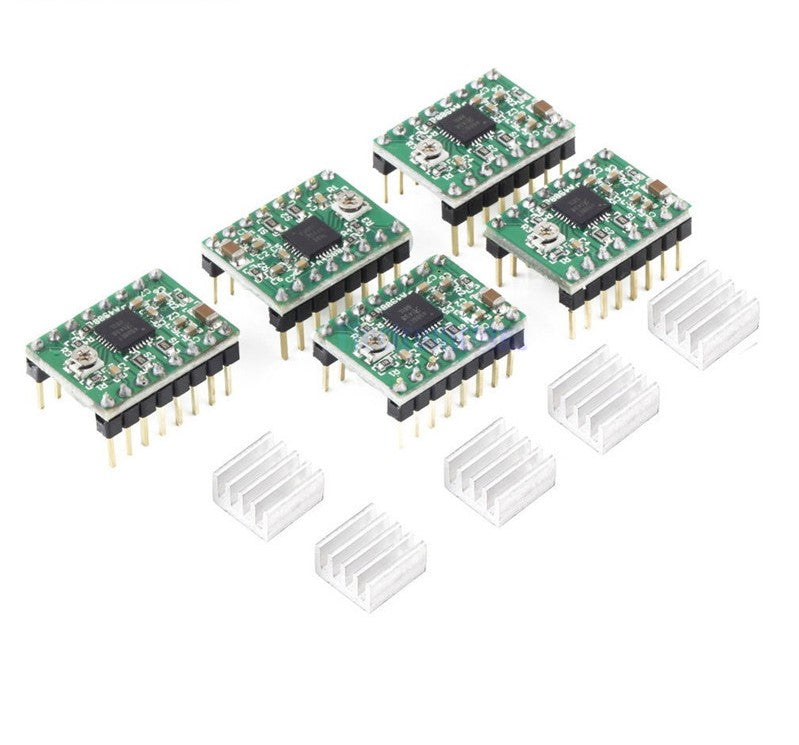

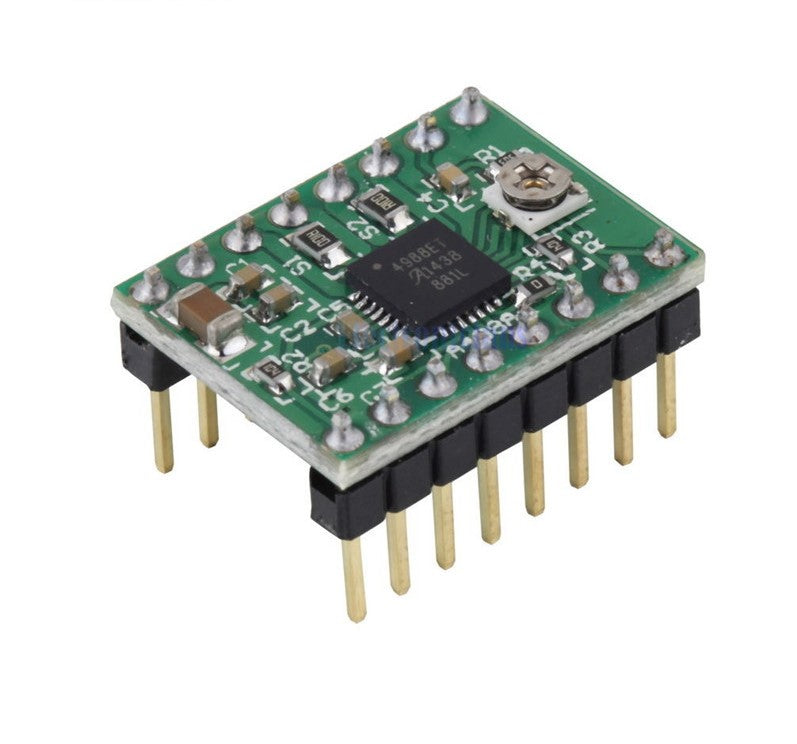

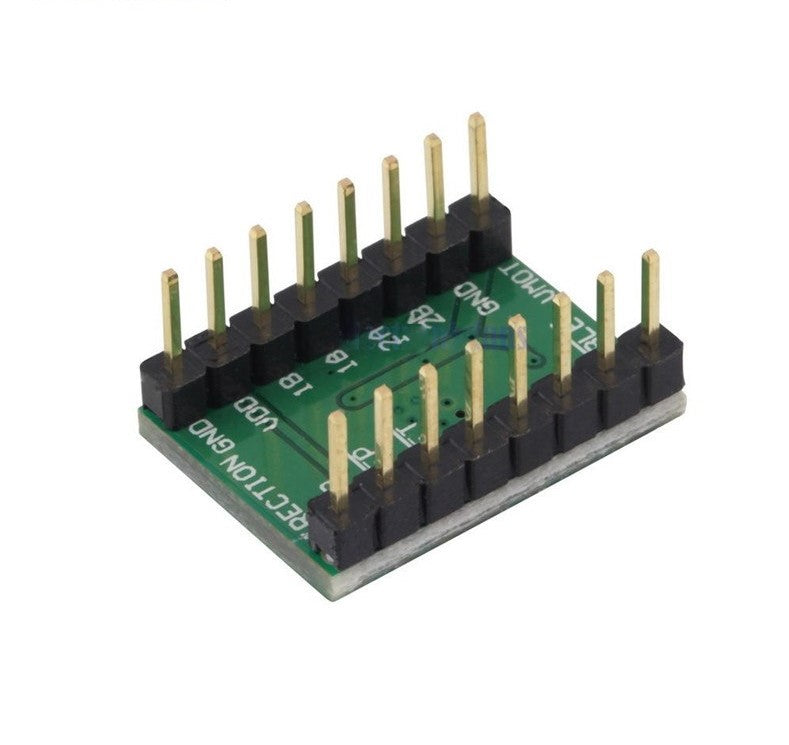

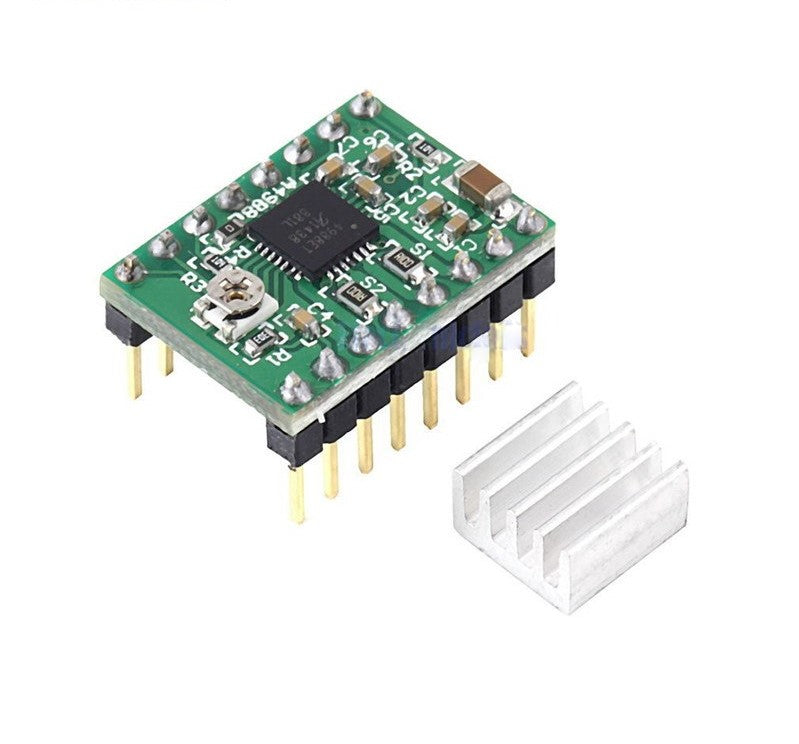

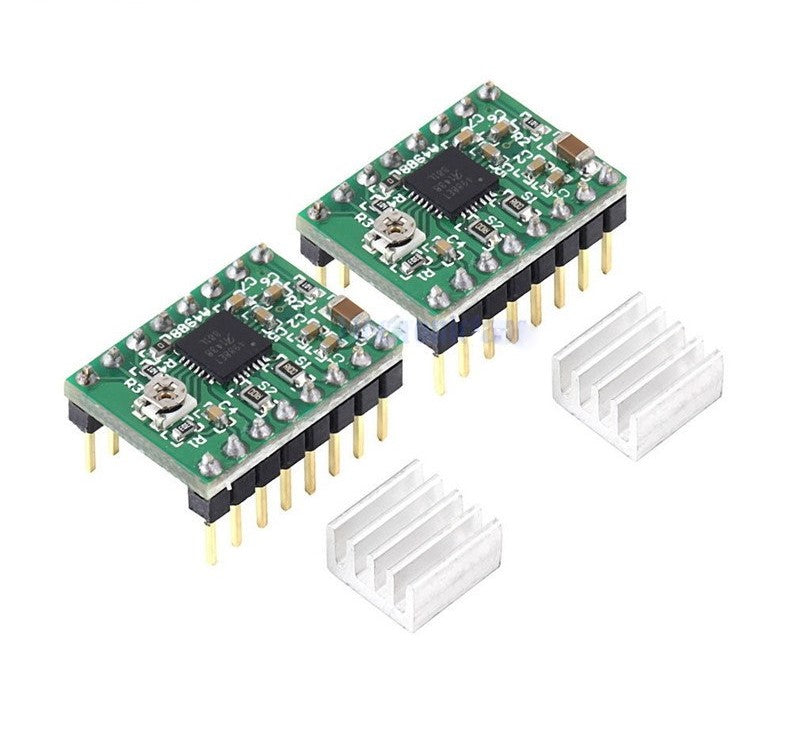

This product is a breakout board for A4988 DMOS Micro stepping Driver with Translator and Over current Protection.This stepper motor driver lets you to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes, with an output drive capacity of up to 35 V and 2A Maximum output current is a Simple step and direction control interface five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor¡¯s rated voltage to achieve higher step ratesIntelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection Short-to-ground and shorted-load protection.
