Best seller

Waveshare

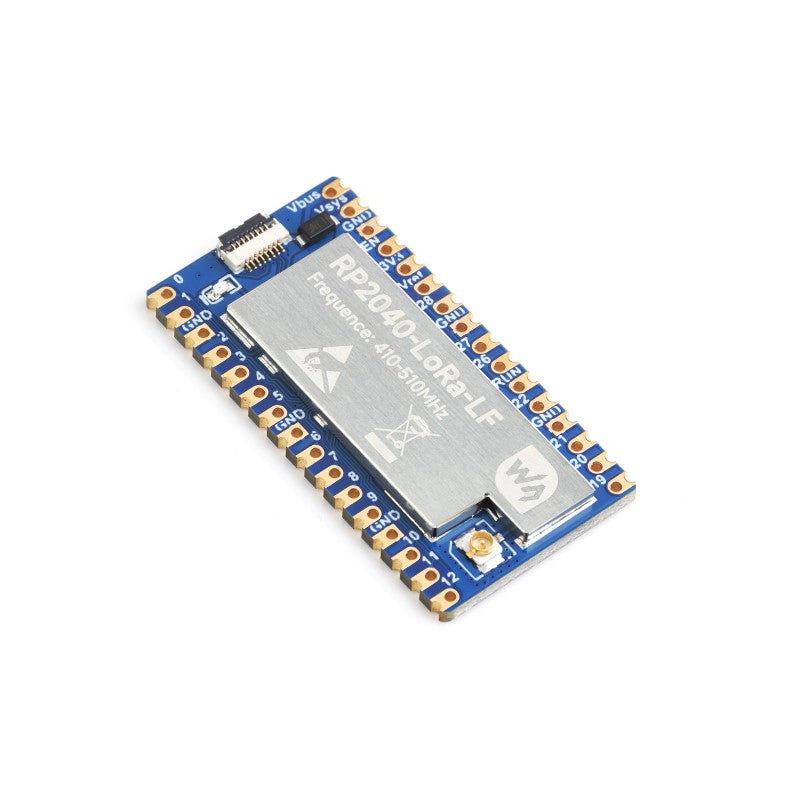

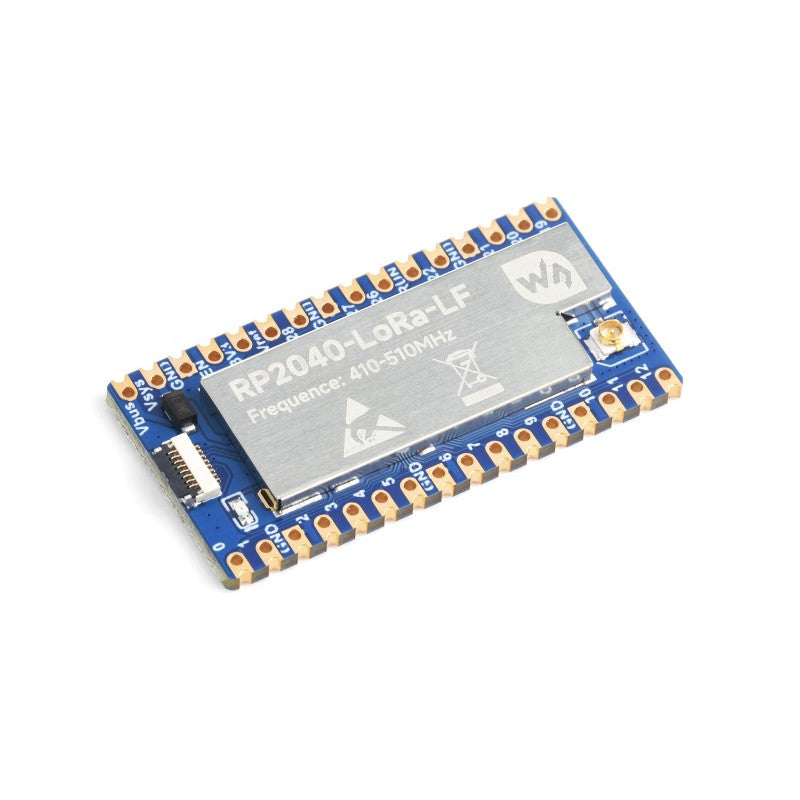

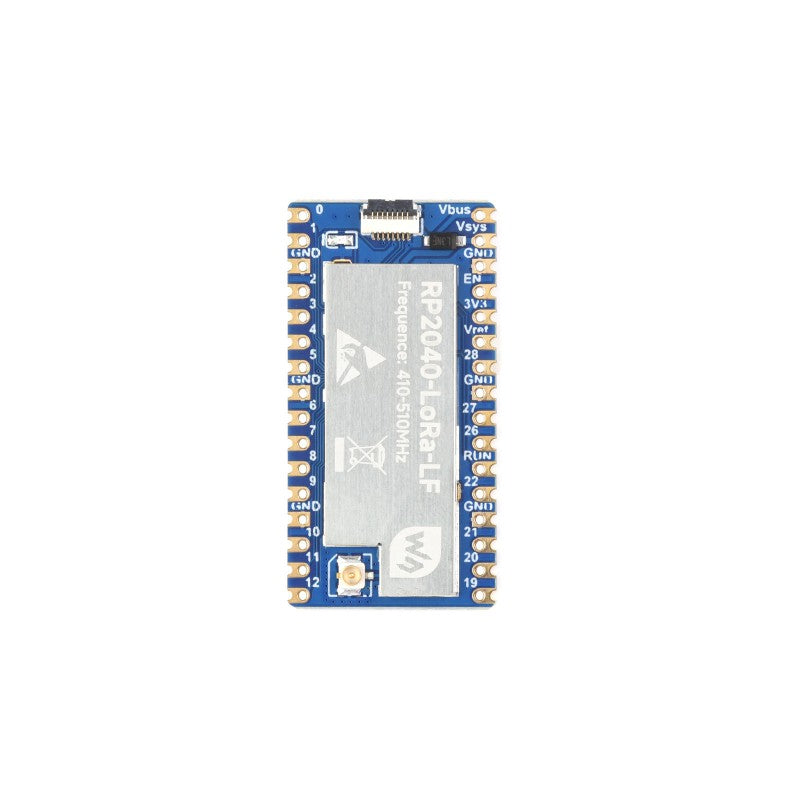

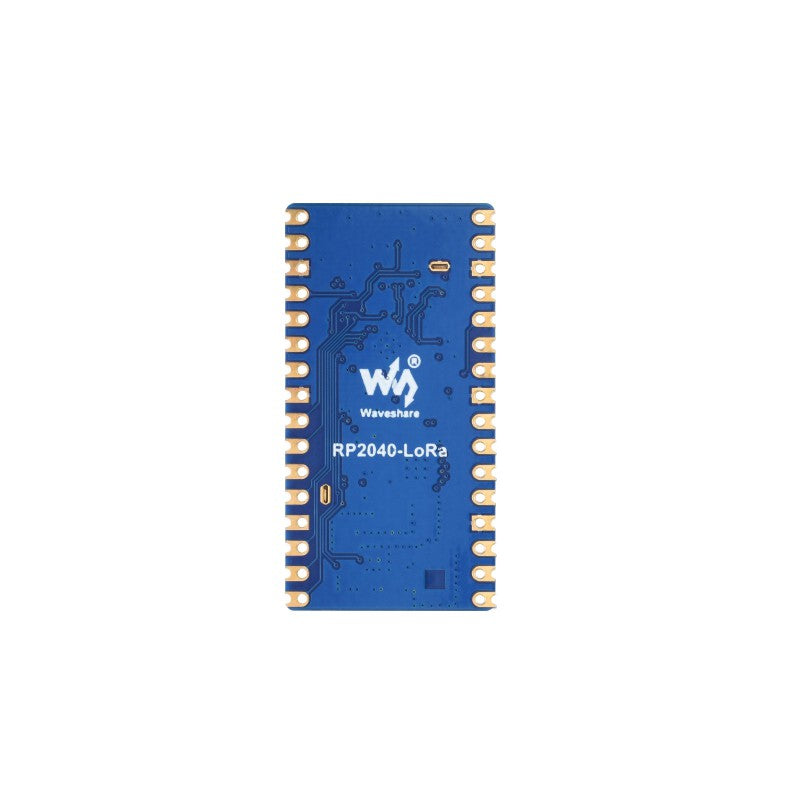

RP2040-LoRa Development Board

SKU: WVSH0301

₹ 1,449.99

In stock | Ready to ship

Select variant

Frequency LF: 410 ~ 525MHz

LF: 410 ~ 525MHz HF: 850 ~ 930MHz

Development Board Not Included

Not Included Included

Chat with us on WhatsApp We reply quickly! Contact Us

RP2040-LoRa Development BoardLF: 410 ~ 525MHz / Not Included₹ 1,449.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

RP2040-LoRa Development Board

Integrates the new generation SX1262 RF chip

Specifications

RP2040-LoRa is a LoRa development board using the new generation of SX1262 RF chip, provides better performance than the SX127X series in power consumption, communication distance and power efficiency. Adopts LoRa modulation technology to solve the problem in the traditional design solutions which can not balance distance, anti-interference, and power consumption at the same time. Combines with LoRa gateway for connecting Cloud Server such as TTN and ChirpStack for quick verification. Optional for LF/HF frequency band,

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB, up to 20 × multi-function GPIO pins
Supports FSK, GFSK, LoRa modulation, featuring better anti-blocking and ultra-long distance communication
With -148dBm high reception sensitivity and programmable emit power up to 22dBm
Supports preamble detection, with CRC, up to 256 bytes data packet engine
Comes with online resources and manual (example in C)

Specifications

VERSION	RP2040-LORA-LF	RP2040-LORA-HF
RF CHIP	SX1262
FREQUENCY RANGE	LF: 410 ~ 525MHz	HF: 850 ~ 930MHz
EMIT POWER	22dBm
EMITTING CURRENT	107mA@22dBm	118mA@22dBm
RECEIVING CURRENT	5.3mA@125KHz
SIGNAL MODULATION	LoRa/(G)FSK
OPERATING TEMPERATURE	-40 ~ 85℃
DIMENSIONS	21.00 × 41.00mm

Supports C

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

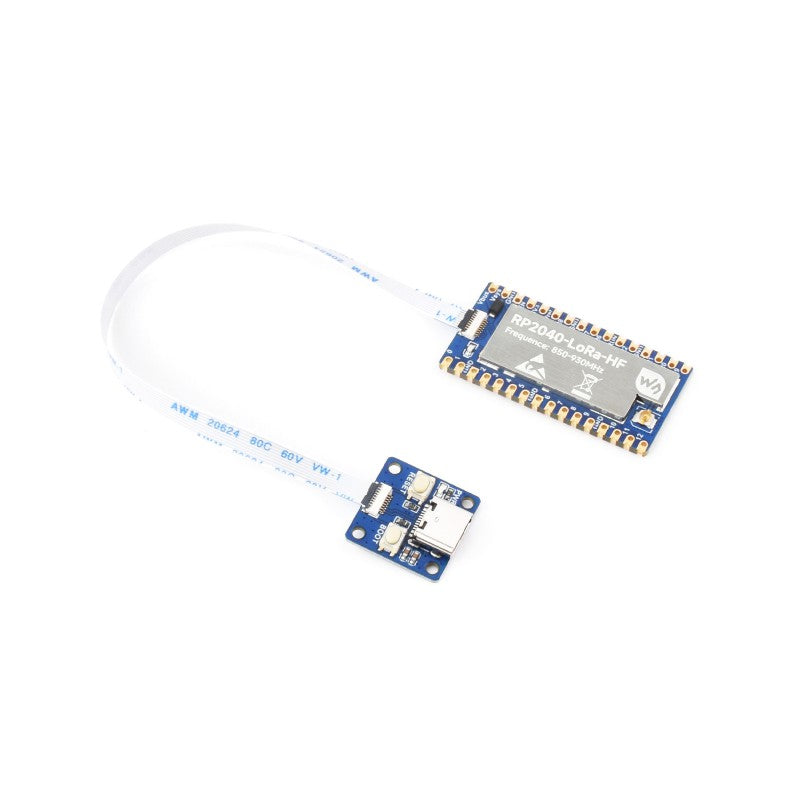

Compact Size, Separate Adapter Board Design

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications. Adapting USB Type-C Port Via Adapter Board

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

20 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

Comes With LoRa Antenna

Connecting With The Antenna Via Onboard IPEX Connector

Outline Dimensions

Resources

Wiki: www.waveshare.com/wiki/RP2040-LoRa

Packing List

Weight: 0.015 kg

RP2040-LoRa-LF

RP2040-LoRa-LF x1
2DB antenna 423~443MHz ~11cm x1
IPEX 1 to SMA adapter cable ~17cm x1
OPTIONAL USB Type-C adapter board x1
OPTIONAL 8PIN FPC cable ~15cm x1

RP2040-LoRa-HF

RP2040-LoRa-HF x1
2DB antenna 850~930MHz ~11cm x1
IPEX 1 to SMA adapter cable ~17cm x1
OPTIONAL USB Type-C adapter board x1
OPTIONAL 8PIN FPC cable ~15cm x1

What is this development board and what core and chip does it use?

This is a LoRa development board that combines the RP2040 dual core Arm Cortex M0 processor with the SX1262 RF chip.

Which frequency ranges are supported by the LF and HF variants?

The LF variant supports 410 to 525 MHz and the HF variant supports 850 to 930 MHz.

What are the power and reception specifications for this board?

Emitting power is up to 22 dBm with current around 107 to 118 mA, and receiving current is about 5.3 mA with a sensitivity of -148 dBm.

How do I program and develop on this board?

Drag and drop programming over USB mass storage is supported, and the kit provides a comprehensive SDK with tutorials and example code in C.

What is included in the packing and how do I connect antennas and adapters?

The packing includes the RP2040 LoRa board in the selected variant, a 2 dB antenna for the frequency range, and an IPEX to SMA adapter cable, with optional USB Type C adapter and 8 pin FPC cable.
