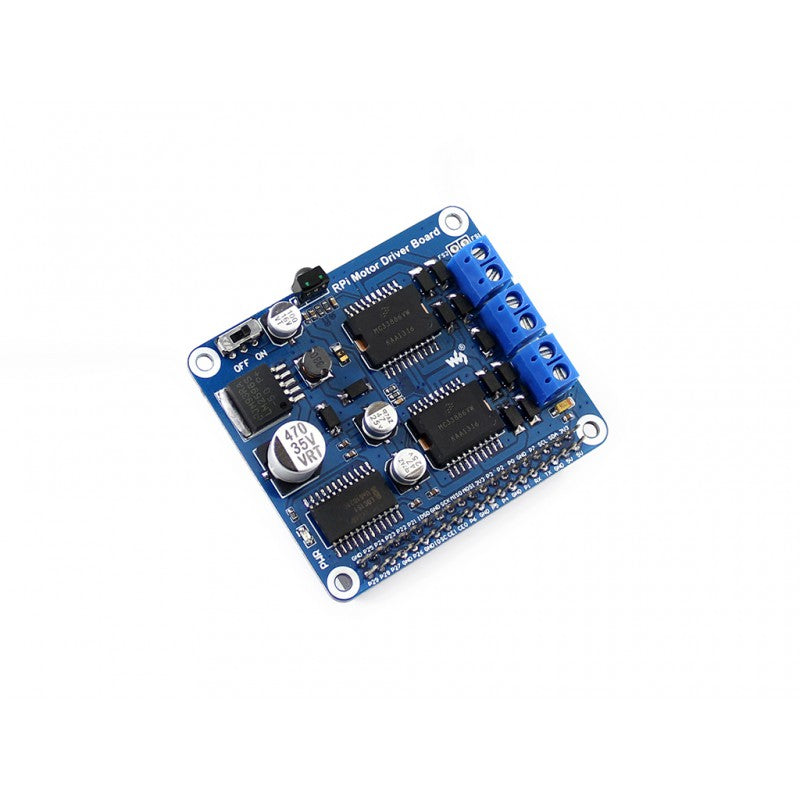

The RPi Motor Driver Board gives your Pi the ability to drive two DC motors OR one stepper motor. It's an ideal choice to DIY mobile robot based on Raspberry Pi.
Features

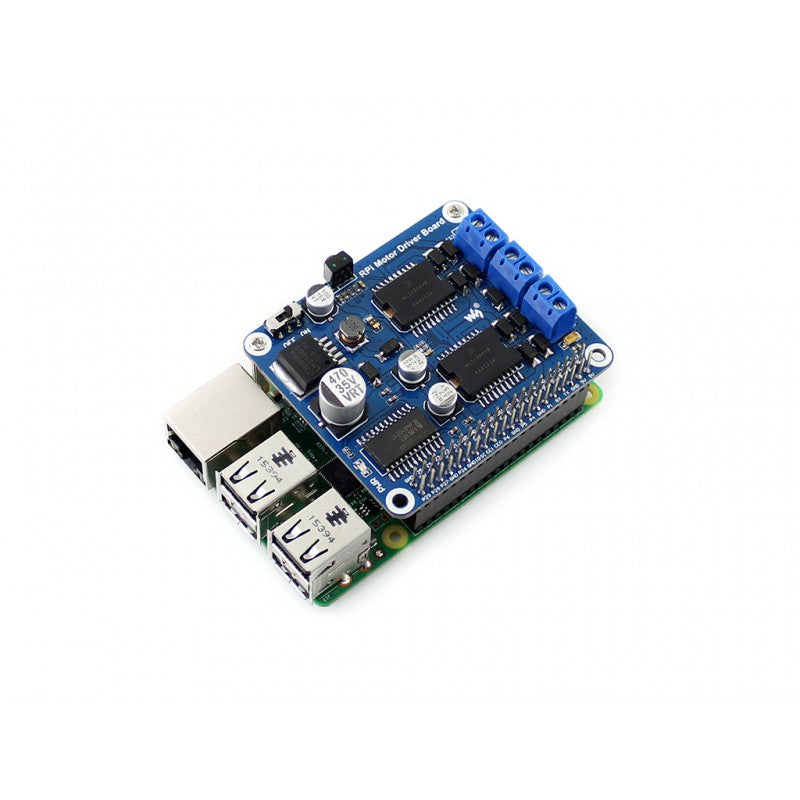

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
Onboard 5V regulator, provides power to Raspberry Pi
Onboard IR receiver, used for remote control robot
Multi protection circuit, excellent stability
2A self-recovery fuse, keep your Pi safe
Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
Reversed polarity protection for motor output
Anti-reverse diode for power supply
Power input range: 7V~40V
Single motor output current: up to 5A
Power supply current for Raspberry Pi: up to 2A
Package Contents:
Weight:0.037 kg
RPi Motor Driver Board x 1
RPi screws pack (2pcs) x 1
1 2
What's on Board
Raspberry Pi GPIO interface:for connecting Raspberry Pi
