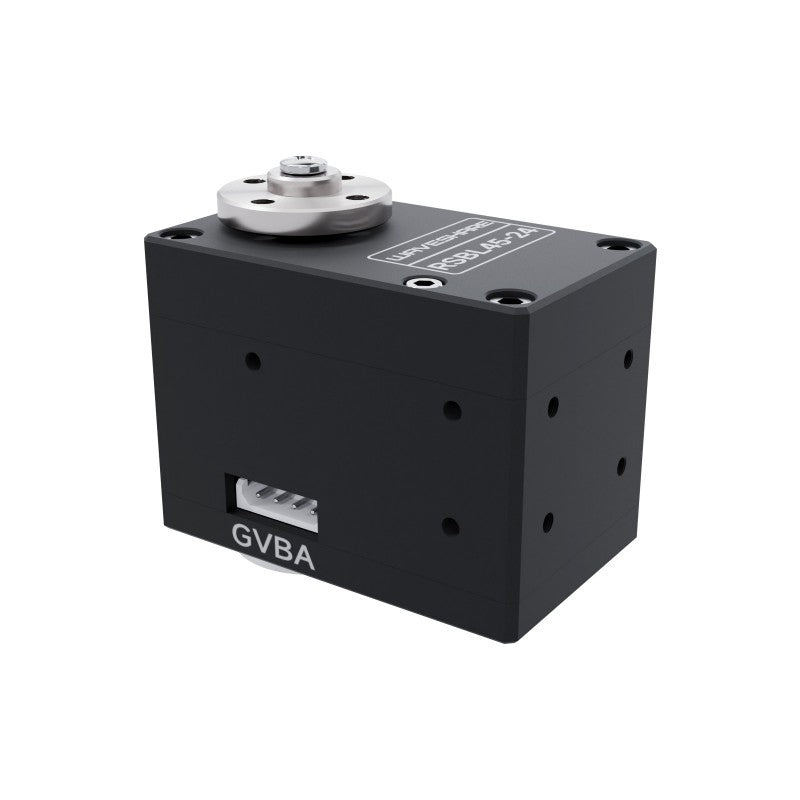

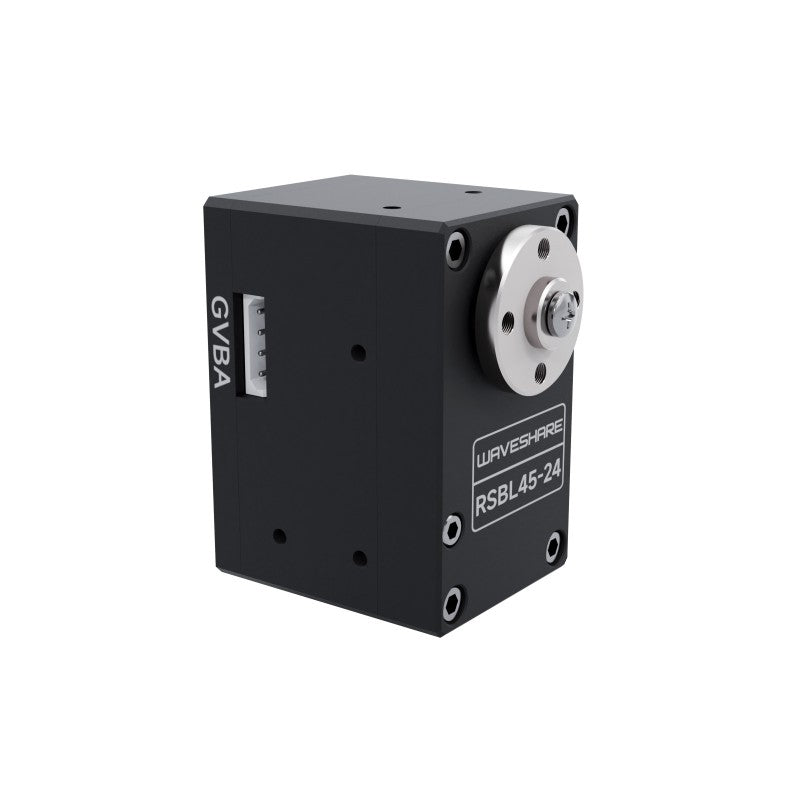

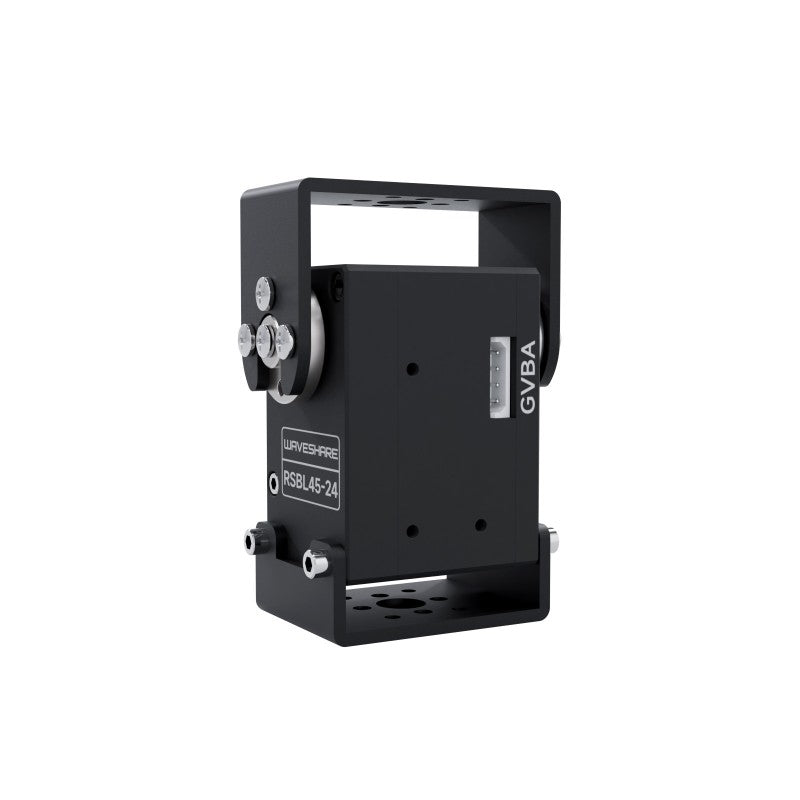

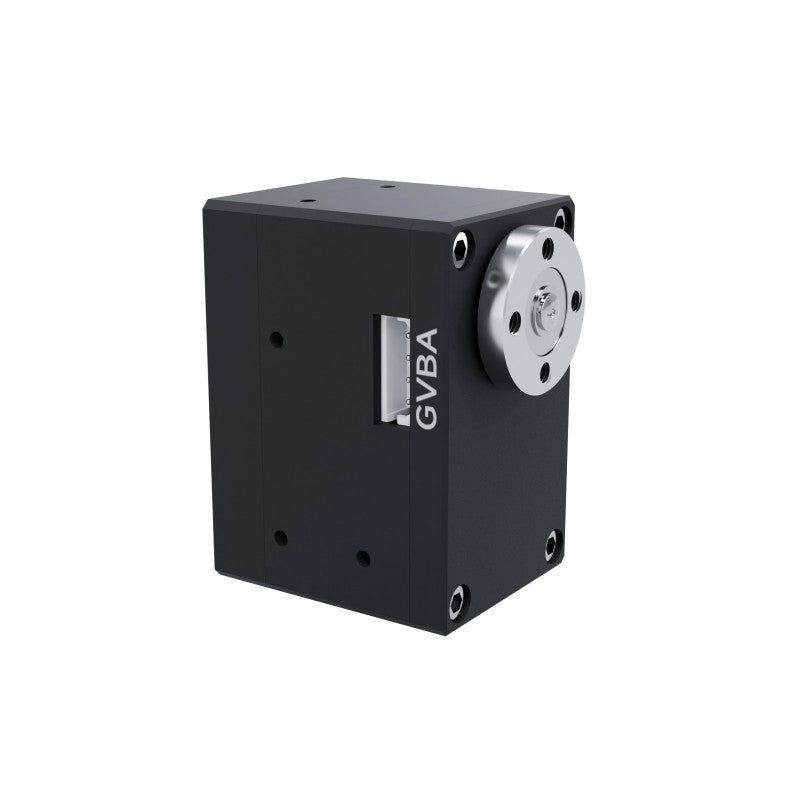

Aluminum Alloy Case, Brushless Motor, with 360° Magnetic Encoder
Specifications
Product model
RSBL45-24
Torque
45kg.cm@24V
Rotation angle
360° (0~4095)
Position sensor resolution
0.088° (360°/4096)
Mechanism limit angle
No limit
Working voltage
9 ~ 24 V (typ. 24V)
Gear
high precision steel gear (reduction ratio 1:353)
No-load speed
0.142sec/60degree 70RPM@24V
Encoder type
360° magnetic encoder
ID range
1 ~ 253 (1 by default)
Baudrate
38400bps ~ 1Mbps (1Mbps by default)
No-load current
160mA
Locked-rotor current
2.3A
Kt
19kg.cm/A
weight
100g
Feedback
Position, Load, Speed, Input Voltage, Current, Temperature
Aluminum alloy case + CNC Processing
To improve the heat tolerance, size stability, rigidity, and mechanical performance of the case
Brushless Motor + Steel Gear Box
to ensure the strength and durability of servo motor power transmission
High Precision 360° Magnetic Encoder
Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the carbon film potentiometer, the angle of the magnetic encoder is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the motor lifetime is effectively extended.
Large Torque, easy to use
Up To 45kg.Cm Torque On 24V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple motors
Note: the robot arm in the picture above is not included, but we provide its open-source drawing on the wiki. Please refer to the Package Content for detailed part list
UART Serial Bus Control
Up to 253 servo motors controlling at the same time, with simple wiring, reducing the occupation of the serial port
Note: though one channel UART can control up to 253 servo motors, due to the high power of the motors, it is necessary to consider whether the power supply solution is enough when using too many motors.
Acceleration Start-stop Function
The speed and acceleration values are settable to make the motion effect softer and reduce impact from inertia
One Button to Calibrate the Middle Position
360° installation at any position, one button to set the current position as middle position. Easy to install and debug
Click Release to unlock, then turn the servo motor to the middle position where you want to set
Click Set Middle Position then confirm.
Turn the servo motor to any angle, then click Middle, and the servo motor will automatically return to the middle position initially set.
Closed-loop feedback with real-time protection
The servo motor Will Provide Various Feedback Like Position, Load, Speed, Input Voltage, Current and Temperature In Real Time, with unloading force protection when the servo motor is overheated or overloaded
Multiple operation modes suitable for more application scenarios
Angle servo mode Default mode, the angle position is controllable at 0~360° degrees
Speed closed-loop mode Intelligently control and maintain speed when the load changes
Step mode Can perform step motion relative to the current position
Multi-Loop angle Position control
Supports angle position control in both positive and negative directions up to 7 loops under the default precision setting, but the number of loops will not be saved in case of power loss. Lowering the angle resolution can double the number of control loops
Usage Example

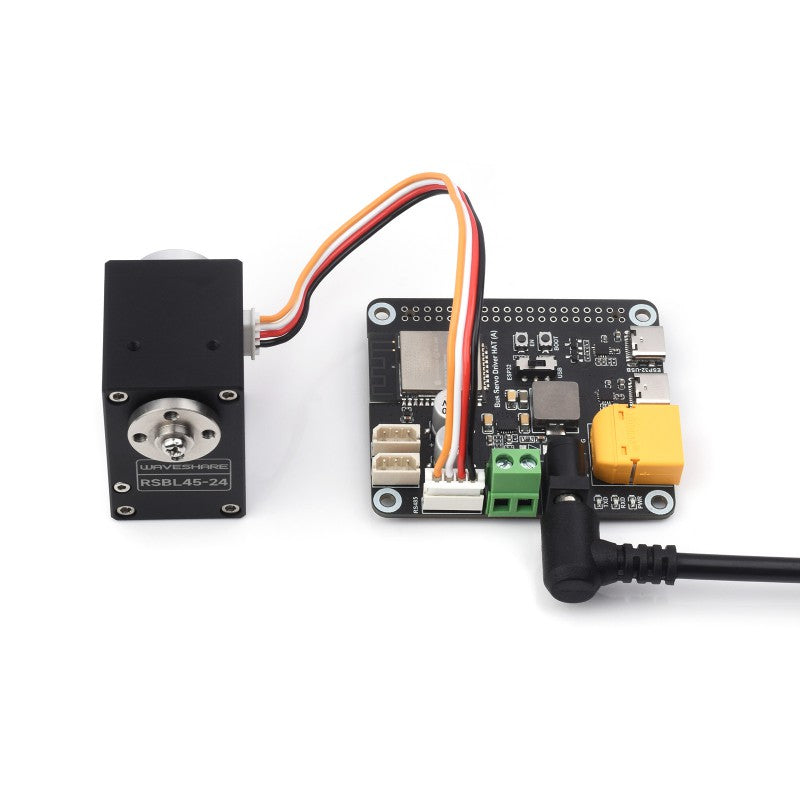

connecting withBus Servo Driver HAT (A)drive board, we provide open-source control demo of the servo motor
* for reference only, please refer to the Package Content for detailed part list
